Vivotek AE-252 Manuel utilisateur
IP Surveillance
Installation Guide
Using
AE-251/-252 Outdoor Enclosure,
AE-201/-202 Indoor Enclosure,
AM-114 Pendant Head (outdoor),
AM-116 and AM-117 Pendant Pipes,
AM-221 Gooseneck,
AM-212 Wall-mount bracket,
AM-311 Pole Mount,
AM-411 Corner Mount,
AM-711 Junction Box.
VIVOTEK IP8152 Mini Box Series
Outdoor Enclosure
Rev. 1.0
IP8152_housing_ig_VVTK_v1.0_20121206.indd 1 2013/1/10 下午 01:36:27
2
AE-251 and AE-252 Outdoor Enclosure Package Contents
Revison History:
Rev. 1.0: Initial release.
1. Enclosure.
2. Dome cover.
3. Power supply with cable.
4. Camera Mount bracket.
5. Dome clearance
measurement tool.
6. Screws.
AE-201 and AE-202 Indoor Recess Mount Housing Package Contents
1. Enclosure (indoor).
2. Dome cover.
3. Trim ring.
4. Camera Mount bracket.
5. Dome clearance measurement tool.
6. Screws.
IP8152_housing_ig_VVTK_v1.0_20121206.indd 2 2013/1/10 下午 01:36:28
3
English
Compatible VIVOTEK Cameras
1
AE-201
AE-202
AE-251
AE-252
IP8152
Mechanical Dimensions
IP8152_housing_ig_VVTK_v1.0_20121206.indd 3 2013/1/10 下午 01:36:29
4
IP8152_housing_ig_VVTK_v1.0_20121206.indd 4 2013/1/10 下午 01:36:34
5
English
Compatible Accessories (2): AM-311 Pole Mount
Bracket
Compatible Accessories (3): AM-411 Corner Mount Bracket
Compatible Accessories
2
Warning:
1. Select a suitable location where the camera is free from accidental damage, tampering,
or harsh environmental conditions.
2. Locate a place for the installation where the camera can not be intentionally or
unintentionally interfered.
3. Select a solid and at mounting surface that can support the combined weight of the
camera and associated hardware. Vibration and temperature ranage should also be
taken into consideration.
Compatible Accessories (1-1): AM-221 Gooseneck Bracket
Compatible Accessories (1-2): AM-212
Wall-mount Bracket
IP8152_housing_ig_VVTK_v1.0_20121206.indd 5 2013/1/10 下午 01:36:36
6
Compatible Accessories (4): AM-711 Junction Box
Compatible Accessories (5-2): AM-116 and AM-117 Pendant Pipe
Compatible Accessories (5-1): AM-114 Pendant Head
IP8152_housing_ig_VVTK_v1.0_20121206.indd 6 2013/1/10 下午 01:36:37
7
English
Mounting & Cabling with Outdoor Enclosures
3
3-1. Installing Camera to AE-251 and AE-252 Housing
Below is a general sample procedure using an outdoor enclosure:
1. Use a Phillips screwdriver to loosen the 2 screws on the sides of the camera bracket.
2. Detach the inner bracket by loosening the
four thumb screws on the sides.
IP8152_housing_ig_VVTK_v1.0_20121206.indd 7 2013/1/10 下午 01:36:38
8
3. The IP8152 supports 4 different lens modules. If you are installing the larger lens [AL-
231(2.8-12mm), and AL-234(5-50mm)], you need to remove the inner bracket and install
it in the opposite direction as shown below. Tighten the hand screws from the sides.
4. Reverse the inner bracket if the larger lens (AL-231 and AL-234) are used. Secure the
inner bracket from the sides as illustrated below.
-- 1
-- 3
-- 5
-- 7
-- 9
-- 11
-- 13
-- 15
2 --
4 --
6 --
8 --
10 --
12 --
14 --
16 --
-- 1
-- 3
-- 5
-- 7
-- 9
-- 11
-- 13
-- 15
2 --
4 --
6 --
8 --
10 --
12 --
14 --
16 --
Smaller lens:
Mounted on the
outer edge of
bracket
Larger lens:
Mounted inside the bracket
IP8152_housing_ig_VVTK_v1.0_20121206.indd 8 2013/1/10 下午 01:36:41
9
English

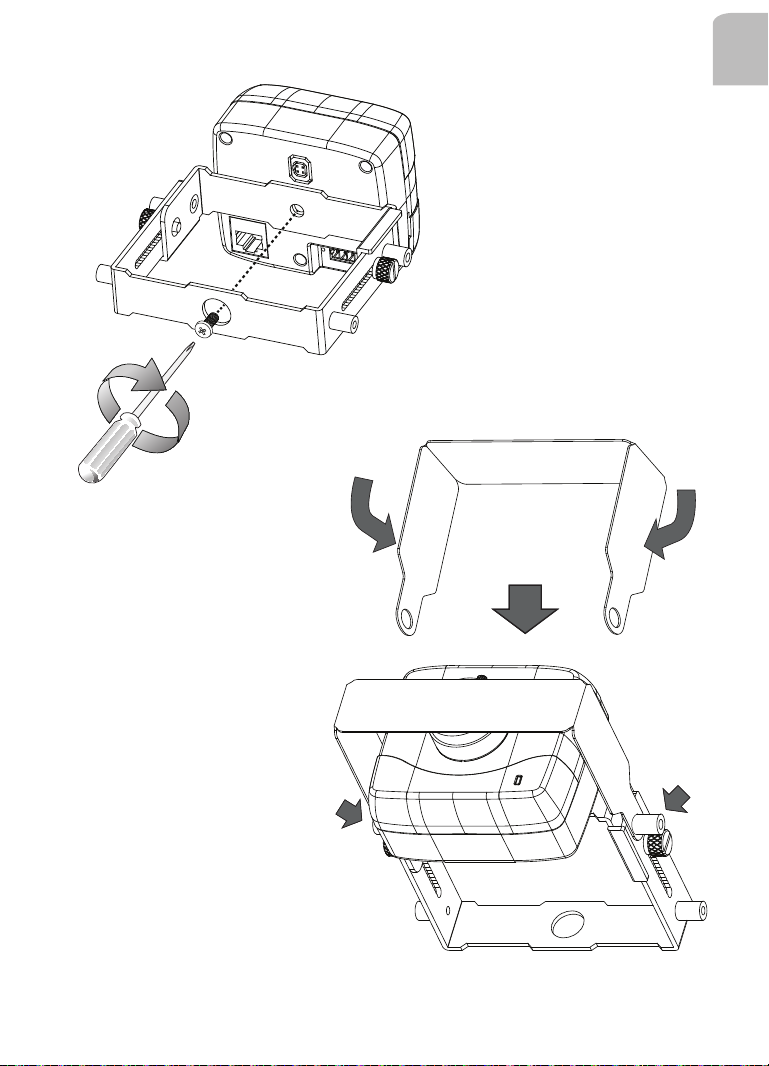

5. Secure camera to the bracket assembly by driving a athead screw.
6. Bend the included measurement
tool into a rectangular arch.
Attach the measurement tool
to the top of camera lens to
ensure your lens will not get in
the way when the dome cover
is installed.
The vertical length of the
measurement tool equals the
clearance between the bracket
and the dome cover.
IP8152_housing_ig_VVTK_v1.0_20121206.indd 9 2013/1/10 下午 01:36:42
10
.

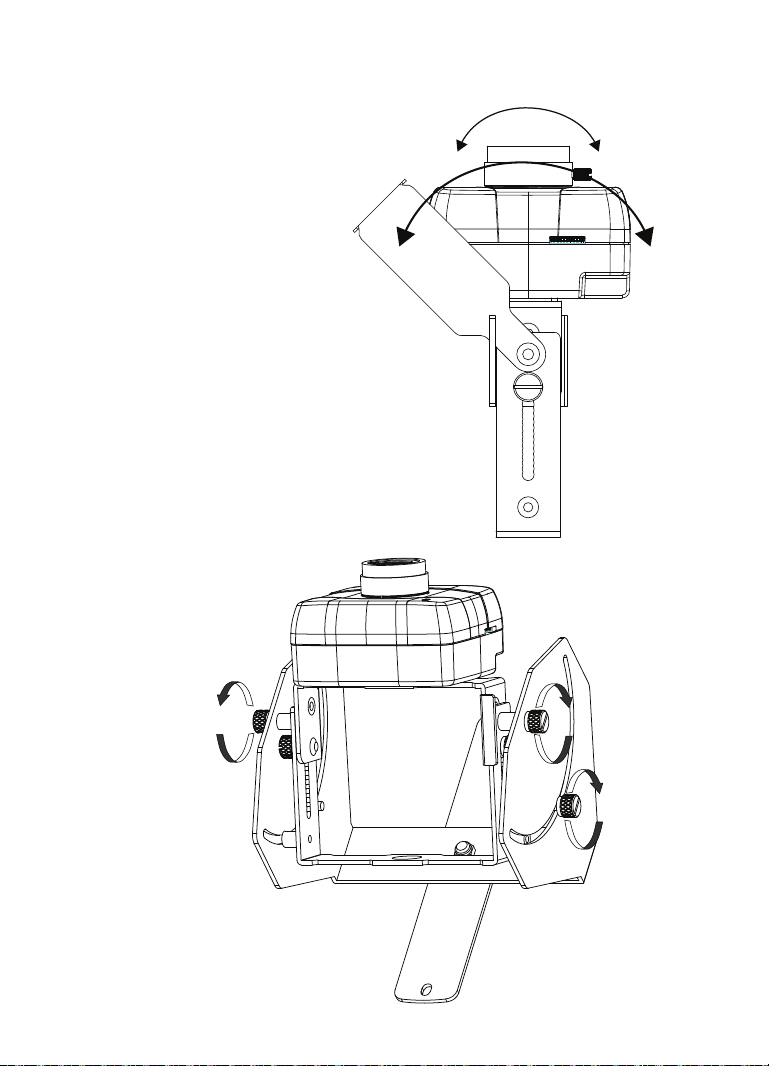

You should also swing the measurement tool and the camera back and forth to make
sure there is enough clearance at different shooting angles. You can make adjustments
by changing the camera's position along the bracket.
7. Secure the camera to the large base bracket by fastening
the 4 thumb screws while you orient your camera's
shooting direction.
IP8152_housing_ig_VVTK_v1.0_20121206.indd 10 2013/1/10 下午 01:36:43
