VEVOR XF-E004A-2 Manuel utilisateur

Technical Support and E-Warranty Certificate www.vevor.com/support

QUICK SUPPORT ROD

USER MANUAL

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an

estimate of savings you might benefit from buying certain tools with us compared to the major

top brands and doses not necessarily mean to cover all categories of tools offered by us. You

are kindly reminded to verify carefully when you are placing an order with us if you are

actually saving half in comparison with the top major brands.

- 1 -

MODEL: XF-E004A-2，XF-E004A-4

Have product questions? Need technical support? Please feel free to

CustomerService@vevor.com

NEED HELP? CONTACT US!

This is the original instruction, please read all manual instructions

carefully before operating. VEVOR reserves a clear interpretation of our

user manual. The appearance of the product shall be subject to the

product you received. Please forgive us that we won't inform you again if

there are any technology or software updates on our product.

QUICK SUPPORT ROD

- 2 -

GENERAL SAFETY RULES

WARNING: Read and understand all instructions. Failure to follow

all instructions listed below may result in serious injury.

Various dangers may occur if the hand lever grease gun is improperly

handled during installation, commissioning and daily operation.

Risk of injury and damage to material property because of improper

handling.

Hold the manual at the disposal of the operating staff at the usage site of

the unit.

Country-specific safety measures and accident prevention regulations

must be observed.

Persons are qualified if they are, due to their training, experience,

instruction and knowledge of the relevant standards, able to assess

assigned tasks and to identify potentially hazardous situations.

It is strictly prohibited to use the support rod for overload.

CAUTION:

Defective accessories can lead to personal injury and material damage.

During their period of use, accessories must be checked for wear,cracks,

and other damage.

Defective accessories should be replaced immediately.

SAVE THESE INSTRUCTIONS.

- 3 -

MODEL AND PARAMETERS

Model

XF-E004A-2

XF-E004A-4

Maximum Load Capacity

30kg

Adjustable Range

115 ~ 290cm

Support Feet

128*80mm

Material

Steel

Color

Blue

Packing quantity

2pcs

4pcs

- 4 -

STRUCTURE DIAGRAM

1. Adjusting leverⅠ

2. Release Button

3. Adjusting lever Ⅱ

4. Micro Adjustment Handle

5. Knob

6. Support Rod

7. Non-slip Pad

- 5 -

COMPONENTS

XF-E004A-2

XF-E004A-4

Quick Support Rod

Support Feet

Knob(M6)

Storage Bag

User Manual

Model

Parts

- 6 -

OPERATING INSTRUCTIONS

Operation Preparation:

1. Please prepare gloves to avoid being scratched by sharp parts that

may occur during installation.

2. Please open all the boxes to check that the accessories are complete

and in good condition.

Operation:

Step1：Buckle the support feet into both ends of the support rod, as shown

- 7 -

Step2：Multiple support rods can be selected according to the working

scenario, as shown in the following figure.

Support rod adjustment operation:

1) Loosen the knob to extend or shorten the rod and then tighten the

knob.

- 8 -

2) Press the handle to fine-tune the rod until it is fixed.

3) End of use and lift the release button to put away the rod.

- 9 -

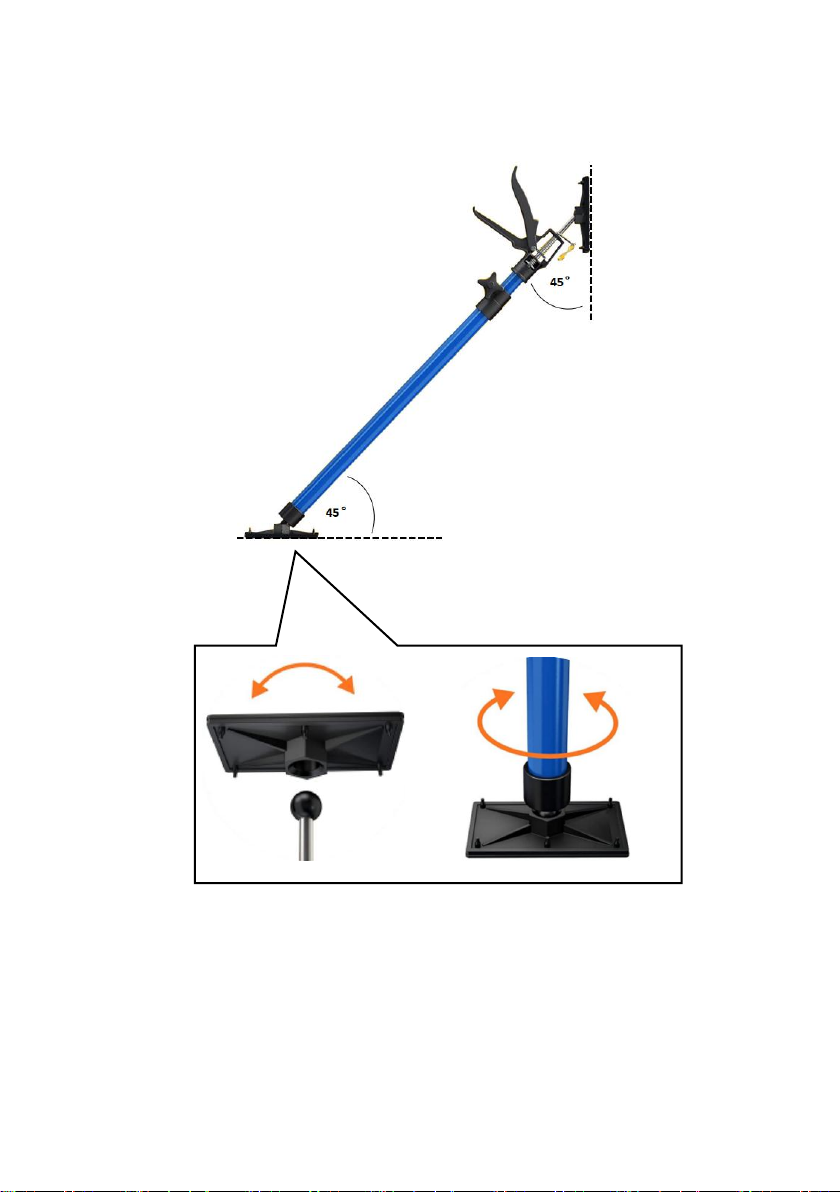

Step3：The support rod can also be used at any Angle, as shown below

Fully rotating head
