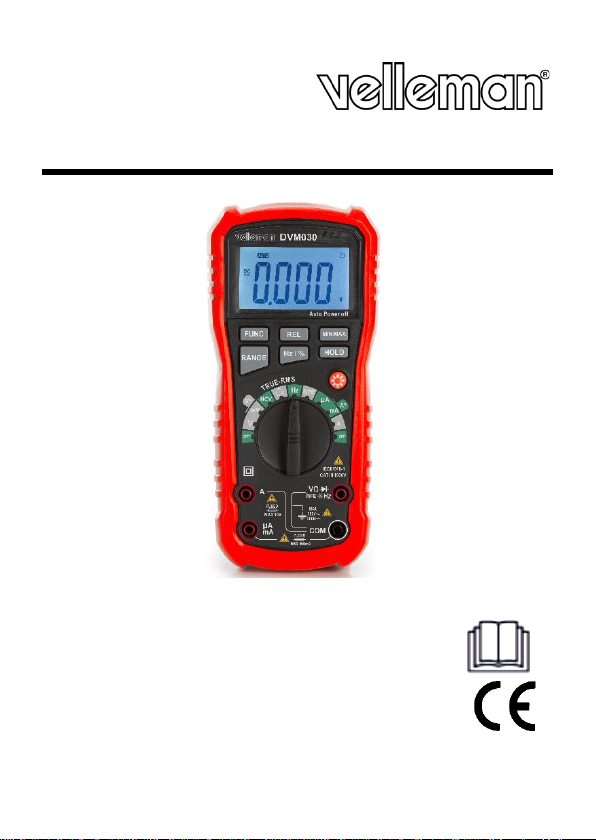

Velleman DVM030 Manuel utilisateur

DVM030

CATIII 1000V

USER MANUAL 3

HANDLEIDING 20

MODE D'EMPLOI 38

MANUAL DEL USUARIO 56

BEDIENUNGSANLEITUNG 74

INSTRUKCJA OBSŁUGI 93

MANUAL DO UTILIZADOR 111

DVM030

V. 01 –04/05/2023 2 ©Velleman Group nv

DVM030

V. 01 –04/05/2023 3 ©Velleman Group nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal

of the device after its lifecycle could harm the environment. Do

not dispose of the unit (or batteries) as unsorted municipal

waste; it should be taken to a specialized company for recycling.

This device should be returned to your distributor or to a local

recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before

bringing this device into service. If the device was damaged in transit, do

not install or use it and contact your dealer.

2. Symbols

AC (Alternating Current)

DC (Direct Current)

Both AC and DC

Risk of Electric shock. A potentially hazardous voltage is

possible.

Caution: risk of danger, the manual must be consulted in all

cases where this symbol is marked.

Warning: a hazardous condition or action that may result in

injury or death

Caution: condition or action that may result in damage to the

meter or equipment under test

Double insulation (class 2-protection)

Earth

Fuse

Capacitor

Diode

DVM030

V. 01 –04/05/2023 4 ©Velleman Group nv

Continuity

3. General Guidelines

Refer to the Velleman®Service and Quality Warranty on the last pages of

this manual.

This symbol indicates: Read instructions

Not reading the instructions and manual can lead to damage,

injury or death.

This symbol indicates: Danger

A hazardous condition or action that may result in injury or

death.

This symbol indicates: Risk of danger/damage

Risk of a hazardous condition or action that may result in

damage, injury or death.

This symbol indicates: Attention; important information

Ignoring this information can lead to hazardous situations.

WARNING: To avoid electrical shock always disconnect the

test leads prior to opening the housing. To prevent fire hazards,

only use fuses with the same ratings as specified in this manual.

Remark: refer to the warning on the battery compartment.

Avoid cold, heat and large temperature fluctuations. When the

unit is moved from a cold to a warm location, leave it switched

off until it has reached room temperature. This to avoid

condensation and measuring errors.

Protect this device from shocks and abuse. Avoid brute force

when operating.

Pollution degree 2-device. For indoor use only. Keep this device

away from rain, moisture, splashing and dripping liquids. Not for

industrial use. Refer to §8 Pollution degree.

Keep the device away from children and unauthorised users.

Risk of electric shock during operation. Be very careful

when measuring live circuits.

DVM030

V. 01 –04/05/2023 5 ©Velleman Group nv

There are no user-serviceable parts inside the device.

Refer to an authorized dealer for service and/or spare parts.

This is an installation category CAT III measuring

instrument. Refer to §7 Overvoltage/installation category.

Read this addendum and the manual thoroughly. Familiarise

yourself with the functions of the device before actually using it.

All modifications of the device are forbidden for safety reasons.

Damage caused by user modifications to the device is not

covered by the warranty.

Only use the device for its intended purpose. Using the device in

an unauthorized way will void the warranty. Damage caused by

disregard of certain guidelines in this manual is not covered by

the warranty and the dealer will not accept responsibility for any

ensuing defects or problems.

4. Maintenance

There are no user-serviceable parts inside the device.

Refer to an authorized dealer for service and/or spare parts.

Before performing any maintenance activities, disconnect the test leads

from the jacks.

For instructions on replacing battery or fuse, refer to §11 Battery and fuse

replacement.

Do not apply abrasives or solvents to the meter. Use a damp cloth and mild

detergent for cleaning purposes.

5. During Use

Risk of electric shock during operation. Be very careful when

measuring live circuits.

•If the equipment is used in a manner not specified by the

manufacturer, the protection provided by the equipment may be

impaired.

•Never exceed the limit value for protection. This limit value is

listed separately in the specifications for each range of

measurement.

•Do not touch unused terminals when the meter is linked to a

circuit which is being tested.

•Never use the meter with CAT III installations when measuring

voltages that might exceed the safety margin of 1000 V above

earth ground.

DVM030

V. 01 –04/05/2023 6 ©Velleman Group nv

•Set the range selector at its highest position if the intensity of the

charge to be measured is unknown beforehand.

•Disconnect the test leads from the tested circuit before rotating

the range selector in order to change functions.

•When carrying out measurements on a TV set or switching power

circuits, always remember that the meter may be damaged by

any high amplitude voltage pulses at test points.

•Always be careful when working with voltages above 60 VDC or

30 VAC rms. Keep your fingers behind the probe barriers at all

times during measurement.

•Never perform resistance, diode or continuity measurements on

live circuits. Make sure all capacitors in the circuit are depleted.

6. General Description

Refer to the illustration on page 2 of this manual:

1. Non-contact Voltage (NCV) induction position

2. LED indicator

3. Illuminated LCD Display

4. Function buttons

5. Rotaty switch

6. “A” jack

Insert the red test lead in this connector in order to measure a max.

current of 10 A.

7. “µA/mA” jack

Insert the red test lead in this connector in order to measure a max.

current of 500 mA.

8. “VhFE Hz”jack

Insert the red (positive) test lead in this connector to measure voltage

and resistance.

Or insert the black test plug between “VhFE Hz” jack and COM

jack for capacitance or hFE measurements.

9. “COM” jack

Insert the black (negative) test lead.

7. Overvoltage/Installation Category

DMMs are categorized depending on the risk and severity of transient

overvoltage that might occur at the point of test. Transients are short-lived

bursts of energy induced in a system, e.g. caused by lightning strike on a

power line.

DVM030

V. 01 –04/05/2023 7 ©Velleman Group nv

The existing categories according EN 61010-1 are:

CAT

A CAT I-rated meter is suitable for measurements on protected

electronic circuits that are not directly connected to mains power,

e.g. electronics circuits, control signals…

CAT

A CAT II-rated meter is suitable for measurements in CAT I-

environments and mono-phase appliances that are connected to the

mains by means of a plug and circuits in a normal domestic

environment, provided that the circuit is at least 10 m apart from a

CAT III- or 20 m apart from a CAT IV-environment. E.g. household

appliances, portable tools…

CAT

III

A CAT III-rated meter is suitable for measurements in CAT I- and

CAT II-environments, as well as for measurements on (fixed) mono-

or poly-phased appliances which are at least 10 m apart from of a

CAT IV-environment, and for measurements in or on distribution

level equipment (fuse boxes, lighting circuits, electric ovens).

CAT

A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II-

and CAT III-environments as well as on the primary supply level.

Note that for all measurements on equipment for which the supply

cables run outdoors (either overhead or underground) a CAT IV

meter must be used.

Warning:

This device was designed in accordance with EN 61010-1 installation

category CAT III 1000 V. This implies that certain restrictions in use apply

that are related to voltages and voltage peaks which can occur within the

environment of use. Refer to the table above.

This device is only suitable for measurements up to 1000 V in

CAT III

8. Pollution Degree

IEC 61010-1 specifies different types of pollution environments, for which

different protective measures are necessary to ensure safety. Harsher

environments require more protection, and the protection against the

pollution which is to be found in a certain environment depends mainly on

the insulation and the enclosure properties. The pollution degree rating of

the DVM indicates in which environment the device may be used.

Pollution

degree 1

No pollution or only dry, nonconductive pollution occurs. The

pollution has no influence. (only to be found in hermetically

sealed enclosures)

DVM030

V. 01 –04/05/2023 8 ©Velleman Group nv

Pollution

degree 2

Only nonconductive pollution occurs. Occasionally,

temporary conductivity caused by condensation is to be

expected. (home and office environments fall under this

category)

Pollution

degree 3

Conductive pollution occurs, or dry nonconductive pollution

occurs that becomes conductive due to condensation that is

to be expected.

(industrial environments and environments exposed to

outside air - but not in contact with precipitation)

Pollution

degree 4

The pollution generates persistent conductivity caused by

conductive dust or by rain or snow. (exposed outdoor

environments and environments where high humidity levels

or high concentrations of fine particles occur)

Warning: This device was designed in accordance with EN 61010-1

pollution degree 2. This implies that certain restrictions in use apply that

are related to pollution which can occur within the environment of use. Refer

to the table above.

This device is only suitable for measurements in Pollution

degree class 2 environments.

9. Specifications

This device is not calibrated when purchased!

Regulations concerning environment of use:

Use this meter only for measurements in CAT I, CAT II and CAT III

environments (see §7).

Use this meter only in a pollution degree 2 environment (see §8).

Ideal working conditions include:

•temperature: 18 °C to 28 °C

•relative humidity: max. 80 % RH

•altitude: max. 2000 m (6560 ft)

Auto power off: automatically power off about 15 minutes after meter

switched on

Overload display: “OL”

Polarity display: negative “-“

Operating temperature: 0℃-40℃

Storage temperature: -10℃-60℃

Low battery indication:

test lead probe: CAT III 1000 V / CAT IV 600 V, L = 100 cm

DVM030

V. 01 –04/05/2023 9 ©Velleman Group nv

Display Counts

4000 Counts

LCD Size (mm)

56 x 32

DC Voltage:

40mV / 400mV / 4V / 40V / 400V / 1000V

AC Voltage:

40mV / 400mV / 4V / 40V / 400V / 750V

DC Current:

400μA / 4mA / 40mA / 400mA /4A / 10A

AC Current:

400μA / 4mA / 40mA / 400mA /4A / 10A

Resistance:

400Ω/ 4kΩ/ 40kΩ/ 400kΩ/ 4MΩ/ 40MΩ

Range Select

Auto Range

Continuity Check

Yes

Diode Test

Yes

Data Hold

Yes

Battery Test (1.5V/3V/9V)

Over Range Indication

Yes

LED/flash Light

Backlight

Yes

Auto Power Off

Yes

Unit Icon Display

Yes

Low Battery Indication

Yes

Overrange Protection

Yes

NCV Detection

Yes

Live Wire Detection

Yes

True RMS Measurement

Yes

Battery

9V (6F22) x 1

Product Size (mm)

200x92x60

Product Weight (g)

230

Safety Category

CATIII 1000V

IP rating

IP20

Fuses

Replaceable

F 0.50 A / 1000 V, 6.35 x 32 mm ceramic

F 10A / 1000V, 6.35 x 32 mm ceramic

9.1 DC & AC VOLTAGE

Input impedance:10MΩ

Maximum input voltage: 1000V DC or 750V AC RMS

Frequency range: 40Hz - 1000Hz,

Display: TRUE RMS

Range

Resolution

DCV Accuracy

ACV Accuracy

40mV

10µV

±0.5%±5

±1.0%±20

400mV

100µV

±0.5%±5

±1.0%±5

1mV

±0.8%±3

±0.8%±5

40V

10mV

±0.8%±3

±0.8%±5

400V

100mV

±0.8%±3

±0.8%±5

DVM030

V. 01 –04/05/2023 10 ©Velleman Group nv

1000V

±1%±5

±1.0%±5

9.2 DC & AC CURRENT

Overload protection: fuse F500mA/1000V for mA range

fuse F10A/1000V for 10A range

Frequency range: 40Hz - 1000Hz, Display: TRUE RMS

Range

Resolution

DCA Accuracy

ACA Accuracy

400uA

0.1µA

±1.0%±5

±1.2%±5

4000uA

1µA

±0.8%±5

±1.2%±5

40mA

10µA

±0.8%±5

±1.5%±5

400mA

100µA

±0.8%±5

±1.5%±5

1mA

±1.0%±10

±1.8%±15

10A

10mA

±1.0%±10

±1.8%±15

Overload protection:

F 0.50 A / 1000 V, 6.35 x 32 mm

F 10A / 1000V, 6.35 x 32 mm

9.3 RESISTANCE

Do not conduct resistance measurements on live

circuits

Range

Resolution

Accuracy

400Ω

0.1Ω

±0.8%±5

4kΩ

1Ω

±0.8%±5

40kΩ

10Ω

±0.8%±5

400kΩ

100Ω

±0.8%±5

4MΩ

1kΩ

±0.8%±5

40MΩ

10kΩ

±1.2%±15

Overload protection: 250 V DC or AC rms

Table des matières

Langues :

Autres manuels Velleman Instrument de mesure

Velleman

Velleman E305EM5 Manuel utilisateur

Velleman

Velleman Personal Scope HPS10 Manuel utilisateur

Velleman

Velleman NETBPEM3 Manuel utilisateur

Velleman

Velleman INAA002 Manuel utilisateur

Velleman

Velleman DCM100 Manuel utilisateur

Velleman

Velleman DVM892 Manuel utilisateur

Velleman

Velleman DEM301 Manuel utilisateur

Velleman

Velleman WS8461 Manuel utilisateur

Velleman

Velleman DCA150B Manuel utilisateur

Velleman

Velleman Personal Scope HPS10 Manuel utilisateur

Velleman

Velleman DCM270 Manuel utilisateur

Velleman

Velleman PersonalScope HPS5 Manuel utilisateur

Velleman

Velleman HQ-Power ORBITER VDP201GLD Manuel utilisateur

Velleman

Velleman DVM1300 Manuel utilisateur

Velleman

Velleman 055405 Manuel utilisateur

Velleman

Velleman DVM 68 Manuel utilisateur

Velleman

Velleman AVM2050 Manuel utilisateur

Velleman

Velleman Personal Scope HPS50 Manuel utilisateur

Velleman

Velleman DVM1300 Manuel utilisateur

Velleman

Velleman DVM6013 Manuel utilisateur

Velleman

Velleman Personal Scope HPS10 Manuel utilisateur

Velleman

Velleman HC-SR05 Manuel utilisateur

Velleman

Velleman EMDIN02 Manuel utilisateur

Velleman

Velleman DEM900 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
