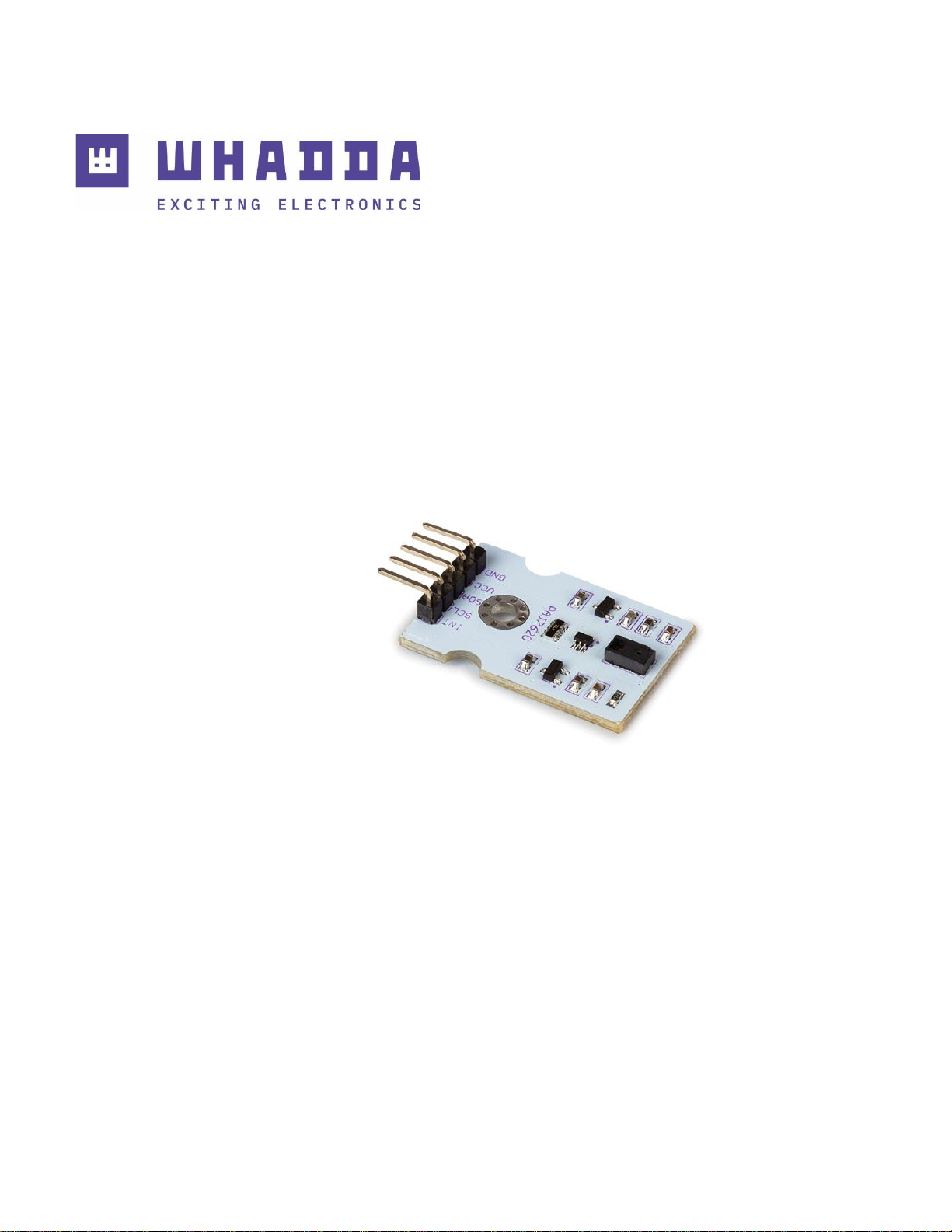

Velleman Whadda WPSE358 Manuel utilisateur

MANUAL

whadda.com

EN GESTURE RECOGNITION SENSOR MODULE

WPSE358

Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the

environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a

specialized company for recycling. This device should be returned to your distributor or to a local recycling

service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Whadda! Please read the manual thoroughly before bringing this device into service. If the

device was damaged in transit, do not install or use it and contact your dealer.

Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

For indoor use only.

•This device can be used by children aged from 8 years and above, and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning the use of the device in a safe way and understand

the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall

not be made by children without supervision.

General Guidelines

•Refer to the Velleman®Service and Quality Warranty on the last pages of this manual.

•All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the

device is not covered by the warranty.

•Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

•Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer

will not accept responsibility for any ensuing defects or problems.

•Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) –

of any nature (financial, physical…) arising from the possession, use or failure of this product.

•Keep this manual for future reference.

What is Arduino®

Arduino®is an open-source prototyping platform based on easy-to-use hardware and software.

Arduino®boards are able to read inputs –light-on sensor, a finger on a button or a Twitter message –

and turn it into an output –activating of a motor, turning on an LED, publishing something online. You

can tell your board what to do by sending a set of instructions to the microcontroller on the board. To

do so, you use the Arduino programming language (based on Wiring) and the Arduino®software IDE

(based on Processing). Additional shields/modules/components are required for reading a twitter

message or publishing online. Surf to www.arduino.cc for more information

Product overview

This sensor is able to detect 9 distinct gestures like up, down, forward, backward, rotating, ... to use as an

input for your project. Check out all gesture possibilities in the features below. The module interfaces to

your development board (e.g. Arduino® compatible board) using I²C and is able to detect and report various

gestures including moving up, down, left, right, forward, backwards, rotating clockwise and anti-clockwise,

and waving.

The module has a normal and game mode that can read your gestures at a different speed. The detection

distance is 10 cm and the ambient light immunity is <100k lux. This module has a 12C interface that is easy to

interface with microcontroller boards.

Specifications:

Supply voltage: 5 V DC

Working current: 50 mA

Max. power: 0.5 W

Detection distance: 10 cm max.

Gesture speed: 60 °/s –600 °/s (in normal mode), 60 °/s –1200 °/s (in game mode)

Ambient light immunity: < 100k lux

I²C communication speed: max. 400 kbit/s

Working temperature range: -25 - +65 °C

Interface connector: standard 5-pin pin header

Dimensions (W x L x H): 35,5 x 20,1 x 7 mm

Wiring description

Name

Arduino®connection

GND

Ground

GND

VCC

Supply voltage (5 V DC)

SDA

I²C data line

I²C SDA

(A4 on Arduino® Uno

compatible)

SCL

I²C clock line

I²C SCL

(A5 on Arduino® Uno

compatible)

Name

Arduino®connection

Example program

1. Use the Arduino Library manager to install the RevEng PAJ7620 library, by going to Sketch

> Include Library > Manage Libraries… , typing in paj7620 in the search bar, selecting the

correct library, and clicking “Install”:

2. Open the paj7620_9_gestures example sketch from the library you installed by going to

File > Examples > RevEng PAJ7629 > paj7620_9_gestures

3. Connect your Arduino compatible board, make sure the correct Board and connection port

are set in the tools menu, and hit Upload

4. Open the serial monitor by clicking the serial monitor button , make sure the baudrate is

set at 115200 baud. Try some gestures out in front of the sensor and they should appear on

the serial monitor!

whadda.com

Modifications and typographical errors reserved - © Velleman Group nv. WPSE358

Velleman Group NV, Legen Heirweg 33 - 9890 Gavere.
