Velbus manual VMB1BL – edition 1 – rev.2.0

VMB1BL

Blind Control Module

for VELBUS system

Velbus manual VMB1BL – edition 1 – rev.2.0

INDEX

Features ......................................................................................................................................... 3

Velbus data .................................................................................................................................... 3

Connection .................................................................................................................................... 4

Direct control through several push buttons............................................................................ 4

Control through the VELBUS system ...................................................................................... 6

Combination of direct push button and VELBUS control......................................................... 8

Connecting a 24V direct-current motor ................................................................................... 9

Use ............................................................................................................................................... 10

Termination ........................................................................................................................... 10

Addressing ............................................................................................................................ 11

Switch-off delay..................................................................................................................... 11

Operation .............................................................................................................................. 11

LED indication ....................................................................................................................... 11

Learning mode ...................................................................................................................... 12

Velbus manual VMB1BL – edition 1 – rev.2.0

Features:

VELBUS:

◊Can be used to control an electric roll-down shutter, sunblind...

◊Switching capacity at resistive load: 16A/230VAC max.

◊Switching capacity at inductive load: 8A/230VAC max.

◊Suppressed relay contacts.

◊Manual control on the module.

◊LED indications for:

•The UP and DOWN relay output

•The UP and DOWN control modes (fast, very fast or blinking twice and continuously ON)

•Power voltage

•Data reception and forwarding through VELBUS

◊4 possible switching times (adjustable through the ‘TIME OUT’ toggle switch): 15s - 30s - 1min - 2 min

◊Controllable by connecting several push buttons in parallel.

◊Push button input debounce: 65ms.

◊Controllable trough VELBUS.

◊Programmable without PC.

◊Easy learning process by pressing the desired push buttons in the learning mode.

◊Push button commands: up, down, immediately up and immediately down (the up and down commands will

be operated through a single push button as from firmware version 0804).

◊Storage space for 14 different push buttons per command group (11 per command group as from firmware

version 0804).

◊Learned push buttons will be saved in case of power failure.

◊Reporting towards the control modules in case of LED status modification.

◊250 possible addresses (adjustable through the ‘ADDR’ rotating switches)

◊Required mains voltage: 12 ... 18VDC.

◊Consumption in standby: 30mA at 18V (15mA at 16V)

◊Consumption activated relay: 80mA at 18V (60mA at 16VDC)

◊Max. consumption (activated relay and push button input): 95mA at 18V (75mA at 16VDC)

◊Standard DIN rail housing (2 modules)

◊Dimensions (L x W x H): 90 x 36 x 58mm.

◊Weight: 110g

2-wire communication for the VELBUS data and 2 wires for power.

Data transfer: 16,6Kbit/s.

Serial data protocol: CAN (Controller Area Network)

Short-circuit proof (towards negative or positive of power)

Bus error indication: 2 x short flash of the operation mode LED.

Self restoring after 25 seconds in case of a bus error.

Possibility to assign a name (max. 16 characters) to the UP and DOWN output which can be saved in the non-

volatile memory.

The module can react to the push button instructions sent over the VELBUS.

Reporting on the VELBUS in case of a modification of the blind control module.

In case of a modification of the output, the module will send instructions to modify the status of the LEDs on

the control modules.

The instructions will be accepted when calling up the module type, the output names, the module status,

reading from or writing on the non-volatile memory, the rising, the descending and the stopping of the shutter.

The module can respond with the module type, the output names, the module status or the contents from the

memory.

Velbus manual VMB1BL – edition 1 – rev.2.0

CONNECTION

For connection between the modules, use twisted pair cable (ex. EIB 2x2x0.8mm2, UTP 8x0.51mm - CAT5 or

other). Use minimum 0.5mm² cable. For long wiring (>50m) or if a lot of modules ( > 10) are connected to one

wire, use 1mm² cable. Connect the 12-18Vdc (mind the polarity) and connect the bus wires (mind the polarity).

Connect the roll-down shutter motor according to the drawing below.

The roll-down shutter can be controlled through push buttons which are directly connected to the push button

inputs by using the VELBUS or a combination of both.

Direct control through several push buttons:

12V

COM

LDOWNUP

AC POWER

OUT

TIME

ADDR

MUP

DOWN

DOWN PUSH BUTTONS

LH UPDWN

BUS

VMB1BL

UP PUSH BUTTONS

12V SUPPLY

Remark:

To cut the communication with the VELBUS system, enter the address as ‘00’ so as not to report modifications

in the status. Clear all learned push buttons (see learning mode) so as not to send any instructions over the

VELBUS to control the indication LEDs of the push buttons.

If this is not the case, the blind control module will create a bus error with each status modification.

Velbus manual VMB1BL – edition 1 – rev.2.0

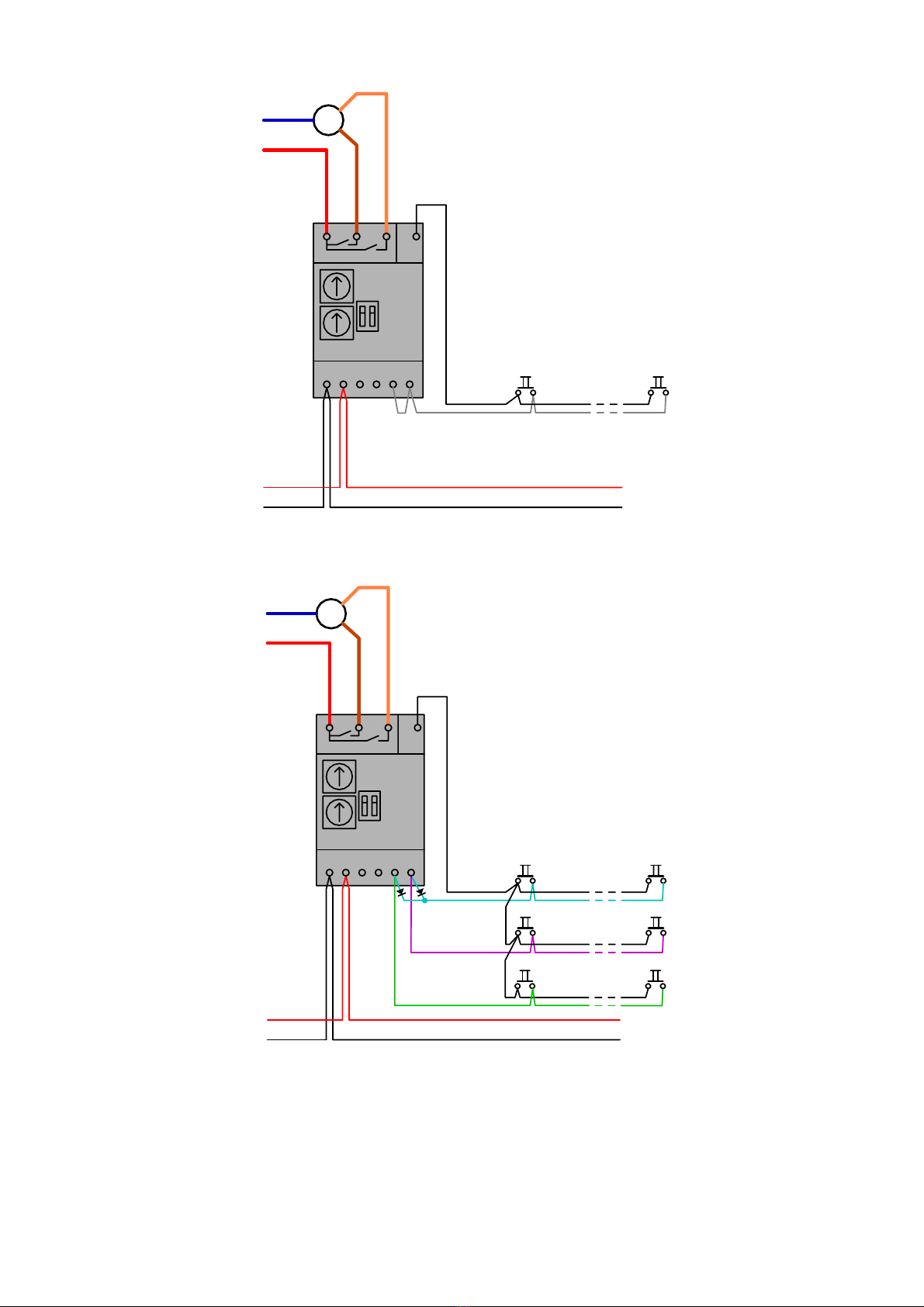

The up and down commands will be operated through a single push button as from firmware version 0804.

12V

COM

LDOWNUP

AC POWER

OUT

TIME

ADDR

DOWN

LH UPDWN

BUS

VMB1BL

ONE BUTTON CONTROL

12V SUPPLY

Connection of the up and down commands, and the commands through a single push button is possible by using

2 diodes (1N4007).

12V

COM

LDOWNUP

AC POWER

OUT

TIME

ADDR

DOWN

UP BUTTON CONTROL

LH UPDWN

BUS

VMB1BL

ONE BUTTON CONTROL

12V SUPPLY

DOWN BUTTON CONTROL

2 DIODES (1N4007)

Velbus manual VMB1BL – edition 1 – rev.2.0

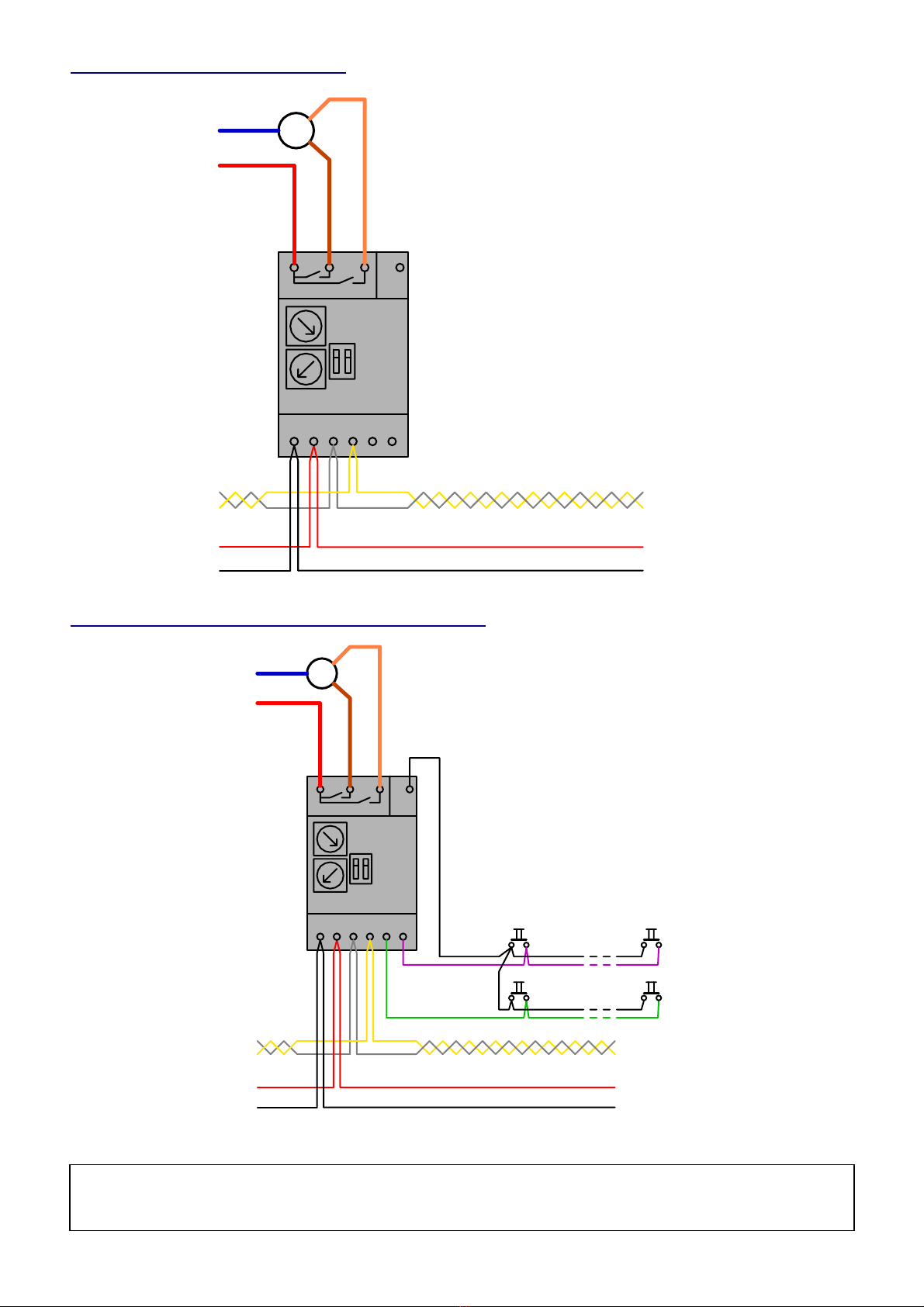

Control through the VELBUS system:

LH UPDWN

BUS

VMB1BL

12V SUPPLY

BUS

TWISTED

PAIR (0.5mm )

12V

COMLDOWNUP

AC POWER

OUT

TIME

ADDR

MUP

DOWN

Combination of direct push button and VELBUS control:

LH UPDWN

BUS

VMB1BL

UP PUSH BUTTONS

12V SUPPLY

BUS

TWISTED

PAIR (0.5mm )

12V

COMLDOWNUP

AC POWER

OUT

TIME

ADDR

MUP

DOWN

DOWN PUSH BUTTONS

Remark:

Connect the bus (mind the polarity) to the module. Use a twisted pair cable with a 0.5mm2gauge or more with

very long connections.

Velbus manual VMB1BL – edition 1 – rev.2.0

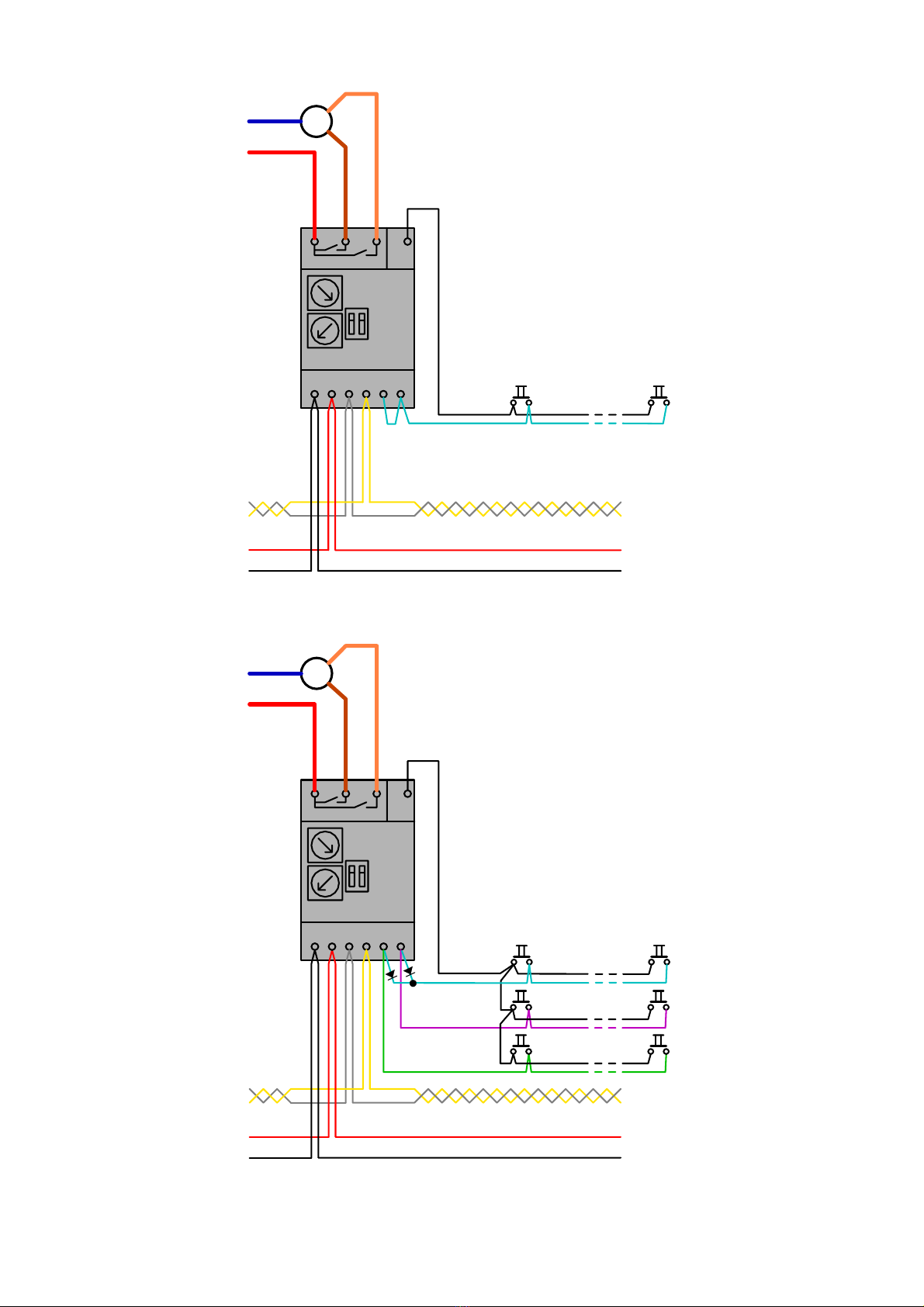

The up and down commands will be operated through a single push button as from firmware version 0804.

LH UPDWN

BUS

VMB1BL

ONE BUTTON CONTROL

12V SUPPLY

BUS

TWISTED

PAIR (0.5mm )

12V

COMLDOWNUP

AC POWER

OUT

TIME

ADDR

MUP

DOWN

Connection of the up and down commands, and the commands through a single push button is possible by using

2 diodes (1N4007).

LH UPDWN

BUS

VMB1BL

UP BUTTON CONTROL

12V SUPPLY

BUS

TWISTED

PAIR (0.5mm )

12V

COMLDOWNUP

AC POWER

OUT

TIME

ADDR

MUP

DOWN

DOWN BUTTON CONTROL

ONE BUTTON CONTROL

2 DIODES (1N4007)

Velbus manual VMB1BL – edition 1 – rev.2.0

Connecting a 24V direct-current motor

You can connect a 24V direct-current motor by using a transformer with 2 secondary windings and a bridge

rectifier.

LH UPDWN

BUS

VMB1BL

UP PUSH BUTTONS

12V SUPPLY

BUS

TWISTED

PAIR (0.5mm )

12V

COMLDOWNUP

OUT

TIME

ADDR

DOWN PUSH BUTTONS

24V

24DC

Motor

MAINS

24V

Velbus manual VMB1BL – edition 1 – rev.2.0

L H UPDWN

BUS

12V

COMLDOWN UP

TIME

DDR

TERM

VELBUS

Direct push button control

(up and down)

12V supply

Up operation mode LED

Manuel up operation

Down operation mode LED

Up indication LED

Direct push button control

(COM connection)

Relay contacts for blind motor control

Forwardin

LED

Reception LED

Power LED

Address setting

Switch-off setting

Termination

Down indication LED

Manuel down operation

OUT

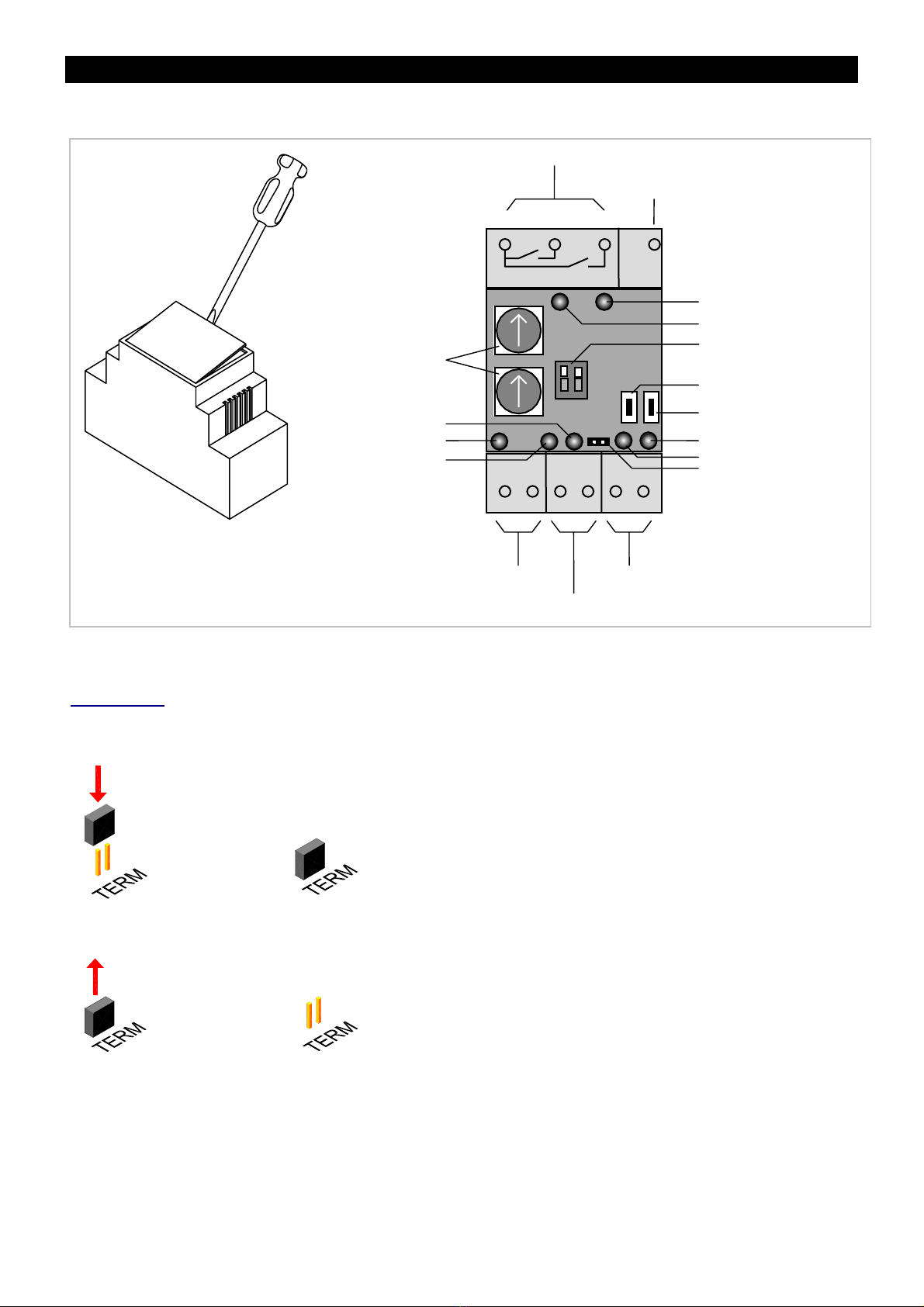

USE:

Remove the lid on the blind control module using a small screwdriver to modify the configuration.

Replace the lid.

Termination:

If the module is connected at the start or end of a cable on the VELBUS, place the ‘TERM’ jumper.

Remove the jumper in all other cases.

If different cable wiring topologies (tree, star, loop, ...) are used, place a jumper on the end module of the longest

cable only, NOT on each end point.

Velbus manual VMB1BL – edition 1 – rev.2.0

Addressing:

Enter a unique address (from ‘00’ to ‘FE’ except for 'B1', ‘C1’, ‘D1’, ‘E1’, ‘F1’ and ‘FF’) for each module through the

‘ADDR’ rotating switches. These addresses can be used to learn the push buttons.

In case of a modification of the addresses, the UP and DOWN outputs will be disabled and all LEDs of the

corresponding push buttons will be turned out.

Switch-off delay:

The complete rise or descent of the roll-down shutter (or blind) takes some time. The output of the blind control

module has to be activated during min. this period of time. To avoid surcharging the engine, the output of the

module will shut off after a period depending on the setup of the bipolar toggle switch.:

TIME OUT

switch 1

TIME OUT

switch2

Switch-off

delay

On On 15s

Off On 30s

On Off 1min

Off Off 2min

Enter a time which is just a little longer than the time needed for the shutter to rise or descend completely

Operation:

•A short press on the UP or DOWN push button will rise or descend the roll-down shutter. After the set switch-

off delay the module will switch off automatically.

•Stop the shutter at any time by pressing a push button of the opposite direction.

•Maintaining the UP or DOWN push button pressed will move the shutter until the push button is released or

the switch-off delay has expired.

•Pressing the UP and DOWN push buttons simultaneously will switch off the shutter motor.

•Pressing the IMMEDIATE UP push button will rise the shutter completely even if it was descending.

•Pressing the IMMEDIATE DOWN push button will descend the shutter completely even if it was rising.

•The up and down commands will be operated through a single push button as from firmware version 0804.

Operate this push button to move the blind, operate again to stop the blind, operate again to move the blind in

the opposite direction. Press and hold the push button and release to stop the blind motor.

LED indication:

The LEDs of the control modules and the operation LEDs on the blind control module will indicate the status:

•The power LEDs do not light up if the DOWN and UP outputs are switched off.

•The DOWN power LED blinks if the DOWN output is switched on and the switch-off delay has started.

•The DOWN power LED lights if the DOWN output is switched on and the switch-off delay is not activated.

•The UP power LED blinks if the UP output is deactivated and the switch-off delay has started.

•The UP power LED lights if the UP output is activated and the switch-off delay is not activated.

Table des matières

Autres manuels Velleman Unité de contrôle

Velleman

Velleman DVM97CM Manuel utilisateur

Velleman

Velleman VMM006 Manuel utilisateur

Velleman

Velleman K8006 Manuel utilisateur

Velleman

Velleman VM131 Manuel utilisateur

Velleman

Velleman VM134 Manuel utilisateur

Velleman

Velleman Whadda WPI471 Manuel utilisateur

Velleman

Velleman Whadda WPM300 Manuel utilisateur

Velleman

Velleman VMA410 Manuel utilisateur

Velleman

Velleman Velbus VMB1RY Manuel utilisateur

Velleman

Velleman VMA214 Manuel utilisateur

Velleman

Velleman VMA406 Manuel utilisateur

Velleman

Velleman VMA435 Manuel utilisateur

Velleman

Velleman Whadda WPM457 Manuel utilisateur

Velleman

Velleman ARDUINO VMA308 Manuel utilisateur

Velleman

Velleman K8008 Manuel utilisateur

Velleman

Velleman VMA422 Manuel utilisateur

Velleman

Velleman Whadda WPM463 Manuel utilisateur

Velleman

Velleman VMA323 Manuel utilisateur

Velleman

Velleman K8032 Manuel utilisateur

Velleman

Velleman WHADDA MMA8452 Manuel utilisateur

Velleman

Velleman VMA341 Manuel utilisateur

Velleman

Velleman Whadda WPI304 Manuel utilisateur

Velleman

Velleman Whadda WPM48 Manuel utilisateur

Velleman

Velleman Whadda WPSE358 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
