Vaisala CARBOCAP GMW80 Series Manuel utilisateur

M211748EN-A

USER'S GUIDE

Vaisala CARBOCAP® Carbon Dioxide and

Temperature Transmitters GMW80 Series

PUBLISHED BY

Vaisala Oyj

Street address: Vanha Nurmijärventie 21, FI-01670 Vantaa, Finland

Mailing address: P.O. Box 26, FI-00421 Helsinki, Finland

Phone: +358 9 8949 1

Fax: +358 9 8949 2227

Visit our Internet pages at www.vaisala.com.

No part of this manual may be reproduced, published or publicly displayed in

any form or by any means, electronic or mechanical (including photocopying),

normay its contents be modified, translated, adapted, sold or disclosed to a third

party without prior written permission of the copyright holder. Translated

manuals and translated portions of multilingual documents are based on the

original English versions. In ambiguous cases, the English versions are

applicable, not the translations.

The contents of this manual are subject to change without prior notice.

This manual does not create any legally binding obligations for Vaisala towards

customers or end users. All legally binding obligations and agreements are

included exclusively in the applicable supply contract orthe General Conditions

of Sale and General Conditions of Service of Vaisala.

Table of Contents

1 General Information 2

About This Document 2

Documentation Conventions 2

Safety 3

ESD Protection 3

Recycling 3

Regulatory Compliances 4

Trademarks 4

Software License 4

Warranty 4

2 Product Overview 5

Introduction to GMW80 Series 5

Transmitter Models 5

Transmitter Parts 6

Temperature Setpoint Potentiometer 8

Analog Output Overrange Behavior 9

3 Installation 10

Selecting Location 10

Opening and Closing the Transmitter 11

Installing the Mounting Base 12

Wiring 13

Wiring GMW86P 14

Wiring GMW86PT 14

4 Maintenance 15

Cleaning 15

Replacing the CO2 Measurement Module (GM10) 16

5 Troubleshooting 17

Problem Situations 17

Error State 18

Technical Support 19

Product Returns 19

6 Technical Data 20

Specifications 20

Dimensions 22

Spare Parts and Accessories 23

1GENERAL INFORMATION

About This Document

This document provides information for installing, operating, and maintaining

GMW80 series transmitters.

Document Code Description

M211748EN-A November 2014. First version.

Table 1 Version Information

Document Code Description

M211660EN GM10 Quick Guide

Table 2 Related Documents

Documentation Conventions

Warnings alert you to a serious hazard. If you do not read and

follow instructions very carefully at this point, there is a risk of

injury or even death.

Cautions warn you of a potential hazard. If you do not read and

follow instructions carefully at this point, the product could be

damaged or important data could be lost.

Notes highlight important information on using the product.

1 General Information

Safety

The GMW80 series transmitter delivered to you has been tested for safety and

approved as shipped from the factory. Note the following precautions:

Connect only de-energized wires.

Do not modify the unit. Improper modification can damage the

product or lead to malfunction.

ESD Protection

Electrostatic Discharge (ESD) can cause immediate or latent damage to

electronic circuits. Vaisala products are adequately protected against ESD for

their intended use. It is possible to damage the product, however, by delivering

electrostatic discharges when touching, removing, or inserting any objects

inside the equipment housing.

To make sure you are not delivering high static voltages yourself, avoid touching

exposed component contacts during installation and maintenance.

Recycling

Recycle all applicable material.

Dispose of the unit according to statutory regulations. Do not

dispose of with regular household refuse.

1 General Information

Regulatory Compliances

GMW80 series is in conformity with the following directives:

nRoHS-Directive

nEMC-Directive

The conformity is declared with using the following standards:

nEN50581: Technical documentation for the assessment of

electrical and electronic products with respect to the restriction

of hazardous substances.

nEN 61326-1: Electrical equipment for measurement, control,

and laboratory use – EMC requirements – Immunity test

requirements for equipment intended to be used in an

industrial electromagnetic environment.

nEN 550022: Information technology equipment – Radio

disturbance characteristics – Limits and methods of

measurement.

Trademarks

CARBOCAP®is a registered trademark of Vaisala Oyj.

All other trademarks referred to are the property of their respective owners.

Software License

This product contains software developed by Vaisala. Use of the software is

governed by license terms and conditions included in the applicable supply

contract or, in the absence of separate license terms and conditions, by the

General License Conditions of Vaisala Group.

Warranty

Visit our Internet pages for more information and our standard warranty terms

and conditions: www.vaisala.com/warranty.

Please observe that any such warranty may not be valid in case of damage due

to normal wear and tear, exceptional operating conditions, negligent handling or

installation, or unauthorized modifications. Please see the applicable supply

contract or Conditions of Sale for details of the warranty for each product.

1 General Information

2PRODUCT OVERVIEW

Introduction to GMW80 Series

The Vaisala GMW80 series CARBOCAP® carbon dioxide and temperature

transmitters are wall-mount transmitters designed to fulfill the needs for CO2

measurements in standard demand controlled ventilation applications. The CO2

measurement is based on a new generation CARBOCAP® sensor, which uses

a novel, silicon-based microchip emitter instead of an incandescent light bulb.

The internal reference in the CO2sensor guarantees the best stability and

operation also in constantly occupied buildings without frequent readjustments.

All GMW80 series transmitters measure carbon dioxide (CO2) and temperature

(T). GMW86PT includes a temperature set-point potentiometer.

The CARBOCAP® sensors give correct CO2measurements immediately when

powered on. As they have a built-in reference measurement they do not need a

lengthy learning phase before the measured values are correct. Proper

operation can be verified immediately after snapping on the device cover.

Transmitter Models

Model CO2Output(s) T Output T Setpoint Potentiometer

GMW80P 1 x 4 ... 20 mA

1 x 0 ... 10 V

Pt1000 (passive) No

GMW80PT 1 x 4 ... 20 mA

1 x 0 ... 10 V

Pt1000 (passive) Yes

Table 3 GMW80 Series Transmitters

2 Product Overview

Transmitter Parts

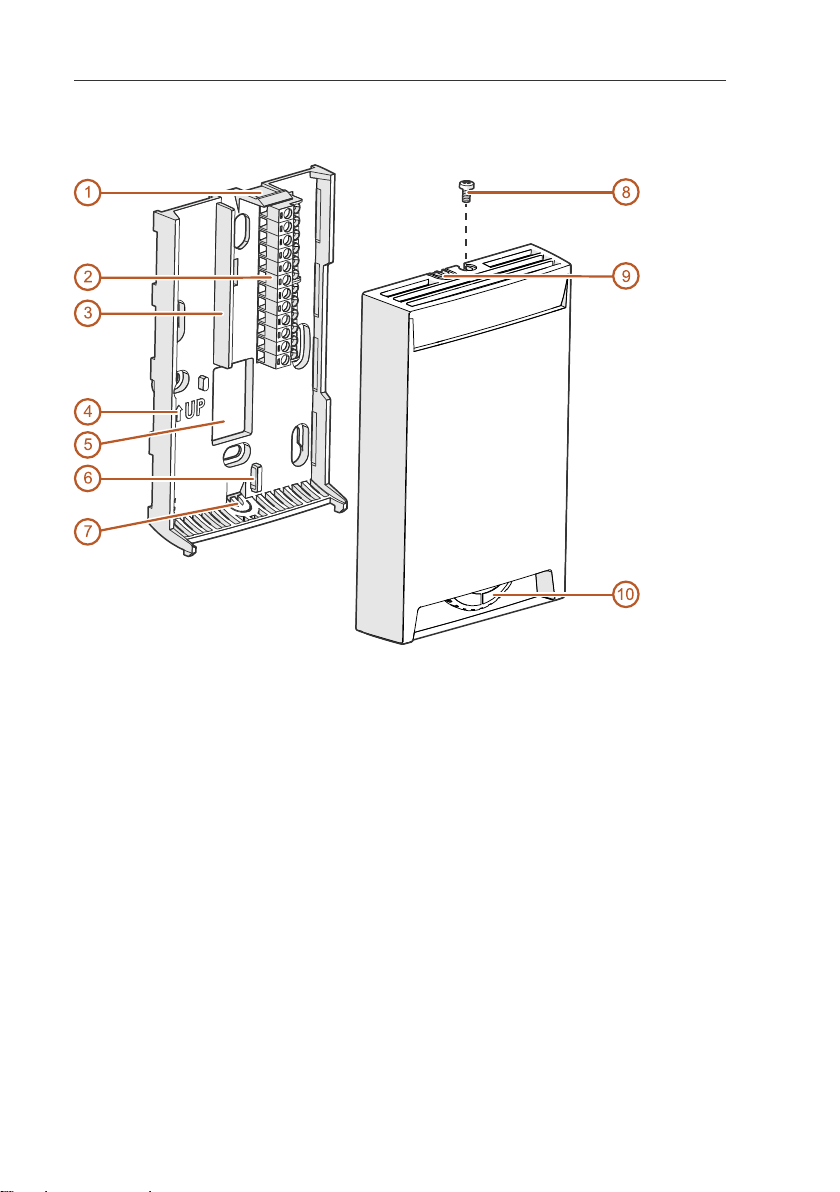

Figure 1 GMW80 Series Transmitter Parts

1 = Opening tab.

2 = Screw terminals. The wiring information is marked on the mounting base

next to the terminals.

3 = Barrier to prevent the cable from being routed below the GM10

measurement module. The area to avoid is marked No cable on the

mounting base.

4 = Orientation arrow. Should point up after the mounting base has been

installed.

5 = Opening for cable when wiring from behind(recommended).

6 = Place for zip tie (optional, for cable strain relief).

7 = Breakaway tab for routing the cable from below.

8 = Locking screw. Supplied with the transmitter.

9 = Breakaway tab for routing the cable from the top.

10 = Setpoint wheel (model GMW86PT only).

2 Product Overview

Figure 2 GMW80 Series Component Board Parts

1 = Pins that connect the transmitter cover to the screw terminals when the

transmitter cover is in place.

2 = Pt1000 temperature sensor.

3 = GM10 carbon dioxide measurement module.

4 = Potentiometer component (model GMW86PTonly).

2 Product Overview

Temperature Setpoint Potentiometer

Some GMW80 series transmitter models include a temperature setpoint function

that gives the occupant of the monitored space a way to adjust the temperature.

The setpoint function is implemented using a passive 10 kΩ potentiometer

(variable resistor) that is mechanically actuated by a setpoint wheel on the lower

part of the transmitter.

The transmitter is simply marked with plus "+" and minus "-" signs to indicate the

direction of adjustment. The rotation of the wheel is mechanically limited to

approximately 180degrees, so in actual use the resistance range of the

potentiometer varies between approximately 2.1 kΩ and 7.2 kΩ. The

corresponding temperature change is decided on the building controller level.

Setpoint wheel at midpoint:

~4.65kΩresistance.

Setpoint wheel at minimum:

~2.1kΩresistance.

Setpoint wheel at maximum:

~7.2kΩresistance.

2 Product Overview
