USX-MOUNT SML018-1-01 Manuel utilisateur
SML018-1-01
INSTRUCTION MANUAL
R
For 32-90" TV
If you have any questions along the way, just message
to us. We’re ready to help!
USA-B2
Before getting started, let’s check below lists to make sure it is just right for you!
2
3
4
5
Does your TV
(including accessories)
weigh MORE than
150 lbs. (68.2 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(NOT INCLUDE)
Tape
Measure
CAUTION
Pencil Screw
driver
Electric
Drill
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
Drywall with
wood studs? CAUTION:
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Solid concrete
1/2 in.
(13 mm)
Socket
Wrench
Stud
Finder
7/32 in.
(5.5 mm)
Wood
Drill Bit
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
3/8 in.
(10 mm)
Masonry
Drill Bit
Hammer
1
Check your TV
VESA is within
Min and Max size
No? This mount is NOT compatible.
Yes? Perfect !
MAX:600mm/23.62"
(MIN:200mm/7.87")
MAX:400mm/15.75"
(MIN:100mm/3.94")
?
2
DO NOT
install into
drywall alone
150 LBS
(68.2 kg)
CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS
!
Concrete Install
Per
fect!
Per
fect!
Wood Stud Install
!
!
Unsure?
Mail to us via Amazon.
TV INTERFACE
3-D
WALL PLATE

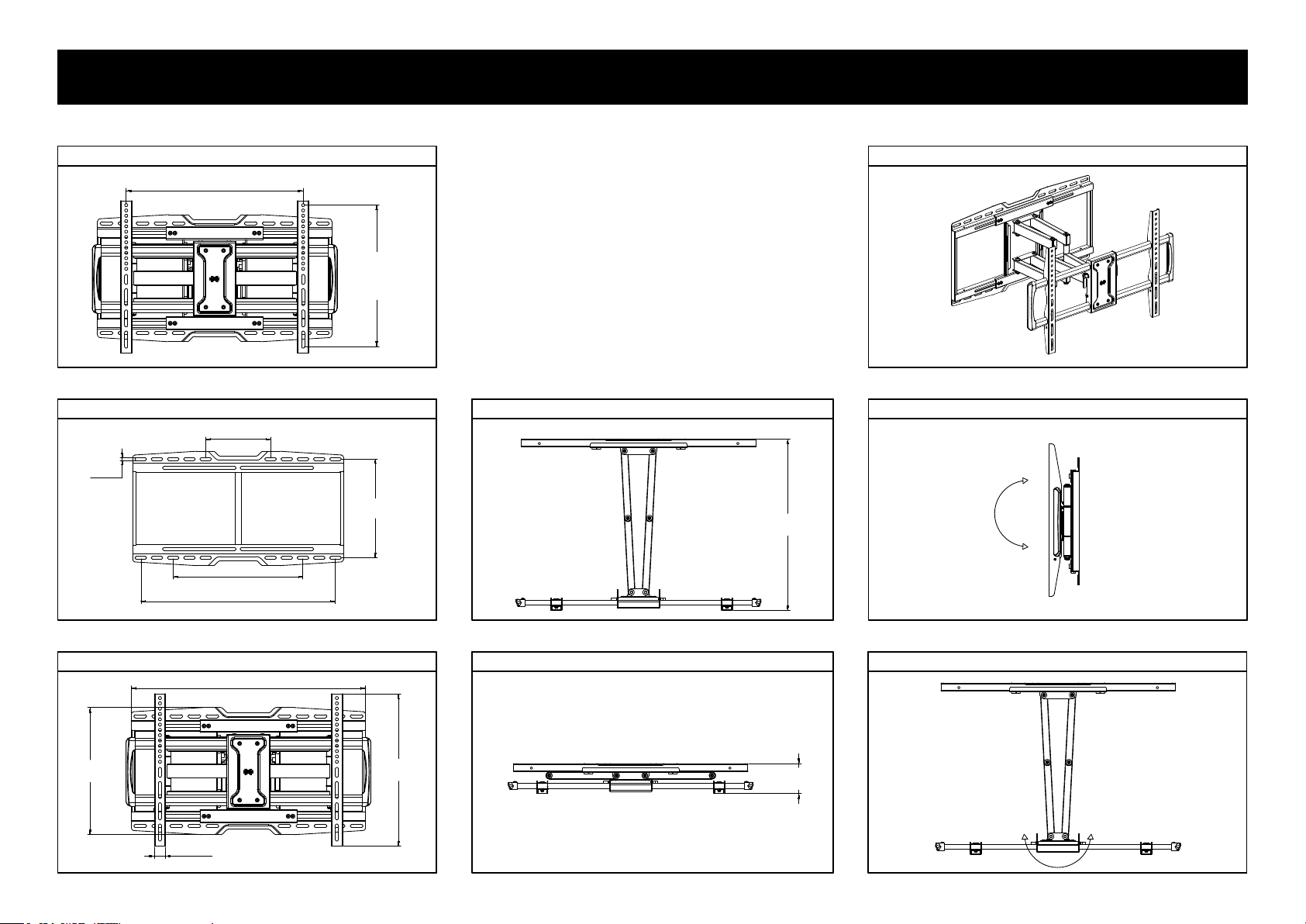

FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED
TOP VIEW - EXTENDED
SIDE VIEW - RETRACTED
+5°
-15°
TOP VIEW - EXTENDED
+45°
-45°
MAX:600mm[23.62in]
MIN:200mm[7.87in]
203mm
[8.00in]
406mm
[16.00in]
610mm
[24.00in]
310mm
[12.20in]
9mm
[0.35in]
662mm
[26.06in]
430mm
[16.93in]
359mm
[14.13in]
32mm
[1.26in]
485mm
[19.09in]
85mm
[3.35in]
MAX:400mm
[15.75in]
MIN:100mm
[3.94in]
3
Dimensions
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.

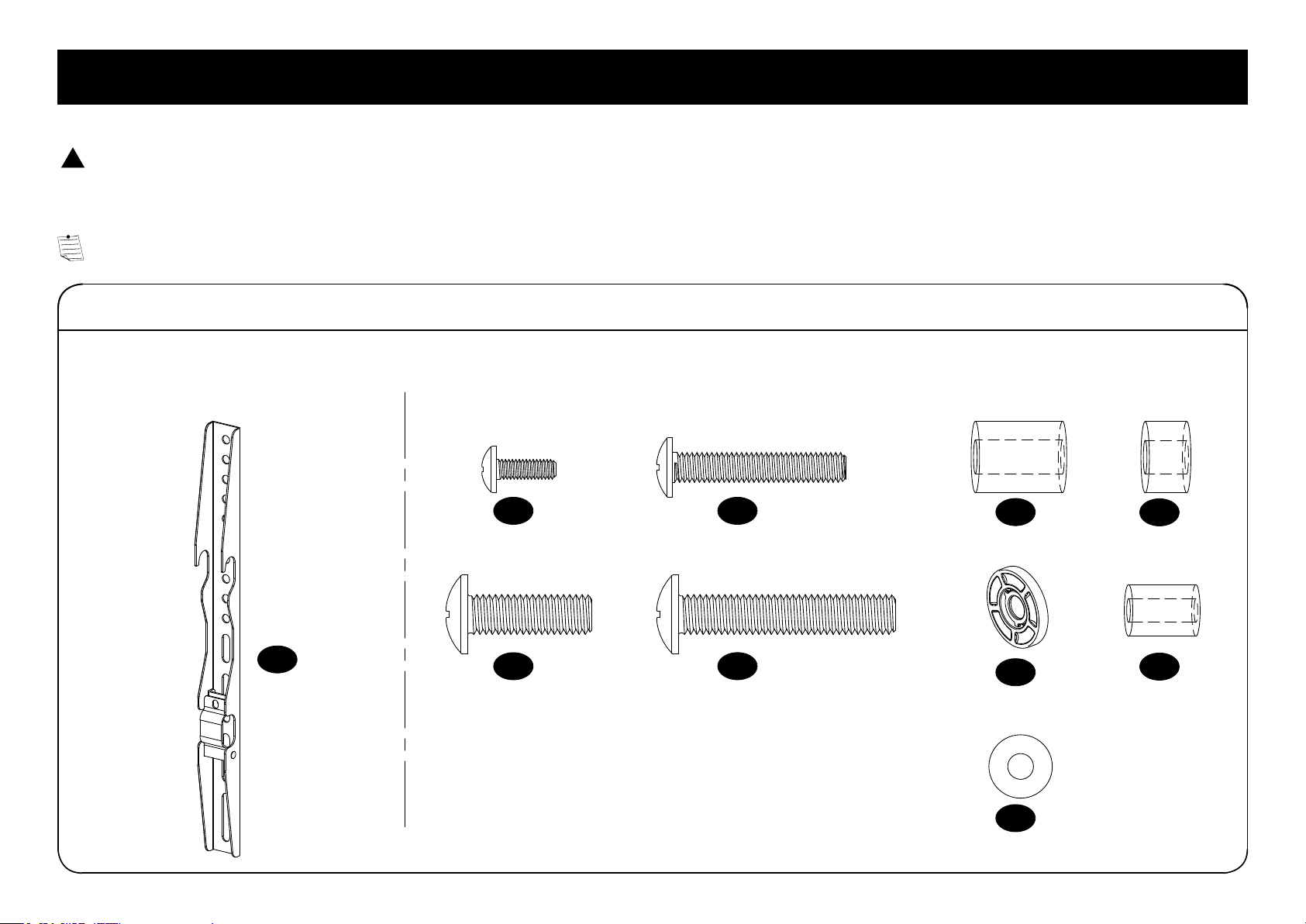

Parts and Hardware for STEP 1
Brackets
4
x
2
07
Spacers
TV Screws
M6x12mm
M8x25mm
M6x35mm
M8x
45
mm
x4 x4
x4 x4
M6x17mm
M8x22mm
M6
10mm
2.5mm
Washers
x4
x4
x
8
x
4
x4
a
b
c
d
e
f
gh
i
Parts and Hardware
!
Parts and Hardware for STEP 2
Mounting template
Velcro x3
R
5
Wa
ll
P
l
a
te
Lag Bolt
M6x16mm Bolt
End support
M5x10mm Bolt
Level x1
x
1
06
x
4
01
x
1
02
x
4
03
x
2
05
x
2
04
Contact us
and
message to us
to have these
additional pieces shipped directly to you.
Concrete Wall
Anchor
4pcs
Co
ncrete wall anchor (NOT INCLUDED)
4MM
Allen Key

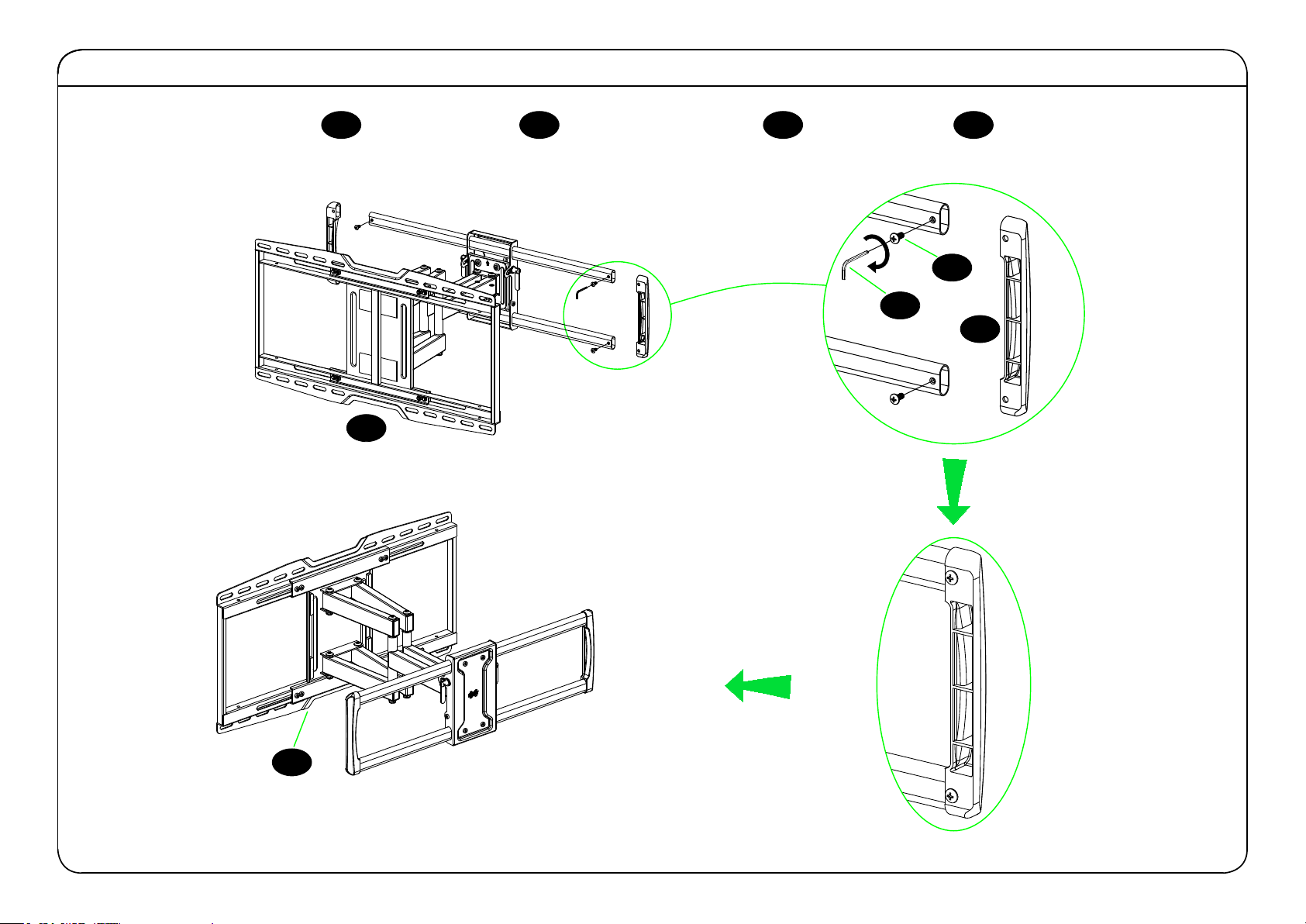

Assemble End Supports to Wall Plate
6
Put the and supports into wall plate by using allen key to fasten bolt
.
08
05 06 02 03
02
03
05
06
M8
M6
1-1
Select TV Screws
7
S
TEP
1

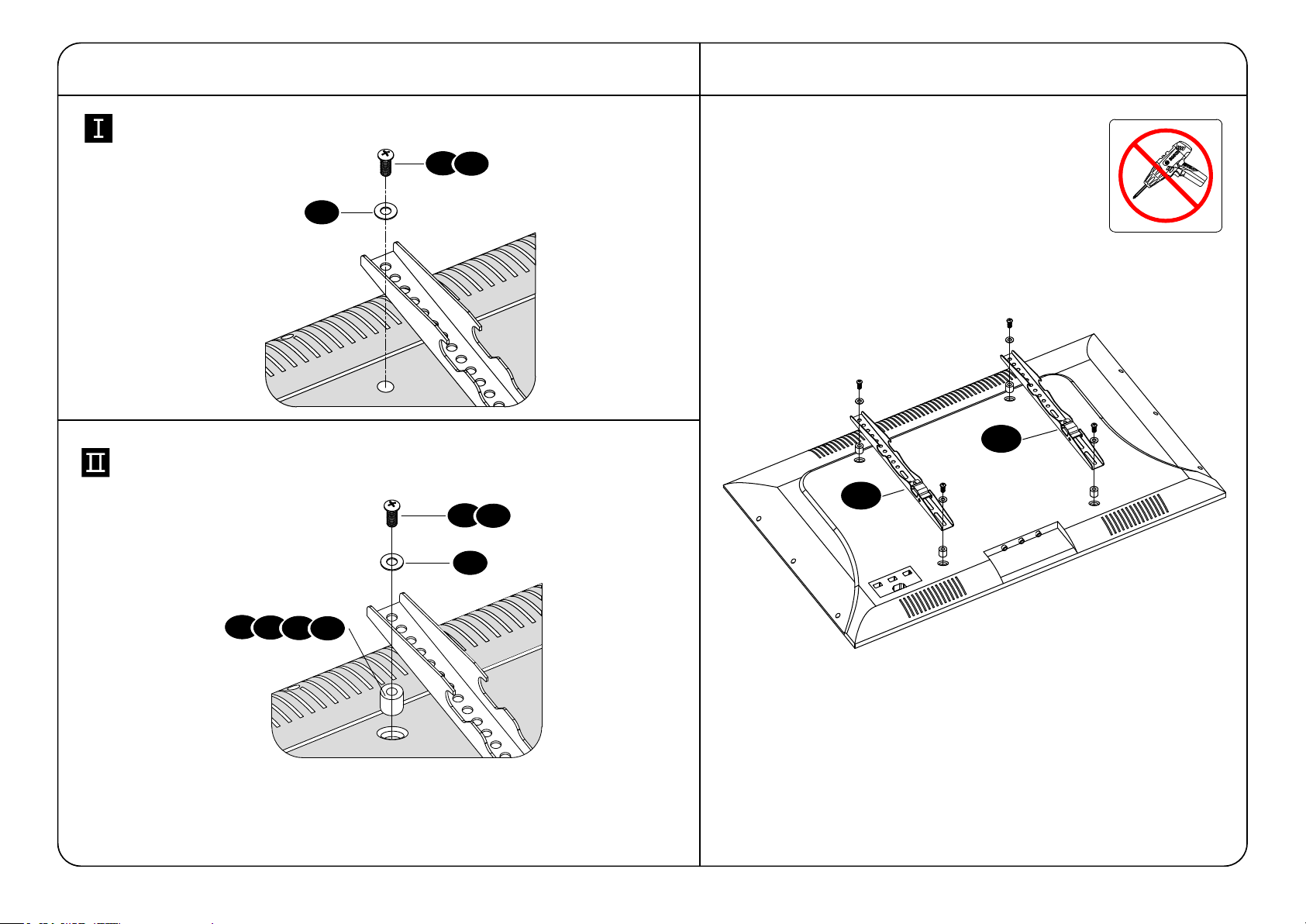

Attach Brackets to TV
1-2
Figure out the suitable position of brackets
INSTALL UP/DOWN IF NEEDED
TV BRACKETS MUST BE LEVEL
LOW MOUNTING HOLES HIGH MOUNTING HOLES
8
!
!
Tips: If you need to combine
M6/M8(
b/c/d ) screw
s
with
2.5mm spacer
s
(
g
),
you have to remove the inner circle.
1-4
Attach the TV Plate
No!
1-3
Need Spacer?
9
ab
i
i
c
d
g
f
eh
No,
choose suitable screws and washers.
Yes,
choose suitable screws, washers and spacers.
07
07
Centre line
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
● Minimum
wood stud
size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Maximum horizontal space between fasteners: 24 in. (609 mm)
● Stud center must be verified
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the mounting template at your desired height and line up the holes with your stud center line.
Level the mounting template and mark the hole locations.
Again, find another wood stud
16
"
/24"
Mounting template
10
S
TEP
2A
Attach Wall Plate to Wall Wood Stud Option
!
