USX-MOUNT XAS404-1 Manuel utilisateur

XAS404-1

INSTRUCTION MANUAL

For 13-27" TV

If you have any questions along the way, just give us a call

1-800-460-0956 or mail to [email protected].

We’re ready to help!

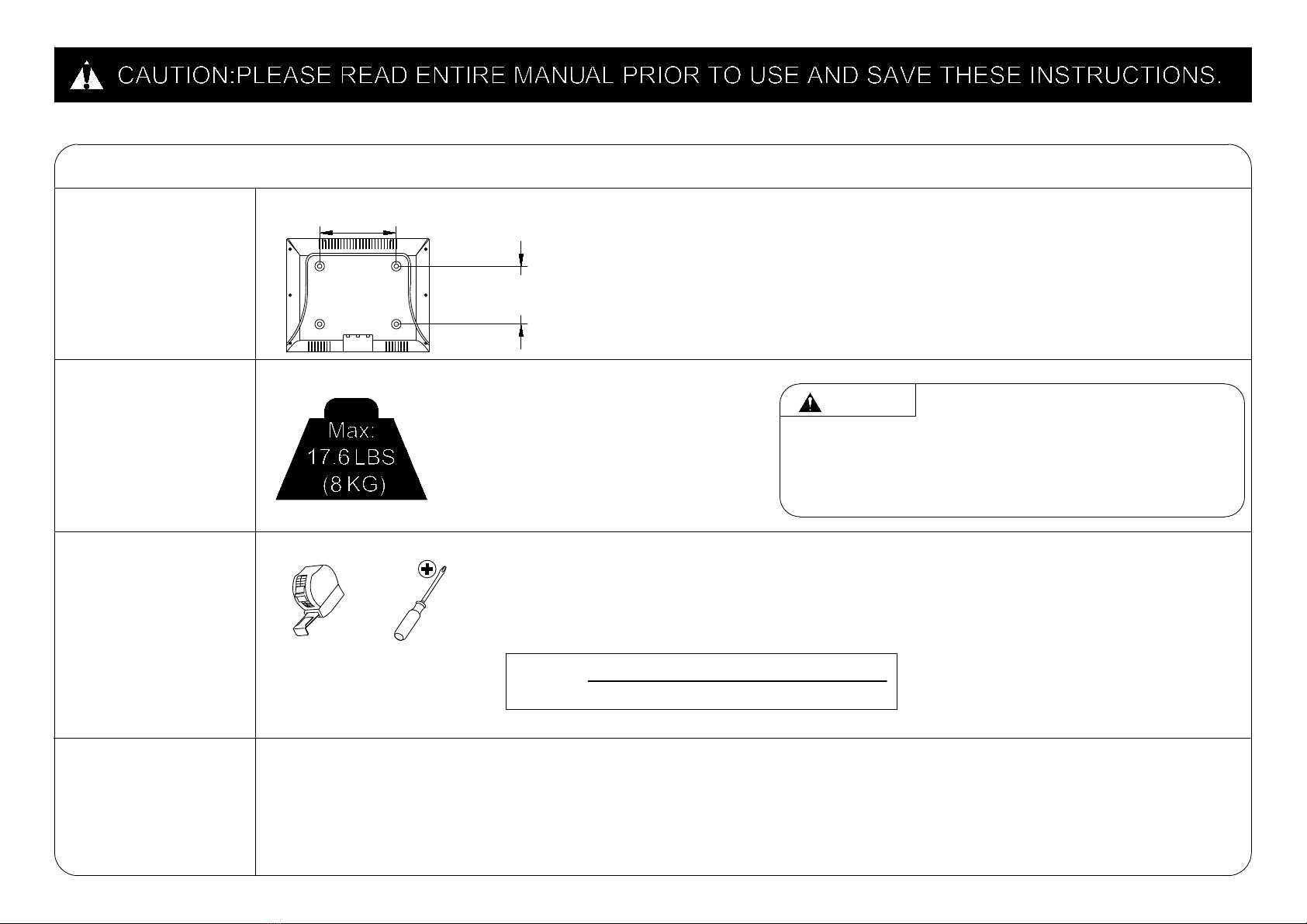

Before getting started, let’s check below lists to make sure it is just right for you!

Does your monitor

(including accessories)

weigh MORE than

17.6 lbs. (8 kg)?

Do you have

all the tools

needed?

(NOT INCLUDE) Tape

Measure

CAUTION

Screw

driver

No? Perfect – you may continue.

Yes? This mount is NOT compatible.

CAUTION: DO NOT exceed the maximum weight

indicated. This mounting system is intended for use only

with the maximum weights indicated. Use with products

heavier than the maximum weights indicated may result

in collapse of the mount and its accessories, causing

possible injury.

● Do not use this product for any purpose not explicitly specified by manufacturer

● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Check your monitor

VESA is within

Min and Max size

No? This mount is NOT compatible.

Yes? Perfect !

MAX:100mm/3.94"

(MIN:50mm/1.97")

MAX:100mm/3.94"

(MIN:50mm/1.97")

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, please feel free to contact Customer

Service:

E-mail: customerservice@x-mount.com

Phone call: 1-800-460-0956

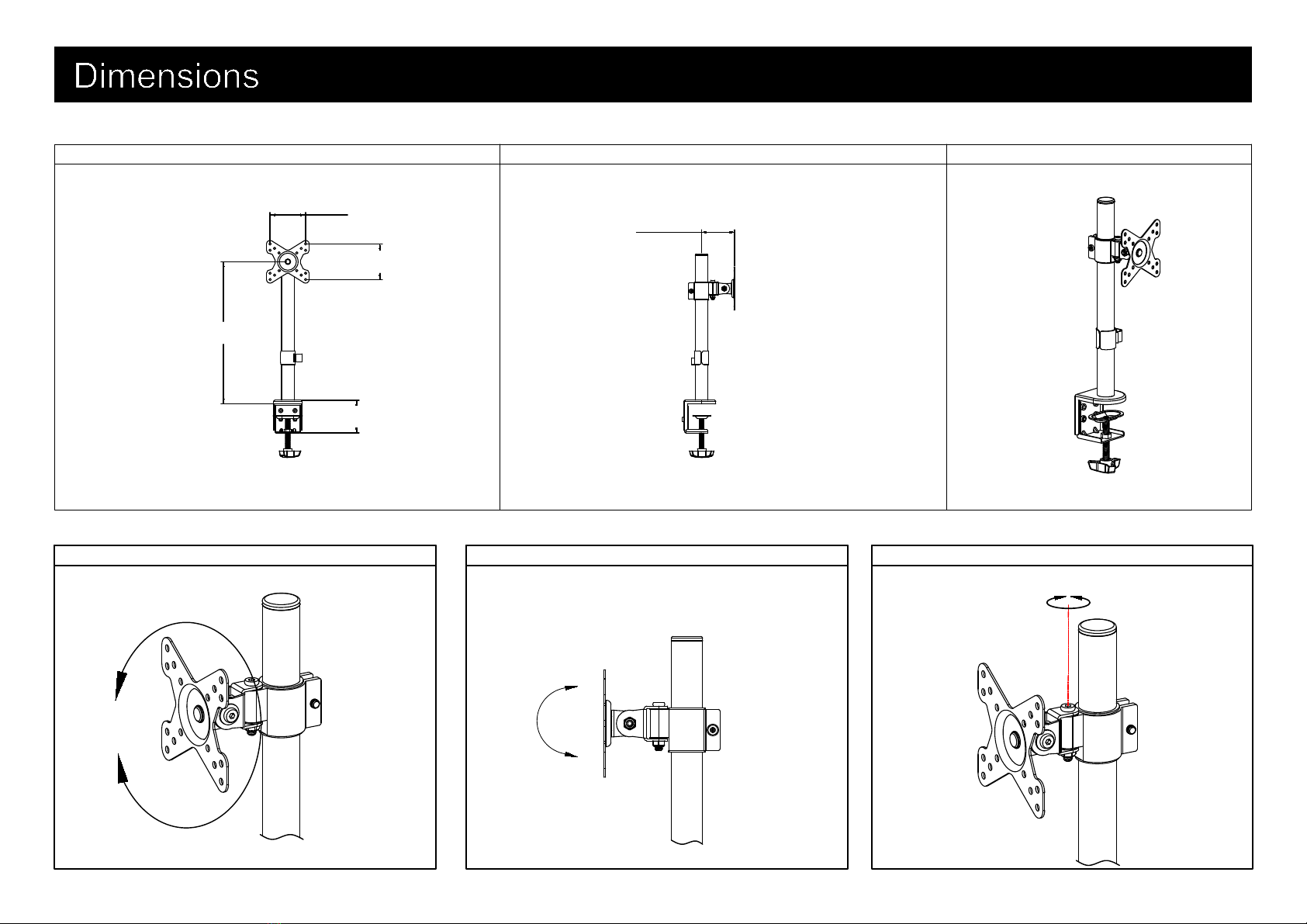

SIDE VIEW

+45°

-45°

FRONT VIEW

SIDE VIEW

FRONT VIEW

SIDE VIEW

93mm

[3.66in]

399mm

[15.70in]

92mm

[3.62in]

100mm

[3.94in]

100mm

[3.94in]

±360°

±90°

Never use damaged parts!

NOTE: Not all hardware included will be used.

M4x12mm

M5x12mm

M6x12mm

M4/M5

Washers

TV Screws

-Monitor Connection x1

WARNING:This product contains small items that could be a choking hazard if swallowed. Before starting assembly,

verify all parts are included and undamaged.

Parts and Hardware for Monitor Installation

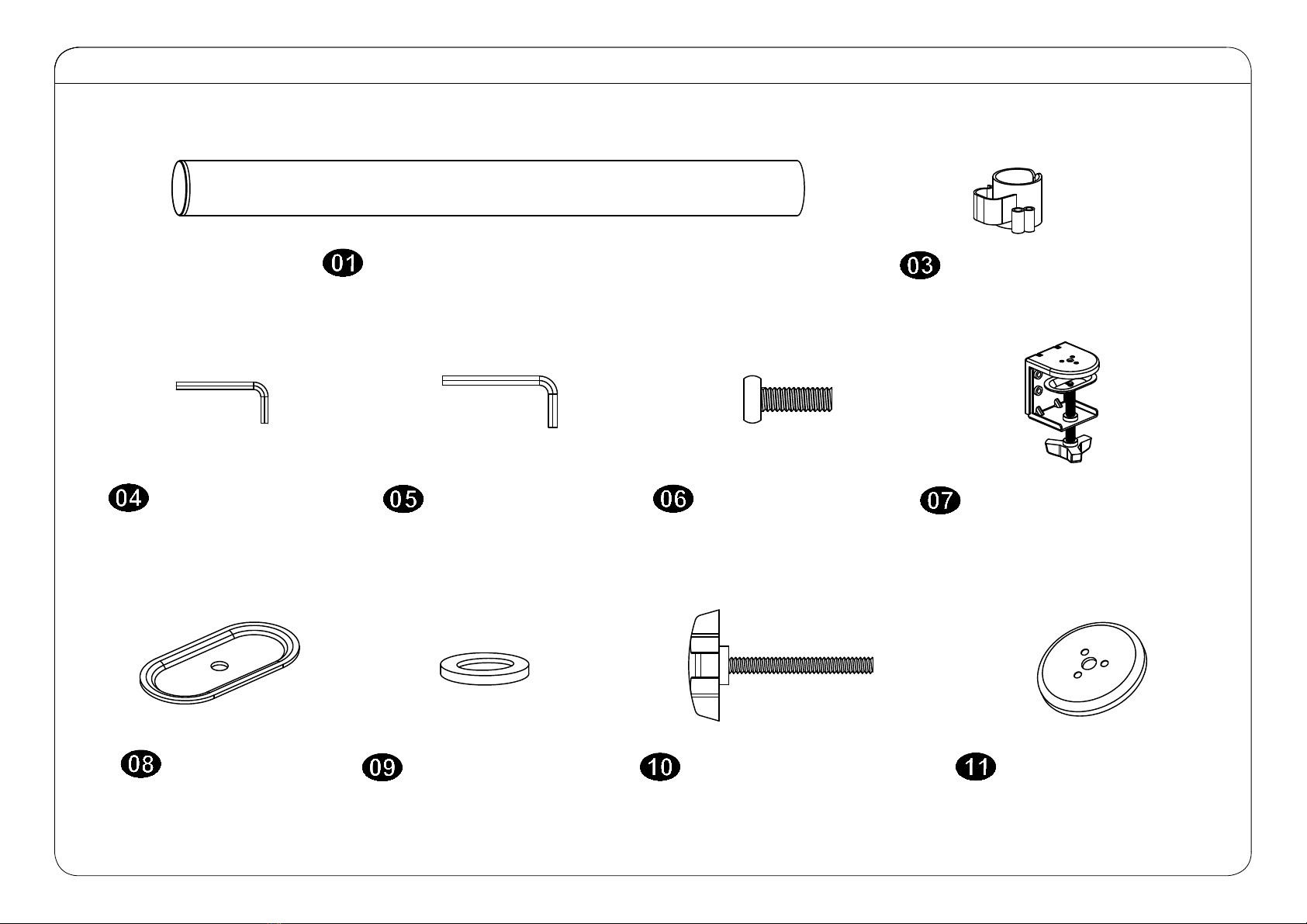

Parts and Hardware for Monitor Arms Assembly

-Clamping Fastener x1-M5x15 Bolts x3

-3mm Wrench x1

-Rubber Mat x2

-Fastener x1 -M10x100 Handle X1 -Round Fastener x1

-5mm Wrench x1

-Pole folder x1

-Pole x1

Pole Unit

2A-1 Assemble Pole Unit with Clamping Fastener

Use wrench to screw the clamping fastener to the pole by tightening the bolts .

Put the glued side of the rubber mat to the upper side of the clamping fastener .

Pole Unit

Pole Unit-A

2A-2 Assemble Pole Unit-A on Desktop

MAX:3.85"

Fasten

Fasten pole unit-A on the desktop.

MIN:2.87"

Pole Unit-A

Desktop

2B-1 Assemble Pole Unit with Round Fastener

Use wrench to screw the round fastener to the pole by tightening the bolts .

Put the glued side of the rubber mat to the bottom of the round fastener .

Pole Unit

Pole Unit-B

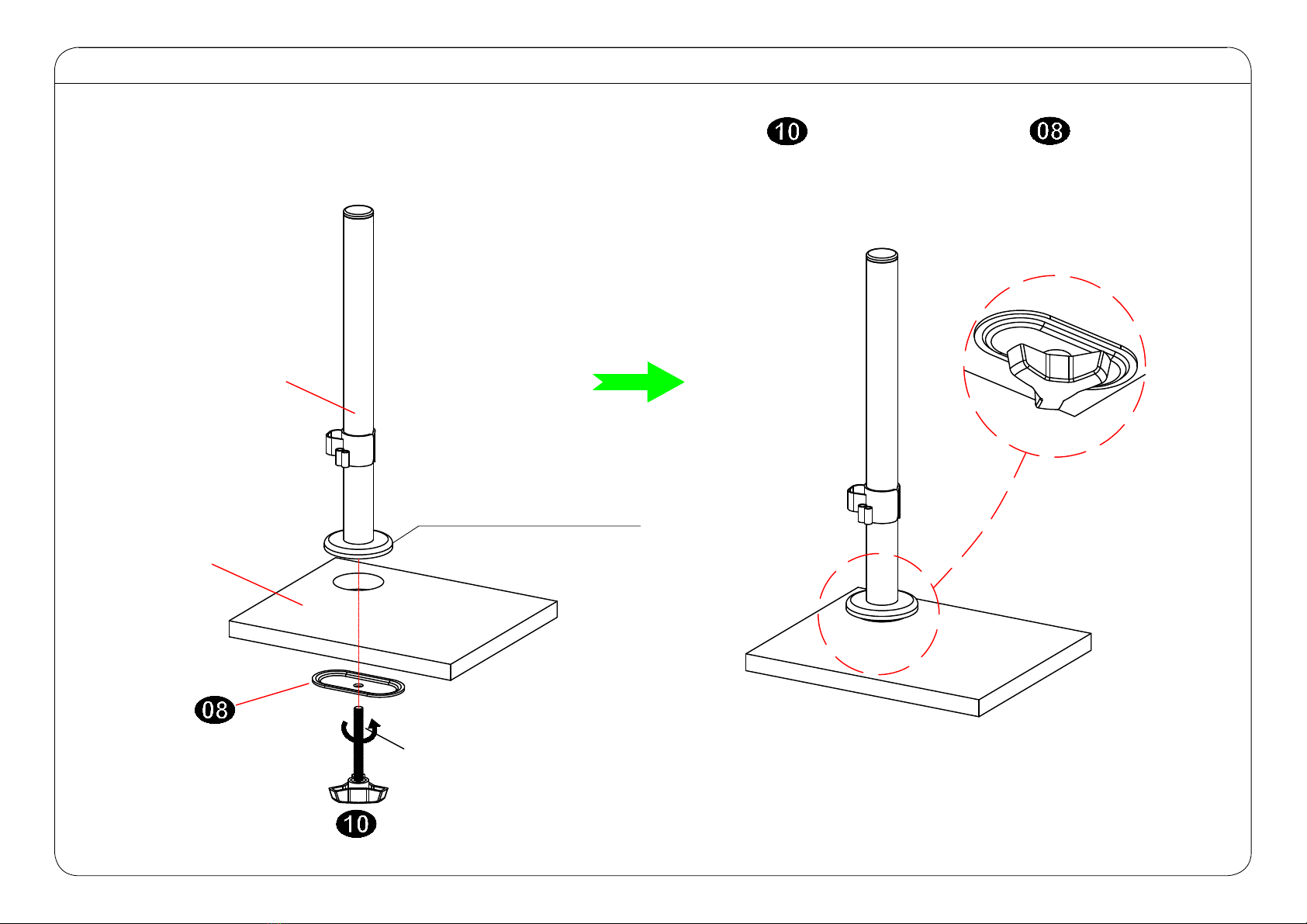

2B-2 Assemble Pole Unit-B with Desktop

diameter of the hole

0.4-2.5”

Put pole unit-B to the hole on the upper desktop. Use Handle to tighten fastener and pole

Unit-B fully.

Fasten

Pole Unit-B

Desktop

Fully Tighten
