USX-MOUNT XTM009 Manuel utilisateur
XTM009
INSTRUCTION MANUAL
For 26-60" TV
If you have any questions along the way, just message to
us. We’re ready to help!
R
AUUS-C2
Before getting started, let’s check below lists to make sure it is just right for you!
2
Check your TV
VESA is within
Min and Max size
1
2
3
4
5
Does your TV
(including accessories)
weigh MORE than
99 lbs. (45 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(Not included)
Caution
MAX:400mm/15.75"
(MIN:75mm/2.95")
MAX:400mm/15.75"
(MIN:75mm/2.95")
No? This mount is NOT compatible.
Yes? Perfect !
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Drywall with
wood studs?
Solid concrete
Socket
Wrench
1/2"(13mm)
Electric
Drill
Screw
driver
Pencil
Tape
Measure Stud
Finder
5/32"(4mm)
Wood Drill Bit
3/8"(10mm)
Masonry Drill Bit Hammer
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Awl
?Unsure?
Message to us via Amazon.
CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS
!
!
Per fect ! Per fect !
Wood Stud Install
Concrete Install
Max:
99 LBS
(45 kg)
CAUTION:
DO NOT
install into
drywall alone
!
3
102mm/4"
204mm/8"
306mm/12"
406mm/16"
435mm/17"
163mm/6.4" 222mm/8.7"
MAX:400mm/15.75"
MAX:400mm/15.75"
MIN:75mm/2.95"
420mm/16.54"
MIN:75mm/2.95"
Dimensions
TV INTERFACE WALL PLATE
SIDE VIEW SIDE VIEW
38mm/1.50"
0°~ -10°
4
TV Brackets
M4x12mm
M6x12mm
M8x25mm
M4x30mm
M6x35mm
Spacers
TV Screws
x4 x4
x4 x4
x4
M8x45mm
M6x17mm
M8x22mm
M4 M6
10mm
2.5mm
Washers
x4
x4
x4 x4
x8 x4
x4
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
Parts and Hardware for STEP 1
Parts and Hardware
!
a
b
cf
e
d
gh
ij
k l
04 x1 05 x1
Wall Plate
5
Parts and Hardware for STEP 2
x1
03
Contact us and message to us to have these
additional pieces shipped directly to you.
Concrete Wall Anchor
Ø10x50mm 4pcs
Concrete wall anchor (NOT INCLUDED)

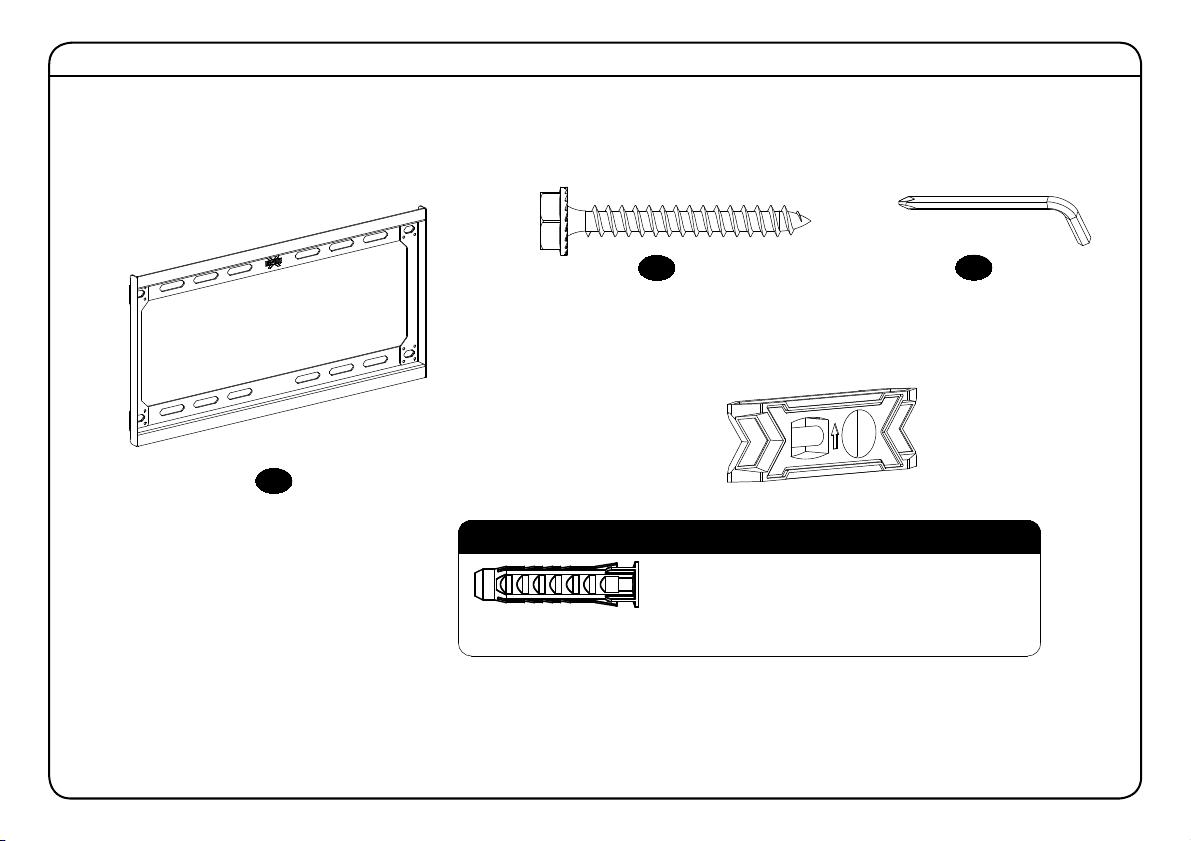

Lag Bolt Allen Key
x4
01 x1
02
Level x1
6
M8
M6
M4

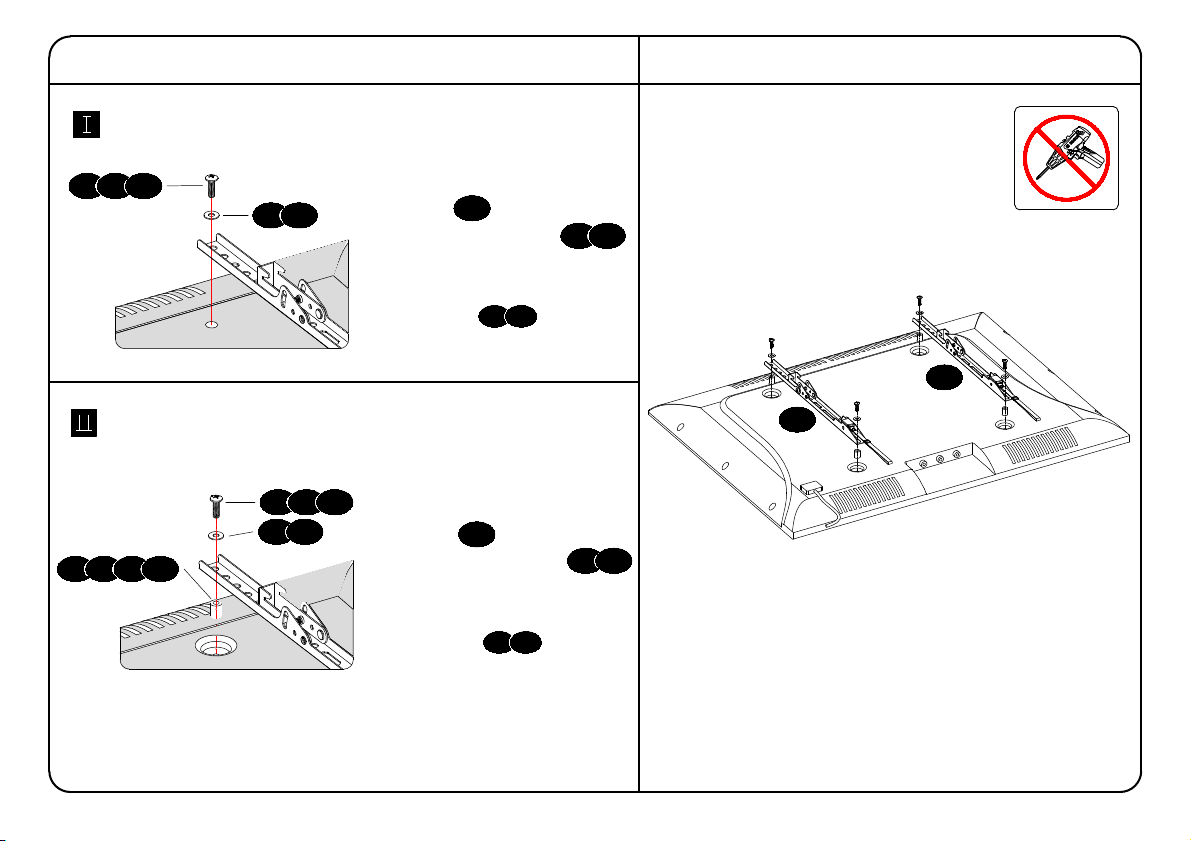

1-1 Select TV Screws
STEP 1 Attach Brackets to TV
1-2 Figure out the suitable position of brackets
7
LOW MOUNTING HOLES HIGH MOUNTING HOLES
INSTALL UP/DOWN IF NEEDED TV BRACKETS MUST BE LEVEL
!
!
Tips: If you need to combine M6/M8(c/e/f) screws with
2.5mm spacers( i ), you have to remove the inner circle.
Yes, choose suitable screws, washers and spacers.
1-4 Attach the TV Plate
No!
No, choose suitable screws and washers.
1-3 Need Spacer?
8
e
df
kl
i
hj
g
b
ac
k l
04
05
screw is connected
with TV Brackets
directly,do not need to
be connected with
Washers .
lk
c
Please ensure that all four screws enter the
VESA hole before tightening all screws during
installation.
screw is connected
with TV Brackets
directly,do not need to
be connected with
Washers .
lk
f
04 05
04 05
Centre line
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm).
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm).
● Maximum horizontal space between fasteners: 16 in. (406 mm).
● Stud center must be verified.
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the wall plate unit at your desired height and line up the holes with your stud center line.
Level the wall plate and mark the hole locations.
Again, find another wood stud
16"
9
STEP 2A Attach Wall Plate to Wall Wood Stud Option
!
03
1 2
Level
3. Drill pilot holes using a 5/32 in. (4 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.36 in. (60 mm). Be sure to drill into the center
of the studs.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 13.
5/32"
(4 mm)
10
4. Install wall plate using four lag bolts . Tighten the lag bolts only until they are pulled firmly
against the wall plate.
No!
2.36"(60mm)
03 01
01
03
!
!
34
Level
Screw is included Washer,
no Washers are needed.
01
