ATLAS

DVR/PVR 5-DEVICE

Universal Remote Control

User’s Guide

Atlas DVR-PVR M1055 8/12/04 4:51 PM Page 1

TABLE OF CONTENTS

Introduction

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features And Functions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Key Charts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Device Table

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing Batteries

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Programming Device Control

. . . . . . . . . . . . . . . . . . . . . . . 10

Programming TV/VCR Combo Control

. . . . . . . . . . . . . . . 12

Searching For Your Code

. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Checking The Codes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Programming Channel Control Lock

. . . . . . . . . . . . . . . . . 15

To De-Activate Channel Control Lock

. . . . . . . . . . . . . . . . . . . 15

To Re-Activate Channel Control Lock

. . . . . . . . . . . . . . . . . . . 15

Programming ID Lock

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Programming“Tune-In” Keys For Specific Channels

. . . 16

To Program A “Tune-In” Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

To Clear A “Tune-In” Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Using The Master Power Key

. . . . . . . . . . . . . . . . . . . . . . . . 18

To Program The Master Power Key . . . . . . . . . . . . . . . . . . . . . . . 18

To Operate The Master Power Key . . . . . . . . . . . . . . . . . . . . . . . 18

To Clear The Master Power Key . . . . . . . . . . . . . . . . . . . . . . . . . 19

Re-Assigning Device Keys

. . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing Volume Lock

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

To Unlock Volume Control For A Single Device

(Individual Volume Unlock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

To Unlock All Volume Control

(Global Volume Unlock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

To Lock Volume Control To One Mode

(Global Volume Lock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Troubleshooting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Instructions To The User

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Additional Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Manufacturer’s Codes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setup Codes For Audio Amplifiers . . . . . . . . . . . . . . . . . . . . . . . 24

Setup Codes For Audio Receivers . . . . . . . . . . . . . . . . . . . . . . . 25

Setup Codes For Cable Boxes (Converters) . . . . . . . . . . . . . . . . 27

Setup Codes For DVD Players. . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Setup Codes For PVRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Setup Codes For Satellite Receivers . . . . . . . . . . . . . . . . . . . . . 31

Setup Codes For TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Setup Codes For TV/VCR Combos . . . . . . . . . . . . . . . . . . . . . . . 36

Setup Codes For VCRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Atlas DVR-PVR M1055 8/12/04 4:51 PM Page 2

INTRODUCTION

The Atlas DVR/PVR 5-Device Universal Remote Control

by Universal Electronics is our latest generation universal

remote control. Its sophisticated technology allows you to

consolidate up to five of your original home entertainment

remote controls into one easy-to-use product.Moreover, it’s

packed with advanced features such as:

• Preprogrammed control to operate the cable converter

supplied by your cable service provider

• Dedicated keys to control popular functions on your

DVR/PVR (Digital/Personal Video Recorder)

• Programmable Master Power key for master on/off

control of your home entertainment equipment with a

single keystroke

• Instant “Tune-In”keys for assignment to your

favorite channels

• Channel Lock to lock channel selection only to the

cable converter

• Volume Lock to lock volume controls to one mode or

individual modes

• Device Key Re-Assignment to remotely control

a second (duplicate) device

• Code Search to help program control of older or

discontinued components

• Color-coded keys to quickly locate popular functions

• Code library for popular video and audio devices

Before using the product, you will need to install the

enclosed batteries and also perform some programming

to operate the specific home entertainment devices you

wish to control.

Please follow the instructions detailed in this manual to

set up the unit and then start enjoying your new remote

control and cable service.

Atlas DVR-PVR M1055 8/12/04 4:51 PM Page 3

FEATURES AND FUNCTIONS

Use the illustration below to locate features on the

Atlas DVR/PVR 5-Device Universal Remote Control and

then study the Key Charts (on the next three pages) to

learn how they function.

To find out what type of devices can be controlled by each

device key after programming, see the Device Table on

page 8.

Atlas DVR-PVR M1055 8/12/04 4:51 PM Page 4

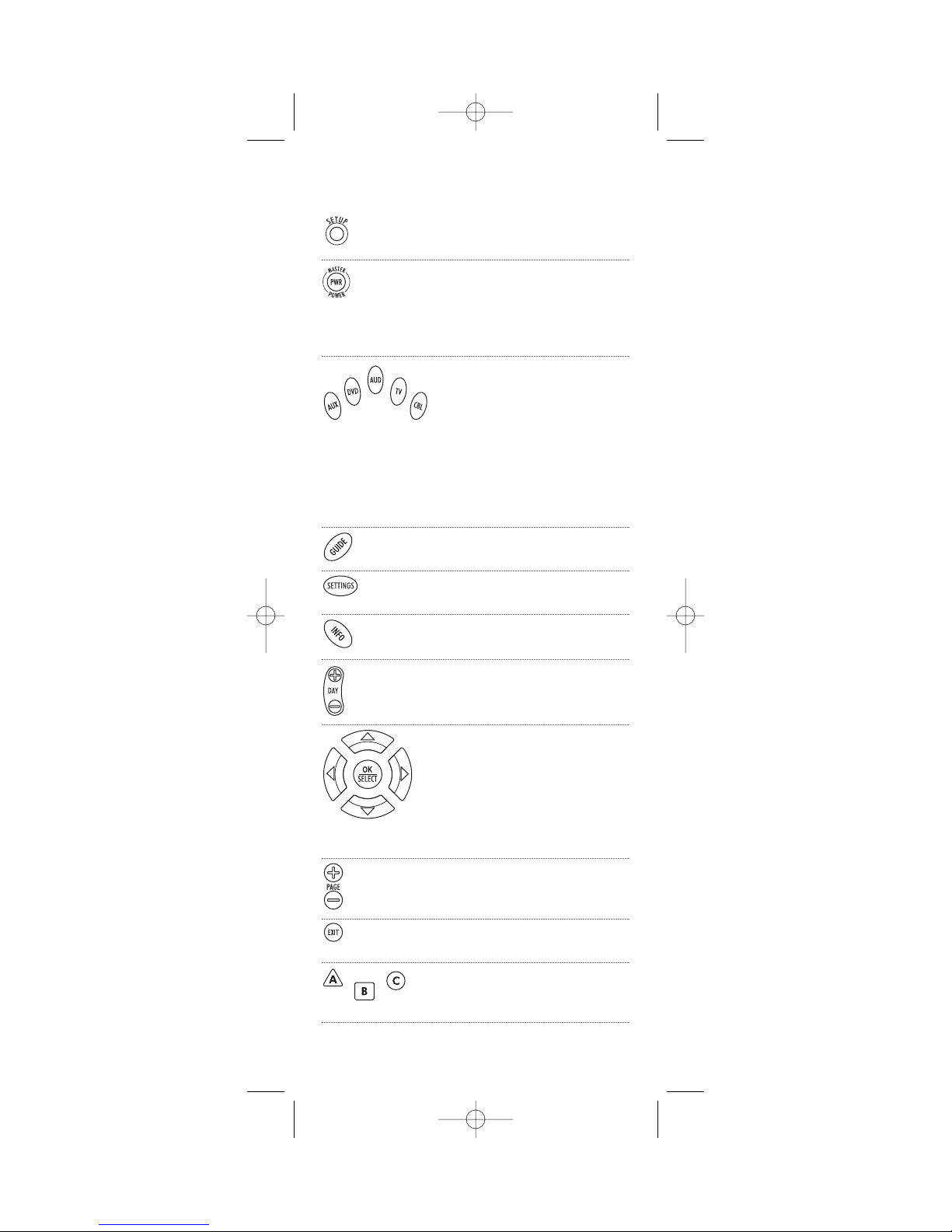

Key Charts

Use SETUP for all programming

sequences.

Press PWR once to turn on or

off a home entertainment device.

For MASTER POWER control, see

Using The Master Power Key on

page 18.

Press AUX,DVD,AUD,TV,orCBL

once to select a home entertain-

ment device to control.Also see

the Device Table on page 8.

Each device key has an embedded

LED (red light) that blinks upon

selection and indicates the remote

control is working and (after pro-

gramming) is sending signals.

Use GUIDE to display the program

guide.

Press SETTINGS once to display

available interactive services.

Use INFO to display the current

channel and program information.

Use DAY+ (or DAY-) to move a day

forward (or back) on your cable

converter’s program guide.

Use the Cursor keys to move the

cursor in the program guide and

menu screens and to navigate

within the interactive service.

Use OK/SELECT to choose options,

PPV events, and to tune programs

from the program guide.

Use PAGE+ (or PAGE-) to page up

(or page down) through menu

screens and the program guide.

Use EXIT to exit out of your cable

converter’s menu and guide.

Use A,B,orCto access additional

cable features (see your cable

converter’s manual).

continued on next page...

Atlas DVR-PVR M1055 8/12/04 4:51 PM Page 5

FEATURES AND FUNCTIONS

Key Charts (continued)

Use VOL+ (or VOL-) to raise (or

lower) the audio volume.

Use FAV to cycle through your

favorite channels stored in your

cable converter.

Use CH+ (or CH-) to select the

next higher (or lower) channel.

For DVD players, use these keys to

skip forward (or reverse) through

chapters.

For amplifiers/receivers, use these

keys to select the next higher (or

lower) preset station.

Press MUTE once to turn the

sound off or on.

Press LAST once to recall the last

channel.

Reserved for use as“Tune-In”keys

(see page 16).

Use to command your PVR to

instantly replay the last

7 seconds of a program you are

watching.

Press LIST once to display a list

of recorded shows on your PVR.

Press LIVE to return to watching

live TV.

In all modes except CBL,useREW,

PLAY,FFWD,STOP,andPAUSE to

control a VCR, DVD player, or a

PVR (after selecting a desired

device). To record in the VCR

mode, press REC twice.

In the CBL mode, use above keys

to control DVR/PVR functions of

the set-top box.

Atlas DVR-PVR M1055 8/12/04 4:51 PM Page 6

Use the keypad numbers (1~9,

and 0) to directly tune channels

(e.g., 09). For amplifiers/receivers,

use the keypad numbers to select

inputs 1 through 10.

Press HD/ZOOM once to change

the aspect ratio of the show you

are watching. (Not available on all

set-top boxes).

Use PIP ON-OFF to switch the

Picture-In-Picture feature on or

off (if available on your TV or

cable service).

Use PIP SWAP to switch images

and sound between the main and

window pictures.

Use PIP MOVE to move the window

picture to different positions in the

main picture.

Use PIP CH+ (or CH-) to select

the next higher (or lower) PIP

channel.

In the CBL mode, use VIDEO

SOURCE to view other video

sources (A or B) instead of cable.

In all other modes, use VIDEO

SOURCE to watch TV or video

programs on a desired device. For

amplifiers/receivers, use VIDEO

SOURCE to select an input source.

Atlas DVR-PVR M1055 8/12/04 4:51 PM Page 7

FEATURES AND FUNCTIONS (continued)

Device Table

NOTE: Please refer to the table below when performing the

instructions in “Programming Device Control” on page 10 or

“Programming TV/ VCR Combo Control”on page 12.

After programming, the Atlas DVR/PVR 5-Device

Universal Remote Control will be able to control the

following types of devices:

DEVICE KEY CONTROLS THESE TYPES OF DEVICES

VCR, TV/VCR Combo, PVR

(Personal Video Recorder), or

extra DVD Player

DVD Player

Audio Amplifier, Tuner, or

Receiver

Te l e v i s i o n

Cable Box (Converter) or

Satellite Receiver

Atlas DVR-PVR M1055 8/12/04 4:51 PM Page 8

INSTALLING BATTERIES

1. On the back of the remote control,push the

tab and lift off the battery cover.

2. Locate the two (2) enclosed AA batteries.

Match the + and – marks with those in the

battery case, then insert them.

3. Align the cover’s keys with the case’s holes

and press the cover back into place. The tab

should click when the cover is locked.

4. Test the remote control by pressing

any mode key (e.g., TV). If the batteries are

inserted correctly, the LED (red light) will

blink once

NOTE: When batteries need replacement, the remote control will

cease to operate. Replace the batteries and the unit will be restored

to its full functionality, complete with your favorite settings.

❶

❸

❷

Atlas DVR-PVR M1055 8/12/04 4:51 PM Page 9

PROGRAMMING DEVICE CONTROL

The Atlas DVR/PVR 5-Device Universal Remote Control

is preprogrammed to operate the Scientific Atlanta cable

box (converter) provided by your cable system,an RCA

TV, a Toshiba DVD player, an RCA VCR (as an AUX

device), and a Pioneer audio receiver. To control devices

other than the default brands, perform the following steps;

otherwise skip this section:

NOTES: For TV/VCR Combo control, skip this section and perform

the instructions on page 12. Also refer to the “Device Table” on

page 8 to find out which devices can be programmed onto each

device key.

If you have another brand of cable converter or a satellite receiver

you would like to control, you’ll first need to unlock the cable ID

Lock before changing the converter code – see “Programming ID

Lock” on page 16.

1. Turn on a device and, if applicable,insert

video media, (e.g., cassette or disc).

NOTE: Please read steps 2 through 4 completely

before proceeding. Highlight or write down the codes

and device you wish to program before moving on to

step 2.

2. On the remote control, press a device key once

(i.e.., AUX,DVD,AUD,TV,orCBL); it will blink

once. Then press and hold SETUP until the

selected mode key blinks twice, then release

SETUP.

3. Use the Manufacturer’s Codes (starting on

page 24) to locate the the type of device and

brand name and then enter the first four-digit

code for your device. If performed correctly,

the selected mode key will blink twice.

NOTE: If the selected mode key emits a long blink,

the entry is invalid. Repeat steps 2 through 3 and try

entering the same code again.

4. Aim the remote control at the device and

press PWR once. The device should turn off.

If it does not, repeat steps 2 through 3, trying

each code for your brand until you find one

that works.If it still does not respond, try

searching for the code (see Searching For Your

Code on page 13).

NOTE: If the device does not have a

POWER

key,

press the (

Play

) key.

Atlas DVR-PVR M1055 8/12/04 4:51 PM Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Universal Remote Control Télécommande universelle

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L-IP Manuel utilisateur

Universal Remote Control

Universal Remote Control total control TRC-780 Manuel utilisateur

Universal Remote Control

Universal Remote Control Complete Control MX-810 Manuel utilisateur

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manuel utilisateur

Universal Remote Control

Universal Remote Control URC-L-1870 Manuel utilisateur

Universal Remote Control

Universal Remote Control MX-890 Manuel utilisateur

Universal Remote Control

Universal Remote Control MRF-300/RFX150 Manuel utilisateur

Universal Remote Control

Universal Remote Control WR7 Manuel utilisateur

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manuel utilisateur

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700 Manuel utilisateur

Universal Remote Control

Universal Remote Control CLIKR-5 UR5L-6200L Manuel utilisateur

Universal Remote Control

Universal Remote Control UR3-J22TWM Guide de l'administrateur

Universal Remote Control

Universal Remote Control Easy Clicker OCE-0009D Manuel utilisateur

Universal Remote Control

Universal Remote Control MRF-260i Manuel utilisateur

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-450 Manuel utilisateur

Universal Remote Control

Universal Remote Control OCE-0085A Manuel utilisateur

Universal Remote Control

Universal Remote Control Total Control TRC-1280 Manuel utilisateur

Universal Remote Control

Universal Remote Control Osiris MX-3500 Manuel utilisateur

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-6200L Manuel utilisateur

Universal Remote Control

Universal Remote Control UR2-DTA Manuel utilisateur

Universal Remote Control

Universal Remote Control UR17E - CODE BOOK Manuel utilisateur

Universal Remote Control

Universal Remote Control Complete Control MX-880 Manuel utilisateur

Universal Remote Control

Universal Remote Control 4 Function DTV Remote Control Manuel utilisateur

Universal Remote Control

Universal Remote Control UR-S86TVE Manuel utilisateur

Manuels Télécommande universelle populaires d'autres marques

Pronto

Pronto Peel Manuel utilisateur

GE 24929 Manuel utilisateur

Radio Shack

Radio Shack Wireless Remote Control System Manuel utilisateur

AUVIO

AUVIO Universal Home Theater Remote Manuel utilisateur

Philips

Philips Icon SRU4106 Manuel utilisateur

THOMSON

THOMSON ROC4309 Manuel utilisateur

Philips

Philips pm625S Manuel utilisateur

GE RM94931 Manuel utilisateur

RCA

RCA RCU600WMS - Universal Remote Control Manuel utilisateur

Blackweb

Blackweb BWB17AV002 Manuel utilisateur

Marmitek

Marmitek DoorGuard 300 Manuel utilisateur

Chunghop

Chunghop RM-L618 Manuel utilisateur

GE RM24965 Manuel utilisateur

Anderic

Anderic KTN828 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manuel utilisateur

Medion

Medion E74023 Manuel utilisateur

intensity

intensity RM02A Manuel utilisateur

GE RM24950 Manuel utilisateur
