Ubiquiti US-16-XG Manuel utilisateur

UniFi Switch Power Cord Rack-Mount Brackets (Qty. 2)

Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4)

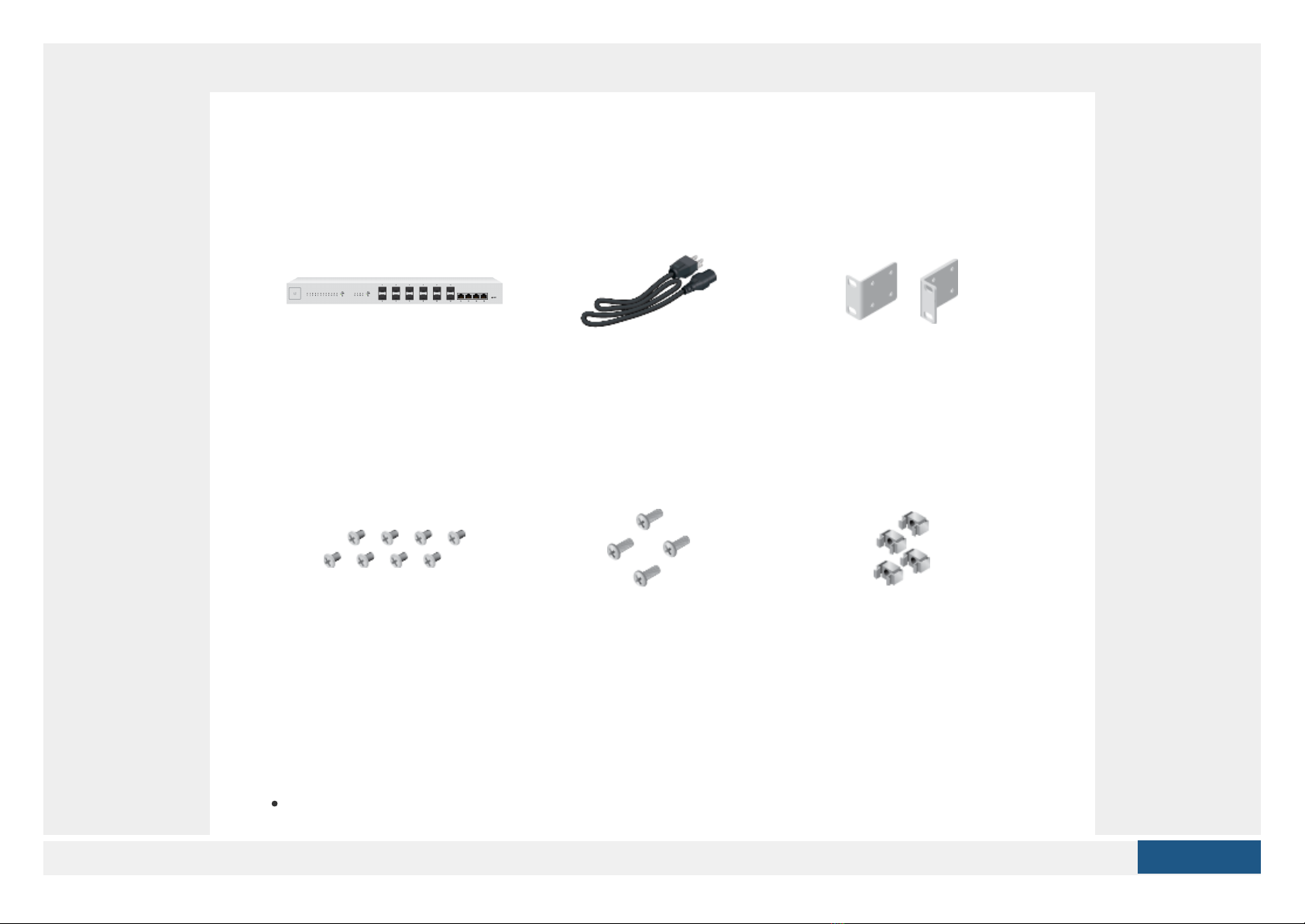

Package Contents

Installation Requirements

Phillips screwdriver (for rack- or wall-mounting)

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Standard-sized, 19” wide rack with a minimum of 1U height available (for rack-

mounting)

Use compatible fiber SFP+ modules with the appropriate fiber optic cabling. For

information about compatible fiber SFP+ modules, visit: community.ubnt.com/unifi

For indoor applications, use Category 6A (or above) UTP cabling approved for indoor

use.

For outdoor applications, shielded Category 6A (or above) cabling should be used for

all wired Ethernet connections and should be grounded through the AC ground of the

power supply.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from

Ubiquiti. For more details, visit: ui.com/toughcable

Note: Although the cabling can be located outdoors, the UniFi Switch itself

should be housed inside a protective enclosure.

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.6 (1.8 or newer recommended)

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.4 or newer, available at: ui.com/download/unifi

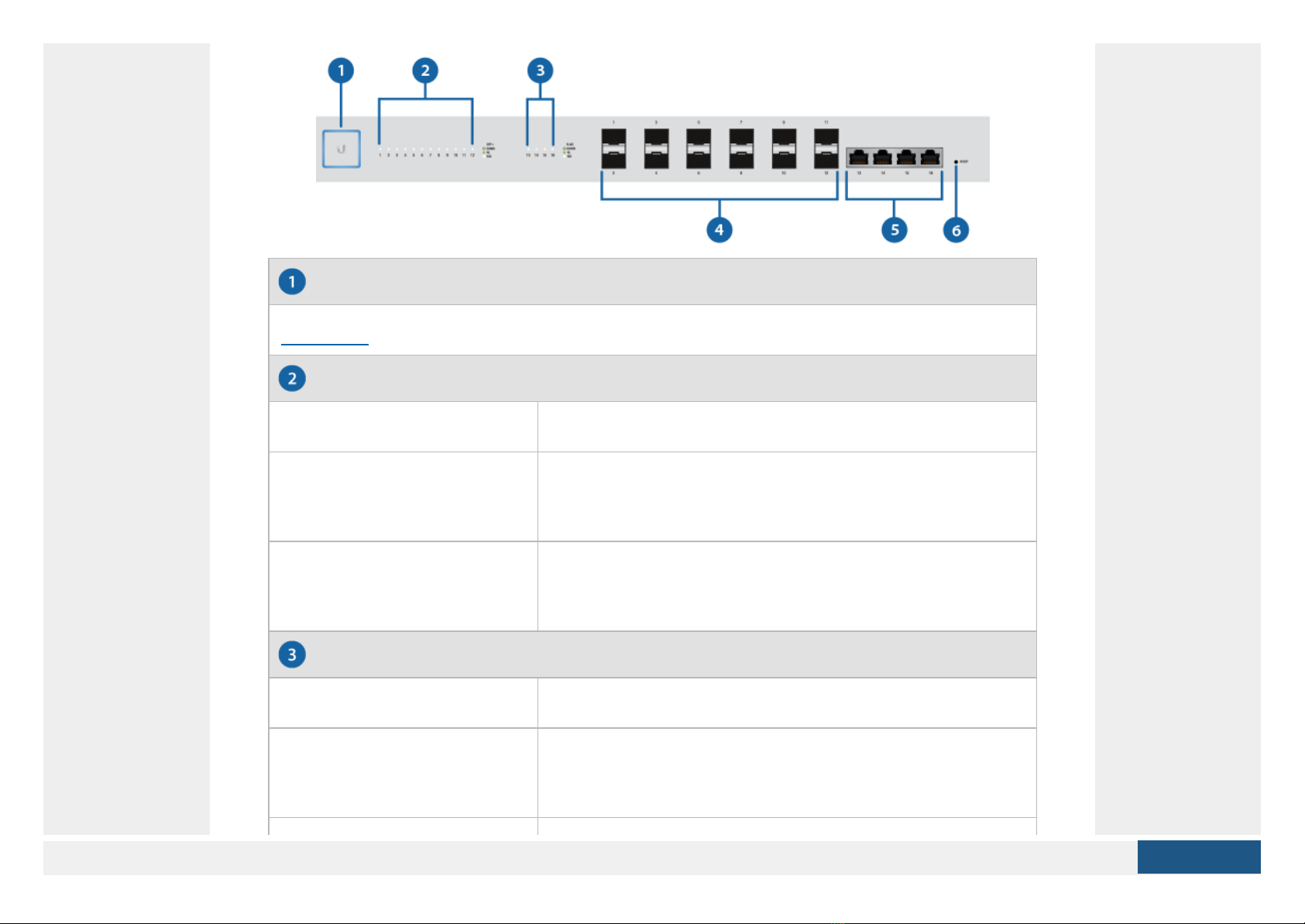

Hardware Overview

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

System LED

SFP+ Speed/Link/Act LED (Ports 1 - 12)

RJ45 Speed/Link/Act LED (Ports 13 - 16)

Click here for detailed descriptions.

Off No Link

Green

Solid: 1 Gbps Link Established

Flashing: Activity

White

Solid: 10 Gbps Link Established

Flashing: Activity

Off No Link

Green

Solid: 1 Gbps Link Established

Flashing: Activity

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

SFP+ (Ports 1 - 12)

RJ45 (Ports 13 - 16)

Reset Button

Console Port

White Solid: 10 Gbps Link Established

Flashing: Activity

Hot-swappable SFP+ ports support 1 Gbps and 10 Gbps connections.

RJ45 ports support 1 Gbps and 10 Gbps Ethernet connections.

This button serves two functions for the UniFi Switch:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more than

five seconds.

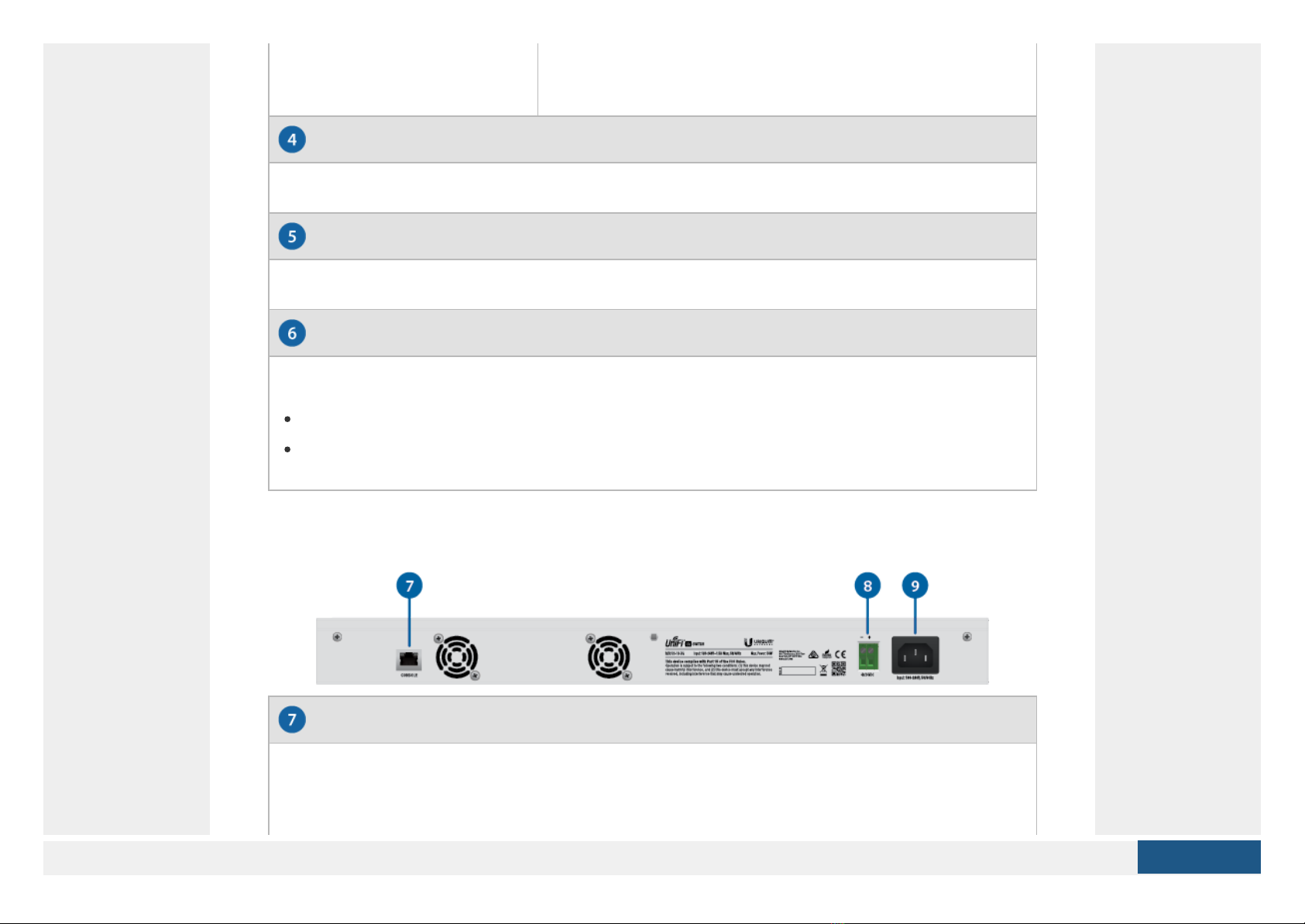

Console Port

RJ45 serial console port for Command Line Interface (CLI) management. Use an

RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the

Console port to your computer. Then configure the following settings as needed:

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

DC Input

Power Port

Baud rate 115200

Data bits 8

Parity NONE

Stop bits 1

Flow control NONE

The 48/24VDC input can connect a redundant or stand-alone DC power source (not

included) with minimum power: 56W, 57 to 20V.

Note: You can use the redundant DC power source as a hot spare; if the

internal AC/DC power supply no longer provides power, the UniFi Switch

will switch to the DC power source without interrupting its operation.

Connect the included Power Cord to the Power port.

Hardware Installation

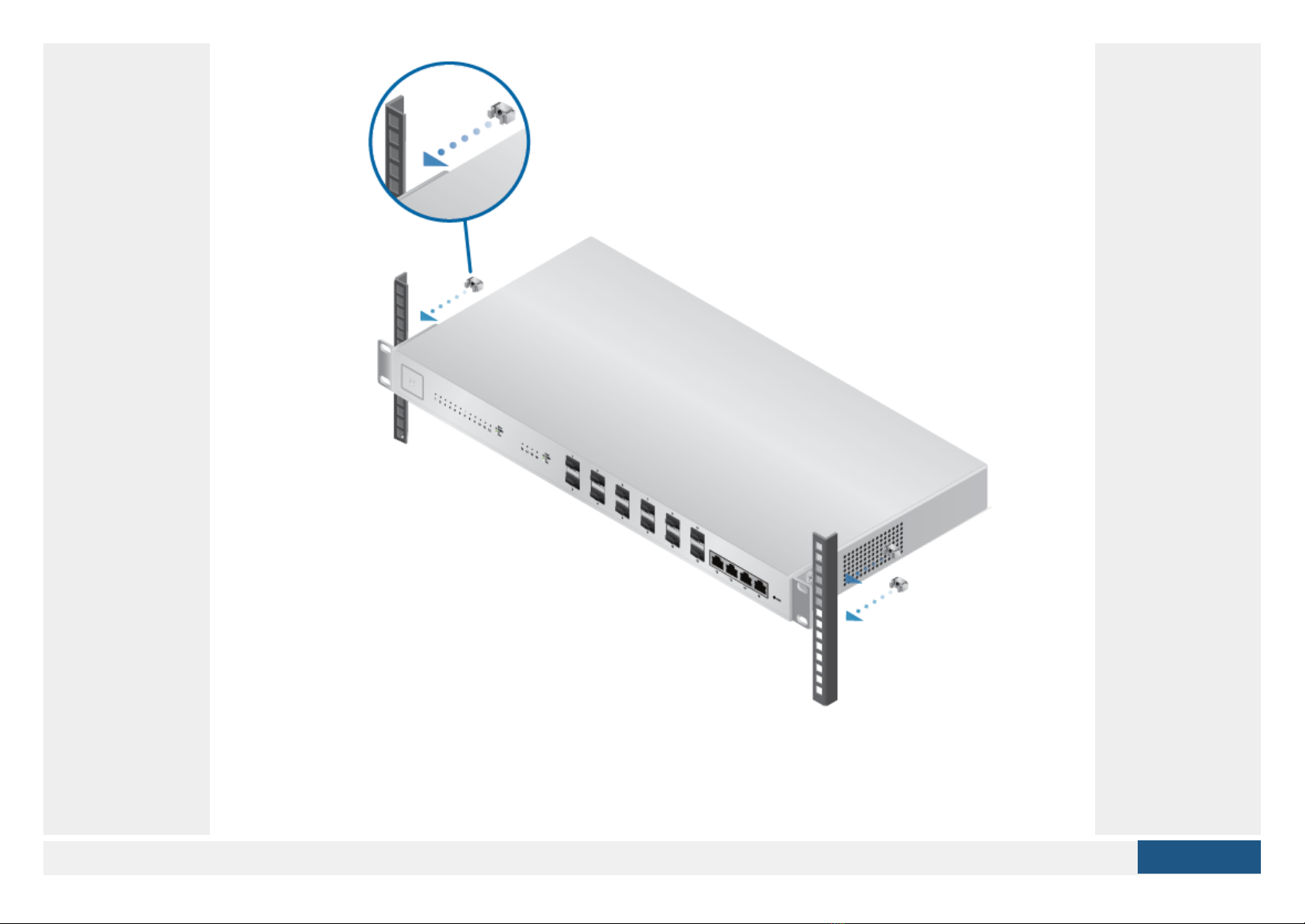

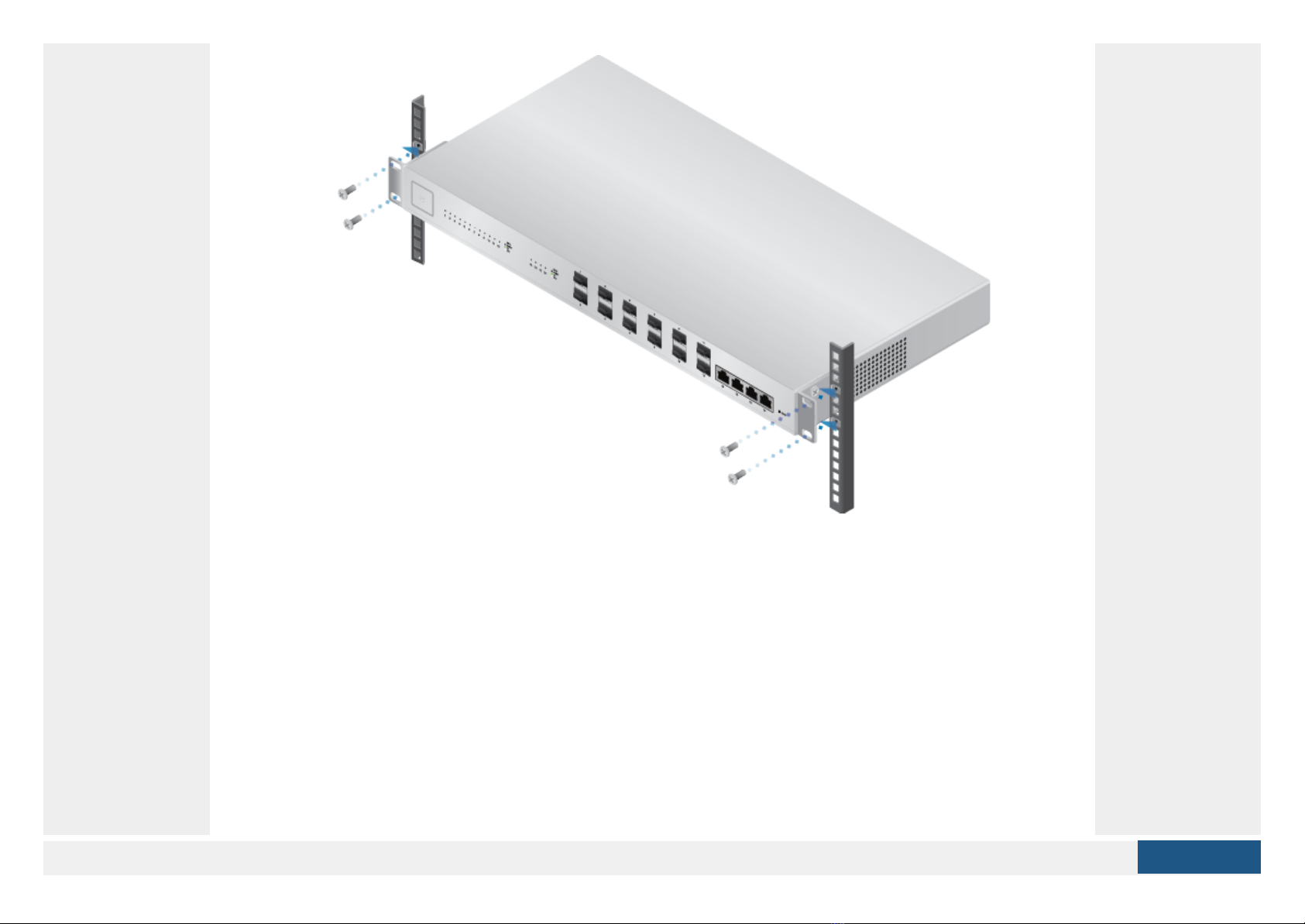

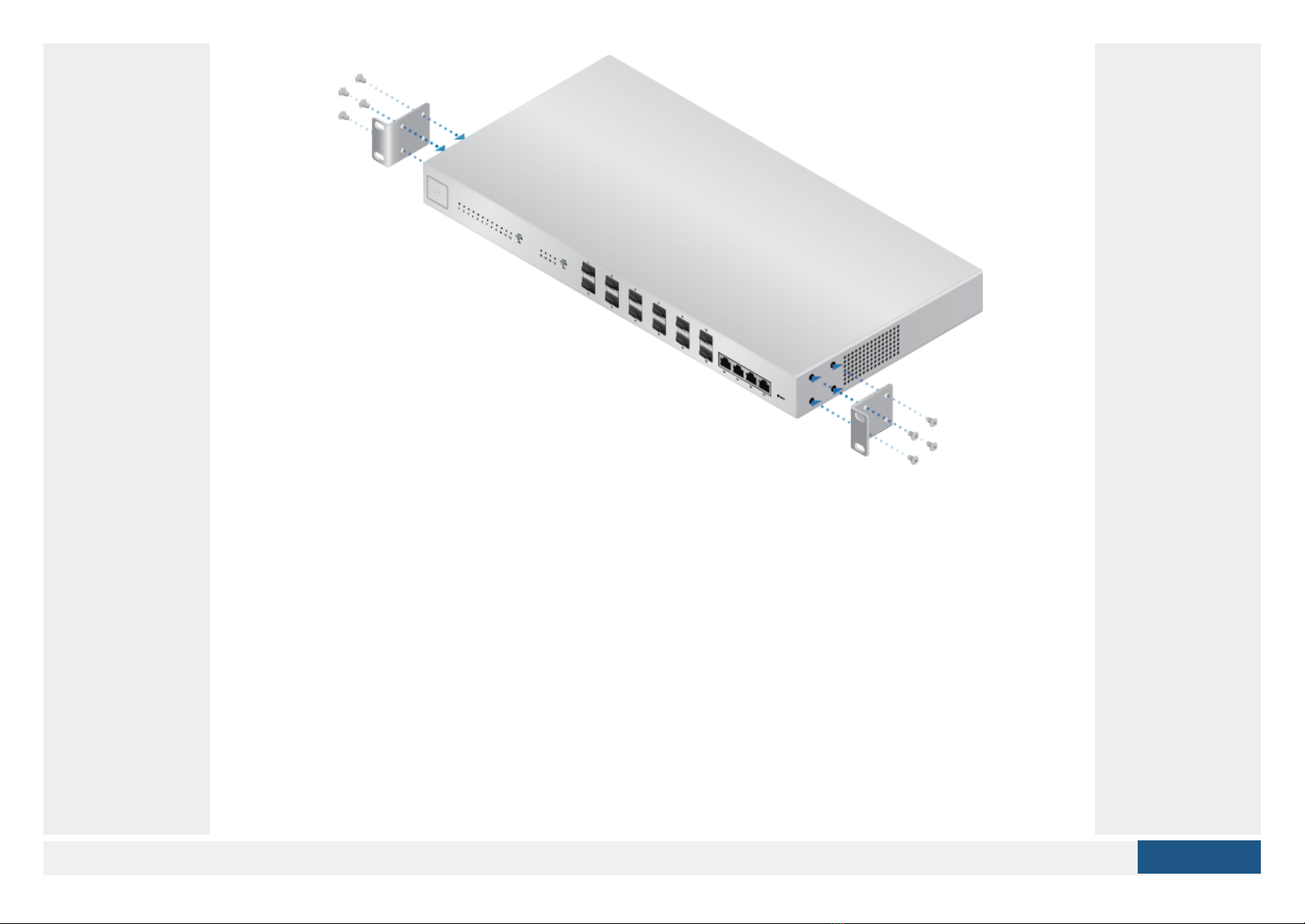

Mounting in a Rack (Optional)

1.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

OR

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

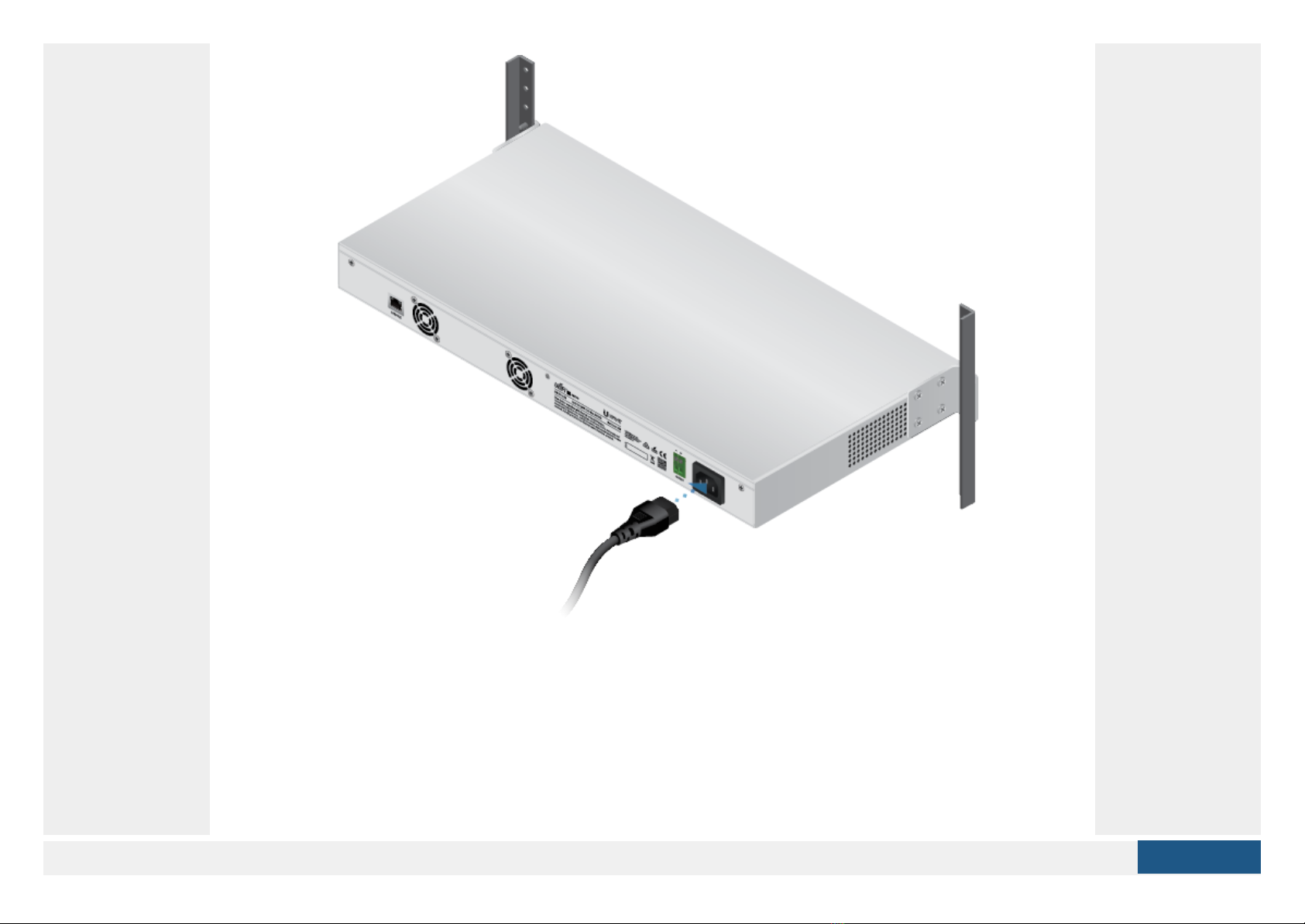

Connecting Power

1.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD
