Ubiquiti US-16-150W Manuel utilisateur

Managed PoE+ Gigabit Switch

with SFP

Model: US-16-150W

Introduction

Thank you for purchasing the Ubiquiti Networks® UniFi®

Switch. This Quick Start Guide is designed to guide you

through the installation and also includes the warranty terms.

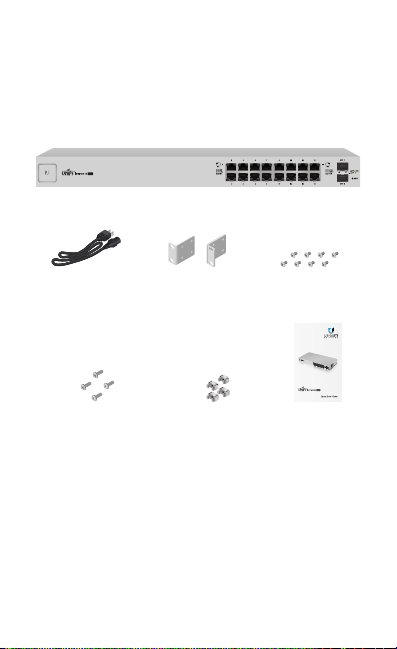

Package Contents

UniFi Switch US-16-150W

Power Cord Rack-Mount Brackets

(Qty. 2)

Bracket Screws

(M4, Qty. 8)

ManagedPoE+ Gigabit Switch

withSFP

Model:US-16-150

Mounting Screws

(#10-32 x 5/8", Qty. 4)

Cage Nuts

(#10-32 x 5/8", Qty. 4)

Quick Start

Guide

responsibility to follow local country regulations, including operation within legal frequency

channels, output power, indoor cabling requirements, and Dynamic Frequency Selection

(DFS) requirements.

System Requirements

• Linux, MacOSX, or Microsoft Windows 7/8/10

• Java Runtime Environment 1.6 (1.8 or newer recommended)

• Web Browser: Mozilla Firefox, Google Chrome, Microsoft

Edge, or Microsoft Internet Explorer 10 (or newer)

• UniFi Controller software v4.8.5 or newer (available at:

downloads.ubnt.com/unifi)

Installation Requirements

• Phillips screwdriver (for rack-mounting)

• Standard-sized, 19" wide rack with a minimum of 1U height

available (for rack-mounting)

• For indoor applications, use Category 5 (or above) UTP

cabling approved for indoor use.

• For outdoor applications, shielded Category 5 (or above)

cabling should be used for all wired Ethernet connections

and should be grounded through the AC ground of the

power supply.

We recommend that you protect your outdoor networks

from the most brutal environments and devastating ESD

attacks with industrial-grade shielded Ethernet cable,

TOUGHCable™, from Ubiquiti Networks. For more details,

visit: www.ubnt.com/toughcable

Note: Although the cabling can be located outdoors,

the UniFi Switch itself should be housed inside a

protective enclosure.

Network Topology Requirements

• A DHCP-enabled network for the UniFi Switch to obtain an

IPaddress (connected devices will also obtain IP addresses

after deployment)

• A UniFi Cloud Key or management station running the UniFi

Controller v4.8.5 (or newer) software, located either on-site

and connected to the same Layer2 network, or off-site in a

cloud or NOC

UniFi Switch US-16-150W

UniFi Security Gateway Pro

(DHCP Server)

Internet

UAP-AC-PRO UAP-AC-LR

UAP-IW

LAN

WAN

UniFi Cloud Key

(UniFi Controller)

Remote Access to

UniFi Controller

NetworkHealth

DASHBOARD

MAP

DEVICES

CLIENTS

CALLS

STATISTICS

INSIGHTS

SETTINGS

CURRENTSITE

Default

REFRESHRATE

2minutes

Sample Network Diagram

All UniFi devices support off-site management controllers.

For setup details, refer to the User Guide on the website:

documentation.ubnt.com/unifi

Hardware Overview

Front Panel

RJ45 1-16 SFP 1-2

Reset

Button

Port Description

RJ45 1-16 RJ45 ports support Power over Ethernet (PoE)

and 10/100/1000 Ethernet connections.

SFP 1-2 Hot-swappable SF P ports support 1 Gbps

connections.

Reset

Button

This button serves two functions for the

UniFi Switch:

• Restart Press and release the Reset button

quickly.

• Restore to Factory Default Settings Press

and hold the Reset button for more than five

seconds.

Back Panel

Power

Console Ventilation Fans

The Console port is reserved for future use.

Note: Keep a clearance of 20 mm from the ventilation

fans for adequate airflow.

Front Panel System LED

System

State Status

White Factory defaults, waiting for integration.

Flashing White Initializing.

Alternating

White/Blue

Device is busy; do not use or unplug it.

This usually indicates that a process such

as a firmware upgrade is taking place.

Blue Successfully integrated into a network

and working properly.

Flashing Blue

This is used to locate a device.

When you click Locate in the UniFi

Controller software, the System LED

will flash blue. The software will also

display the location of the UniFi Switch

on the map.

*640-00172-01*

640-00172-01

Front Panel Port LEDs

SFP:

Speed/Link/Activity

RJ45:

PoE

RJ45:

Speed/Link/Activity

LED State Status

RJ45 1-16

PoE

Off No PoE

Amber IEEE 802.3af/802.3at

Green 24V Passive

Speed/

Link/

Activity

Off No Link

Amber

Link Established at

10/100Mbps

Flashing Indicates Activity

Green

Link Established at

1000Mbps (1 Gbps)

Flashing Indicates Activity

SFP 1-2

Speed/

Link/

Activity

Off No Link

Green Link Established at 1Gbps

Flashing Indicates Activity

Hardware Installation

The UniFi Switch can be placed on a horizontal surface or

mounted in a rack.

Note: Keep a clearance of 20 mm next to the ventilation

holes for adequate airflow.

Mounting in a Rack (Optional)

1. Attach the Rack-Mount Brackets to the UniFi Switch using

the eight Bracket Screws.

2. Attach the UniFi Switch to the rack using the four Mounting

Screws. (If the rack has square slots, then use the Cage Nuts

with the Mounting Screws.)

Connecting Power

1. Connect the Power Cord to the Power port of the

UniFiSwitch.

2. Connect the other end of the Power Cord to a power outlet.

Connecting Ethernet

1. Connect the UniFi Cloud Key, management computer, or

LAN running the UniFi Controller to the UniFi Switch.

2. Connect Ethernet cables from the gateway or router (DHCP

server) and other devices to the UniFi Switch.
