Ubiquiti UniFi USW-Pro-24-POE Manuel utilisateur
USW-Pro-24-POE Quick Start Guide
Web browser: Google Chrome (other browsers may have limited
functionality).
Linux, Mac OS X or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or later is recommended)
System Requirements

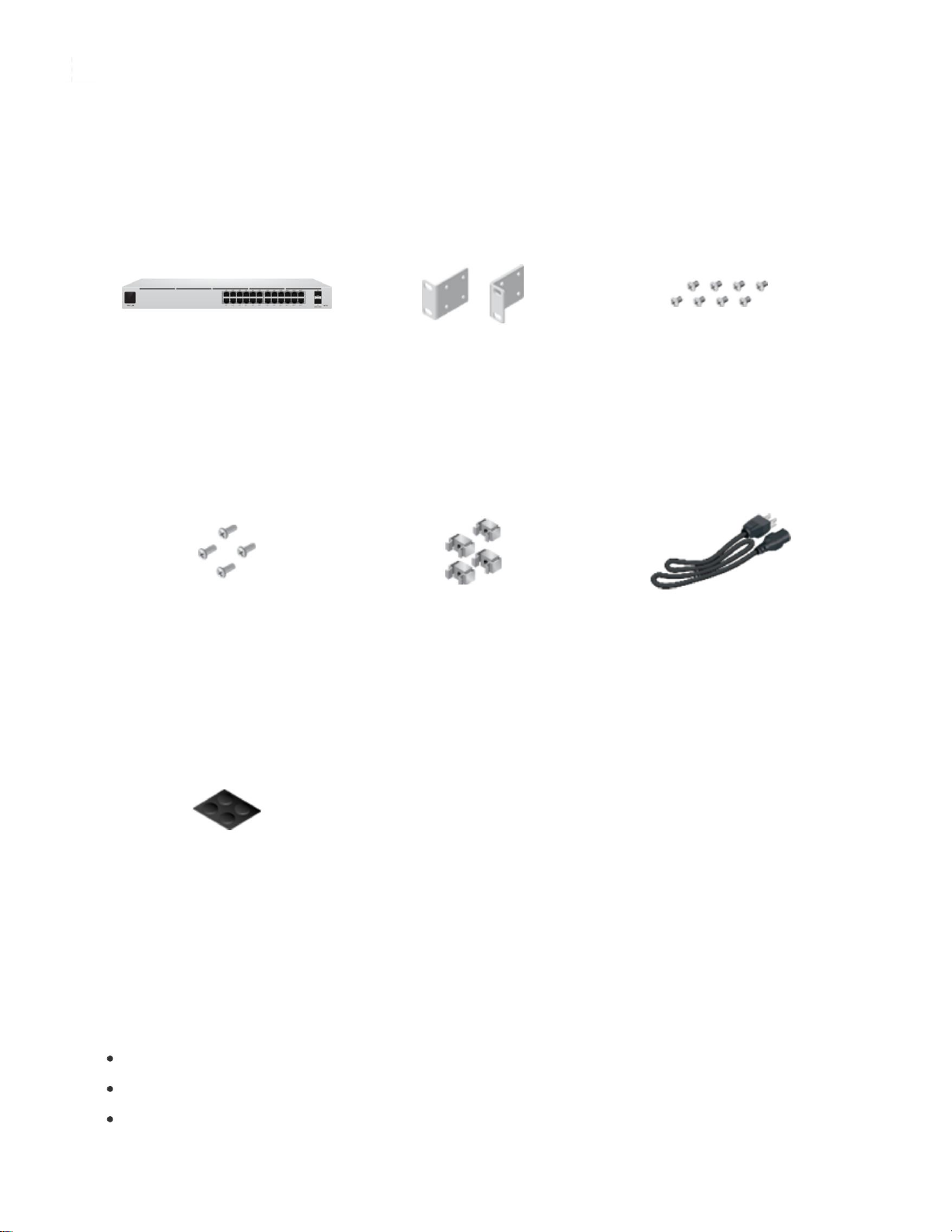

Package content
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html 1/15
Power cord
Rack mount brackets
(qty: 2)
UniFi Switch
Rubber base (qty: 4)
Set Screws (Qty: 4) Cage Nuts (Qty: 4)
Screw Clamps (Qty: 8)
IMPORTANT: We strongly recommend using power regulation and
supporting an uninterruptible power supply to prevent equipment damage
due to local AC power stability issues.
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html 2/15

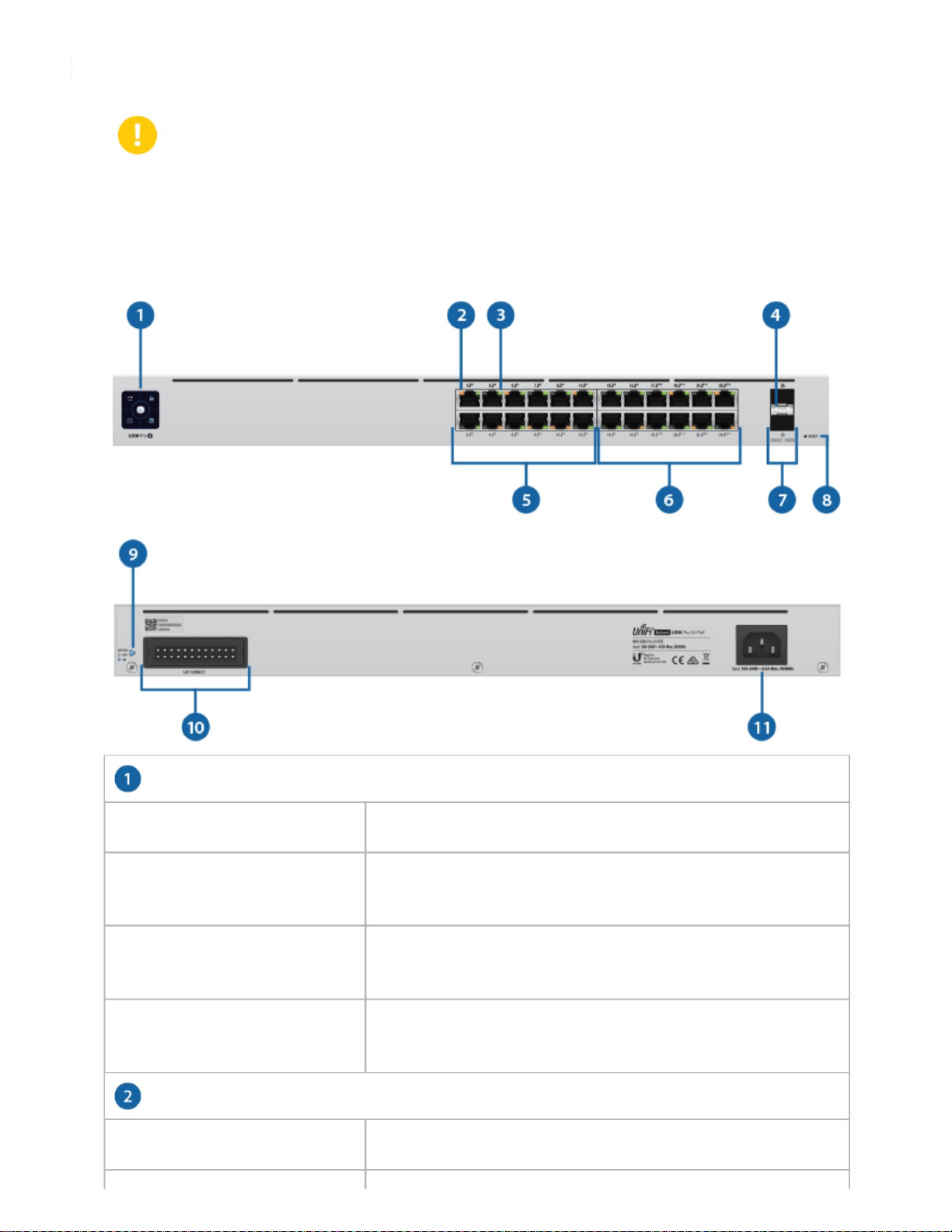

hardware description
Network approval successful and correct operation.
startup animation
UniFi Controller Software v5.10.x or later, available at: USW-Pro-24-POE Quick
Start Guide ui.com/download/unifi
This indicates you have clicked Locate in the UniFi controller
software.
steady blue light
disabled
Starting.
fixed white light
location animation
Sin PoE
Factory defaults, pending approval.
Touch screen
RJ45 PoE LEDs (ports 1 - 24)
SFP+ Speed/Link/Activity LED (Ports 25 - 26)
RJ45 (ports 17 - 24)
SFP+ (ports 25 - 26)
RJ45 (ports 1 - 16)
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html 3/15
not connected
not connected
Link established at 10/100 Mbps
Link established at 1 Gbps
Blinking indicates activity
RJ45 ports support 10/100/1000 Ethernet connections and an 802.3af/at/bt PoE
output.
Blinking indicates activity
Link established at 1000 Mbps
Link established at 10 Gbps
SFP+ ports are hot-swappable and support 1/10 Gbps connections.
Blinking indicates activity
Blinking indicates activity
Reset button
This button has two functions on the UniFi switch:
Green
Amber
Amber
PoE 802.3af/at/bt
USW-Pro-24-POE Quick Start Guide RJ45
Speed/Link/Activity LED (Ports 1 - 24)
Green
White
Reset – Quickly press and release the Reset button.
disabled
disabled
RJ45 ports support 10/100/1000 Ethernet connections and an 802.3af/at PoE output.
Restore Factory Default Settings: Press and hold the Reset button for more
than five seconds.
Phillips screwdriver
Standard size, 19" rack width with a minimum 1U height For indoor applications, use
Category 5 (or higher) UTP cabling certified for indoor use.
Reserved for future use.
1.
For outdoor applications, Category 5 (or higher) shielded cabling must be used for all
Ethernet connections and must be connected to the AC ground of the power supply.
power port
Connect the included power cord to the power port.
Reserved for future use.
Note: Although the wiring can be run outside, the UniFi Switch must be stored
inside a protective case.
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html 4/15
USW-Pro-24-POE Quick Start Guide
installation requirements

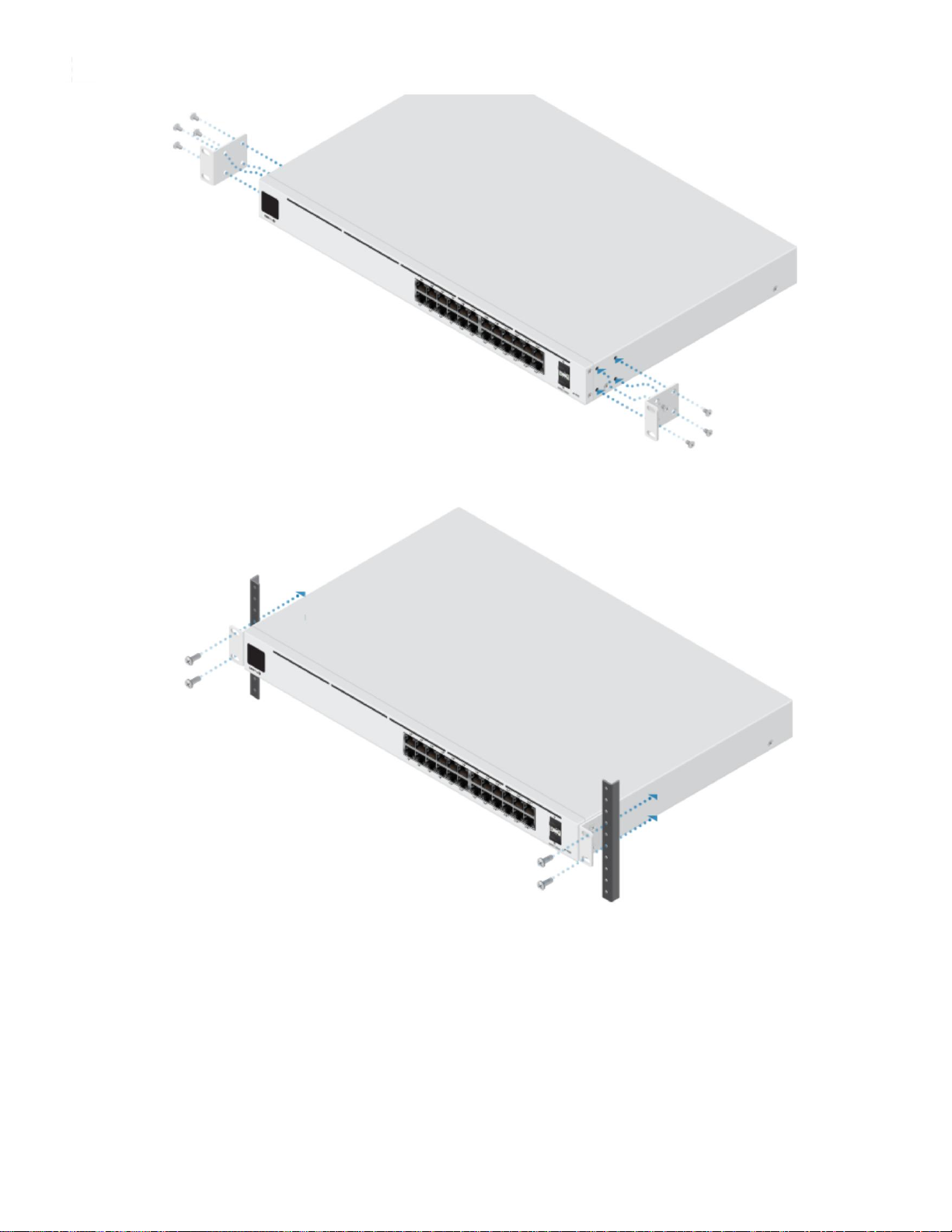

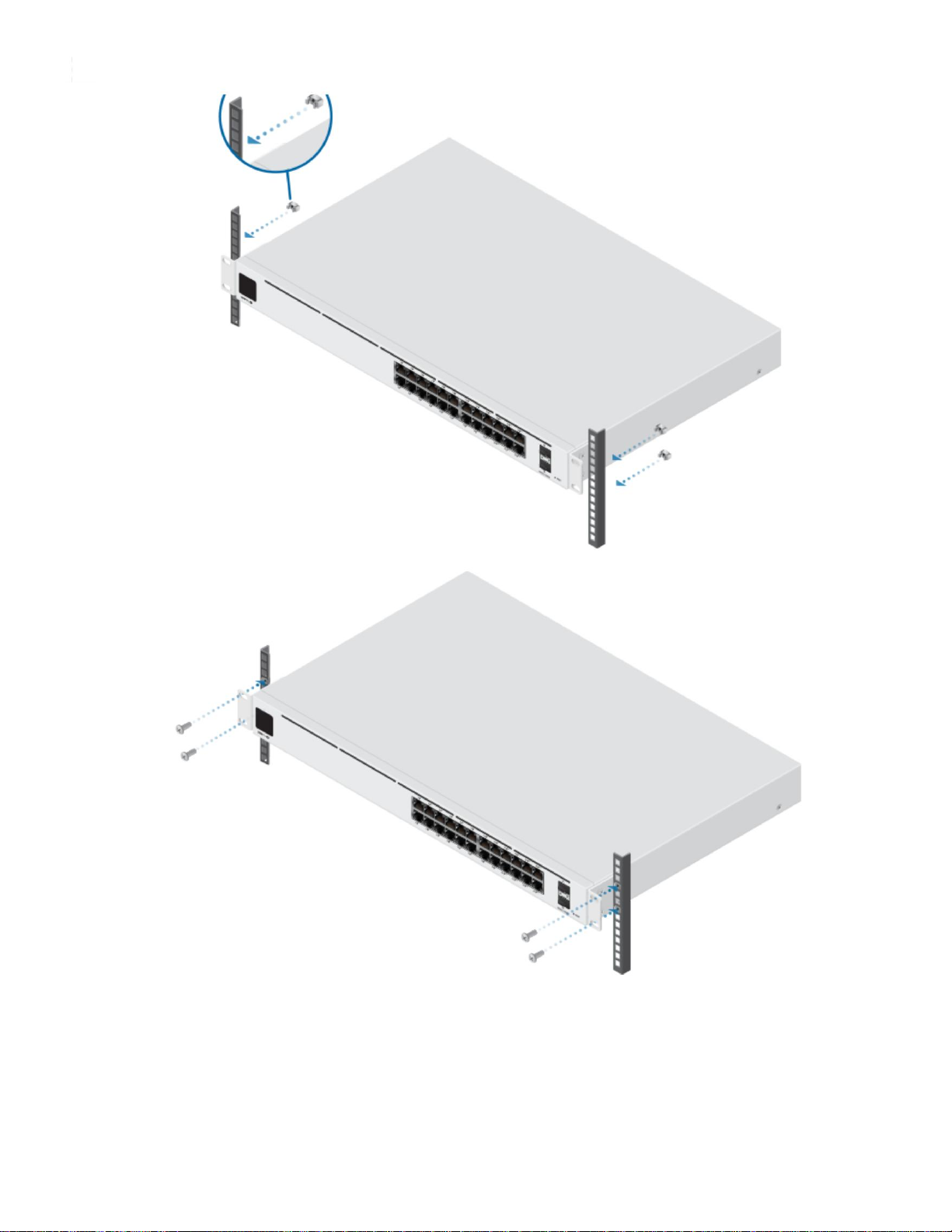

hardware installation
USP LED
DC input connected to USP
We recommend that you protect your networks from harmful outdoor environments and
electrostatic discharge phenomena with Ubiquiti's Industrial Grade Shielded Ethernet Cable.
For more details, visit: ui.com/toughcable
THE
2.
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html 5/15
USW-Pro-24-POE Quick Start Guide
1.

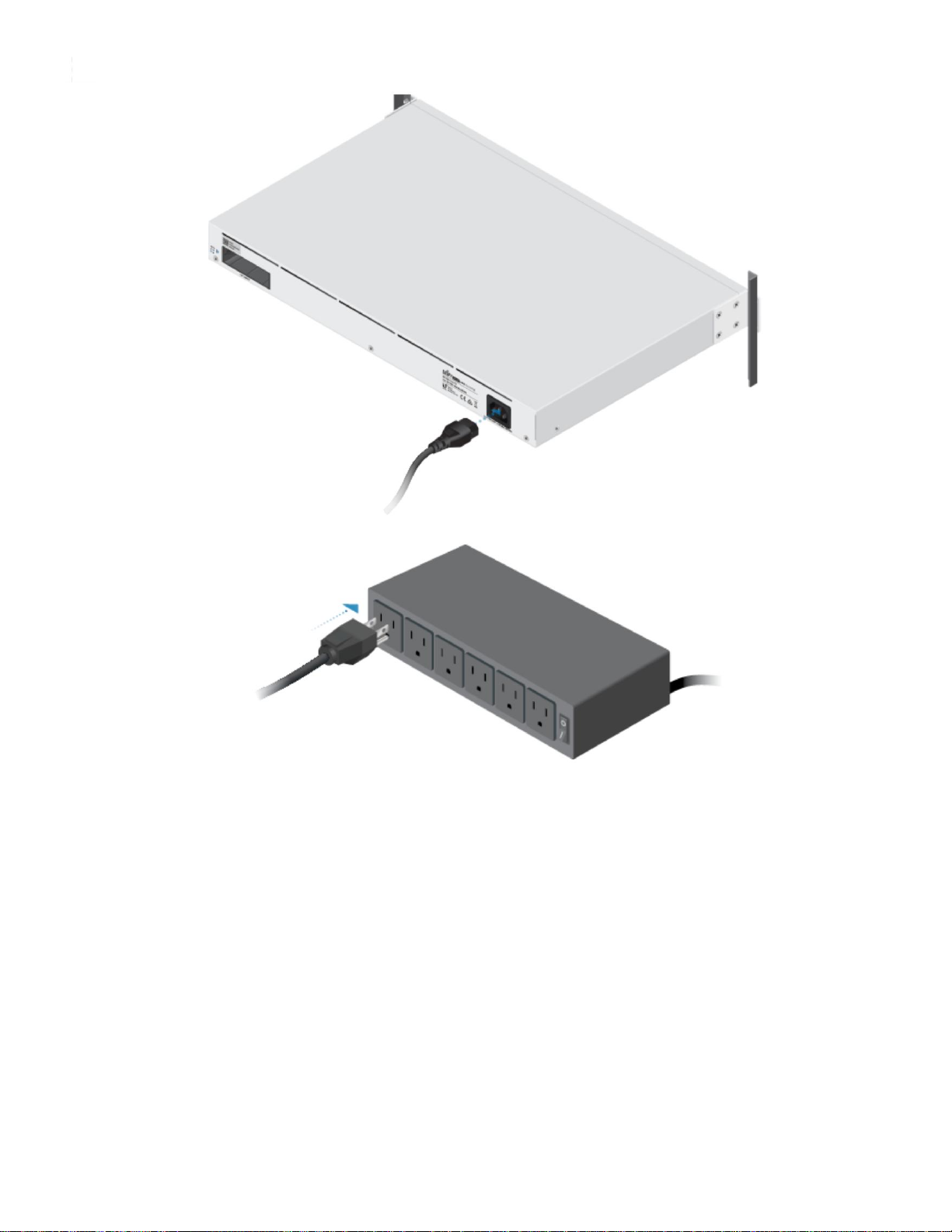

Power connection
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html 6/15
USW-Pro-24-POE Quick Start Guide

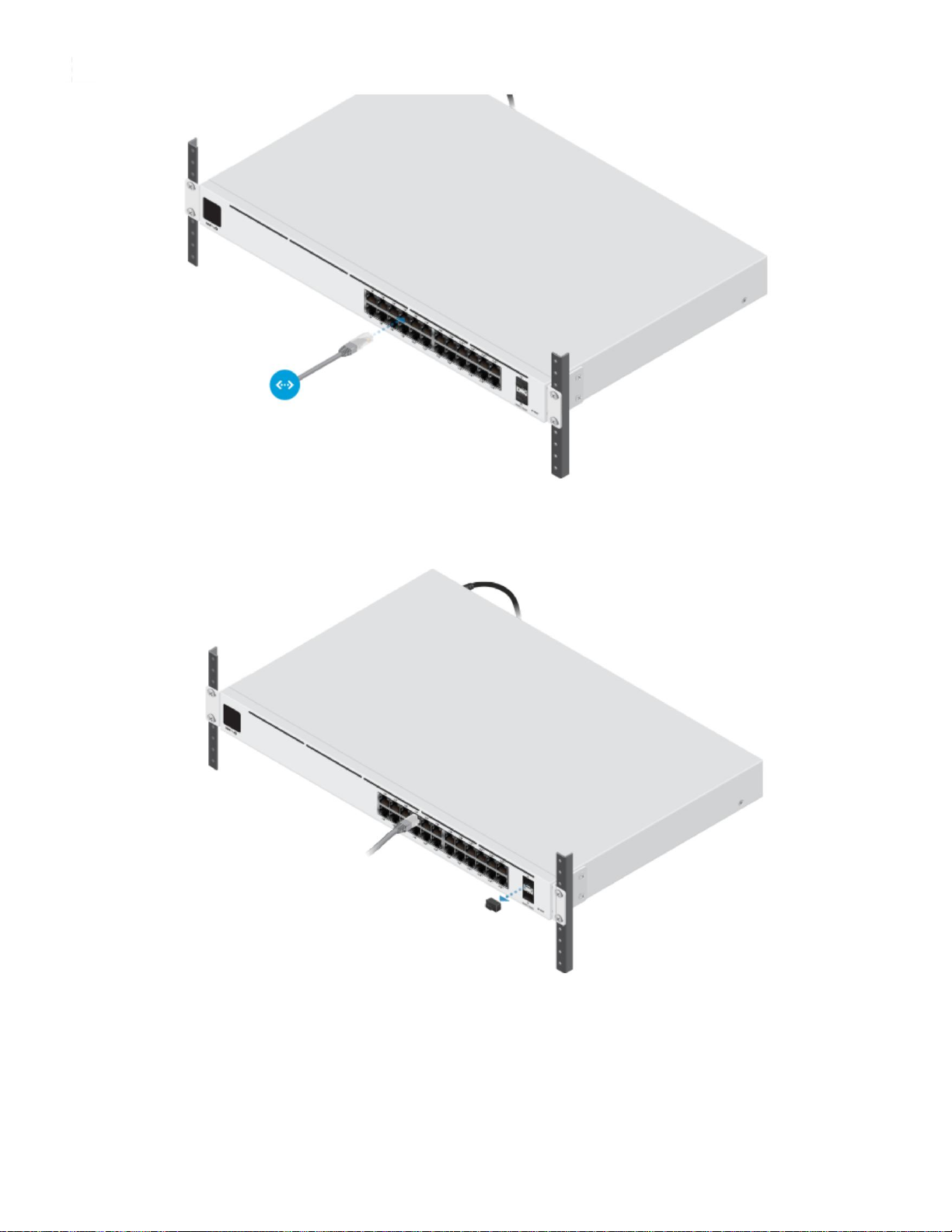

ethernet connection
2.
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html 7/15
USW-Pro-24-POE Quick Start Guide
1.
2.

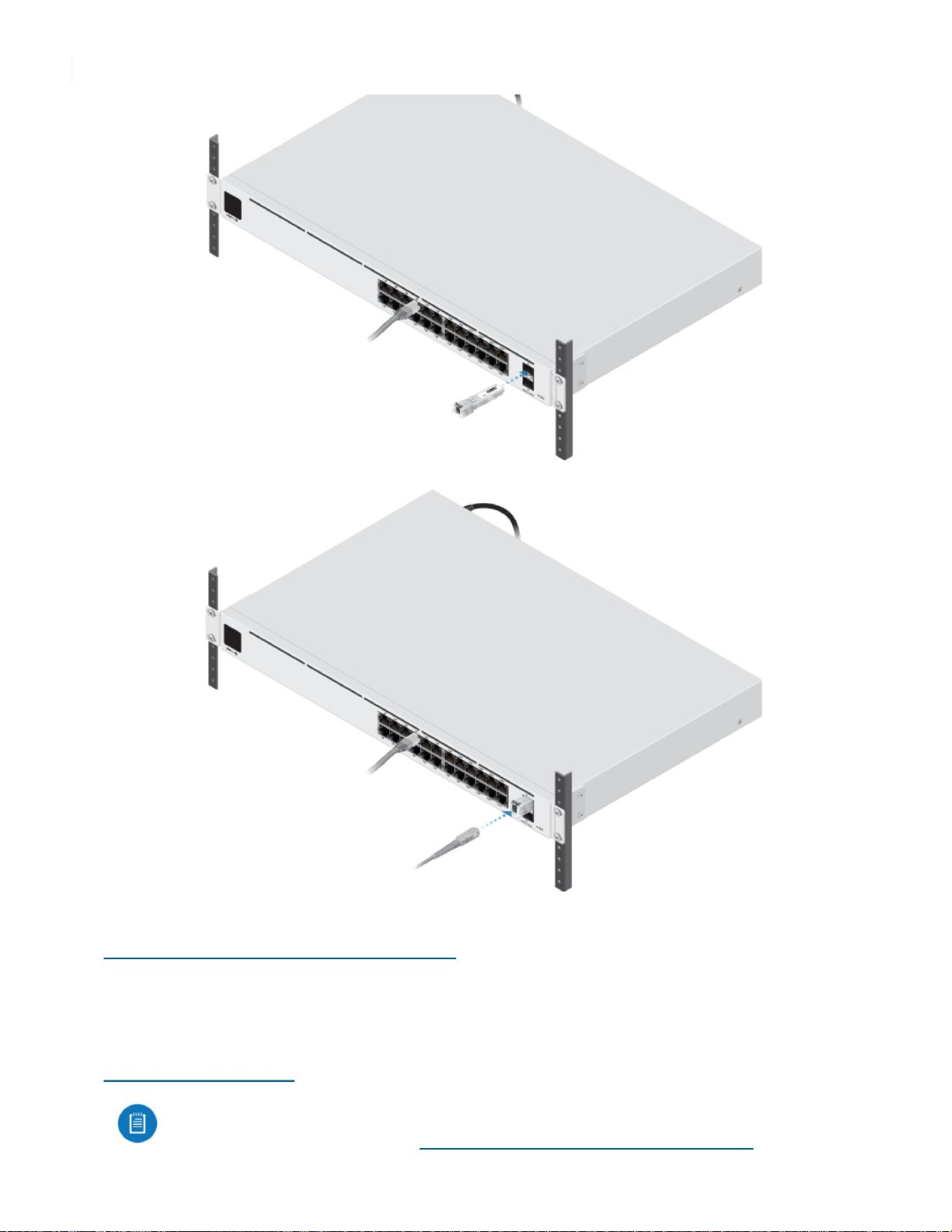

SFP connection
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html 8/15
USW-Pro-24-POE Quick Start Guide
Download and install the latest version of the UniFi driver software at
ui.com/download/unifi and follow the instructions on the screen.
9/15
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html
3.
Note: If you already have UniFi Controller version 5.10.x or higher installed, go to the
"UniFi Switch Implementation" section.
Software installation
For more information on compatible fiber SFP modules, visit: ubnt.link/
UniFi_SFP_DAC_Compatibility
USW-Pro-24-POE Quick Start Guide
The implementation of the UniFi switch
10/15
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html
To implement the UniFi Switch, go to "UniFi Switch Implementation".
1. From the UniFi controller panel, click Devices in the left menu bar.
You can manage your wireless network and view network statistics through
the UniFi Controller's management interface.
For information on setting up and using the UniFi Controller software, see the user
guide located on our website: ui.com/download/unifi

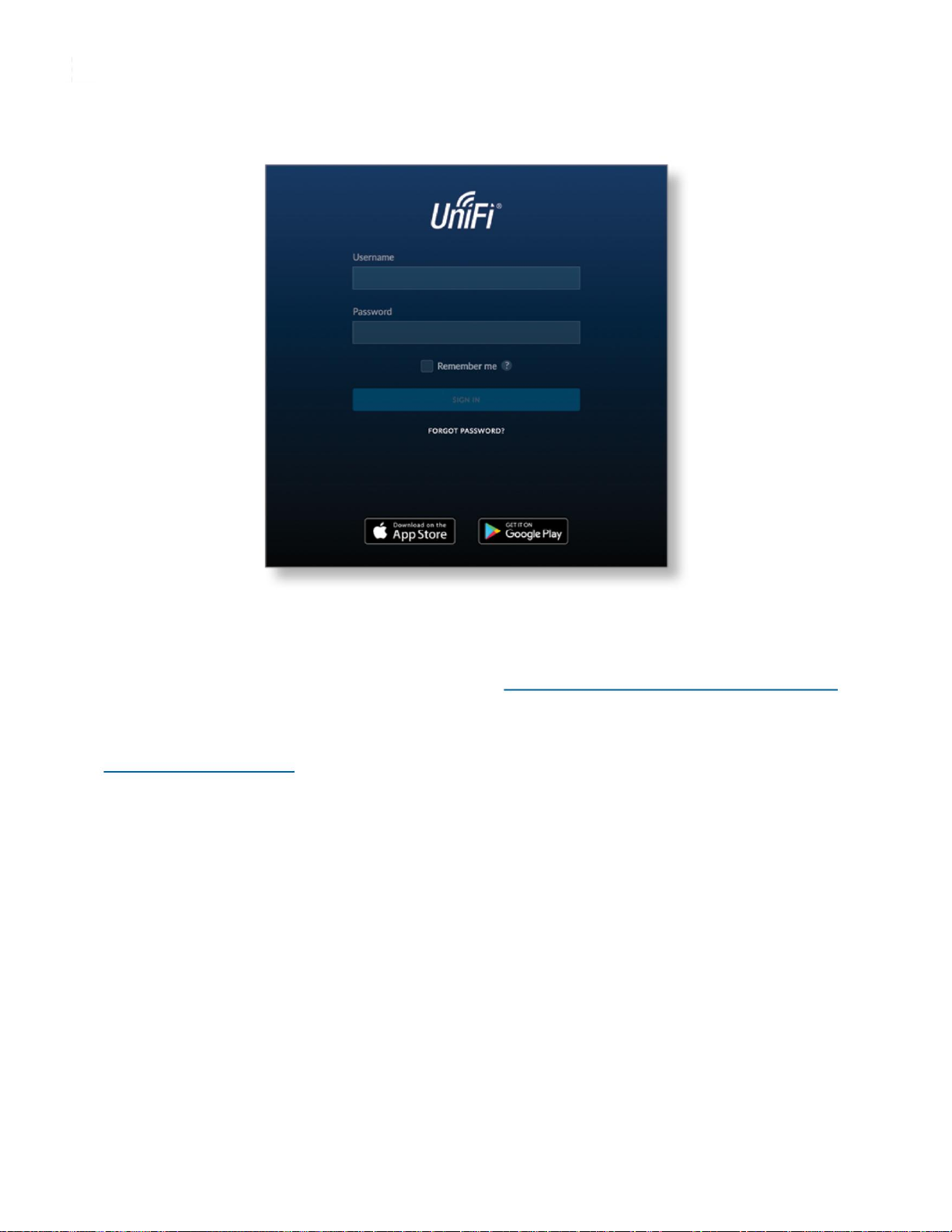

Once you have installed the software and run the USW-Pro-24-POE UniFi Quick
Start Guide installation wizard, a login screen for the UniFiController management interface will appear. Enter the administrator name and
password you created and click Sign In.
