Ubiquiti TS-5-POE ToughSwitchPoE Manuel utilisateur

5-Port Power over Ethernet

Managed Switch

Model: TS-5-POE

Introduction

Thank you for purchasing the Ubiquiti Networks TOUGHSwitch™

PoE, model TS-5-POE. It is part of the TOUGHSwitch series:

Name Model Description

TOUGHSwitch PoE TS-5-POE 5-port managed switch

featuring 24V PoE

TOUGHSwitch PoE PRO TS-8-PRO 8-port managed switch

featuring 24V or 48V PoE

TOUGHSwitch PoE CARRIER TS-16-CARRIER Two TOUGHSwitch PoE

PROs mounted in a rack

For more information, visit www.ubnt.com.

This Quick Start Guide is designed to guide you through the

installation of the TOUGHSwitch and show you how to access the

Configuration Interface.

Package Contents

TOUGHSwitch PoE M2.9x20 Screws

(Qty. 2)

M2.9 Anchors

(Qty. 2)

5-Port Power over Ethernet

Managed Switch

Model: TS-5-POE

Quick Start Guide Power Adapter

(24V, 2.5A)

Power Cord

TOUGHSwitch™PoE Quick Start Guide

Hardware

Back Panel

Power

Grounding

Slot

Grounding

Slot

Ventilation Holes

Front Panel Ports

Management

USB Reset

1-5

Interface Description

Management

10/100 Mbps port for management. Traffic between

the Management port and numbered ports will

be limited to 10/100 Mbps and, under heavy

load, may cause performance degradation of the

TOUGHSwitch.

USB Reserved for future use.

1-5 10/100/1000 Mbps ports for switching and PoE (also

available for management by default).

Reset

To reset to factory defaults, press and hold the Reset

button for more than five seconds while the unit is

already powered on.

Hardware

Front Panel LEDs

Link/Act

PoE

Speed/Link/Act

LED State Status

Management

Link/Act

Off No Link

Amber

After bootup, the LED indicates

power. After an initial link is

established, the LED indicates a

10/100 Mbps connection. If the

link terminates, the LED turns

off until a link is re-established.

If the unit reboots, the LED will

again indicate power until a link is

established.

Amber Flashing Activity

1-5

PoE

Off No Power over Ethernet

Green 24V Power over Ethernet

Speed/

Link/Act

Off No Link

Amber Link Established at 10/100 Mbps

Amber Flashing Link Activity at 10/100 Mbps

Green Link Established at 1000 Mbps

Green Flashing Link Activity at 1000 Mbps

TOUGHSwitch™PoE Quick Start Guide

Hardware Installation

Mount the TOUGHSwitch on a wall or place it on a bench top.

Note: Keep 20 mm of clearance next to the ventilation

holes for adequate airflow.

Installation Requirements

• Drill, 6 mm drill bit, and Phillips screwdriver (wall-mounting)

• For outdoor applications, shielded Category 5 (or above) cabling

should be used for all wired Ethernet connections and should be

grounded through the AC ground of the power supply.

We recommend that you protect your outdoor networks from

the most brutal environments and devastating ESD attacks

with industrial-grade shielded Ethernet cable from Ubiquiti

Networks™. For more details, visit www.ubnt.com/toughcable

Wall-Mounting

To mount the TOUGHSwitch on a wall:

1. Use a 6 mm drill bit to drill two holes 60 mm apart.

2. Insert the M2.9 Anchors into the holes.

3. Use a Phillips screwdriver to secure a M2.9x20 Screw to each

anchor. Leave a clearance of approximately 3 mm between

each screw head and its anchor.

60 mm

3 mm

Note: You can also mount the TOUGHSwitch in a

horizontal orientation.

Hardware Installation

4. Position the Wall-Mount Slots of the TOUGHSwitch over the

screw heads on the wall. Then slide the TOUGHSwitch to the

left to lock it into place.

Grounding the TOUGHSwitch (Optional)

The TOUGHSwitch is grounded through the Power Adapter;

however, you can add optional ESD grounding for enhanced ESD

protection.

1. Insert a ground wire (not included) through a corner slot.

2. Twist tie to secure the ground wire to the TOUGHSwitch.

3. Secure the other end of the ground wire to a grounding block.

TOUGHSwitch™PoE Quick Start Guide

Connecting Power

1. Connect the power connector of the Power Adapter to the

Power port of the TOUGHSwitch.

2. Connect the Power Cord to the power port on the Power

Adapter. Connect the other end of the Power Cord to a

poweroutlet.

Hardware Installation

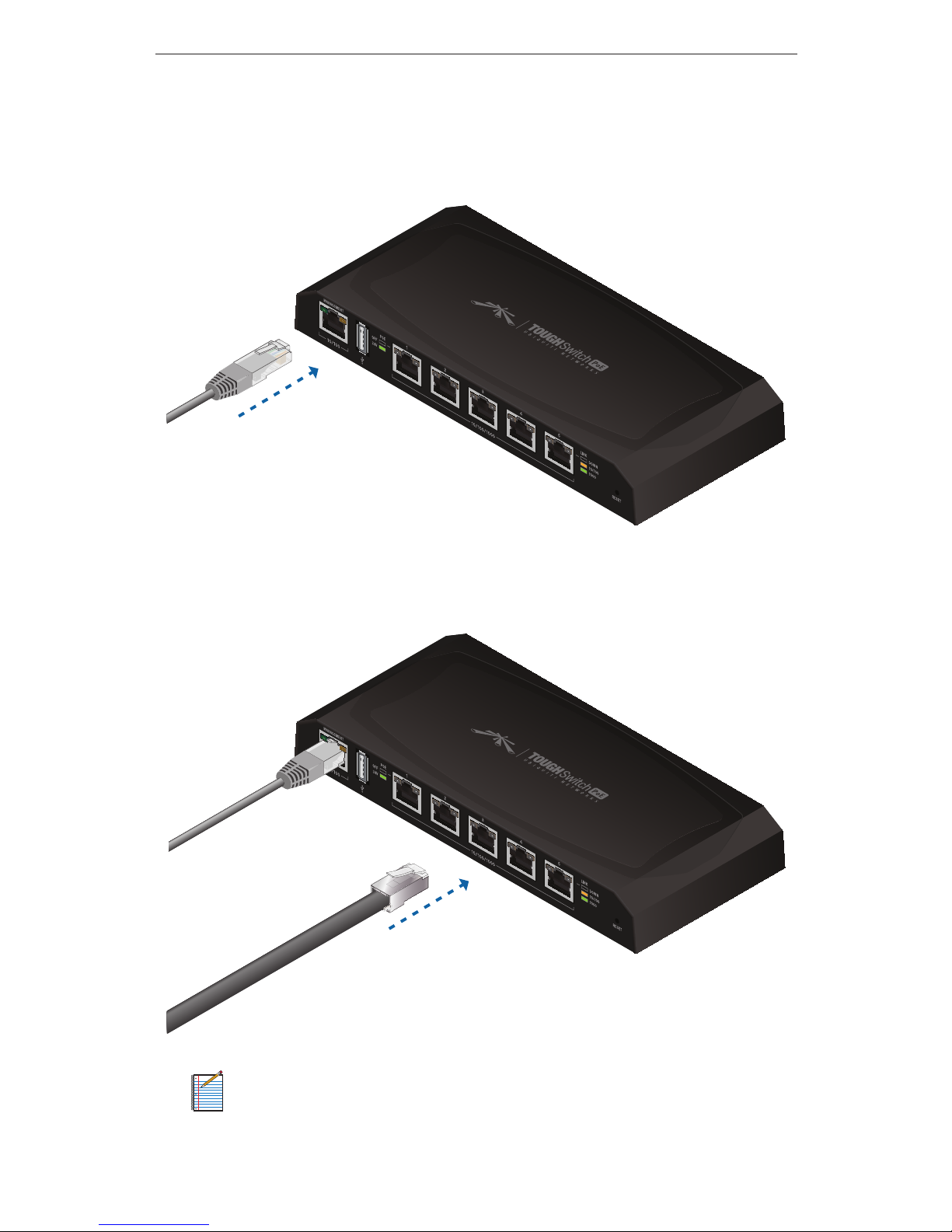

Connecting Ethernet

1. Connect an Ethernet cable from the Ethernet port of your

computer to the Management port of the TOUGHSwitch.

2. Connect Ethernet cables from the Ethernet ports of your

devices to the numbered ports of the TOUGHSwitch.

Note: PoE is disabled by default on all numbered ports

and is not available on the Management port. To enable

PoE on the appropriate ports, use the Ports tab in the

Configuration Interface.

TOUGHSwitch™PoE Quick Start Guide

Accessing the Configuration Interface

Connect to the Configuration Interface by performing the

following steps:

1. Ensure that your computer (or other host machine) is

connected to the Management port on the TOUGHSwitch.

Note: By default, you can configure the TOUGHSwitch

via any port; however, we recommend the Management

port. (Access to the Configuration Interface can be

limited to the Management port only. You can configure

this setting on the Device tab.)

2. Configure the Ethernet adapter on your host system with a

static IP address on the 192.168.1.x subnet (e.g., 192.168.1.100).

3. Launch your web browser. Type https://192.168.1.20 in the

address field. Press enter (PC) or return (Mac).

4. The login screen will appear. Enter ubnt in the Username and

Password fields. Click Login.

The Configuration Interface will appear, allowing you to customize

your settings as needed. You can enable PoE on the Ports tab.

Refer to the TOUGHSwitch PoE User Guide for instructions on

configuring the TOUGHSwitch. The User Guide is available at

documentation.ubnt.com
