Ubiquiti UniFi AP PRO Manuel utilisateur

Enterprise WiFi System

Introduction

Thank you for purchasing the Ubiquiti UniFi Enterprise WiFi

System. The UniFi Enterprise WiFi System includes the UniFi

Controller software that allows you to manage your wireless

network using your Web browser.

This Quick Start Guide is for use with the UniFi AP-Pro.

The UniFi Enterprise WiFi System also includes the necessary

hardware for mounting the unit on a wall or a ceiling. The UniFi

AP-Pro can be powered by a 48V, 802.3af compliant switch.

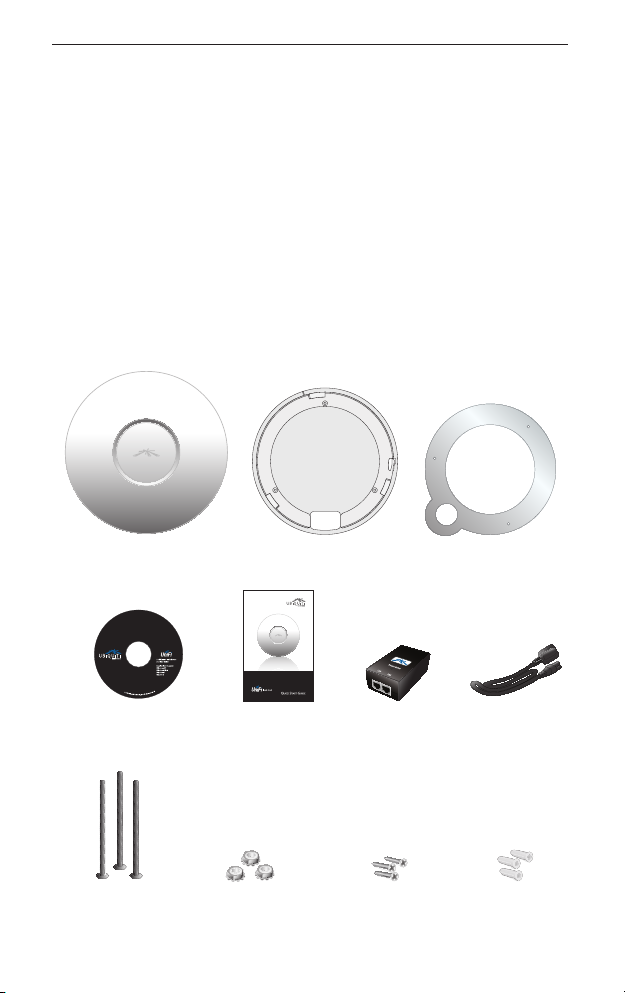

Package Contents

UniFi AP-Pro Mounting Bracket Ceiling Backing Plate

Enterprise WiFi System

UniFi Controller

CD with User Guide

Quick Start

Guide

PoE GigE Adapter

(48V, 0.5A Gigabit)

Power Cord

M3x50 Flat Head

Screws

(Qty. 3)

M3 Keps Nuts with

Tooth Washers

(Qty. 3)

M2.9x20 Screws

(Qty. 3)

M3x20 Screw

Anchors

(Qty. 3)

UniFi™AP Pro

System Requirements

• Microsoft Windows XP, Windows Vista, Windows 7, or Mac OS X

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft

Internet Explorer 8 (or above)

Network Topology Requirements

• A DHCP-enabled network (for the AP to obtain an IP address as

well as for the wireless clients after deployment)

• A management station computer running the UniFi Controller

software, located either onsite and connected to the same

Layer-2 network, or off-site in a cloud or NOC

Router

Oﬀ-Site

Cloud/NOC

On-Site

Management Station

UAP/UAP-LR UAP-Pro

Sample Network Diagram

All UniFi APs support off-site management controllers. See the

User Guide on the CD for setup details.

Network Topology Requirements

Hardware Overview

LED

LED Color Status

Flashing White Initializing.

Steady White Factory default, waiting to be integrated.

Alternating

White/Blue

Device is busy; do not touch or unplug it.

This usually indicates that a process such as a

firmware upgrade is taking place.

Quickly Flashing

Blue

This is used to locate an AP.

When you click Locate in the UniFi Controller

software, the AP will flash. It will also display

the location of the AP on the map.

Steady Blue Indicates the device has been successfully

integrated into a network and is working

properly.

Steady Blue

with occasional

flashing

Indicates the device is in an isolated state (all

WLANs are brought down until an uplink is

found).

Status LED

UniFi™AP Pro

Ports

Main Ethernet Port

(10/100/1000 Mbps)

Secondary Ethernet Port

(10/100/1000 Mbps)

Reset Button

Main/48V The Main/48V Ethernet Port is used to connect the

power and should be connected to the LAN and DHCP server.

Power can be provided by a 48V 802.3af compliant switch or by

the included PoE adapter.

Secondary The Secondary Ethernet Port is used for bridging.

Reset The Reset button serves two functions:

• Restart It will restart the device when you press and release it

quickly.

• Restore Factory Defaults When you press and hold it for more

then 5 seconds, it will restore the device to the factory default

settings.

Network Topology Requirements

Hardware Installation

The UniFi AP-Pro can be mounted to the wall or ceiling. Perform

the steps for the appropriate installation:

Wall Mount

1. Position the Mounting Bracket at the desired location on the

wall with the cable feed slot pointed towards the floor.

2. Use a pencil to mark the three holes on the wall. Use a 6 mm

drill bit to drill the holes in the wall.

Top

Optional 25 mm Hole for Ethernet

Cable Feed through Wall

3. (Optional) If your Ethernet cable feeds through the wall, cut or

drill a circle that is approximately 25 mm in size and lines up

with the cable feed slot.

4. Insert the M3x20 Screw Anchors into the 6 mm holes. Secure the

Mounting Bracket to the wall by inserting the M2.9x20 Screws

into the anchors.

UniFi™AP Pro

5. Connect the Ethernet cable to the Main Ethernet Port on the

UniFi AP-Pro.

6. Align the notch on the UniFi AP-Pro with the notch on the

Mounting Bracket.

Network Topology Requirements

7. Turn the UniFi AP-Pro clockwise until it locks into place.

Ceiling Mount

1. Remove the ceiling tile.

2. Place the Mounting Bracket in the center of the ceiling tile.

Mark the three mounting screw holes and 25 mm hole for the

Ethernet cable.

25 mm Hole for Ethernet Cable Feed

UniFi™AP Pro

3. Use a 3 mm drill bit to drill the screw holes and cut or drill the

25 mm hole for the Ethernet cable feed.

4. Secure the Mounting Bracket to the ceiling tile using the Ceiling

Backing Plate, M3x50 Flathead Screws and M3 Keps Nuts with

Tooth Washers.

5. Feed the Ethernet cable through the 25 mm hole.
