Ubiquiti ES-10X Manuel utilisateur

EdgeSwitch 10X Wall Mount Screws (Qty. 2) Wall Mount Anchors (Qty. 2)

Ground Screw Power Adapter (24V, 1A) Cable Clip

Package Contents

Installation Requirements

Wall-mounting (optional)

Drill with 6 mm drill bit

Phillips screwdriver

For indoor applications, use Category 5 (or above) UTP cabling approved for

indoor use.

For outdoor applications, shielded Category 5 (or above) cabling should be used

for all wired Ethernet connections and should be grounded through the AC

ground of the power supply.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded Ethernet

cable from Ubiquiti. For more details, visit: ui.com/toughcable

Note: Although the cabling can be located outdoors, the EdgeSwitch itself

should be housed inside a protective enclosure.

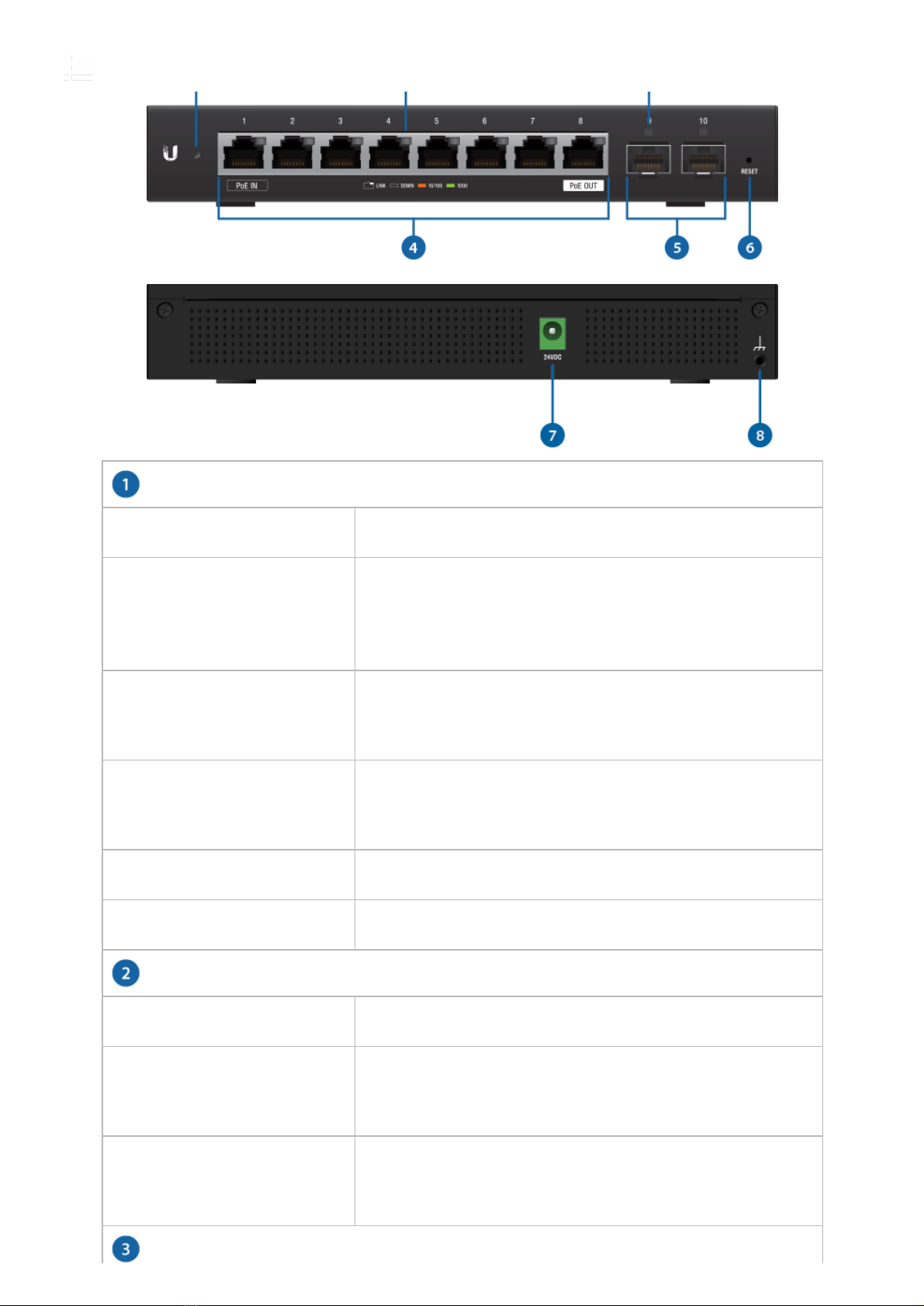

Hardware Overview

ES-10X Quick Start Guide

System LED

RJ45 Speed/Link/Activity LED (Ports 1 - 8)

SFP Link/Activity LED (Ports 9 - 10)

Flashing White Bootup in Progress

White

Ready for Use

Not Connected to Ubiquiti Internet Service Provider

(UISP™)

Blue

Ready for Use

Connected to UISP

Steady Blue with

Occasional Flashing

Ready for Use

Unable to Connect to UISP

Quickly Flashing Blue Used to Locate a Device in UISP

Alternating Blue/White Firmware Upgrade in Progress

Off No Link

Amber

Link Established at 10/100 Mbps

Flashing Indicates Activity

Green

Link Established at 1000 Mbps

Flashing Indicates Activity

ES-10X Quick Start Guide

RJ45 (Ports 1 - 8)

SFP (Ports 9 - 10)

Reset Button

Power

Grounding Point

Off No Link

Green

Link Established at 1 Gbps

Flashing Indicates Activity

RJ45 ports support 10/100/1000 Ethernet connections.

PoE In (Port 1) Supports 24V Passive PoE input.

PoE Out (Port 8) Supports 24V Passive PoE passthrough.

Hot-swappable SFP ports support 1 Gbps connections. If you use a copper

Ethernet module (example: UF-RJ45-1G), power off the EdgeSwitch before

insertion; otherwise there may be a device reboot.

To reset to factory defaults:

1. Disconnect power from the EdgeSwitch.

2. Reconnect power while holding the Reset button. The port LEDs will light up in

sequential order (this takes approximately ﬁve seconds).

3. When the port 1 LED ﬂashes again, release the Reset button.

Connect the included Power Adapter to the Power port.

Ground bonding point for an optional ground wire.

Hardware Installation

The optional EdgeRouter™ Rackmount Kit, model ER-RMKIT, is sold separately.

WARNING: The EdgeSwitch ES-10X must not be stacked. Do not place it

on top of another switch. Do not place anything on top of the ES-10X.

Wall Mounting

ES-10X Quick Start Guide

Grounding the EdgeSwitch (Recommended)

ES-10X Quick Start Guide

The Power Adapter grounds the device; however, you can add optional ESD

grounding for enhanced ESD protection (ground wire not included).

Optional

Connecting Power

Note: Only one power source can be used at any one time. With both power

sources connected, the input with the highest voltage will be used; the other

power source defaults to backup.

ES-10X Quick Start Guide

Connecting Ethernet

ES-10X Quick Start Guide

WARNING: Before enabling PoE passthrough, ensure that the connected

PoE device supports 24V Passive PoE.

Using SFP Ports

ES-10X Quick Start Guide

For information about compatible ﬁber SFP modules, visit:

ubnt.link/SFP_DAC_Compatibility

Accessing the Conﬁguration Interface

The device is set to DHCP by default, so it will try to automatically obtain an IP

address. If that fails, then it will use the default fallback IP address, 192.168.1.20.

Proceed to the appropriate section, DHCP or “Fallback IP Address”:

DHCP

Use one of the following methods:

Set up the DHCP server to provide a speciﬁc IP address to the device based on

its MAC address (on the label).

Let the device obtain an IP address and then check the DHCP server to see

which IP address was assigned.

ES-10X Quick Start Guide

To log in, follow these steps:

1. Launch your web browser. Type the appropriate IP address in the address ﬁeld.

Press enter (PC) or return (Mac).

2. Enter ubnt in the Username and Password ﬁelds. Click Sign In.

The EdgeSwitch Conﬁguration Interface will appear. Customize additional settings as

needed. For 24V Passive PoE conﬁguration, refer to “Conﬁguring PoE Settings”.

For more information, refer to the EdgeSwitch documentation, which is available at

ui.com/download/edgemax

Fallback IP Address

1. Ensure that your computer (or other host system) is connected to the device.

2. Conﬁgure the Ethernet adapter on your host system with a static IP address on

the 192.168.1.x subnet.

3. Launch your web browser. Type the appropriate IP address in the address ﬁeld

(192.168.1.20 is the default fallback IP address). Press enter (PC) or return (Mac).

4. Enter ubnt in the Username and Password ﬁelds. Click Sign In.

5. The EdgeSwitch Conﬁguration Interface will appear. Click the System Settings

tab.

6. Change the IP Address to a unique IP address. Click Apply.

Note: If you change the IP settings, then the session will be cut off, and you

will need to reconnect to the device using the new IP address.

Customize additional settings as needed. For 24V Passive PoE conﬁguration, refer to

“Conﬁguring PoE Settings”. For more information, refer to the EdgeSwitch

documentation, which is available at ui.com/download/edgemax

Conﬁguring PoE Settings

The PoE setting for port 8 is set to Off by default.

WARNING: Before activating PoE, ensure that the connected device

supports passive PoE and the supplied voltage.

On the Dashboard tab, click the PoE setting of port 8. Then select 24V.

UISP Management

You can manage your device using UISP, which lets you conﬁgure, monitor, upgrade,

and back up your devices using a single application. Get started at uisp.ui.com

Speciﬁcations

ES-10X Quick Start Guide
