Ubiquiti 0810354025402 Manuel utilisateur

5 GHz airMAX®ac Bridge with

400 mm RF Isolated Reflector

Model: PBE-5AC-400-ISO

Introduction

Thank you for purchasing the Ubiquiti Networks®

PowerBeam®ac. This Quick Start Guide is designed to guide

you through installation and includes warranty terms.

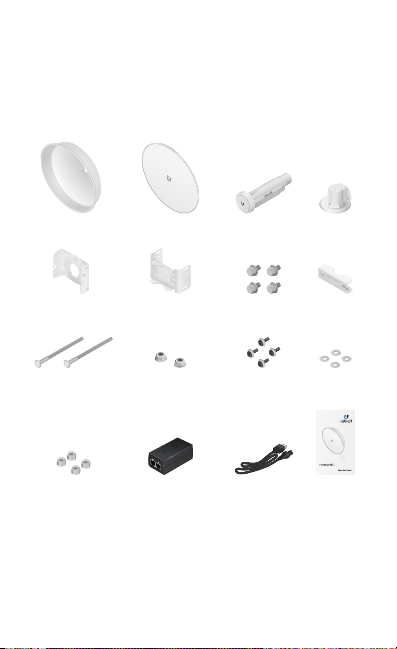

Package Contents

Reflector Radome Antenna Feed* Rear Housing

Mounting

Bracket

Adjustment Bracket Hex Bolts with

Washers (Qty. 4)

Pole

Clamp

Carriage Bolts

(Qty. 2)

Flange Nuts

(Qty. 2)

Screws with

Washers (Qty. 4)

Washers

(Qty. 4)

ISO

5GHz airMAX®ac Bridge with

400mm RF Isolated Reflector

Model:PBE-5AC-400-ISO

Nylon Insert

Lock Nuts (Qty. 4)

Gigabit PoE (24V, 0.5A)

with Mounting Bracket

Power Cord Quick Start

Guide

* The PBE-5AC-400-ISO Antenna Feed has a thin gray ring around the center

of the cap to differentiate it from the PBE-5AC-300-ISO Antenna Feed.

cable and earth grounding must be used as conditions of product warranty. TOUGHCable™is

designed for outdoor installations. It is the professional installer’s responsibility to follow local

country regulations, including operation within legal frequency channels, output power, and

Dynamic Frequency Selection (DFS) requirements.

Hardware Overview

Bottom View

Technology

Cable Door

Rear Housing

Antenna Feed

Ethernet Port

Release Button Slot

Mounting Bracket

Release Button

Reflector

Alignment Pins

Reset Button

Radome

Reset Button To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the PowerBeam

is poweredon. Alternatively, the PowerBeam may be reset

remotely via a Reset button located on the bottom of the

Gigabit PoE adapter.

Release Button After you assemble the PowerBeam, check

the Release button; it should be fully engaged in the Release

Button Slot of the Rear Housing. This ensures that the Antenna

Feed is locked into place. If you need to remove the Antenna

Feed, you must depress the Release button first.

LEDs

Power The Power LED will light blue when the

device is connected to a power source.

Ethernet The Ethernet LED will light steady blue

when an active Ethernet connection is made and

flash when there is activity.

Signal In airOS®, you can modify the threshold

value for the wireless signal strength LEDs on the

Wireless tab under Signal LED Thresholds. Each LED

will light when the wireless signal strength is equal

to or greater than the LED’s threshold value. The

default threshold values for these LEDs are shown

below:

-65 dBm -73 dBm -80 dBm -94 dBm

Application Examples

The PowerBeam mounted outdoors with the Reflector

installed provides directional outdoor coverage (gain is

reflector‑dependent).

The PowerBeam mounted outdoors without the Reflector

installed provides outdoor-to-indoor coverage using the 3 dBi

Antenna Feed only.

Installation Requirements

• 13 mm wrench

• Shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded

through the AC ground of the PoE.

We recommend that you protect your networks from

harmful outdoor environments and destructive ESD events

with industrial‑grade, shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

Installation

1. Align and insert the tabs of the Mounting Bracket into

the slots of the Reflector. Rotate the Mounting Bracket

counterclockwise until the alignment holes in the dish and

bracket align with each other.

2. Remove the Antenna Feed from the Rear Housing:

a. Push in the sides of the Cable Door and detach it from

the Rear Housing. Keep the Cable Door detached.

b. Press the Release Button and slide the Rear Housing off

of the Antenna Feed.

3. For added support in high‑wind environments, insert four

Screws with Washers into the holes in the Reflector and

Mounting Bracket, and secure each screw with a Washer

and a Nylon Insert Lock Nut.

Mounting Bracket Reflector

4. Line up the Alignment Pins of the Rear Housing with the

alignment holes of the Mounting Bracket. Push the Rear

Housing into the Mounting Bracket.

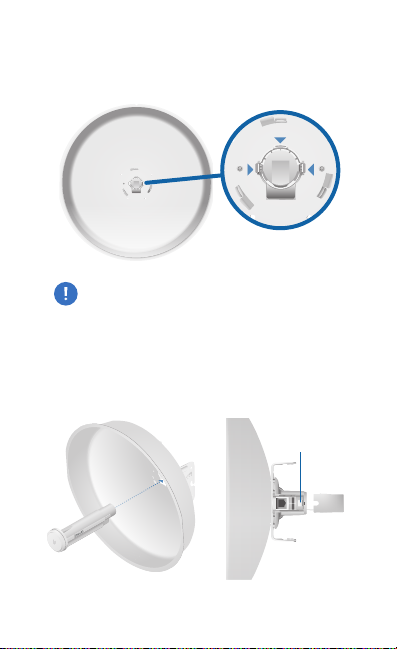

5. View the Reflector from the front. Ensure that the three

hooks (indicated below) of the Rear Housing are fully

engaged with the inner wall of the Reflector and locked

into place.

IMPORTANT: Before proceeding, lightly pull the Rear

Housing to confirm that it is locked into place.

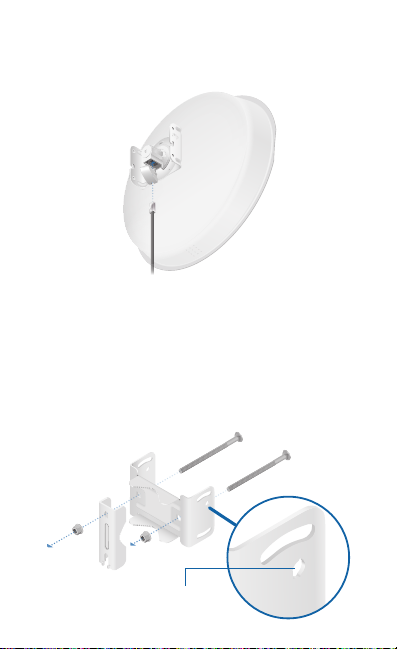

6. Attach the Antenna Feed.

a. Insert the Antenna Feed into the Rear Housing, and push

until it locks into place with a click.

b. Lightly pull the Antenna Feed to ensure that it is locked

into place and the Release Button is fully engaged.

Release

Button

Bottom View

7. Connect an Ethernet cable to the Ethernet Port of the

Antenna Feed. Then re‑attach the Cable Door to the

RearHousing.

8. Attach the Pole Clamp to the Adjustment Bracket.

a. Hold the Adjustment Bracket with its clamps facing you

and the Elevation Indicators towards the top.

b. Insert the Carriage Bolts through the holes of the

Adjustment Bracket.

c. Slide the hole of the Pole Clamp over one bolt of the

Adjustment Bracket.

d. Place one Flange Nut on each bolt.

Elevation

Indicator

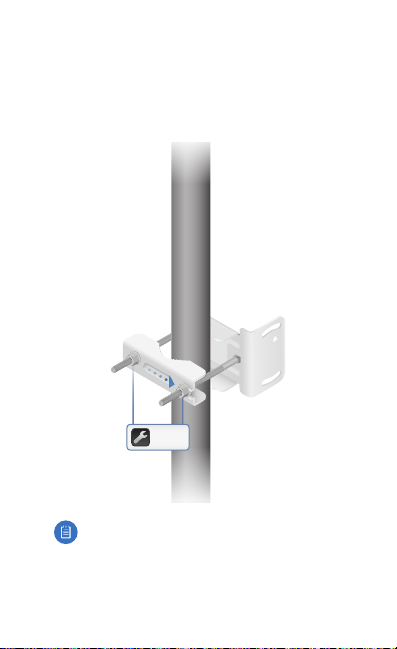

9. Mount the Adjustment Bracket on the pole and secure it.

a. Place the Adjustment Bracket against the pole.

b. Slide the slot of the Pole Clamp over the adjacent

Carriage Bolt.

c. Tighten the Flange Nuts of the bolts to 25 N · m to secure

the Adjustment Bracket to the pole.

25 N ·m

Note: The mounting assembly can accommodate a

Ø 40 ‑ 80 mm pole.
