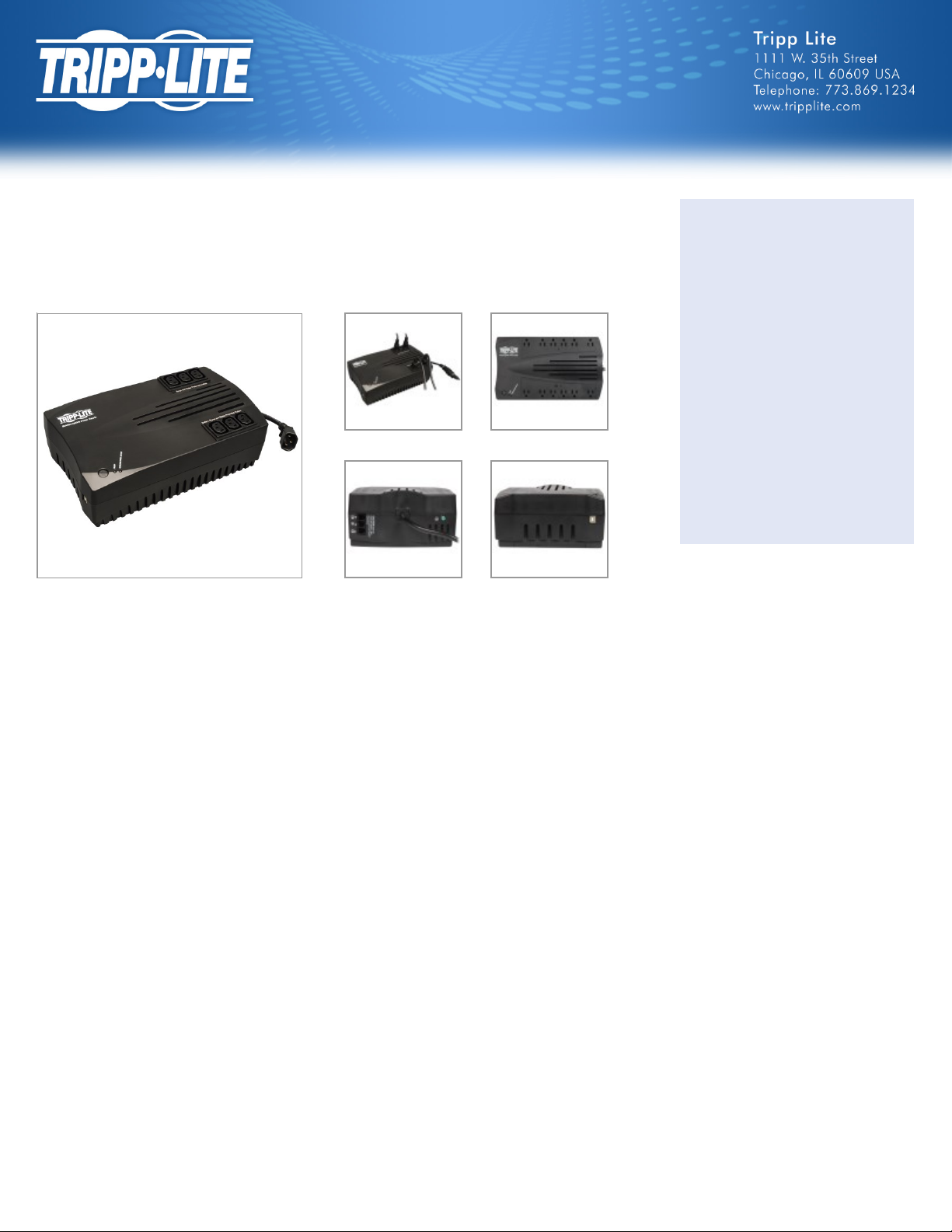

Tripp Lite UPS System AVRX750U Manuel utilisateur

AVR Series 230V 750VA 450W Ultra-Compact

Line-Interactive UPS with USB port, C13 Outlets

MODEL NUMBER: AVRX750U

Description

Tripp Lite's AVRX750U Ultra-Compact Line Interactive UPS offers complete power protection for desktop

PCs, network workstations and a wide variety of professional and consumer electronic devices.

Uninterruptible Power Supply / UPS circuits switch to battery backup mode within milliseconds to keep

connected equipment running without interruption or data loss during power failures. Automatic Voltage

Regulation / AVR power conditioning maintains smooth, continuous operation of connected equipment

during brownouts and overvoltages. Surge-only outlets offer convenient protection for printers and other

desktop accessories not requiring battery support. AC and dataline surge suppression prevents connected

equipment damage. USB communications port supports built-in power management and auto-shutdown

features of Windows and Mac OS X or full featured monitoring and data-saving auto-shutdown options

using Tripp Lite's free PowerAlert monitoring software.

Features

AVRX750U ultra-compact 230V line interactive UPS offers complete AC power protection from

blackouts, brownouts and transient surges

●

750VA / 450 watt UPS output capacity

●

Uninterruptible Power Supply / UPS operation maintains battery-derived AC output during blackouts to

prevent data loss and system downtime for connected equipment

●

Built-in USB port enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert

software, available via FREE download from www.tripplite.com/poweralert

●

HID-compliant USB port also enables integration with built-in power management and auto shutdown

features of Windows and Mac OS X

●

Automatic Voltage Regulation / AVR corrects extended brownouts and overvoltages from 159 to 282V,

without using battery power

●

2.4 minutes runtime at 100% load (450 watts), 8.6 minutes runtime at 50% load (225 watts)

●

32 minutes runtime for a desktop computer system consuming 80 watts continuous

●

6 total C13 outlets; Includes two 2m C13 to C14 power cables

●

3 UPS battery backup outlets, plus 3 additional surge-only outlets

●

C14 inlet supports a variety of site specific input cordsets

●

Network grade AC surge protection is available from all outlets

●

Built-in data line surge suppression protects a single dialup or DSL line

●

Highlights

750VA ultra-compact 230V line

interactive UPS

●

Corrects brownouts and

overvoltages from 159V to 282V

●

3 UPS battery supported outlets,

3 surge-only outlets

●

USB port, TEL/DSL protection,

Wall mountable

●

C14 inlet and 6 C13 outlets

●

Package Includes

AVRX750U UPS System

●

USB cable

●

Two C13 to C14 power cables

●

Instruction manual

●

1 / 5

Specifications

Supports Tripp Lite's Watchdog system service to restore operation to locked equipment through soft

reboot of application/OS or hard power off/on reboot of connected equipment, ideal for unattended kiosk

applications

●

Built-in grounding lug

●

Hot swappable user battery replacement

●

Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to

connected equipment

●

Space saving, ultra-compact housing with support for wall-mount, desktop or floor placement

●

OVERVIEW

UPC Code 037332123138

UPS Type Line-Interactive

INPUT

Rated input current (Maximum Load) 10A

Nominal Input Voltage(s) Supported 230V AC

UPS Input Connection Type C14 inlet

UPS Input Connection Description Attached 15cm line cord with C14 inlet. The C14 inlet accepts user-supplied AC power cord with country specific

plug.

UPS Input Cord Length (ft.) 0.5

UPS Input Cord Length (m) 0.2

Input Phase Single-Phase

OUTPUT

Output Volt Amp Capacity (VA) 750

Output Watt Capacity (Watts) 450

Nominal Voltage Details 230V nominal output in battery mode

Frequency Compatibility 50 / 60 Hz

Frequency Compatibility Details Automatic frequency selection

Output Voltage Regulation (Line

Mode) +8%, -21%

Output Voltage Regulation (Battery

Mode) +/- 5%

Included Output Power Cables Includes 2 C13 to C14 output power cables

UPS Output Receptacles (Surge

Suppression Only) 3 UPS outlets, 3 surge-only outlets

Hot-Swap PDU options PDUBHV10 (2U / 8 C13 outlets)

Output AC Waveform (AC Mode) Sine wave

2 / 5

Output AC Waveform (Battery

Mode) PWM sine wave

Nominal Output Voltage(s)

Supported 220V; 230V; 240V

Output Receptacles (6) C13

Individually Controllable Load Banks No

BATTERY

Battery Type Valve Regulated Lead Acid (VRLA)

Full Load Runtime (min.) 2.4 min. (450w)

Half Load Runtime (min.) 8.6 min. (225w)

Expandable Runtime No

DC System Voltage (VDC) 12

Battery Access Battery access door

Internal UPS Replacement Battery

Cartridge  <a class="productLink" href="//www.tripplite.com/UPS-Replacement-Battery-Cartridge-Tripp-Lite-APC-Belkin-

Best-Powerware-Liebert-other-UPS~RBC51">RBC51</a>

Battery Replacement Description Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 159 to 282VAC

Overvoltage Correction Input voltages between 245 and 282 are reduced by 12%

Undervoltage Correction Input voltages between 159 and 205 are boosted by 14%

USER INTERFACE, ALERTS & CONTROLS

Switches Combination switch controls on/off power status and self-test operation

Audible Alarm Audible alarm indicates power-failure and overload status

LED Indicators 2 LEDs indicate power status and overload/check battery status

SURGE / NOISE SUPPRESSION

UPS AC Suppression Joule Rating 320

UPS AC Suppression Response

Time Instantaneous

UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out)

EMI / RFI AC Noise Suppression Yes

PHYSICAL

Primary Form Factor Desktop

Installation Form Factors Supported

with Included Accessories Tower; Ultra-compact desktop; Wallmount

Primary UPS Depth (mm) 178

3 / 5

Primary UPS Height (mm) 102

Primary UPS Width (mm) 305

Shipping Dimensions (hwd / cm) 13.72 x 24.89 x 36.83

Shipping Dimensions (hwd / in.) 5.40 x 9.80 x 14.50

Shipping Weight (kg) 6.75

Shipping Weight (lbs.) 14.89

UPS Housing Material ABS

UPS Power Module Dimensions

(hwd, cm) 10.16 x 30.48 x 17.78

UPS Power Module Dimensions

(hwd, in.) 4 x 12 x 7

UPS Power Module Weight (kg) 6.49

UPS Power Module Weight (lbs.) 14.3

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load) 20

Battery Mode BTU / Hr. (Full Load) 459

AC Mode Efficiency Rating (100%

Load) 98%

COMMUNICATIONS

PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at

https://www.tripplite.com/poweralert

Communications Cable USB interface cable included

WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at

http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Network Management Card

Description Network management not supported

Communications Interface USB (HID enabled)

LINE / BATTERY TRANSFER

Transfer Time 2-4 milliseconds

Low Voltage Transfer to Battery

Power (Setpoint) 159

High Voltage Transfer to Battery

Power (Setpoint) 282

4 / 5

not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:

https://www.tripplite.com/products/product-certification-agencies

FEATURES & SPECIFICATIONS

Grounding Lug Yes

Cold Start (Startup in Battery Mode

During a Power Failure) Cold-start operation supported

High Availability UPS Features Automatic Voltage Regulation (AVR); Hot swappable batteries; Surge/noise protection

Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS

STANDARDS & COMPLIANCE

Product Certifications GOST (Russia)

Product Compliance RoHS; SASO (Saudi Arabia); CE (Europe); FCC Part 15 Class B (USA)

WARRANTY

Product Warranty Period

(International) 2-year limited warranty

5 / 5
