Tripp Lite SmartPro Rackmount Manuel utilisateur

Owner’s Manual

1111 W. 35th Street Chicago, IL 60609 USA

Customer Support: (773) 869-1234 • www.tripplite.com

Important Safety Instructions 2

Mounting 3

Quick Installation 5

Basic Operation 7

Storage and Service 11

Español

SmartPro®Rackmount

Intelligent, Line-Interactive UPS Systems

• 120V Sine-Wave Input/Output* • 500VA - 3000VA Capacities

• Extended-Run Options

* Except SMART500RT1U: sine-wave output on line; PWM output on battery.

Battery Replacement 12

Français 25

Optional Installation 6

WARRANTY

REGISTRATION

to win a FREE Tripp Lite product!

www.tripplite.com/warranty

200503166 93-2406 Sinewave SmartPro Rackmount UPS OM.qxd 3/29/2005 3:12 PM Page 1

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation, operation

and storage of all Tripp Lite UPS Systems. Failure to heed these warnings will void your warranty.

UPS Location Warnings

• Use caution when lifting UPS. Because of the considerable weight of all Rackmount UPS

systems, at least two people should assist in lifting and installing them.

• Install your UPS indoors, away from excess moisture or heat, dust or direct sunlight.

• For best performance, the ambient temperature near your UPS should be between 0° C and

40° C (between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct its

vents or fan openings.

UPS Connection Warnings

• The UPS contains its own energy source (battery). The output terminals may be live even

when the UPS is not connected to an AC supply.

• Connect your UPS to a properly grounded AC power outlet. Do not modify the UPS’s plug

in a way that would eliminate the UPS's connection to ground. Do not use adapters that

eliminate the UPS’s connection to ground.

• Do not plug your UPS into itself; this will damage the UPS and void your warranty.

• If you are connecting your UPS to a motor-powered AC generator, the generator must provide

filtered, frequency-regulated computer-grade output. Connecting your UPS to a generator will

void its Ultimate Lifetime Insurance.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which a malfunction or

failure of a Tripp Lite UPS System could cause failure or significantly alter the performance

of a life-support device.

• Do not connect surge suppressors or extension cords to the output of your UPS. This might

overload the UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. Do not dispose of the batteries in a fire. Do not open the UPS or

batteries. Do not short or bridge the battery terminals with any object. Unplug and turn off the

UPS before performing battery replacement. Use tools with insulated handles. There are no

user-serviceable parts inside the UPS. Battery replacement should be performed only by

authorized service personnel using the same number and type of batteries (sealed Lead-Acid).

The batteries are recyclable. Refer to your local codes for disposal requirements or in the

USA only call 1-800-SAV-LEAD or 1-800-8-BATTERY (1-800-822-8837) or visit

www.rbrc.com for recycling information. Tripp Lite offers a complete line of UPS System

Replacement Battery Cartridges (R.B.C.). Visit Tripp Lite on the Web at www.tripplite.com to

locate the specific replacement battery for your UPS.

• During hot-swap battery replacement, the UPS will not provide backup power in the event of

a blackout or other power interruptions.

• Do not operate UPS without batteries.

• When adding external battery packs to select models with external battery pack connectors,

connect only Tripp Lite-recommended battery packs of the correct voltage and type. Do not

connect or disconnect battery packs when the UPS is operating on battery power.

200503166 93-2406 Sinewave SmartPro Rackmount UPS OM.qxd 3/29/2005 3:12 PM Page 2

Mounting (Rack)

Mount your equipment in either a 4-post or 2-post rack or rack enclosure (see next page for 2-post

mounting). The user must determine the fitness of hardware and procedures before mounting. If

hardware and procedures are not suitable for your application, contact the manufacturer of your rack

or rack enclosure. The procedures described in this manual are for common rack and rack enclosure

types and may not be appropriate for all applications.

4-Post Mounting

All UPS models include hardware required to mount in a 4-post rack. Select models include an

adjustable rackmount shelf kit to provide additional support. If your UPS model does not include

an adjustable rackmount shelf kit, skip steps 1 and 2.

Connect the two segments of each shelf using the

included screws and nuts . Leave the screws slightly

loose so that the shelves can be adjusted in the next step.

Adjust each shelf to fit your rack, then mount them in

the lowest available space of your rack with the

screws, nuts and washers provided . Note that the

support ledges should face inward. Tighten the screws

that connect the shelf segments .

Attach mounting ears to the front mounting holes

of your equipment using the screws provided .

The ears should face forward.

Using an assistant if necessary, lift your equipment

and slide it onto the mounting shelves. Attach your

equipment to the rack by using the appropriate

hardware through its mounting ears and into the

rack rails.

200503166 93-2406 Sinewave SmartPro Rackmount UPS OM.qxd 3/29/2005 3:12 PM Page 3

Mounting (Rack)

continued

2-Post (Telecom) Mounting

Mount 1U UPS models in 2-post racks with included hardware following the procedure below.

If you mount 2U UPS models in 2-post racks, they require the addition of a Tripp Lite 2-Post

Rackmount Installation Kit (model: 2POSTRMKITWM, sold separately). See Installation Kit

owner’s manual for installation procedure for 2U UPS models.

Attach mounting ears to the front mounting holes of

your equipment using the screws provided . The ears

should face backward.

Using an assistant if necessary, lift your equipment

and slide it onto the mounting shelves. Attach your

equipment to the rack by passing the screws, nuts and

washers provided through its mounting ears and

into the rack rails.

Mounting (Tower)

Mount all UPS models in an upright, tower position using included hardware. The user must deter-

mine the fitness of hardware and procedures before mounting.

All UPS Models

Stand your UPS on its side with the LED/Control panel at

the top. Attach one rack mounting ear to each side of the

UPS using included screws . Attach the rack mounting

ears to the floor with user-supplied hardware.

2U UPS Models Only

Rotate the LED/Control panel to view it easier while the

UPS is tower mounted. Insert a small screwdriver, or other

tool, in the slots on either side of the panel. Pop the panel

out; rotate it; and pop the panel back in place.

200503166 93-2406 Sinewave SmartPro Rackmount UPS OM.qxd 3/29/2005 3:12 PM Page 4

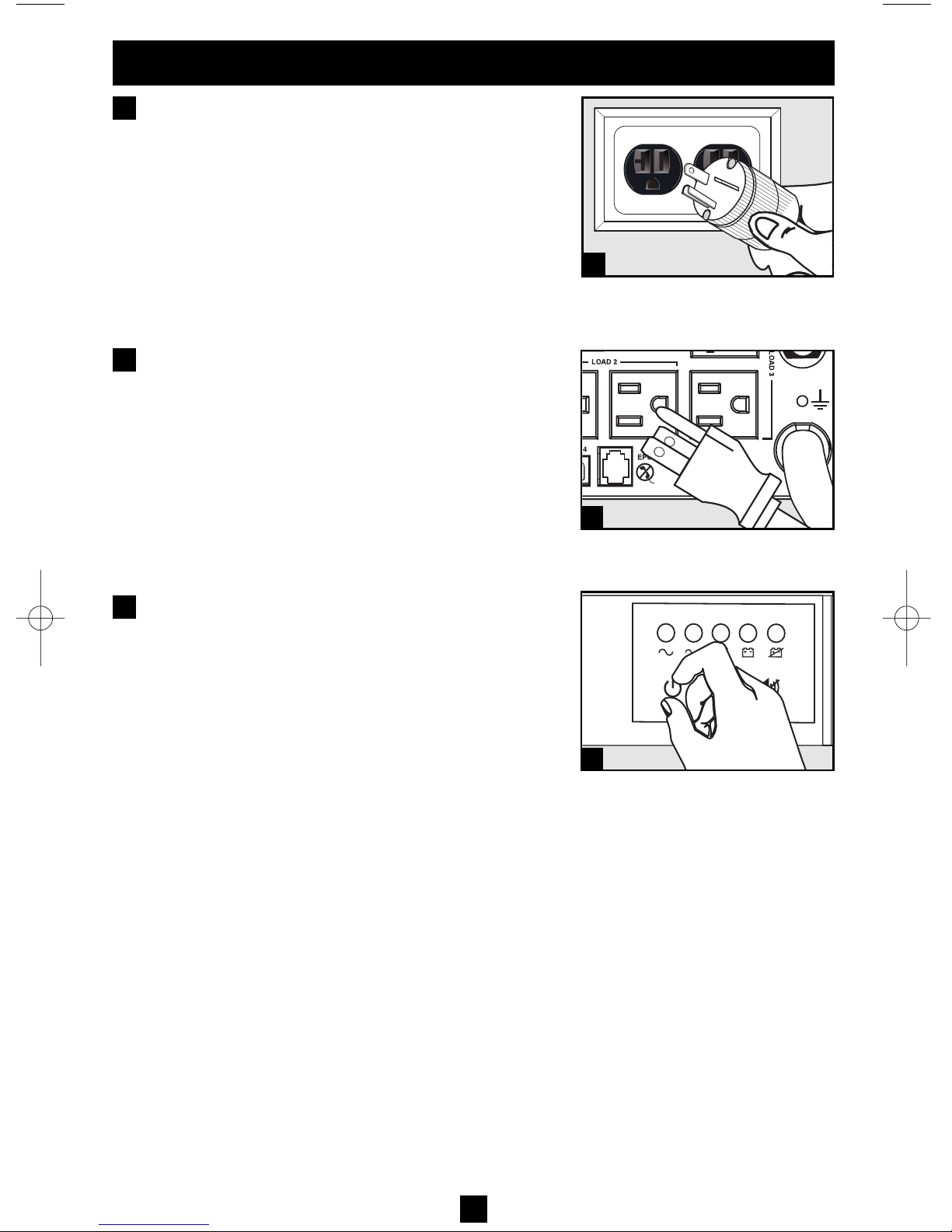

Quick Installation

Plug the UPS into an outlet on a

dedicated circuit.*

NOTE! after you plug the UPS into a live AC outlet,

the UPS (in “Standby” mode) will automatically

charge its batteries,** but will not supply power to

its outlets until it is turned ON (see Step 3 below).

* Select models include an additional plug which can be switched by

a qualified electrician. ** The BATTERY CHARGE LED will be the

only LED illuminated.

Plug your equipment into the UPS.*

* Your UPS is designed to support only electronic equipment. You will

overload the UPS if the total VA ratings for all the equipment you con-

nect exceeds the UPS's Output Capacity. To find your equipment's VA

ratings, look on their nameplates. If the equipment is listed in amps,

multiply the number of amps by 120 to determine VA. (Example: 1 amp

× 120 = 120 VA). If you are unsure if you have overloaded the UPS's out-

lets, see “OUTPUT LOAD LEVEL” LED description.

Turn the UPS ON.

Press and hold the “ON/OFF/STANDBY” button for

one second. The alarm will beep once briefly after one

second has passed. Release the button.

SMART2200RMXL2U plug

(NEMA 5-20P) shown

SMART3000RM2U shown

200503166 93-2406 Sinewave SmartPro Rackmount UPS OM.qxd 3/29/2005 3:12 PM Page 5

Optional Installation

These connections are optional. Your UPS will function

properly without these connections. Note: SMART3000RM2U

shown in all diagrams.

USB and RS-232 Serial

Communications (all models)

Use the included USB cable (see ) and/or DB9 serial

cable (see ) to connect the communication port on

your computer to the communication port of your

UPS. Install on your computer the Tripp Lite

PowerAlert Software appropriate to your computer’s

operating system. Your UPS may feature additional

communications ports; these ports may also be connected

to additional computers which have PowerAlert

Software installed. Consult your PowerAlert manual

for more information.

EPO Port Connection (all models)

This optional feature is only for those applications

which require connection to a facility’s Emergency

Power Off (EPO) circuit. When the UPS is connected

to this circuit, it enables emergency shutdown of the

UPS’s inverter.

Using the cable provided, connect the EPO port of

your UPS (see ) to a user-supplied normally closed or

normally open switch according to the circuit diagram

(see ). The EPO port is not a phone line surge sup-

pressor; do not connect a phone line to this port.

External Battery Connection

(select models only)

Your UPS comes with a robust internal battery sys-

tem; external batteries are needed only to extend run-

time. Adding external batteries will increase recharge

time as well as runtime.

The illustration (see ) shows the location of your

UPS’s External Battery Connector, where you will

insert the battery pack cable. Complete installation

instructions for your battery pack appear in the battery

pack owner’s manual. Make sure that cables are fully

inserted into their connectors. Small sparks may result

during battery connection; this is normal.

Do not connect or disconnect battery packs when the

UPS is running on battery power.

If you connect any external batteries, set the Battery

Charge Level Switch (see ) to the down position.

This will increase your UPS’s charger output so that

the additional batteries charge faster. Note: The switch

to the right of the Battery Charge Level Switch is inactive

and will not affect UPS operation regardless of its position.

Caution! DO NOT set the Battery Charge Level

Switch to the down position without an external

battery connected. There is a risk of damaging the

UPS’s internal battery system.

4-5

200503166 93-2406 Sinewave SmartPro Rackmount UPS OM.qxd 3/29/2005 3:12 PM Page 6

“ON/OFF/STANDBY” Button

• To turn the UPS ON: with the UPS plugged into a live AC wall outlet*, press

and hold the “ON/OFF/STANDBY” button for one second.** Release the but-

ton. If utility power is absent, you can “cold-start” the UPS (i.e.: turn it ON and

supply power for a limited time from its batteries***) by pressing and holding

the “ON/OFF/STANDBY” button for one second.**

• To turn the UPS OFF: with the UPS ON and receiving utility power, press and

hold the “ON/OFF/STANDBY” button for one second.** Then unplug the UPS

from the wall outlet. The UPS will be completely OFF.

* After you plug the UPS into a live AC outlet, the UPS (in ”Standby” mode) will automatically charge

its batteries, but will not supply power to its outlets until it is turned ON. ** The alarm will beep once

briefly after the indicated interval has passed. *** If fully charged.

“MUTE/TEST” Button

To Silence (or “Mute”) UPS Alarms: briefly press and release the MUTE/TEST

button.*

To Run a Self-Test: with your UPS plugged in and turned ON, press and hold

the MUTE/TEST button for two seconds.* Continue holding the button until

the alarm beeps several times and the UPS performs a self test. See “Results of

a Self-Test” below. Note: you can leave connected equipment on during a self-test.

Your UPS, however, will not perform a self-test if the UPS is not turned on (see

“ON/OFF/STANDBY” Button description).

CAUTION! Do not unplug your UPS to test its batteries. This will remove

safe electrical grounding and may introduce a damaging surge into your

network connections.

Results of a Self-Test: The test will last approximately 10 seconds as the

UPS switches to battery to test its load capacity and battery charge.

• If the “OUTPUT LOAD LEVEL” LED remains lit red and the alarm contin-

ues to sound after the test, the UPS’s outlets are overloaded. To clear the over-

load, unplug some of your equipment and run the self-test repeatedly

until the “OUTPUT LOAD LEVEL” LED is no longer lit red and the

alarm is no longer sounding.

CAUTION! Any overload that is not corrected by the user immediately

following a self-test may cause the UPS to shut down and cease supplying

output power in the event of a blackout or brownout.

• If the “BATTERY WARNING” LED remains lit and the alarm continues

to sound after the test, the UPS batteries need to be recharged or

replaced. Allow the UPS to recharge continuously for 12 hours, and

repeat the self-test. If the LED remains lit, contact Tripp Lite for service.

If your UPS requires battery replacement, visit www.tripplite.com to

locate the specific Tripp Lite replacement battery for your UPS.

* The alarm will beep once briefly after the indicated interval has passed.

Basic Operation

Buttons (Front Panel)

200503166 93-2406 Sinewave SmartPro Rackmount UPS OM.qxd 3/29/2005 3:12 PM Page 7

Basic Operation

continued

Indicator Lights (Front Panel)

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet

and turned ON.

“POWER” LED: this green LED lights continuously when the UPS is ON and

supplying connected equipment with AC power from a utility source. The LED

flashes and an alarm sounds (4 short beeps followed by a pause) to indicate the

UPS is operating from its internal batteries during a blackout or severe

brownout. If the blackout or severe brownout is prolonged, you should save

files and shut down your equipment since internal battery power will eventual-

ly be depleted. See “BATTERY CHARGE” LED description below.

“VOLTAGE CORRECTION” LED: this green LED lights continuously

whenever the UPS is automatically correcting high or low AC voltage on the

utility line without the assistance of battery power. The UPS will also emit a

slight clicking noise. These are normal, automatic operations of the UPS, no

action is required on your part.

“OUTPUT LOAD LEVEL” LED: this multicolored LED indicates the

approximate electrical load of equipment connected to the UPS's AC outlets. It

will turn from green (light load) to yellow (medium load) to red (overload). If

the LED is red (either illuminated continuously or flashing), clear the overload

immediately by unplugging some of your equipment from the outlets until the

LED changes from red to yellow (or green). CAUTION! Any overload that is

not corrected by the user immediately may cause the UPS to shut down and

cease supplying output power in the event of a blackout or brownout.

“BATTERY CHARGE” LED: when the UPS is operating from utility power,

this LED indicates the approximate charge state of the UPS's internal batteries:

red indicates the batteries are beginning to charge; yellow indicates the batteries

are roughly midway through charging; and green indicates the batteries are fully

charged. When the UPS is operating from battery power during a blackout or

severe brownout, this LED indicates the approximate amount of energy (ulti-

mately affecting runtime) which the UPS’s batteries will provide: red indicates

a low level of energy; yellow indicates a medium level of energy; and green

indicates a high level of energy. Since the runtime performance of all UPS bat-

teries will gradually deplete over time, it is recommended that you periodically

perform a self-test (see MUTE/TEST Button description) to determine the energy

level of your UPS batteries BEFORE a blackout or severe brownout occurs.

During a prolonged blackout or severe brownout, you should save files and shut

down your equipment since battery power will eventually be depleted. When the

LED turns red and an alarm sounds continuously, it indicates the UPS's batteries

are nearly out of power and UPS shut down is imminent.

“BATTERY WARNING” LED: this LED lights red and an alarm sounds

intermittently after you initiate a self test (See “MUTE/TEST” Button description)

to indicate the UPS batteries need to be recharged or replaced. Allow the UPS

to recharge continuously for 12 hours, and repeat the self-test. If the LED con-

tinues to light, contact Tripp Lite for service. If your UPS requires battery

replacement, visit www.tripplite.com to locate the specific Tripp Lite replace-

ment battery for your UPS.

200503166 93-2406 Sinewave SmartPro Rackmount UPS OM.qxd 3/29/2005 3:12 PM Page 8

Basic Operation

continued

Other UPS Features (Rear Panel)

AC Receptacles: Your UPS features 15-amp AC outlets, and select models also

feature 20-amp and 30- amp AC outlets. These output receptacles provide your

connected equipment with AC line power during normal operation and battery

power during blackouts and brownouts. The UPS protects equipment connect-

ed to these receptacles against damaging surges and line noise. If you have a

serial or USB connection to your UPS, you can remotely reboot connected equip-

ment by turning the receptacles OFF and ON using Tripp Lite's PowerAlert

Software. Select models have their receptacles divided into one or more load

banks (labelled “LOAD 1,” etc.) which may be remotely switched OFF and ON

using Tripp Lite UPS software without interrupting power to equipment con-

nected to the other outlets. Select models feature special outlets (clearly labeled

on the rear panel) which provide surge-only (not battery backup) protection

designed for laser printers and other heavy-draw devices. Select models also

feature outlets labelled “UNSWITCHED”, which may not be remotely

switched off. See software instructions for details.

Communications Ports (USB or RS-232): These ports connect your UPS to any

workstation or server. Use with Tripp Lite’s PowerAlert Software and included

cables to enable your computer to automatically save open files and shut down

equipment during a blackout. Also use PowerAlert Software to monitor a wide

variety of AC line power and UPS operating conditions. Consult your

PowerAlert Software manual or contact Tripp Lite Customer Support for more

information. See “USB and RS-232 Serial Communications” in the “Optional

Installation” section for installation instructions.

EPO (Emergency Power Off) Port: Your UPS features a EPO port that may

be used to connect the UPS to a contact closure switch to enable emergency

inverter shutdown. See Optional Installation.

15 amp/120V

NEMA 5-15R

20 amp/120V

NEMA 5-20R

30 amp/120V

NEMA L5-30R

20 amp/120V

NEMA L5-20R

200503166 93-2406 Sinewave SmartPro Rackmount UPS OM.qxd 3/29/2005 3:12 PM Page 9

Basic Operation

continued

Accessory Slot: Remove the small cover panel from this slot to install optional

accessories to remotely monitor and control your UPS. Refer to your accessory’s

manual for installation instructions. Contact Tripp Lite Customer Support at

(773) 869-1234 for more information, including a list of available SNMP, network

management and connectivity products.

Power Sensitivity Adjustment: This dial is normally set fully counter-clockwise,

which enables the UPS to provide maximum protection against waveform distortions

in its AC input. When such distortion occurs, the UPS will normally switch to

providing sine wave power from its battery reserves for as long as the

distortion is present. In areas with poor utility power or where the UPS’s input

power comes from a backup generator, chronic waveform distortion could

cause the UPS to switch to battery too frequently, draining its battery reserves.

You may be able to reduce how often your UPS switches to battery due to mod-

erate waveform distortion by experimenting with different settings for this dial.

As the dial is turned clockwise, the UPS becomes more tolerant of variations in

its input power’s AC waveform. NOTE: The further the dial is adjusted clockwise,

the greater the degree of waveform distortion the UPS will allow to pass to con-

nected equipment. When experimenting with different settings for this dial,

operate connected equipment in a safe test mode so that the effect on the equip-

ment of any waveform distortions in the UPS’s output can be evaluated without

disrupting critical operations.

External Battery Connector (Select Models Only): Use to connect Tripp Lite

external battery packs for additional runtime. Refer to instructions available with

the battery pack for complete connection information and safety warnings.

Battery Charge Level Switch (Select Models Only): Controls the UPS system’s

battery charge rate. If you connect any external batteries, set the Battery Charge

Level Switch to the down position. This will increase your UPS's charger output

so the additional batteries charge faster. Note: the switch to the right of the

Battery Charge Level Switch is inactive and will not affect UPS operation

regardless of its position. CAUTION! DO NOT set the Battery Charge Level

Switch to the down position without an external battery connected. There

is a risk of damaging the UPS’s internal battery system.

Input Breaker(s) (all models): Protect your electrical circuit from overcurrent

draw from the UPS load. If these breakers trip, remove some of the load, then

reset them by pressing the breaker(s) in.

Output Breaker (select models): Your UPS features one or more breakers that

protect your UPS from output overload. If one or more breakers trip, remove

some of the load on the circuit(s), then reset them by pressing the breaker

switch(es) in.

Ground Screw: Use this to connect any equipment that requires a chassis ground.

Charge Rate Setting

(when External

Batteries arecon-

nected)

Charge Rate Setting

(when External

Batteries are not

connected)

200503166 93-2406 Sinewave SmartPro Rackmount UPS OM.qxd 3/29/2005 3:12 PM Page 10

Autres manuels pour SmartPro Rackmount

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SmartOnline SU750XL Manuel utilisateur

Tripp Lite

Tripp Lite S3M30KX Manuel utilisateur

Tripp Lite

Tripp Lite Power Supply Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU750RTXLCD2U Guide de configuration

Tripp Lite

Tripp Lite SUPDM15 Manuel utilisateur

Tripp Lite

Tripp Lite Internet Office INTERNET350SER Manuel utilisateur

Tripp Lite

Tripp Lite AVR750U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART1500 Manuel utilisateur

Tripp Lite

Tripp Lite BC800U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU10KRT1X Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart Full Isolation UPS Systems... Manuel utilisateur

Tripp Lite

Tripp Lite SMART1200LCD Manuel utilisateur

Tripp Lite

Tripp Lite AVRX550U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU3000XLNAFTA Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline Single-Phase 10kVA Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline 3-Phase UPS Systems SU20KX Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1000RT2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU2200XLNAFTA Manuel utilisateur

Tripp Lite

Tripp Lite OmniPro 500 Manuel utilisateur

Tripp Lite

Tripp Lite 1250-3000 VA Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART3000RMXL2U Guide d'installation

Tripp Lite

Tripp Lite SmartOnline SU10KRT3UHV Manuel utilisateur

Tripp Lite

Tripp Lite SMART1200LCD Manuel utilisateur

Tripp Lite

Tripp Lite BC Internet Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
