Owner’s Manual

SmartPro®SMC Tower

Intelligent, Line-Interactive UPS Systems

100/110/120V Input/Output • Sine Wave Output

Models: SMC1000T, SMC1500T

(Series No. AGSM5384, AGSM7136)

Not suitable for mobile applications.

Important Safety Instructions 2

Quick Installation 3

Optional Installation 4

Basic Operation 4

Battery Replacement 8

Storage & Service 9

Product Registration 10

Regulatory Compliance 10

Español 11

Français 21

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

16-02-271-93338B.indb 1 2/18/2016 4:38:24 PM

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the

installation, operation and storage of all Tripp Lite UPS Systems. Failure to heed

these warnings may affect your warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive

contaminants, dust or direct sunlight.

• For best performance, keep the indoor temperature between between 32º F and

104º F (0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• Do not mount unit with its front or rear panel facing down (at any angle).

Mounting in this manner will seriously inhibit the unit’s internal cooling,

eventually causing product damage not covered under warranty.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the

UPS into itself; this will damage the UPS.

• Be sure to use the proper overcurrent protection for the installation, in accordance

with the plug/equipment rating.

• Do not modify the UPS's plug, and do not use an adapter that would eliminate the

UPS’s ground connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• The electrical outlets supplying power to the equipment should be installed near the

equipment and easily accessible.

• If the UPS receives power from a motor-powered AC generator, the generator must

provide clean, filtered, computer-grade output.

Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to

significantly affect its safety or effectiveness is not recommended. Do not use this

equipment in the presence of a flammable anesthetic mixture with air, oxygen or

nitrous oxide.

• Do not connect surge protectors or extension cords to the output of your UPS.

This might damage the UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit

current. Observe proper precautions. There are no user-serviceable parts inside the

UPS. Do not open the UPS except to perform battery replacement. Do not open

batteries. Do not short or bridge the battery terminals with any object. Unplug and

turn off the UPS before performing battery replacement. Use tools with insulated

handles. Battery replacement should be performed only by authorized service

personnel using the same number and type of batteries (Sealed Lead-Acid). Do not

dispose of the batteries in a fire. The batteries are recyclable. Refer to your local

codes for disposal requirements.

Important Safety Instructions

16-02-271-93338B.indb 2 2/18/2016 4:38:24 PM

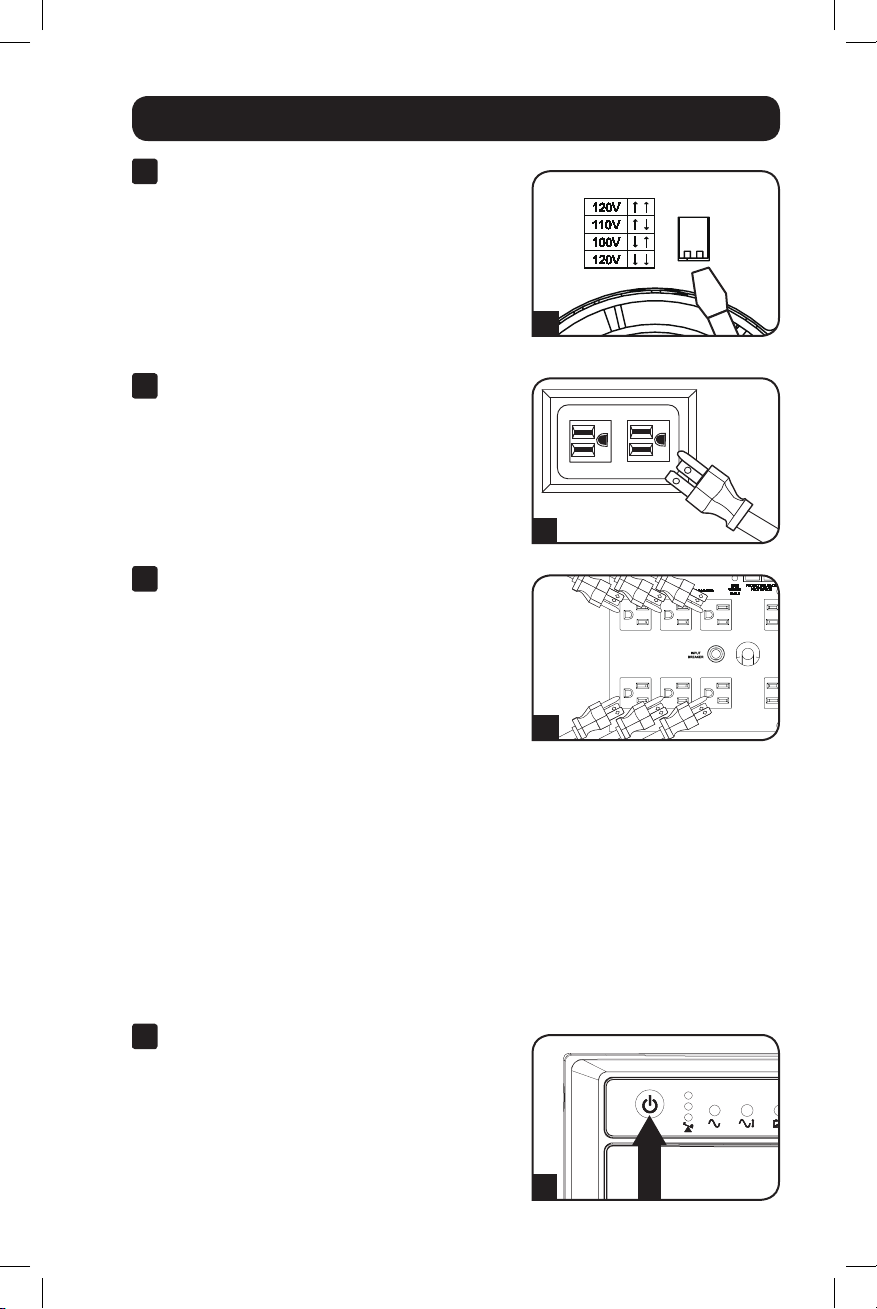

1With the UPS disconnected from utility

power, use a small tool to set the

Voltage DIP Switch to match your

input voltage. (All models are preset

to the 120V setting.)

2Plug the UPS into an outlet on a

dedicated circuit.

NOTE! after you plug the UPS into a live AC

outlet, the UPS will automatically charge its

batteries,* but will not supply power to its

outlets until it is turned ON.

* The BATTERY CHARGE LED will be the only LED

illuminated

3Plug your equipment into the UPS.

Model SMC1500T: All outlets provide battery

backup and surge protection for computers,

monitors and other critical devices. Model

SMC1000T: Select outlets provide battery

backup and surge protection for computers,

monitors and other critical devices; select

outlets provide surge protection only for

printers and other nonessential devices.

Do not plug high-draw equipment such as

laser printers into the battery backup/

surge protection outlets.

Note: Your UPS is designed to support electronic

equipment only. You will overload the UPS if the total VA

rating for all equipment connected through the battery

backup/surge protection outlets exceeds the UPS's

Output Capacity. To find your equipment's VA ratings, look

on their nameplates. If the equipment is listed in amps,

multiply the number of amps by 120 to determine VA.

(Example: 1 amp × 120 = 120 VA). If you are unsure if

you have overloaded the UPS's outlets, see “OUTPUT

LOAD LEVEL” LED description.

4Turn the UPS ON.

Press and hold the “STANDBY” button for one

second. The alarm will beep once briefly after

one second has passed. Release the button.

Note: UPS system will function properly upon initial

startup; however, maximum runtime for the unit’s battery

will only be accessible after it has been charged for

24 hours.

Quick Installation

SMC1500T model shown.

16-02-271-93338B.indb 3 2/18/2016 4:38:25 PM

1USB and RS-232 Serial

Communications

Use the included USB cable 1a and/or user-

supplied DB9 serial cable 1b to connect the

communication port on your computer to the

communication port of your UPS. Install the

Tripp Lite PowerAlert®Software appropriate for

the operating system on your computer.

Consult your PowerAlert manual for more

information. PowerAlert software and

documentation are available for download at

www.tripplite.com.

2Telephone/Network Protection Jacks

Your UPS has jacks that protect against surges

over a telephone line or a network dataline.

Using telephone network data cables, connect

your wall jack to the UPS jack marked “IN.”

Connect your equipment to the UPS jack

marked “OUT.” Make sure the equipment you

connect to the UPS's jacks is also protected

against surges on the AC line.

Not compatible with PoE (Power Over Ethernet)

applications.

Buttons

“STANDBY” Button

• To turn the UPS ON: With the UPS plugged into a live AC wall

outlet,* press and hold the STANDBY button for about one

second.** Release the button. If utility power is absent, you can

"cold-start" the UPS (i.e.: turn it ON and supply power for a limited

time from its batteries***) by pressing and holding the STANDBY

button for about two seconds.**

• To turn the UPS OFF: With the UPS ON and receiving utility power,

press and hold the STANDBY button for one second.** Then unplug

the UPS from the wall outlet. The UPS will be completely OFF.

* After you plug the UPS into a live AC outlet, the UPS will automatically charge its

batteries, but will not supply power to its outlets until it is turned ON. ** The

alarm will beep once briefly after the indicated interval has passed. *** If fully

charged.

Optional Installation

Basic Operation

16-02-271-93338B.indb 4 2/18/2016 4:38:26 PM

Basic Operation continued

“MUTE/TEST” Button

• To Silence (or “Mute”) UPS Alarms: Briefly press and release the

MUTE/TEST button.* Note: continuous alarms (warning you to

immediately shut down connected equipment) cannot be silenced.

• To Run a Self-Test: With your UPS plugged in and turned ON,

press and hold the MUTE/TEST button for two seconds.* Continue

holding the button until the alarm beeps several times and the UPS

performs a self-test. See “Results of a Self-Test” below. Note: you

can leave connected equipment on during a self-test. Your UPS,

however, will not perform a self-test if it is not turned ON (see

“STANDBY” Button description).

CAUTION! Do not unplug your UPS to test its batteries. this

will remove safe electrical grounding and may introduce a

damaging surge into your network connections.

Results of a Self-Test: The test will last approximately 10 seconds

as the UPS switches to battery to test its load capacity and battery

charge. The “POWER” LED will be flashing and the “OUTPUT LOAD

LEVEL” and “BATTERY CHARGE” LEDs will be lit and the UPS alarm

will sound.

• If the “OUTPUT LOAD LEVEL” LED remains lit red and the alarm

continues to sound after the test, the UPS's outlets are overloaded.

To clear the overload, unplug some of your equipment and run the

self-test repeatedly until the “OUTPUT LOAD LEVEL” LED is no longer

lit red and the alarm is no longer sounding.

CAUTION! Any overload that is not corrected by the user

immediately following a self-test may cause the UPS to shut

down and cease supplying output power in the event of a

blackout or severe brownout.

• If the “BATTERY WARNING” LED remains lit and the alarm continues

to sound after the test, the UPS batteries need to be recharged or

replaced. Allow the UPS to recharge continuously for 12 hours,

and repeat the self-test. If the LED remains lit, contact Tripp Lite

for service. If your UPS requires battery replacement, visit

www.tripplite.com/products/battery-finder to locate the specific

Tripp Lite replacement battery for your UPS.

* The alarm will beep once briefly after the indicated interval has passed.

16-02-271-93338B.indb 5 2/18/2016 4:38:26 PM

Indicator Lights

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet

and turned ON.

Basic Operation continued

“POWER” LED: This green LED lights continuously when the UPS is

ON and supplying connected equipment with AC power from a utility

source. The LED flashes and an alarm sounds (4 short beeps followed

by a pause) to indicate the UPS is operating from its internal batteries

during a blackout or severe brownout. If the blackout or severe

brownout is prolonged, you should save files and shut down your

equipment since internal battery power will eventually be depleted.

See “BATTERY CHARGE” LED description below.

“VOLTAGE CORRECTION” LED: This green LED lights continuously

whenever the UPS is automatically correcting high or low AC voltage

on the utility line without the assistance of battery power. The UPS will

also emit a slight clicking noise. These are normal, automatic

operations of the UPS, no action is required on your part.

“OUTPUT LOAD LEVEL” LEDs: These multicolored LEDs indicate the

approximate electrical load of equipment connected to the UPS's AC

outlets: green (light load), yellow (medium load) and red (overload). If

the red LED is either illuminated continuously or flashing, clear the

overload immediately by unplugging some of your equipment from the

outlets until the yellow or green LED illuminates. CAUTION! Any

overload that is not corrected by the user immediately may cause the

UPS to shut down and cease supplying output power in the event of a

blackout or severe brownout.

“BATTERY CHARGE” LEDs: When the UPS is operating from utility

power, these LEDs indicate the approximate charge state of the UPS's

internal batteries: red indicates the batteries are beginning to charge;

yellow indicates the batteries are roughly midway through charging;

and green indicates the batteries are fully charged. When the UPS is

operating from battery power during a blackout or severe brownout,

these multicolor LEDs indicate the approximate amount of energy

(ultimately affecting runtime) that the UPS's batteries will provide: red

indicates a low level of energy; yellow indicates a medium level of

energy; and green indicates a high level of energy. Since the runtime

performance of all UPS batteries will gradually deplete over time, it is

recommended that you periodically perform a self-test (see “MUTE/

TEST” Button description) to determine the energy level of your UPS

batteries BEFORE a blackout or severe brownout occurs. During a

prolonged blackout or severe brownout, you should save files and shut

down your equipment since battery power will eventually be depleted.

When the red LED illuminates and an alarm sounds continuously, this

indicates that the UPS's batteries are nearly out of power and UPS

shutdown is imminent.

16-02-271-93338B.indb 6 2/18/2016 4:38:28 PM

USB Port

RS-232

(DB9 port)

Basic Operation continued

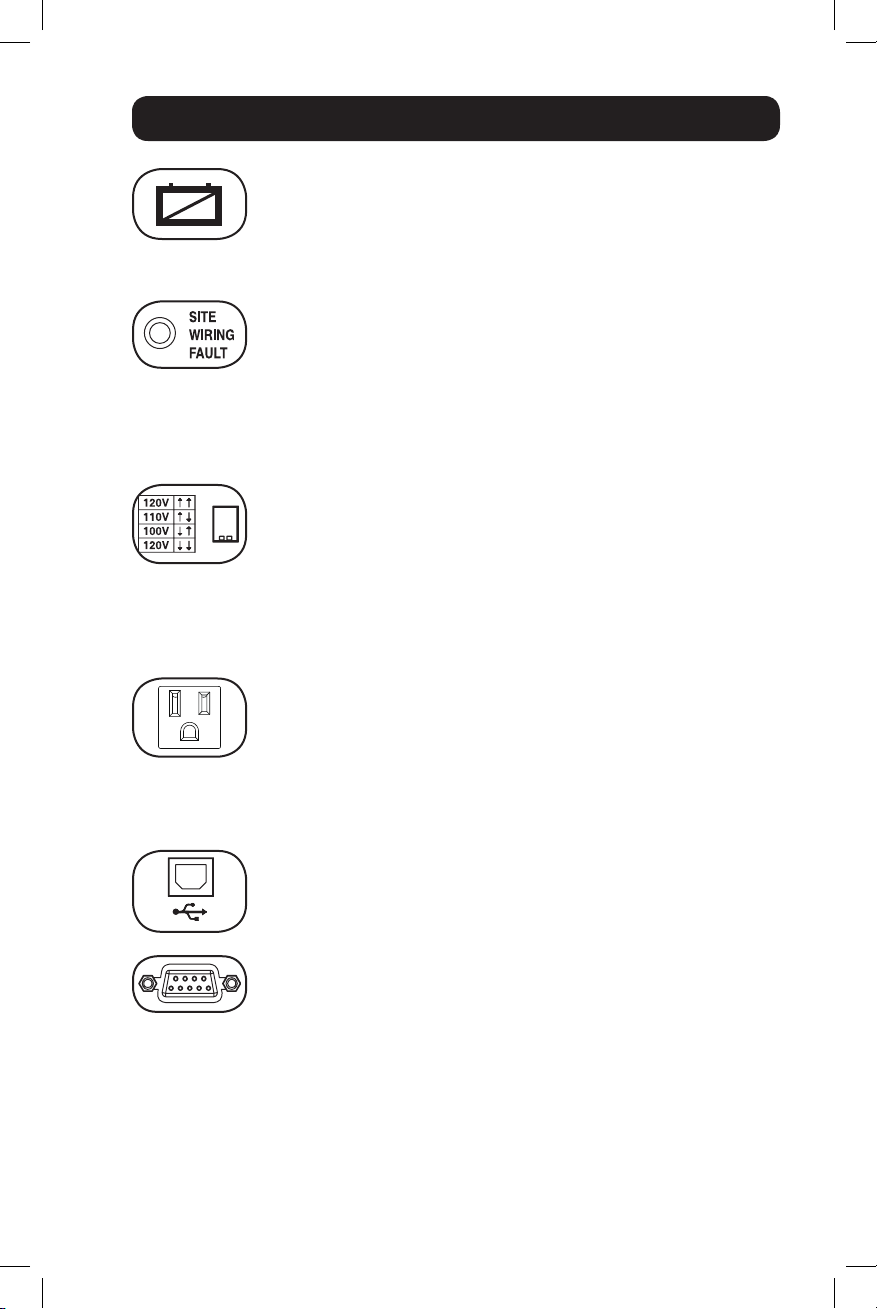

“BATTERY WARNING” LED: this LED lights yellow and an alarm

sounds intermittently after you initiate a self test (See “MUTE/TEST”

Button description) to indicate the UPS batteries need to be

recharged or replaced. Allow the UPS to recharge continuously for 12

hours, and repeat the self-test. If the LED continues to light, contact

Tripp Lite for service. If your UPS requires battery replacement, visit

www.tripplite.com.

“SITE WIRING FAULT” LED: This yellow LED will be lit if the UPS

detects a problem with the wiring of the AC outlet you connect it to. If

this occurs, have the outlet inspected by a qualified electrician. Note

that while the UPS will detect many common wiring faults, including a

missing ground, reversed polarity and overloaded neutral circuits, it

cannot detect every conceivable wiring problem.

Other UPS Features

Voltage DIP Switch: This switch enables you to set the UPS to match

actual input voltage. If the Voltage DIP Switch is set above or below

input voltage, the UPS will treat the input as a continuous overvoltage

or undervoltage condition, and will automatically adjust input voltage

to match the Voltage DIP Switch setting. This will cause constant,

unnecessary wear on the UPS system. Note: The Voltage DIP

Switch must be set with the UPS turned OFF and disconnected

from utility power. If the switch is set while the UPS is

connected to utility power, the setting will not take effect.

AC Receptacles: These output receptacles provide your connected

equipment with AC line power during normal operation and battery

power during power outages. The UPS protects equipment connected

to these receptacles against damaging surges and line noise. Select

outlets provide both battery backup and surge protection for

computers, monitors and other critical devices plugged into these

outlets. Select outlets provide surge protection only for printers and

other non-essential devices that draw large amounts of power.

Communication Ports (USB and RS-232): These ports connect your

UPS to any workstation or server. Use with Tripp Lite's PowerAlert

Software and included cable to enable your computer to automatically

save open files and shut down equipment during a blackout. Also use

PowerAlert Software to monitor a wide variety of AC line power and

UPS operating conditions. Consult your PowerAlert Software manual or

contact Tripp Lite Customer Support for more information. See “USB

Communications” and “RS-232 Serial Communications” in the

“Optional Installation” section for installation instructions.

16-02-271-93338B.indb 7 2/18/2016 4:38:28 PM

Battery Replacement Door: Under normal conditions, the original battery in your UPS

will last several years. Battery replacement should be performed only by qualified service

personnel. Refer to “Battery Warnings” in the Safety section. Should your UPS require

battery replacement, visit Tripp Lite on the Web at http://www.tripplite.com/products/

battery-finder to locate the specific replacement battery for your UPS.

Basic Operation continued

Battery Replacement

Telephone/Network Protection Jacks: These jacks protect your

equipment against surges over a telephone/network data line.

Connecting your equipment to these jacks is optional. Your UPS will

work properly without this connection.

Not compatible with PoE (Power Over Ethernet) applications.

Fan: The fan runs continuously to cool the UPS system’s internal

components. It will operate at a higher speed when the UPS is in

battery backup mode, charge mode, carrying a heavy electrical load or

in an over-temperature condition

Input Breaker (SMC1500T only): Protect your electrical equipment

from overcurrent draw from the UPS load. If this breaker trips, remove

some of the load, then reset it by pressing the breaker in.

1Carefully pull the front panel away from the UPS.

Place front panel on top of the unit. Remove the battery

support bar.

2Remove old batteries.

Carefully pull the batteries from the UPS and disconnect them.

3Connect new batteries.

Connect the new batteries in exactly the same manner as the old

ones: positive (red) connectors together and negative (black)

connectors together. Carefully push batteries back into the UPS.

4Reassemble UPS.

Reinstall the battery support bar and replace the front panel.

UPS and Battery Recycling

Please recycle Tripp Lite Products. The batteries used in Tripp Lite products are sealed

Lead-Acid batteries. These batteries are highly recyclable. Please refer to your local codes

for disposal requirements.

You can call Tripp Lite for recycling info at 1-773-869-1234.

You can go the Tripp Lite Website for up-to-date information on recycling the batteries or any

Tripp Lite product.

Please follow this link: http://www.tripplite.com/support/recycling-program/

16-02-271-93338B.indb 8 2/18/2016 4:38:36 PM

Storage & Service

Storage

CAUTION! Your UPS has an internal power source. Its outlets may still deliver current,

even after the UPS is unplugged, until the UPS is completely turned OFF (deactivated).

Before storing your UPS, turn it completely OFF: with the UPS ON and receiving utility

power, press and hold the STANDBY button for one second (an alarm will beep once

briefly after the interval has passed); then, unplug the UPS from the wall outlet. If you

store your UPS for an extended period of time, recharge the UPS batteries once every

three months: plug the UPS into a wall outlet; allow it to charge for 4 to 6 hours; and

then unplug it and place it back in storage. Note: after you plug the UPS in, it will

automatically begin charging its batteries; however, it will not supply power to its outlets

(see Quick Installation section). If you leave your UPS batteries discharged for an

extended period of time, they will suffer a permanent loss of capacity.

Service

A variety of Extended Warranty and On-Site Service Programs are available from

Tripp Lite. For more information on services, visit www.tripplite.com/support. Before

returning your UPS for service, follow these steps:

1. Review the installation and operation instructions in this manual to ensure that the

service problem does not originate from a misreading of the instructions.

2. If the problem continues, do not contact or return the UPS to the dealer. Instead,

visit www.tripplite.com/support.

3. If the problem requires service, visit www.tripplite.com/support and click the Product

Returns link. From here you can request a Returned Material Authorization (RMA)

number, which is required for service. A simple on-line form will ask for your unit’s

model and serial numbers along with other general purchaser information. The RMA

number, along with shipping instructions, will be emailed to you. Any damages

(direct, indirect, special or consequential) to the product incurred during shipment to

Tripp Lite or an authorized Tripp Lite service center are not covered under warranty.

Products shipped to Tripp Lite or an authorized Tripp Lite service center must have

transportation charges prepaid. Mark the RMA number on the outside of the

package. If the product is within its warranty period, enclose a copy of your sales

receipt. Return the product for service using an insured carrier to the address given

to you when you request the RMA.

16-02-271-93338B.indb 9 2/18/2016 4:38:36 PM

FCC Part 68 Notice (United States Only)

If your Modem/Fax Protection causes harm to the telephone network, the telephone company may

temporarily discontinue your service. If possible, they will notify you in advance. If advance notice isn't

practical, you will be notified as soon as possible.You will be advised of your right to file a complaint

with the FCC.Your telephone company may make changes in its facilities, equipment, operations or

procedures that could affect the proper operation of your equipment. If it does, you will be given

advance notice to give you an opportunity to maintain uninterrupted service. If you experience trouble

with this equipment's Modem/Fax Protection, please visit www.tripplite.com/support for repair/warranty

information. The telephone company may ask you to disconnect this equipment from the network until

the problem has been corrected or you are sure the equipment is not malfunctioning. There are no

repairs that can be made by the customer to the Modem/Fax Protection. This equipment may not be

used on coin service provided by the telephone company. Connection to party lines is subject to state

tariffs. (Contact your state public utility commission or corporation commission for information.)

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has

been assigned a unique series number. The series number can be found on the product nameplate

label, along with all required approval markings and information. When requesting compliance

information for this product, always refer to the series number. The series number should not be

confused with the marketing name or model number of the product.

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change

without notice.

Note on Labeling

Two symbols are used on the label.

V~ : AC Voltage

V : DC Voltage

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com

Regulatory Compliance

Product Registration

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be

automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

16-02-271-93338B.indb 10 2/18/2016 4:38:36 PM

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite OMNISMT700M Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro INT Rackmount Intelligent Network UPS... Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART2200RMXL2UP Manuel utilisateur

Tripp Lite

Tripp Lite ECO550UPS Manuel utilisateur

Tripp Lite

Tripp Lite Medical Grade UPS Systems SMX & OMNIX Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1500XLRT2U Guide de configuration

Tripp Lite

Tripp Lite AGSM5000Y3U3I Manuel utilisateur

Tripp Lite

Tripp Lite INTERNETOFFICE300 Manuel utilisateur

Tripp Lite

Tripp Lite ECO-UPS ECO650LCD Manuel utilisateur

Tripp Lite

Tripp Lite ECO UPS System Manuel utilisateur

Tripp Lite

Tripp Lite SMART3000RM2UL Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart OMNIVSINT500 Manuel utilisateur

Tripp Lite

Tripp Lite SU7500RT3U1TF Manuel utilisateur

Tripp Lite

Tripp Lite BC350 Manuel utilisateur

Tripp Lite

Tripp Lite SMART750SLT Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline 3-Phase 10kVA Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline Single-Phase 10kVA Manuel utilisateur

Tripp Lite

Tripp Lite OMNIX350HG Manuel utilisateur

Tripp Lite

Tripp Lite AVRX Series Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000XLCD Manuel utilisateur

Tripp Lite

Tripp Lite UPS System AVRX750U Manuel utilisateur

Tripp Lite

Tripp Lite Digital UPS Systems Manuel utilisateur

Tripp Lite

Tripp Lite INTERNET350U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU20K3/3XR5 Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
