Tripp Lite SmartPro Series Manuel utilisateur

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA

Customer Support: +1.773.869.1234 • www.tripplite.com

Important Safety Instructions 2

Mounting 3

Quick Installation 5

Basic Operation 7

Storage and Service 11

Español

SmartPro®

Intelligent, Line-Interactive UPS System

• 230V Sine Wave Input/Output • Extended Runtime Capability

Not suitable for mobile applications

Battery Replacement 12

Français 25

Optional Installation 6

Deutsch 37

 49

Agency approvals vary with model.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation,

operation and storage of this product. Failure to heed these warnings will void your warranty.

UPS Location Warnings

• Use caution when lifting the UPS. Because of the considerable weight of all Rackmount UPS

systems, at least two people should assist in lifting and installing them.

• The UPS must be installed near main outlet supply.

• Install your UPS indoors, away from excess moisture or heat, dust or direct sunlight.

• For best performance, the ambient temperature near your UPS should be between 0° C and

40° C (between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct its

vents or fan openings.

• Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this manner will

seriously inhibit the unit's internal cooling, eventually causing product damage not covered under

warranty.

UPS Connection Warnings

• The UPS contains its own energy source (battery). The output terminals may be live even

when the UPS is not connected to an AC supply.

• Connect your UPS to a properly grounded AC power outlet. Do not modify the UPS’s plug

in a way that would eliminate the UPS’s connection to ground. Do not use adapters that

eliminate the UPS’s connection to ground.

• Do not plug your UPS into itself; this will damage the UPS and void your warranty.

• If you are connecting your UPS to a motor-powered AC generator, the generator must provide

filtered, frequency-regulated computer-grade output. Connecting your UPS to a generator will

void its Ultimate Lifetime Insurance.

• Branch circuit protection must be provided by building installation.

Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment can reasonably be

expected to cause the failure of the life support equipment or to significantly affect its safety or

effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic

mixture with air, oxygen or nitrous oxide.

• Do not connect surge suppressors or extension cords to the output of your UPS. This might overload the

UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current. Observe proper

precautions. Do not dispose of the batteries in a fire. Do not open the UPS or batteries. Do not short or

bridge the battery terminals with any object. Unplug and turn off the UPS before performing battery

replacement. Use tools with insulated handles. There are no user-serviceable parts inside the UPS. Battery

replacement should be performed only by authorized service personnel using the same number and type of

batteries (sealed Lead-Acid). The batteries are recyclable. Refer to your local codes for disposal

requirements. Tripp Lite offers a complete line of UPS System Replacement Battery Cartridges (R.B.C.).

Visit Tripp Lite on the Web at www.tripplite.com to locate the specific replacement battery for your UPS.

• During hot-swap battery replacement, the UPS will not provide backup power in the event of

a blackout or other power interruptions.

• Do not operate UPS without batteries.

• When adding external battery packs to select models with external battery pack connectors, connect only

Tripp Lite-recommended battery packs of the correct voltage and type. Do not connect or disconnect

battery packs when the UPS is operating on battery power.

Mounting (Rack)

Mount your equipment in either a 4-post or 2-post rack or rack enclosure. The user must determine

the fitness of hardware and procedures before mounting. If hardware and procedures are not suitable

for your application, contact the manufacturer of your rack or rack enclosure. The procedures

described in this manual are for common rack and rack enclosure types and may not be appropriate

for all applications.

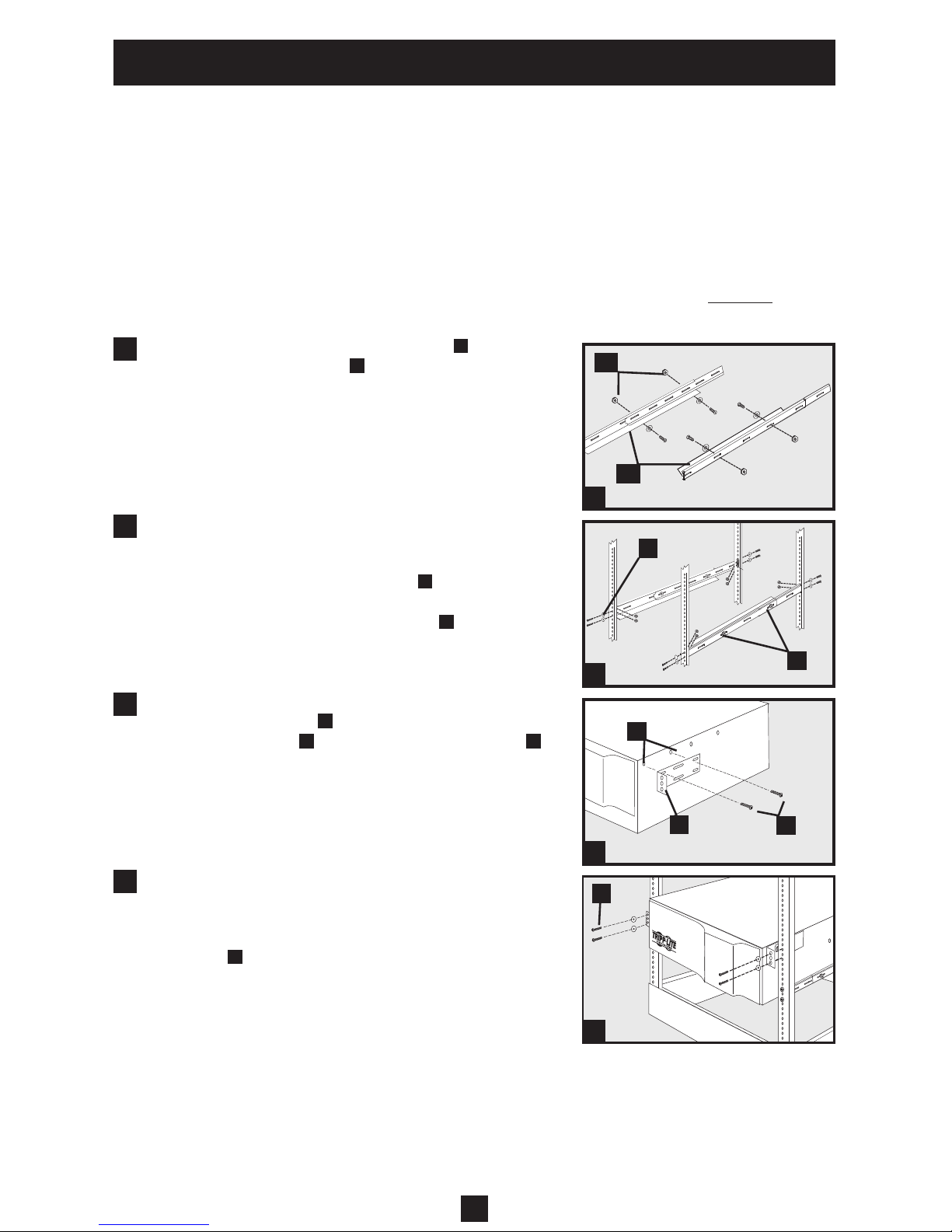

4-Post Mounting

All UPS models include hardware required to mount in a 4-post rack. Select models include an

adjustable rackmount shelf kit to provide additional support. If your UPS model does not include

an adjustable rackmount shelf kit, skip steps 1 and 2.

Connect the two segments of each shelf Ausing the

included screws and nuts B. Leave the screws

slightly loose so that the shelves can be adjusted

in the next step.

Adjust each shelf to fit your rack, then mount them in

the lowest available space of your rack with the

screws, nuts and washers provided C. Note that the

support ledges should face inward. Tighten the

screws that connect the shelf segments B.

Attach mounting ears Dto the front mounting holes

of your equipment Eusing the screws provided F

. The ears should face forward.

Using an assistant if necessary, lift your equipment

and slide it onto the mounting shelves. Attach your

equipment to the rack by using the appropriate

hardware

Gthrough its mounting ears and into the

rack rails.

2-Post (Telecom) Mounting

Two-post mounting will require a Tripp Lite 2-Post Rackmount Installation Kit (Model

2POSTRMKITWM, sold separately). For detailed installation procedures, see the 2POSTRMKITWM

Owner's Manual.

Mounting (Tower)

Mount all UPS models in an upright, tower position using included hardware. The user must

determine the fitness of hardware and procedures before mounting.

Stand your UPS on its side with the LED/Control panel

at the top. Attach one rack mounting ear Ato each side

of the UPS using included screws B. Attach the rack

mounting ears to the floor with user-supplied

hardware.

Rotate the LED/Control panel to view it easier while the

UPS is tower mounted. Insert a small screwdriver, or

other tool, in the slots on either side of the panel. Pop the

panel out; rotate it; and pop the panel back in place.

Note: For additional stability, order the

2-9USTAND expandable tower stand accessory.

Quick Installation

Insert a user-supplied power cord

(with country-specific plug) into

the UPS System's IEC-320-C20

AC input receptacle. Plug the

cord into an AC wall outlet.*

NOTE! after you plug the UPS into a live AC outlet,

the UPS (in “Standby” mode) will automatically

charge its batteries,** but will not supply power to

its outlets until it is turned ON.

* See the UPS system nameplate for input requirements.

** The BATTERY CHARGE LED will be the only LED illuminated.

Find one of the C13-to-C14 power

cords that came with the UPS.

Insert the cord’s female plug into

your computer’s AC input. Insert

the cord’s male plug into any UPS

female output receptacle.

Plug your equipment into the

UPS.*

Plug your equipment into the UPS. Repeat the previous

step, using the additional power cord(s) included with

the UPS system.

Note: Additional interconnection cords (C13-to-

C14) are available from Tripp Lite. Call

+1.773.869.1234 (Part # P004-006).

* Your UPS is designed to support computer equipment only. You will

overload the UPS if the total VA ratings for all the equipment you

connect exceeds UPS output capacity. To find your equipment’s VA

ratings, look on their nameplates. If the equipment is listed in amps,

multiply the number of amps by 230 to determine VA. (Example:

1 amp × 230 = 230 VA). If you are unsure if you have overloaded your

UPS's outlets, see “OUTPUT LOAD LEVEL” LED description.

Turn the UPS ON.

Press and hold the “ON/OFF/STANDBY” button for

one second. The alarm will beep once briefly after one

second has passed. Release the button.

4-5

Optional Installation

These connections are optional. Your UPS will function

properly without these connections.

USB and RS-232 Serial

Communications

Use the included USB cable (see 1a ) and/or DB9 serial

cable (see 1b ) to connect the communication

port on your computer to the communication

port of your UPS. Install on your computer the Tripp

Lite PowerAlert Software appropriate to your

computer’s operating system.

EPO Port Connection

This optional feature is only for those applications

which require connection to a facility’s Emergency

Power Off (EPO) circuit. When the UPS is connected

to this circuit, it enables emergency shutdown of the

UPS’s inverter.

Using the cable provided, connect the EPO port of

your UPS (see 2a ) to a user-supplied normally closed or

normally open switch according to the circuit diagram

(see 2b ). The EPO port is not a phone line surge

suppressor; do not connect a phone line to this

port.

External Battery Connection

Your UPS comes with a robust internal battery

system; external batteries are needed only to extend

runtime. Adding external batteries will increase

recharge time as well as runtime.

The illustration (see 3a ) shows the location of your

UPS’s External Battery Connector, where

you will insert the battery pack cable. Complete

installation instructions for your battery pack appear

in the battery pack owner’s manual. Make sure that

cables are fully inserted into their connectors. Small

sparks may result during battery connection; this is

normal.

Do not connect or disconnect battery packs when the

UPS is running on battery power.

If you connect any external batteries, set the Battery

Charge Level Switches (see 3b ) to the down

position. This will increase your UPS’s charger

output so that the additional batteries charge faster.

Caution! DO NOT set the Battery Charge Level

Switches to the down position without an external

battery connected. There is a risk of damaging the

UPS’s internal battery system.

“ON/OFF/STANDBY” Button

• To turn the UPS ON: with the UPS plugged into a live AC wall outlet*, press

and hold the “ON/OFF/STANDBY” button for one second.** Release the

button. If utility power is absent, you can “cold-start” the UPS (i.e.: turn it ON

and supply power for a limited time from its batteries***) by pressing and

holding the “ON/OFF/STANDBY” button for one second.**

• To turn the UPS OFF: with the UPS ON and receiving utility power, press

and hold the “ON/OFF/STANDBY” button for one second.** Then unplug

the UPS from the wall outlet. The UPS will be completely OFF.

* After you plug the UPS into a live AC outlet, the UPS (in ”Standby” mode) will automatically charge

its batteries, but will not supply power to its outlets until it is turned ON. ** The alarm will beep once

briefly after the indicated interval has passed. *** If fully charged.

“MUTE/TEST” Button

To Silence (or “Mute”) UPS Alarms: briefly press and release the MUTE/

TEST button.*

To Run a Self-Test: with your UPS plugged in and turned ON, press and hold

the MUTE/TEST button. Continue holding the button until the alarm beeps

several times and the UPS performs a self test. See “Results of a Self-Test”

below. Note: you can leave connected equipment on during a self-test. Your

UPS, however, will not perform a self-test if the UPS is not turned on (see “ON/

OFF/STANDBY” Button description).

CAUTION! Do not unplug your UPS to test its batteries. This will remove

safe electrical grounding and may introduce a damaging surge into your

network connections.

Results of a Self-Test: The test will last approximately 10 seconds as the

UPS switches to battery to test its load capacity and battery charge.

• If the “OUTPUT LOAD LEVEL” LED remains lit red and the alarm

continues to sound after the test, the UPS’s outlets are overloaded. To

clear the overload, unplug some of your equipment and run the self-test

repeatedly until the “OUTPUT LOAD LEVEL” LED is no longer lit red

and the alarm is no longer sounding.

CAUTION! Any overload that is not corrected by the user immediately

following a self-test may cause the UPS to shut down and cease

supplying output power in the event of a blackout or brownout.

• If the “BATTERY WARNING” LED remains lit and the alarm continues

to sound after the test, the UPS batteries need to be recharged or replaced.

Allow the UPS to recharge continuously for 12 hours, and

repeat the self-test. If the LED remains lit, contact Tripp Lite for service.

If your UPS requires battery replacement, visit www.tripplite.com to

locate the specific Tripp Lite replacement battery for your UPS.

Basic Operation

Buttons (Front Panel)

Basic Operation continued

Indicator Lights (Front Panel)

All Indicator Light descriptions apply when the UPS is plugged into a wall

outlet and turned ON.

“POWER” LED: this green LED lights continuously when the UPS is ON and

supplying connected equipment with AC power from a utility source. The LED

flashes and an alarm sounds (4 short beeps followed by a pause) to indicate the

UPS is operating from its internal batteries during a blackout or severe

brownout. If the blackout or severe brownout is prolonged, you should save files

and shut down your equipment since internal battery power will eventually be

depleted. See “BATTERY CHARGE” LED description below.

“VOLTAGE CORRECTION” LED: this green LED lights continuously

whenever the UPS is automatically correcting high or low AC voltage on the

utility line without the assistance of battery power. The UPS will also emit a

slight clicking noise. These are normal, automatic operations of the UPS, no

action is required on your part.

“OUTPUT LOAD LEVEL” LED: this multicolored LED indicates the

approximate electrical load of equipment connected to the UPS's AC outlets. It

will turn from green (light load) to yellow (medium load) to red (overload). If

the LED is red (either illuminated continuously or flashing), clear the overload

immediately by unplugging some of your equipment from the outlets until the

LED changes from red to yellow (or green). CAUTION! Any overload that is

not corrected by the user immediately may cause the UPS to shut down and

cease supplying output power in the event of a blackout or brownout.

“BATTERY CHARGE” LED: when the UPS is operating from utility power,

this LED indicates the approximate charge state of the UPS's internal batteries:

red indicates the batteries are beginning to charge; yellow indicates the batteries

are roughly midway through charging; and green indicates the batteries are fully

charged. When the UPS is operating from battery power during a blackout or

severe brownout, this LED indicates the approximate amount of energy

(ultimately affecting runtime) which the UPS’s batteries will provide: red

indicates a low level of energy; yellow indicates a medium level of energy; and

green indicates a high level of energy. Since the runtime performance of all UPS

batteries will gradually deplete over time, it is recommended that you

periodically perform a self-test (see MUTE/TEST Button description) to

determine the energy level of your UPS batteries BEFORE a blackout or severe

brownout occurs. During a prolonged blackout or severe brownout, you should

save files and shut down your equipment since battery power will eventually be

depleted. When the LED turns red and an alarm sounds continuously, it

indicates the UPS's batteries are nearly out of power and UPS shut down is

imminent.

“BATTERY WARNING” LED: this LED lights red and an alarm sounds

intermittently after you initiate a self test (See “MUTE/TEST” Button

description) to indicate the UPS batteries need to be recharged or replaced.

Allow the UPS to recharge continuously for 12 hours, and repeat the self-test.

If the LED continues to light, contact Tripp Lite for service. If your UPS

requires battery replacement, visit www.tripplite.com to locate the specific

Tripp Lite replacement battery for your UPS.

Basic Operation continued

Other UPS Features (Rear Panel)

AC Receptacles: Your UPS features C13 outlets. These output

receptacles provide your connected equipment with AC line power during

normal operation and battery power during blackouts and brownouts. The UPS

protects equipment connected to these receptacles against damaging surges and

line noise. If you have a serial or USB connection to your UPS, you can

remotely reboot connected equipment by turning individually controllable

receptacles OFF and ON using Tripp Lite's PowerAlert Software. Three

receptacles, labeled LOAD 1, LOAD 2 and LOAD 3, are individually

controllable and may be remotely switched OFF and ON using PowerAlert

Software without interrupting power to equipment connected to other outlets.

Outlets labeled UNSWITCHED may not be remotely turned off. Unswitched

outlets can only be turned off by turning off all output receptacles. See software

instructions for details.

Communications Ports (USB or RS-232): These ports connect your UPS to

any workstation or server. Use with Tripp Lite’s PowerAlert Software and

included cables to enable your computer to automatically save open files and

shut down equipment during a blackout. Also use PowerAlert Software to

monitor a wide variety of AC line power and UPS operating conditions. Consult

your PowerAlert Software manual or contact Tripp Lite Customer Support for

more information. See “USB and RS-232 Serial Communications” in the

“Optional Installation” section for installation instructions.

EPO (Emergency Power Off) Port: Your UPS features a EPO port that may

be used to connect the UPS to a contact closure switch to enable emergency

inverter shutdown. See Optional Installation.

C13

Basic Operation continued

Accessory Slot: Remove the small cover panel from this slot to install optional

accessories to remotely monitor and control your UPS. Refer to your accessory’s

manual for installation instructions. Contact Tripp Lite Customer Support at

+1.773.869.1234 for more information, including a list of available SNMP,

network management and connectivity products.

Power Sensitivity Adjustment: This dial is normally set fully counter-

clockwise, which enables the UPS to provide maximum protection against

waveform distortions in its AC input. When such distortion occurs, the UPS will

normally switch to providing sine wave power from its battery reserves for as

long as the distortion is present. In areas with poor utility power or where the

UPS’s input power comes from a backup generator, chronic waveform distortion

could cause the UPS to switch to battery too frequently, draining its battery

reserves. You may be able to reduce how often your UPS switches to battery due

to moderate waveform distortion by experimenting with different settings for

this dial. As the dial is turned clockwise, the UPS becomes more tolerant of

variations in its input power’s AC waveform. NOTE: The further the dial is

adjusted clockwise, the greater the degree of waveform distortion the UPS will

allow to pass to connected equipment. When experimenting with different

settings for this dial, operate connected equipment in a safe test mode so that

the effect on the equipment of any waveform distortions in the UPS’s output can

be evaluated without disrupting critical operations.

External Battery Connector (Select Models Only): Use to connect Tripp Lite

external battery packs for additional runtime. Refer to instructions available

with the battery pack for complete connection information and safety

warnings.

Battery Charge Level Switches (Select Models Only): Controls the UPS

system’s battery charge rate. If you connect any external batteries, set the Battery

Charge Level Switch to the down position. This will increase your UPS's charger

output so the additional batteries charge faster.

CAUTION!DO NOT set the Battery Charge Level Switches to the down

position without an external battery connected. There is a risk of damaging the

UPS’s internal battery system.

Input Breaker(s) (all models): Protect your electrical circuit from overcurrent

draw from the UPS load. If these breakers trip, remove some of the load, then

reset them by pressing the breaker(s) in.

Ground Screw: Use this to connect any equipment that requires a chassis

ground.

Charge Rate Setting

(when External

Batteries are

connected)

Charge Rate Setting

(when External

Batteries are not

connected)

Autres manuels pour SmartPro Series

Table des matières

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SMART5000TEL3U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU60K Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMX2200XLRT2U Manuel utilisateur

Tripp Lite

Tripp Lite AVRX Series Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART1000RM1U Manuel utilisateur

Tripp Lite

Tripp Lite Smart Pro 450 RT Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro 700 HG Instructions d'installation et d'utilisation

Tripp Lite

Tripp Lite SmartOnline SUINT3000RTXL2U Manuel utilisateur

Tripp Lite

Tripp Lite BCPRO1050 Manuel utilisateur

Tripp Lite

Tripp Lite Smart Series Mode d’emploi

Tripp Lite

Tripp Lite SmartOnline Intelligent True On-Line UPS... Instructions d'installation et d'utilisation

Tripp Lite

Tripp Lite SmartPro RMX RMX 1000-2000 VA Manuel utilisateur

Tripp Lite

Tripp Lite OMNIVSINT800 Manuel utilisateur

Tripp Lite

Tripp Lite UPS System AVRX550U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU20K3/3 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU10000RT3U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro 3U Manuel utilisateur

Tripp Lite

Tripp Lite OMNIVS1000 Manuel utilisateur

Tripp Lite

Tripp Lite Internet Office INTERNET750U Manuel utilisateur

Tripp Lite

Tripp Lite OMNI1500XLNAFTA Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SLT SMX750SLT Guide de configuration

Tripp Lite

Tripp Lite AVR Series Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart OMNI300NAFTA Manuel utilisateur

Tripp Lite

Tripp Lite AVR750U Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
