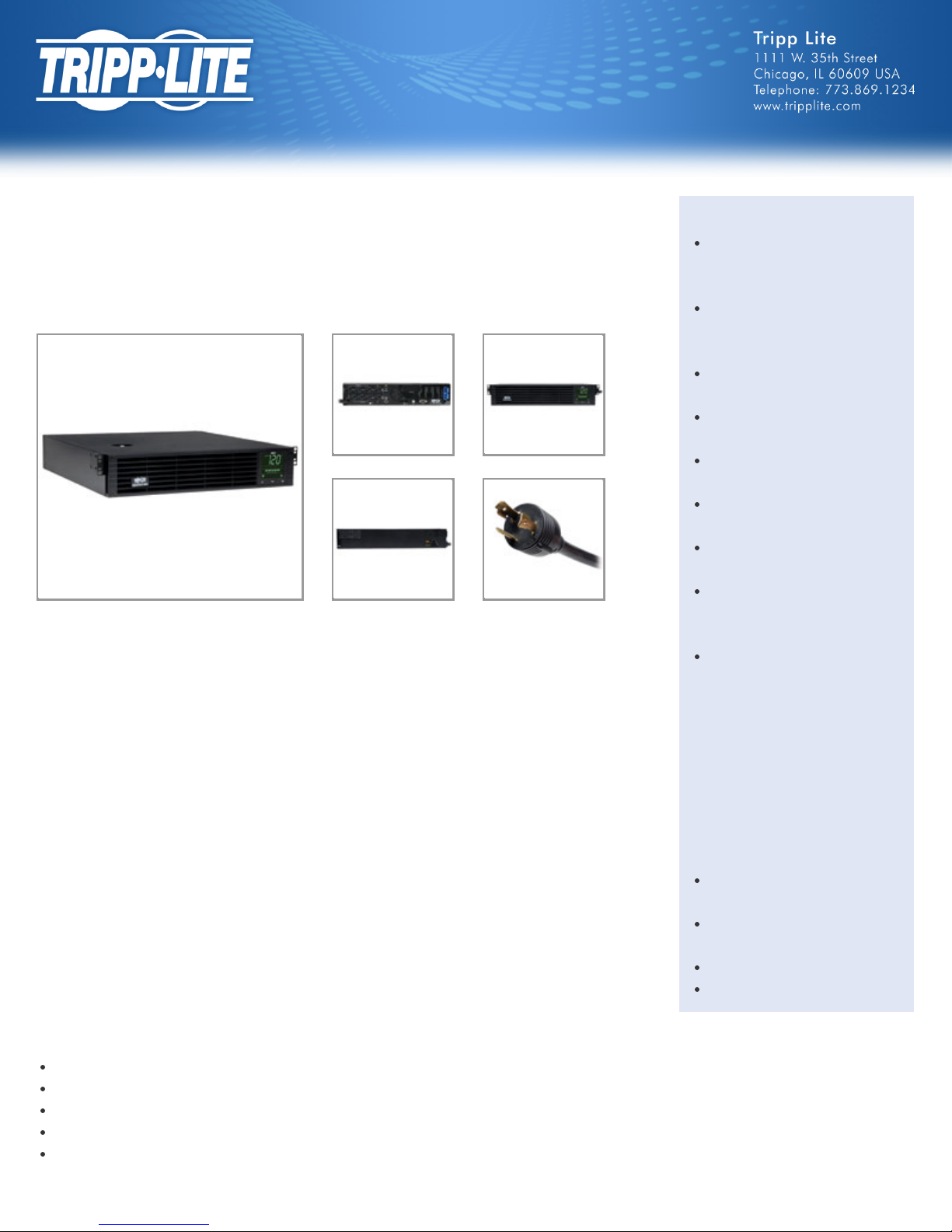

Tripp Lite SmartPro SMART3000RMXL2U Guide d'installation

SmartPro 3kVA 2880W Line Interactive Sine Wave

UPS, Extended-Run & SNMPWEBCARD options, 2U

Rack/Tower, LCD, USB, RS232, EPO, 120V

MODEL NUMBER: SMART3000RMXL2U

Description

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for

critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS)

with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels

while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in

exceptionally poor-power environments with two separate levels of voltage boost to correct both slight

undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed

UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover

from line to battery power occurs within milliseconds to maintain operation of connected equipment without

interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network

management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network

interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown

features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment

load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete

cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select

outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or

tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration

options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

Features

Tripp Lite SMART3000RMXL2U line interactive 2U rack/tower UPS with 3000VA / 3kVA capacity and extended runtime options

Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

NEMA L5-30P input plug; 8 NEMA 5-15/20R and 1 L5-30R output receptacles, Two independently switchable output load banks

Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages

High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions

Highlights

3kVA / 3000VA / 2880W line

interactive 2U rack/tower UPS,

Sine Wave

120V output, Corrects brownouts

and overvoltages from 83V to

145V

0.96 Power Factor, Interactive

LCD interface

Extended runtime options up to

2880W

4 post compatible mounting

accessories

96% line-mode efficiency, 2

switched load banks

USB, RS232, EPO and slot for

SNMPWEBCARD option

120V NEMA L5-30P input, 8

NEMA 5-15/20R & 1 L5-30R

outlets

This product is ENERGY STAR

qualified for its ability to save

customers money while

helping to protect the

environment

Applications

Ideal for server, networking and

telecommunications equipment

Package Includes

SMART3000RMXL2U UPS

system

PowerAlert Software with USB,

Serial & EPO cabling

4 post rackmount installation kit

Instruction manual

1 / 6

Internal batteries offer 10 minutes at 50% load (1440W) and 3 minutes at 100% load (2880W)

Extended runtime is available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible)

external battery packs

External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)

Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment

Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens

of detailed UPS and site power information

LCD interface also supports a number of advanced user setup and operating preferences

Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND

enables tower placement

Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options

HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

Specifications

OUTPUT

Output Volt Amp Capacity (VA) 3000

Output kVA capacity (kVA) 3

Output Watt Capacity (watts) 2880

Output kW capacity 2.88

Output power factor .96

Nominal Output Voltage(s)

Supported 120V

Frequency compatibility 60 Hz

Output voltage regulation (line mode) +6%, -14%

Output voltage regulation (Battery

mode) +/-5%

Built-in UPS output receptacles 8 5-15/20R outlet(s); 1 L5-30R outlet(s)

Built-in controllable switched load

banks Two switchable single outlet 5-15/20R load banks

Output circuit breaker Two 20A output breakers protect 4 5-15/20R outlets each

Output AC waveform (AC mode) Pure Sine wave

Output AC waveform (battery mode) Pure Sine wave

INPUT

Rated input current (at maximum

load) 24A

Nominal Input Voltage(s) Supported 120V AC

UPS input connection type L5-30P

2 / 6

UPS Input cord length (ft.) 10

UPS Input cord length (m) 3

Recommended Electrical Service 30A 120V

Phase Single-Phase

BATTERY

Full load runtime (minutes) 3 min. (2880w)

Half load runtime (minutes) 10 min. (1440w)

Expandable battery runtime Extended runtime supported via optional external battery packs

External battery pack compatibility BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)

DC system voltage (VDC) 48

Battery recharge rate (included

batteries) Less than 5 hours from 10 to 90%

Replacement battery cartridge

(internal UPS battery replacement) RBC58-2U

Battery Access Front panel battery access door

Battery replacement description Hot-swappable, replaceable batteries

VOLTAGE REGULATION

Voltage regulation description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Overvoltage correction Input voltages between 127 and 145 are reduced by 12%

Undervoltage correction Input voltages between 108 and 96 are boosted by 12%

Severe undervoltage correction Input voltages between 83 and 95 are boosted by 24%

LEDS ALARMS & SWITCHES

Front panel LCD display

Front panel LCD information and configuration screen offers detailed UPS and site power status and operating

data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual

for detailed LCD configuration and monitoring options)

Alarms Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Alarm cancel operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option

available

Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions

SURGE / NOISE SUPPRESSION

UPS AC suppression joule rating 570

EMI / RFI AC noise suppression Yes

AC suppression response time Instantaneous

PHYSICAL

3 / 6

Installation form factors supported

with included accessories 4 post 19 inch rackmount

Installation form factors supported

with optional accessories 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)

Primary form factor Rackmount

UPS / Power Module dimensions in

primary form factor (height x width x

depth / inches)

3.5 x 17.5 x 19

UPS / Power Module dimensions in

primary form factor (height x width x

depth / cm)

8.9 x 44.4 x 48.3

Rack Height 2U

Secondary form factor Tower (requires 2-9USTAND)

UPS / Power Module weight (lbs) 72.8

UPS / Power Module weight (kg) 33.1

UPS Shipping dimensions (height x

width x depth / inches) 9 x 23.5 x 20

UPS Shipping dimensions (height x

width x depth / cm) 22.9 x 59.7 x 50.8

Shipping weight (lbs) 84.6

Shipping weight (kg) 38.4

Cooling method Fan

UPS housing material Steel

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load) 409

AC mode efficiency rating (100%

load) 96%

COMMUNICATIONS

Communications interface USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network monitoring port description Supports detailed monitoring of UPS and site power conditions

PowerAlert software Included

Communications cable USB, DB9 and EPO cabling included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

4 / 6

Transfer time 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)

Low voltage transfer to battery

power (setpoint) 83

High voltage transfer to battery

power (setpoint) 145

SPECIAL FEATURES

Cold Start (startup in battery mode

during a power failure) Cold-start operation supported

High availability UPS features Hot swappable batteries

Green & high efficiency features Greater than 95% efficiency - GREEN UPS; Individually controllable load banks; Schedulable daily hours of

economy mode operation

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A

(EMI); ENERGY STAR Qualified

WARRANTY

Product Warranty Period (Worldwide) 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.

Connected Equipment Insurance

(U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance

Related Items

Optional Products

Model Number Description Qty.

BP48V27-2US BP48V27-2US - 2U External 48V Rack/Tower Battery pack for select Tripp Lite UPS Systems 1

BP48V24-2U BP48V242U - External Battery Pack for UPS System 1

BP48V60RT-3U External Battery Pack and Cable. 3U, Expandable, Blue 2-Point Connector 1

WEXT5-2200-3000 5-Year Extended Warranty - For Smart Line-Interactive and Online Tower or Rack models,

2200-3000VA or less 1

SNMPWEBCARD For remote monitoring and control via SNMP, Web, or Telnet. 1

ENVIROSENSE Monitors temperature, humidity and contact-closure inputs. (Requires SNMPWEBCARD or switched

PDU.) 1

SRSWITCH Magnetic Door Switch Kit (2-pack for front and rear doors; requires ENVIROSENSE.) 1

2-9USTAND Enables Tower Placement of Rackmount UPS Systems 1

MODBUSCARD For remote monitoring and control via MODBUS protocol 1

2POSTRMKITWM Enables 2-Post Rackmount or Wallmount Installation of Select Rackmount UPS Systems 1

RBC58-2U 2U UPS Replacement Battery Cartridge for select Tripp Lite UPS systems 1

5 / 6

PDU2430 Single-Phase Basic PDU, 30A 120V, 1U Horizontal Rackmount, NEMA 5-15R outlets, NEMA

L5-30P input plug 1

PDUB30 Single-Phase Hot-Swap PDU, 30A 120V, 2U Horizontal Rackmount, NEMA 5-15/20R & L5-30R

outlets, set of 2 NEMA L5-30P input plugs 1

PDUMH30 Single-Phase Metered PDU, 30A 120V, 1U Horizontal Rackmount, NEMA 5-15/20R outlets, NEMA

L5-30P input plug 1

PDUMH30AT Single-Phase Auto Transfer Switch / Metered PDU, 30A 120V, 2U Horizontal Rackmount, 5-15/20R

& L5-30R outlets, two L5-30P inputs 1

PDUMH30ATNET Single-Phase Auto Transfer Switch / Switched PDU, 30A 120V, 2U Horizontal Rackmount, 5-15/20R

& L5-30R outlets, 2 L5-30P inputs 1

PDUMH30NET Single-Phase Switched PDU, 30A 120V, 2U Horizontal Rackmount, NEMA 5-15/20R outlets, NEMA

L5-30P input plug. 1

PDUMNH30 Single-Phase Monitored PDU, 30A 120V, 2U Horizontal Rackmount, 5-15/20R outlets, L5-30P input 1

PDUMNV30 Single-Phase Monitored PDU, 30A 120V, 0U Vertical Rackmount, NEMA 5-15/20R outlets, NEMA

L5-30P input plug 1

PDUMV30 Single-Phase Metered PDU, 30A 120V, 0U Vertical Rackmount, NEMA 5-15/20R outlets, NEMA

L5-30P input plug 1

PDUMV30NET Single-Phase Switched PDU, 30A 120V, 0U Vertical Rackmount, NEMA 5-15/20R outlets, NEMA

L5-30P input plug 1

More information, including related products, owner's manuals, and additional technical specifications, can be found online at:

http://www.tripplite.com/sku/SMART3000RMXL2U.

Specifications are subject to change without notice. Photos may differ slightly from final products.

6 / 6

Autres manuels pour SmartPro SMART3000RMXL2U

Table des matières

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SMARTINT3000VS Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SUPDMB5 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU5000RT4U-IMS Manuel utilisateur

Tripp Lite

Tripp Lite BCPRO1050 Manuel utilisateur

Tripp Lite

Tripp Lite HT1000UPS Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU6000RT4UHV Guide de configuration

Tripp Lite

Tripp Lite SM750XLNAFTA Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART1050XL Manuel utilisateur

Tripp Lite

Tripp Lite Standby UPS Systems Internet I Manuel utilisateur

Tripp Lite

Tripp Lite SMART1200LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SLT Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU16000RT4U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro AG-03AD Series Manuel utilisateur

Tripp Lite

Tripp Lite AG-02F0 Series Manuel utilisateur

Tripp Lite

Tripp Lite ECO-UPS ECO650LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1500XLRT2U Guide de configuration

Tripp Lite

Tripp Lite SmartPro Series Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART1400RM2U Manuel utilisateur

Tripp Lite

Tripp Lite SMART1500CRMXL Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro INT Rackmount Intelligent Network UPS... Manuel utilisateur

Tripp Lite

Tripp Lite Internet Office 700 Manuel utilisateur

Tripp Lite

Tripp Lite SMART2200SLT Manuel utilisateur

Tripp Lite

Tripp Lite IO700NAFTA Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART2200RM2U Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
