Tripp Lite SmartOnline SU1500RTXL2U Manuel utilisateur

Owner’s Manual

1111 W. 35th Street Chicago, IL 60609 USA

Customer Support: (773) 869-1234 • www.tripplite.com

Important Safety Instructions 2

Installation 3

Basic Operation 6

Battery Replacement 12

Storage and Service 14

SmartOnline™

Rack/Tower Mount Online UPS Systems

Specifications 14

Español

Français 31

Troubleshooting 10

PyccŞèé 46

200608121 93-2609 SU Owner’s Manual.qxd 10/3/2006 3:32 PM Page 1

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants,

dust or direct sunlight.

• For best performance, keep the indoor temperature between between 32º F and 104º F

(0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the

UPS into itself; this will damage the UPS.

• Do not modify the UPS's plug, and do not use an adapter that would eliminate the UPS’s

ground connection.

• Do not use extension cords to connect the UPS to an AC outlet. Your warranty will be

voided if anything other than Tripp Lite surge suppressors are used to connect your UPS

to an outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must

provide clean, filtered, computer-grade output.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which a malfunction

or failure of a Tripp Lite UPS System could cause failure or significantly alter the

performance of a life-support device.

• Do not connect surge suppressors or extension cords to the output of your UPS. This

might damage the UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

• Your UPS does not require routine maintenance. Do not open your UPS for any reason

except battery replacement. There are no user-serviceable parts inside.

• Battery replacement must be performed by qualified service personnel. Because the

batteries present a risk of electrical shock and burn from high short-circuit current,

observe proper precautions. Unplug and turn off the UPS before performing battery

replacement. Use tools with insulated handles, and replace the existing batteries with the

same number and type of new batteries (Sealed Lead-Acid). Do not open the batteries.

Do not short or bridge the battery terminals with any object.

• The UPS batteries are recyclable. Refer to local codes for disposal requirements, or in

the USA only call 1-800-SAV-LEAD for recycling information. Do not dispose of the

batteries in a fire.

• Only connect Tripp Lite battery packs of the appropriate type and correct voltage to the

external battery connector.

• Do not connect or disconnect external batteries while the UPS is operating from battery.

• Do not operate your UPS without batteries.

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the

installation, operation and storage of all Tripp Lite UPS Systems. Failure to heed these

warnings will void your warranty.

Important Safety Instructions

200608121 93-2609 SU Owner’s Manual.qxd 10/3/2006 3:32 PM Page 2

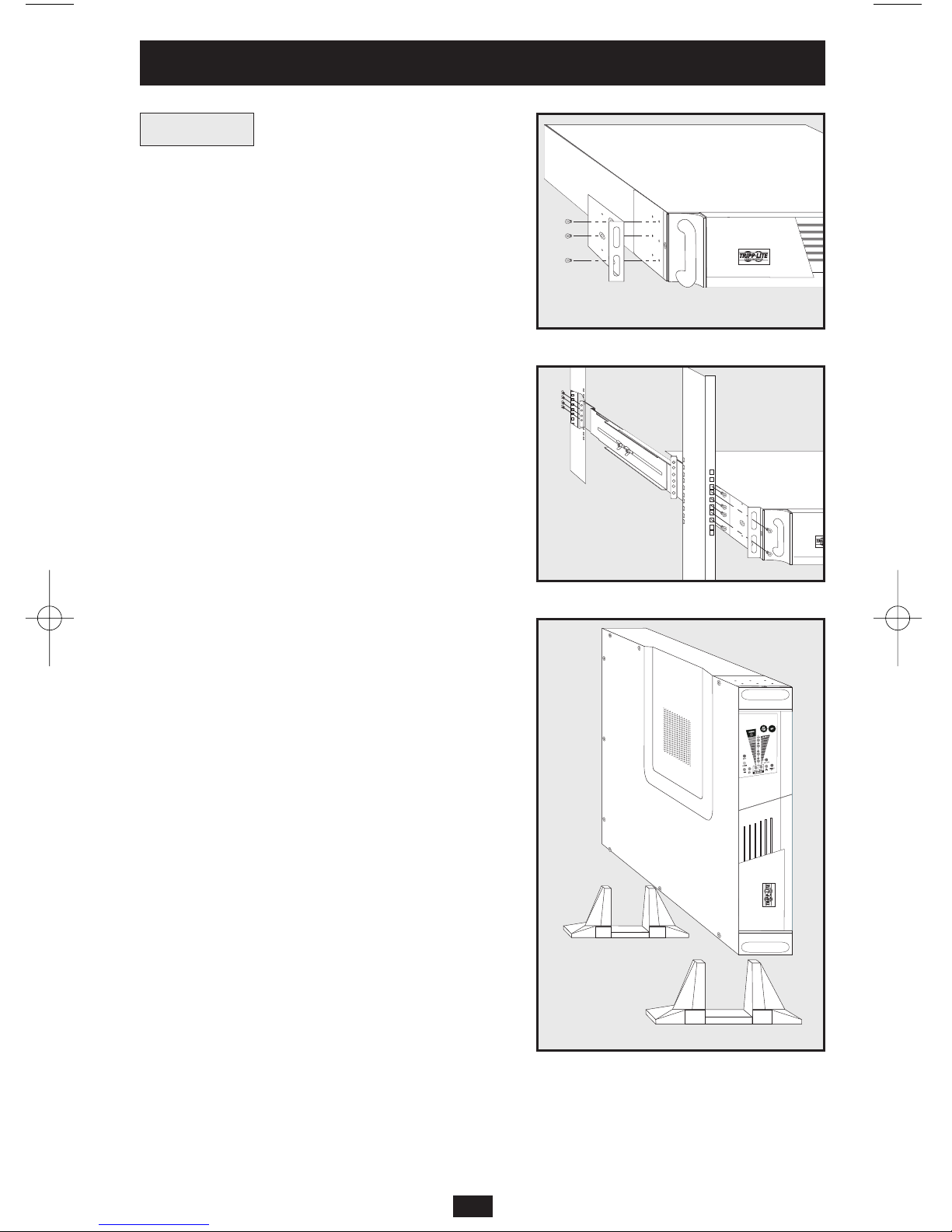

Rackmount

1) Loosen the wingnuts on each of the two UPS

Side Supports; adjust the length of the supports to

match the depth of your rack; tighten wingnuts.

2) Mount both UPS Side Supports in your rack on

the inside surfaces of the rack rails.

Note: Both support ledges should face inward. The side supports’

front and back holes are threaded and do not require nuts to

secure rack bolts.

3) Attach mounting ‘ears’ to the front end of the

UPS’s sides using the screws provided.

4) Lift UPS and slide it onto the UPS Side

Supports within your rack. Mount the UPS by

screwing rack bolts through the UPS mounting

‘ears’, through the rack rails and through the UPS

Side Supports.

Note: The side supports’ front holes are threaded and do not

require nuts to secure rack bolts.

Vertical Tower Mount

1) Cover the rackmount screw holes on the UPS’s

sides with supplied snap-in hole-cover caps.

2) Place the UPS upright in a flat, stable location

with its control panel on the high corner facing

forward. Position stabilizer feet 4 in. from each

end of the UPS.

Mounting

SU2200RTXL2U shown

Installation

200608121 93-2609 SU Owner’s Manual.qxd 10/3/2006 3:32 PM Page 3

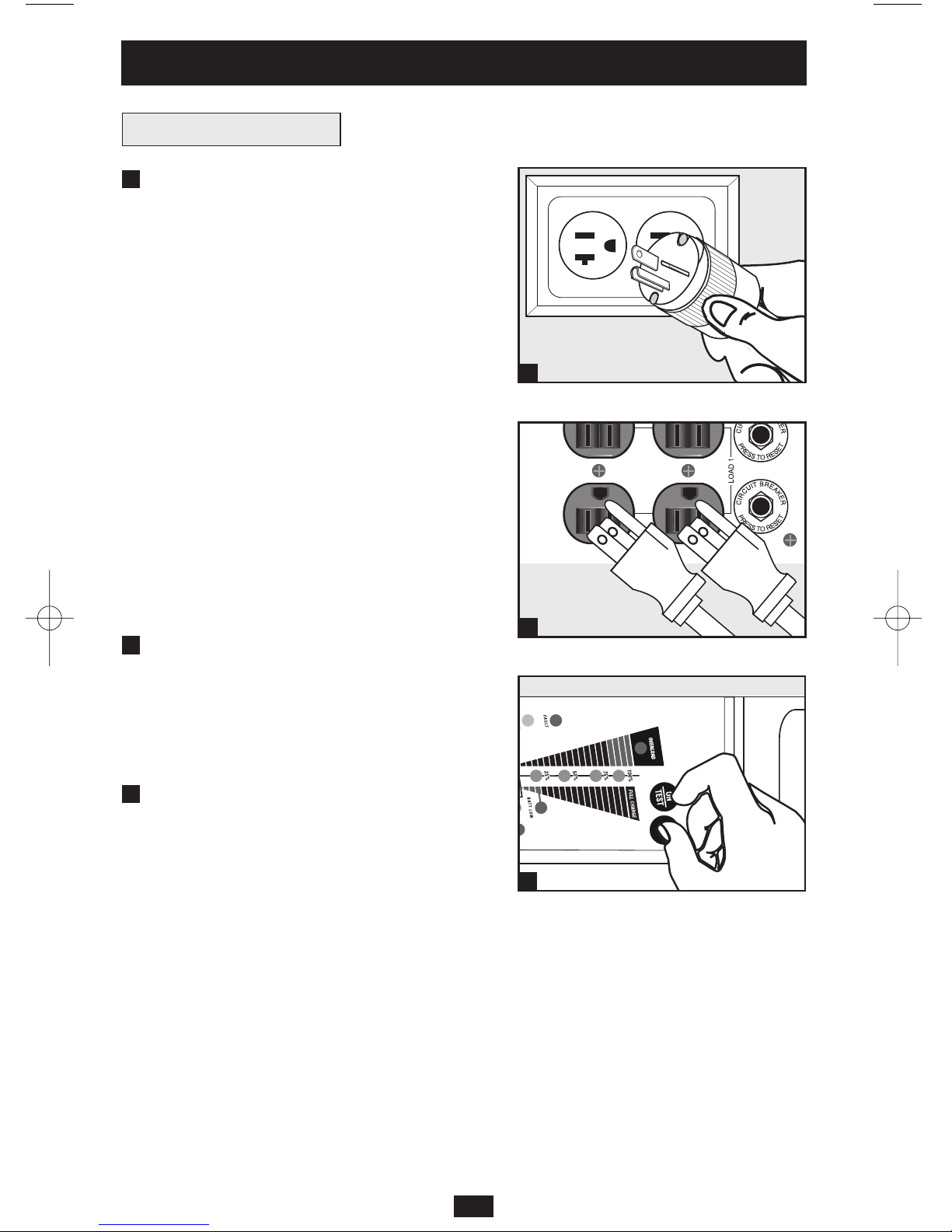

Connection and Start-Up

Plug your UPS’s line cord into an

electrical outlet.

If your model features a detachable line cord,

first plug the female end into your UPS’s AC

Input Receptacle.

Your UPS must be connected to a dedicated

circuit of sufficient amperage—check the

“Recommended Utility Amps” rating of your

model in the specifications. Note, however, that

the select models may be fitted with different

plug types. Refer to the “OP Rating/Plug

Rating” chart printed on the top of your UPS.

Once your UPS is plugged in, the fan and all

Indicator Lights will turn ON. The “LINE” and

“LOAD ACTIVE METER” LEDs will

illuminate and the UPS will emit a beep to

indicate normal operation. However, power is

not supplied to your UPS’s AC outlets until the

UPS is turned on.

Plug your equipment into your UPS.

Your UPS is designed to support computer

equipment only. You will overload your UPS if

you connect household appliances or laser

printers to the UPS's outlets.

Turn your UPS ON:

• Press the “ON/TEST” Switch

• Hold it for several seconds until you

hear a beep

• Release it

Your UPS will begin providing AC power to its outlets.

The “ON LINE” LED will illuminate.

SU2200RTXL2U Plug

(NEMA 5-20) shown

SU2200RTXL2U shown

Installation

(continued)

200608121 93-2609 SU Owner’s Manual.qxd 10/3/2006 3:32 PM Page 4

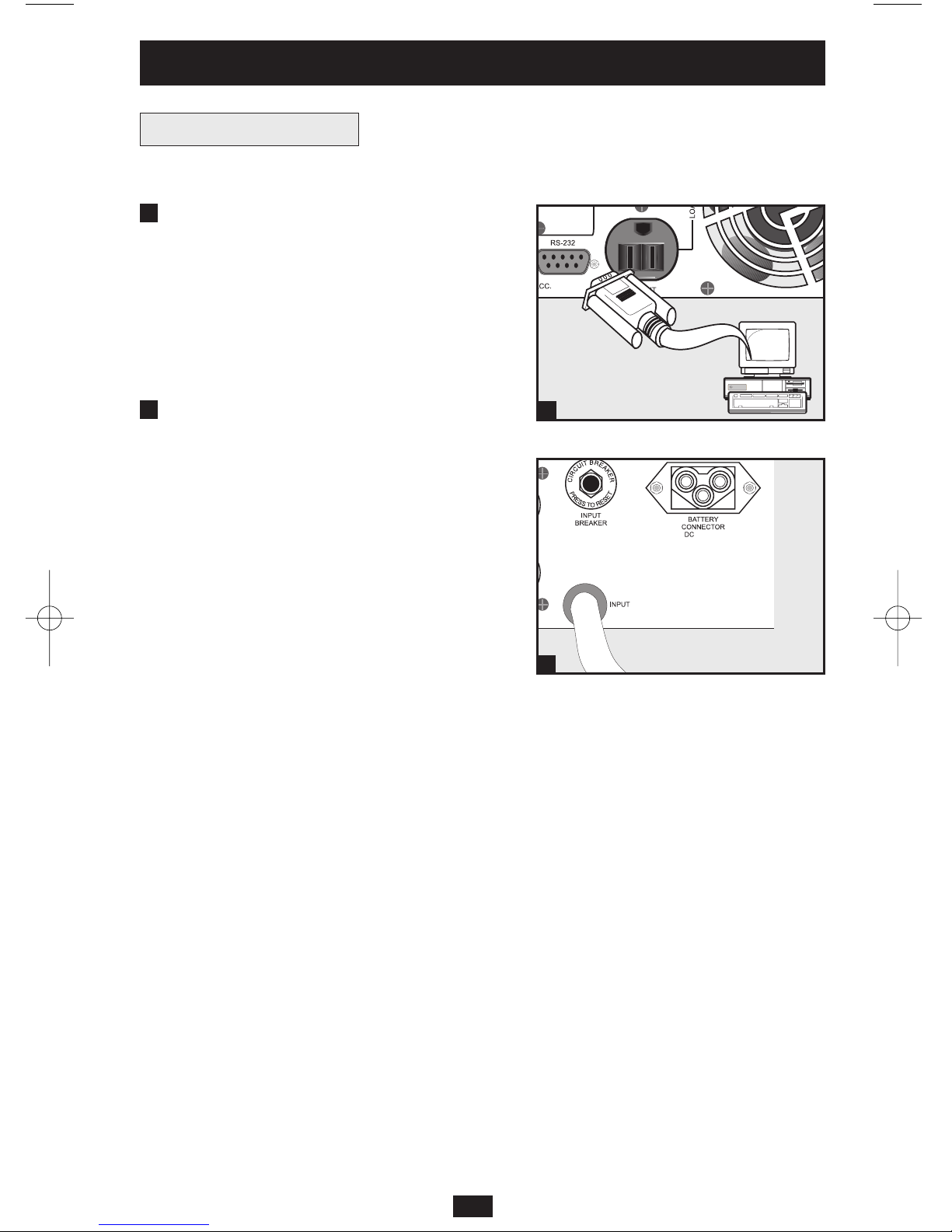

Optional Connections

Your UPS will function properly without these connections.

Serial Port Connection

Using the serial cable provided, connect a serial

port on your computer to the serial port of your

UPS. See Communications in the Basic

Operation section of this manual to determine

how to monitor and manage your UPS using

this port.

External Battery Pack Connection

Check to ensure that the external batteries you

are connecting match the voltage listed on

your UPS’s battery connector. Plug either end

of the battery connection cable (supplied with

the battery pack) into the UPS’s External

Battery Connector and the other end into the

Battery Output Connector on the rear panel of

the external battery pack.

Since your UPS has internal batteries, external

batteries are only needed to extend runtime.

Adding external batteries will increase

recharge time as well as runtime. Make sure

that each end of the cable is fully inserted into

its connector. Several small sparks may result

during battery connection; this is normal.

48V/26A

SU2200RTXL2U shown

Installation

(continued)

200608121 93-2609 SU Owner’s Manual.qxd 10/3/2006 3:32 PM Page 5

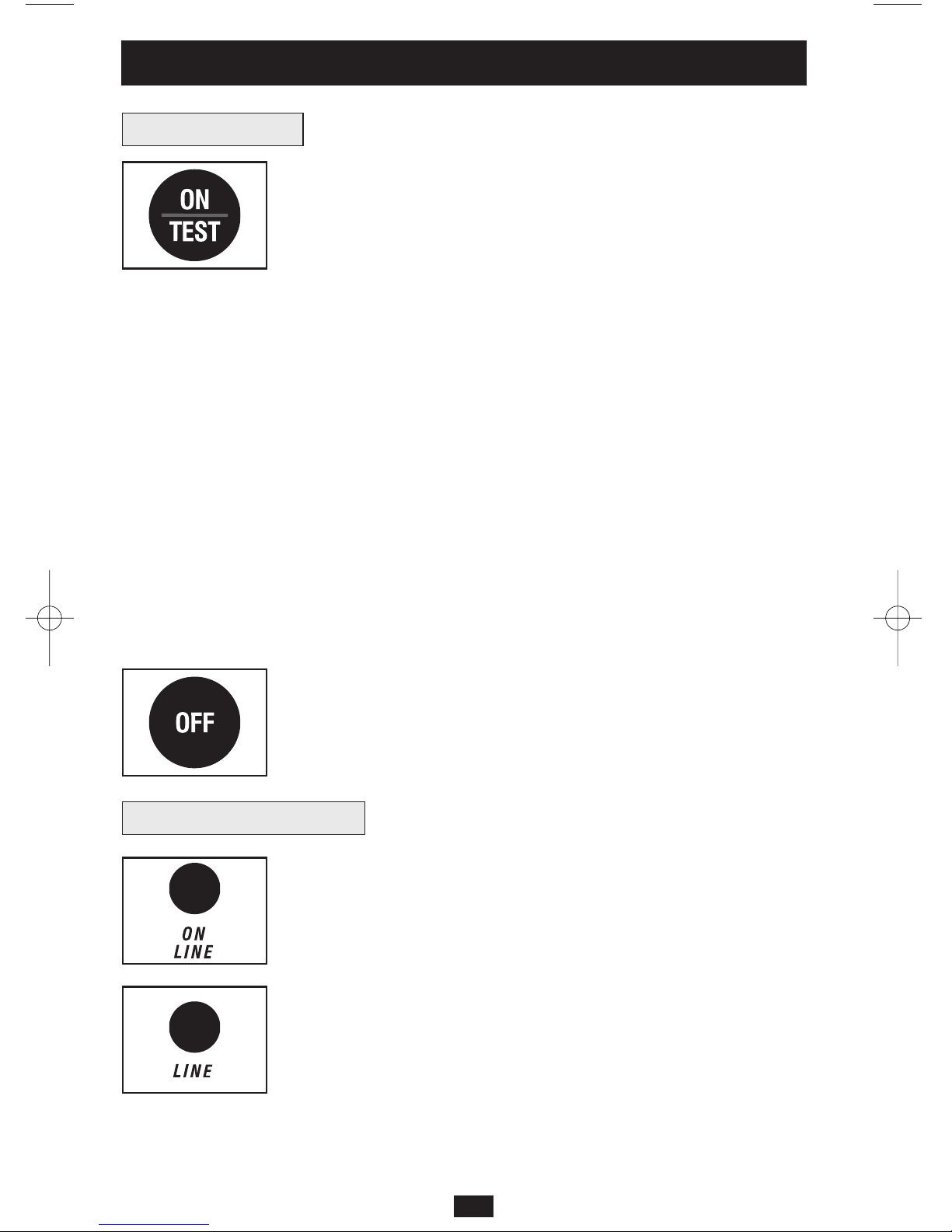

Front Panel Switches

“ON/TEST” Switch: This switch controls four separate UPS functions:

UPS Power ON

To turn the UPS on, press this switch, hold it for several seconds until

you hear a beep, then release it. The “ON LINE” LED will illuminate.

UPS Self-Test

During normal on-line operation, press this switch and hold it until

you hear a beep. This initiates a 10-second self-test of the battery. The

UPS will shift to battery power (the “ON BATT” and “BATT

ACTIVE METER” LEDs will illuminate) for ten seconds.

Alarm Silence

To silence the UPS “on-battery” alarm, press this switch and hold it

until you hear a beep.

UPS Cold Start

To use your UPS as a stand-alone power source when AC power is

unavailable (i.e. during a blackout), press this switch and hold it until

you hear a beep. The UPS will then provide battery power to its outlets.*

* The “ON BATT” Indicator Light will be illuminated since your UPS will be operating

from battery power.

“OFF” Switch: This switch turns power OFF at the UPS receptacles.

Press this switch, hold it until you hear a beep, then release it. The

UPS will continue charging and the fan will continue to cool internal

components even after you turn the UPS receptacles off. To turn the

UPS OFF completely, including the charger, disconnect the UPS’s

power cord after pressing the “OFF” switch.

“ON LINE” LED: This green light will illuminate constantly to indicate

the UPS is performing normal on-line operation (filtering and

resynthesizing incoming AC line voltage to provide pure sine wave

output). When this light is illuminated, you can monitor the load level

of your UPS on the “LOAD ACTIVE METER” LEDs.

“LINE” LED: This green light will illuminate constantly to indicate

the utility supplied AC line voltage at your wall outlet is nominal. It

will flash if the line voltage is outside the nominal range (either too

low or two high). No action is required on your part when the LED

flashes; the UPS continuously and automatically filters AC line

power to provide your equipment with pure sine wave AC power,

regardless of brownout or overvoltage conditions. If this light is off,

then AC line voltage is not present (blackout) or is at an extremely

high voltage, and the UPS will provide connected equipment with

power from battery.

Front Panel Indicator Lights

Basic Operation

200608121 93-2609 SU Owner’s Manual.qxd 10/3/2006 3:32 PM Page 6

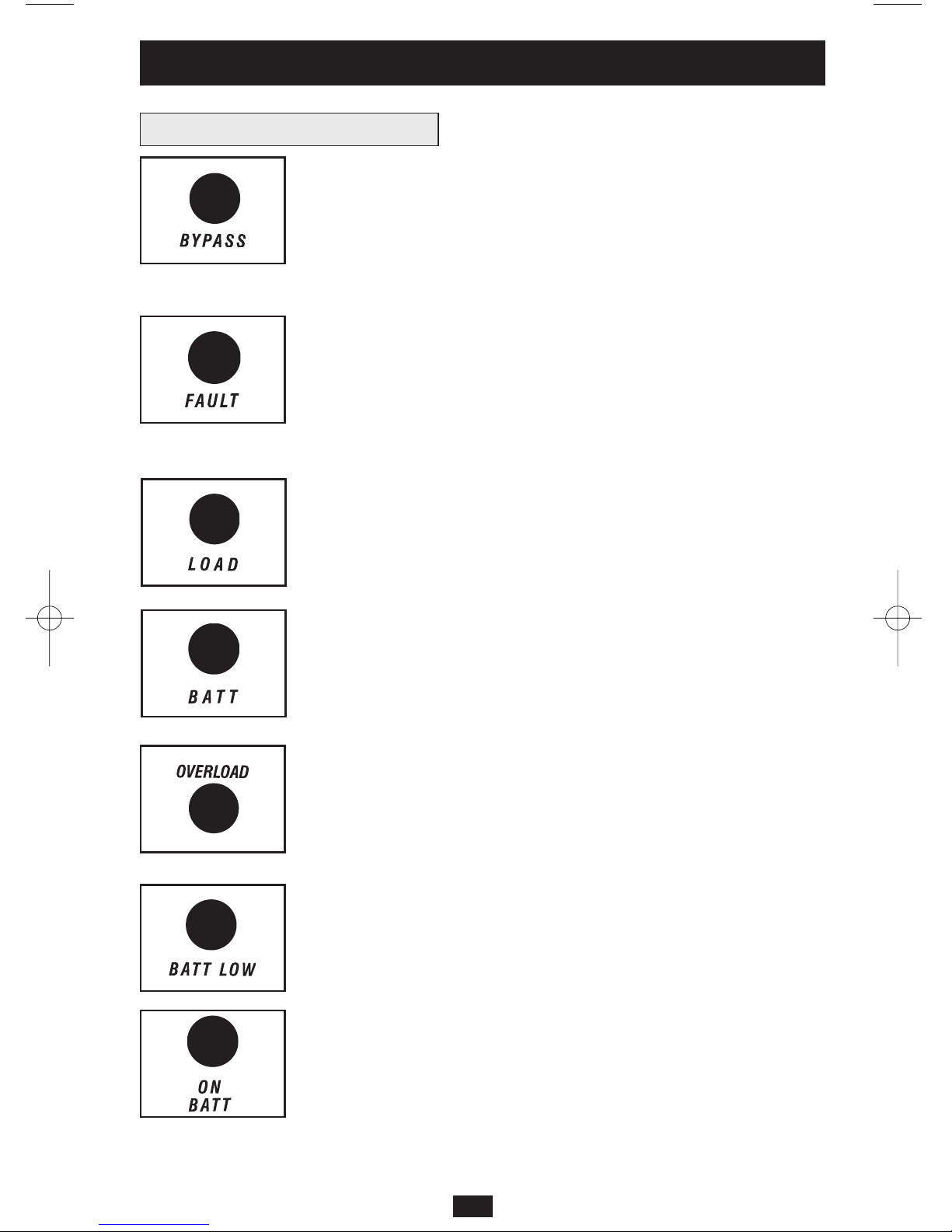

Front Panel Indicator Lights

continued

“BYPASS” LED: This yellow light will illuminate to indicate that

the UPS’s DC/AC inverter is deactivated and the UPS is in the

“Bypass” mode. During normal operation this LED will light briefly

when the unit is plugged in, but if an internal fault or overload occurs

this light will illuminate constantly to show that connected equipment

will receive filtered AC mains power, but will not receive battery

power during a blackout. In this case, contact Tripp Lite for service.

“FAULT” LED: This red light will flash when your UPS detects an

internal fault (overheating, overvoltages, etc.) or when it detects a

wiring fault in your wall outlet (reversed phases, missing ground, etc.)

The UPS will only detect wiring faults when it is plugged into a utility

outlet but not turned ON. If the light persists after restarting the UPS,

contact an electrician to check the AC line. Your UPS will identify the

presence of most (but not all) wiring faults.

“LOAD ACTIVE METER” LED: This green light will illuminate

when your UPS is receiving AC power to indicate that the set of four

dual-function LEDs is displaying the load level of your UPS.

“BATT ACTIVE METER” LED: This green light will illuminate

when your UPS is operating from battery power to indicate that the

set of four dual-function LEDs is displaying the battery charge level

of your UPS. Note: the “ON BATT” LED will also be illuminated.

“OVERLOAD” LED: This red light will illuminate constantly to indicate

that your UPS’s capacity has been exceeded while it is in on-line operation.

The UPS alarm will beep continuously. Immediately remove overload

until light and alarm goes off. If you do not immediately remove the

overload, the UPS will transfer from on-line to bypass operation.

“BATT LOW” LED: This yellow light will illuminate when your UPS’s

battery charge level is low. The UPS alarm will beep until either the

battery charge is depleted or the batteries are adequately recharged.

“ON BATT” LED: This green light will illuminate constantly to

indicate that AC line voltage is not present and your UPS is providing

your equipment with battery power. The UPS will also beep every two

seconds, unless silenced by the “ON/TEST” Switch. When this light

is illuminated, you can monitor the battery charge level of your UPS

on the “BATT ACTIVE METER” LEDs.

Basic Operation

(continued)

200608121 93-2609 SU Owner’s Manual.qxd 10/3/2006 3:32 PM Page 7

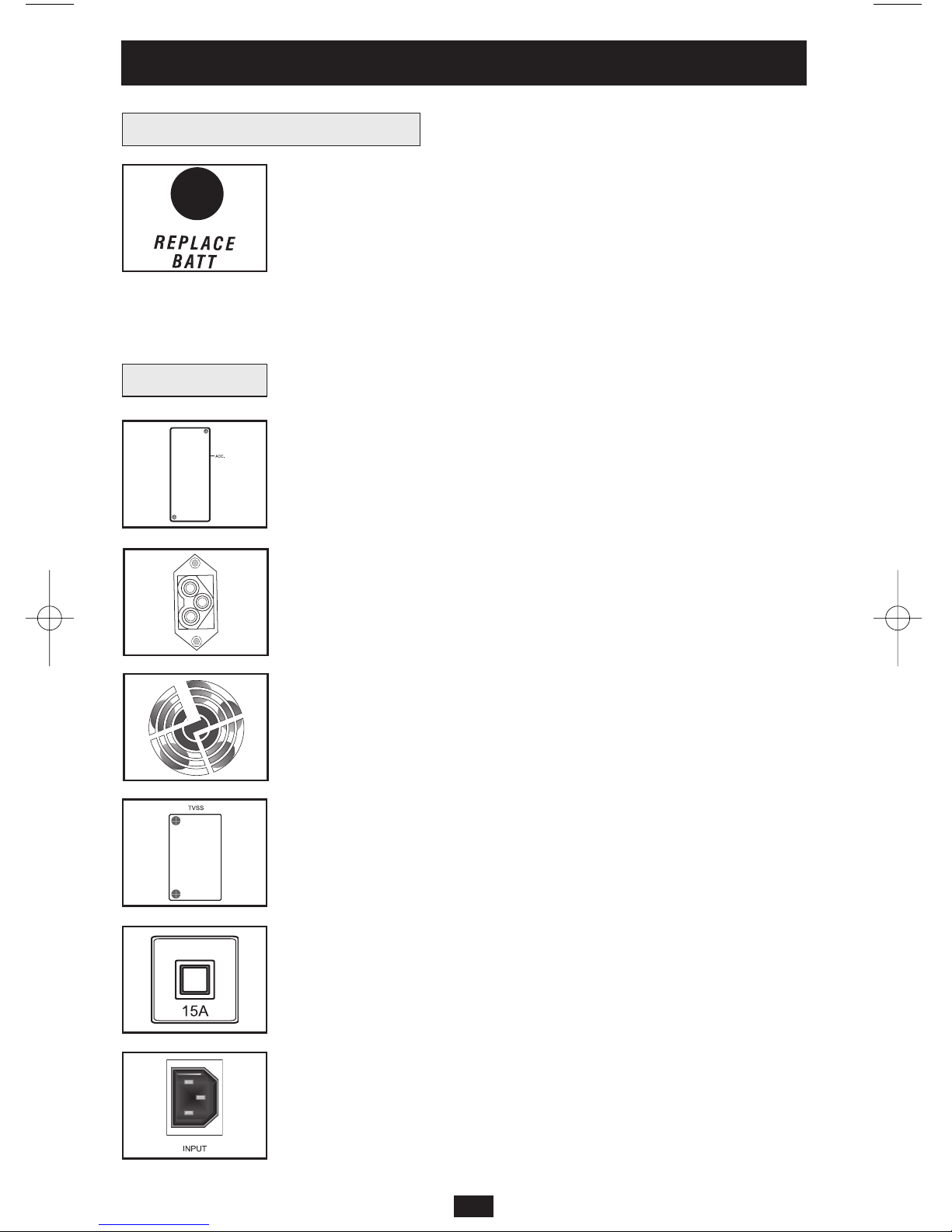

Rear Panel

“REPLACE BATT” LED: This red light will illuminate constantly

and the UPS alarm will sound three beeps* if your UPS’s

microprocessor detects a battery fault or if your UPS fails the

automatic self-test (after you turn your UPS ON) and the UPS battery

is less than fully charged. Let the UPS system charge for at least 12

hours and perform a self test using the "ON/Test Switch" as described on

page 6. If the light continues to stay on, contact Tripp Lite for service.

*After the initial alarm, the UPS will beep once every hour until the problem is corrected.

Accessory Slot: Remove the small cover panel from this slot to use

optional accessories to remotely monitor and control your UPS.

Contact Tripp Lite Customer Support at (773) 869-1234 for more

information, including a list of available SNMP, network management

and connectivity products.

External Battery Pack Connector: Use to connect optional Tripp Lite

Battery Packs for additional runtime. Contact Tripp Lite Customer

Support at (773) 869-1234 for the appropriate Tripp Lite battery pack

to connect. Refer to instructions available with the Battery Pack for

complete connection information and safety warnings.

Fan: The fan cools the UPS’s internal components. It is always on

when line power is present.

TVSS Cover Plate: Remove this plate to install optional modem/network

surge protection modules, available for purchase by special

arrangement with Tripp Lite.

Input Circuit Breaker Switch: This resettable breaker prevents high

input current from damaging the UPS or the attached load. If this

breaker trips, make sure your UPS is connected to AC power of the

proper voltage before resetting the circuit breaker by pushing the

breaker switch in.

Input Receptacle (Select Models Only): Connect one end of the

detachable line cord into this receptacle and the other into your wall outlet.

Front Panel Indicator Lights

continued

Basic Operation

(continued)

200608121 93-2609 SU Owner’s Manual.qxd 10/3/2006 3:32 PM Page 8

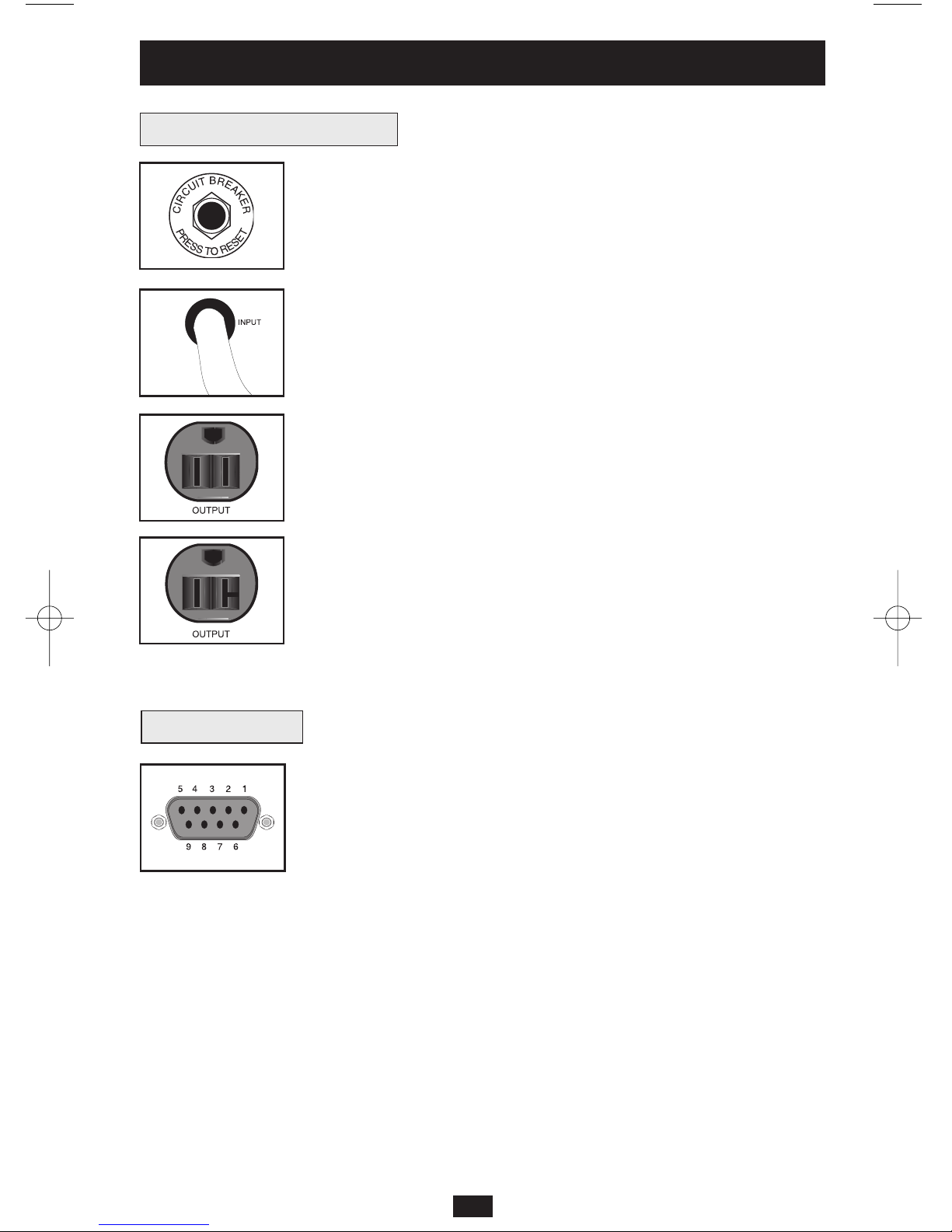

Rear Panel

continued

Output Circuit Breakers Switches (Select Models Only): These

resettable circuit breakers protect your UPS from output overload. If

one or both breakers trip, remove some of the load on the circuit(s)

and allow the UPS to cool before pressing the breaker switch(es) in to

reset.

Input Cord (Select Models Only): This permanently attached power

cord connects your UPS to a power outlet.

AC Receptacles (Varied by Model): These 15-, 20- and 30-amp

receptacles provide your connected equipment with pure sine-wave

AC output from the AC line during normal operation and from battery

power during blackouts and severe brownouts. Power provided at

these outlets is filtered to protect connected equipment against

damaging surges and line noise. The receptacles are divided into

numbered load banks, as labelled on the unit. Using PowerAlert

software and cabling, load banks one and two may be individually

turned off and on from a remote location, allowing users to reset or

reboot connected equipment. See Serial Port Connection under

Optional Connections.

“SMART” DB9 Port: Your UPS’s DB9 port can be used to monitor

and control your UPS using either RS-232 or dry contact protocols. It

can also be used to connect an emergency power off (EPO) switch.

RS-232 communications are very complex, but are easy to

implement. The easiest way monitor and control the UPS using RS-

232 is to connect the UPS to a computer with a DB9 cable and install

Tripp Lite’s PowerAlert software on the connected computer.

Dry contact communications are simple, but some knowledge of

electronics is necessary to configure them. The DB9 port’s pin

assignments are shown in the diagram at the left. If the UPS battery is

low, the UPS sends a signal by bridging pin 1 and pin 5. If utility

power fails, the UPS sends a signal by bridging pin 8 and pin 5. To

shut the UPS down remotely, send a 5V to 12V signal on pin 3 (using

pin 5 as the (negative) ground) for at least 3.8 seconds.

You may connect your UPS to an EPO switch and a computer at once

using a Tripp Lite EPO cable (not included; order accessory #73-0901

from Tripp Lite). Follow the connection procedures included with the

EPO Cable.

NEMA 5-15R

NEMA 5-15/20R

Other outlet types not shown

Communications

Basic Operation

(continued)

200608121 93-2609 SU Owner’s Manual.qxd 10/3/2006 3:32 PM Page 9

The UPS’s control panel lights will turn on in the sequences below to signal that the UPS is

having operational difficulties.

Lights (On/Flashing) and Condition Solution

On: REPLACE BATT Let the UPS system charge for at least

Condition: Replace Battery 12 hours and perform a self test using

the "ON/Test Switch" as described on

page 6. If the light continues to stay on,

contact Tripp Lite for service.

On: BATT LOW, ON BATT Prepare for imminent UPS shutdown.

Condition: Battery Low

On: BYPASS, LINE, LOAD, OVERLOAD Reduce the load the UPS supports.

Condition: On Bypass due to Overload

On: FAULT Remove the cause of the short circuit

Condition: Short Circuit from the UPS output.

Flashing: FAULT Check the utility line for wiring problems

Condition: Wiring Fault such as reversed line and neutral or a

missing ground.

On: FAULT, REPLACE BATT Restart the UPS. If the problem persists,

Condition: Battery Voltage too High contact Tripp Lite for repairs.

On: FAULT, REPLACE BATT, OVERLOAD Restart the UPS. If the problem persists,

Condition: EEPROM Error contact Tripp Lite for repairs.

On: FAULT, BYPASS, LINE, 100% Restart the UPS. If the problem persists,

Condition: On Bypass due to contact Tripp Lite for repairs.

High Output Voltage

On: FAULT, BYPASS, LINE, 75% Restart the UPS. If the problem persists,

Condition: On Bypass due to contact Tripp Lite for repairs.

Low Output Voltage

On: FAULT, BYPASS, LINE, 50% Restart the UPS. If the problem persists,

Condition: On Bypass due to High contact Tripp Lite for repairs.

Bus Voltage

On: FAULT, BYPASS, LINE, 25% Restart the UPS. If the problem persists,

Condition: On Bypass due to Low contact Tripp Lite for repairs.

Bus Voltage

Troubleshooting

200608121 93-2609 SU Owner’s Manual.qxd 10/3/2006 3:32 PM Page 10

Autres manuels pour SmartOnline SU1500RTXL2U

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SmartPro SMART1050SLT Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU2200XLNAFTA Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Series Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU2200XLA Manuel utilisateur

Tripp Lite

Tripp Lite OMNIVSINT800 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro 450 RTI Manuel utilisateur

Tripp Lite

Tripp Lite AVR Series Manuel utilisateur

Tripp Lite

Tripp Lite INTERNET525 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro AG-0019 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART2600RM2U Guide d'installation

Tripp Lite

Tripp Lite SmartOnline SU10000RT3U2TF Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU2200RMNAFTA Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU5000RT4U-IMS Manuel utilisateur

Tripp Lite

Tripp Lite SMART3000CRMXL Manuel utilisateur

Tripp Lite

Tripp Lite SMX1000LCD Manuel utilisateur

Tripp Lite

Tripp Lite SU140KMBPK Manuel utilisateur

Tripp Lite

Tripp Lite SMART1200LCD Manuel utilisateur

Tripp Lite

Tripp Lite OmniPro 300VA Manuel utilisateur

Tripp Lite

Tripp Lite 120V Input Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1500RTXL2UA Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU750RTXLCD2UN Manuel utilisateur

Tripp Lite

Tripp Lite LCDT Series Manuel utilisateur

Tripp Lite

Tripp Lite BC600SINE Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
