Owner's Manual

SmartPro®

2200XLT

Line-Interactive

UPS Systems (230V)

9911081 230V Smartpro 2200T OM.p65 11/24/99, 12:00 PM1

This manual contains important instructions and warnings that should be

followed during the installation, operation and storage of all Tripp Lite UPS

Systems.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, dust or

direct sunlight.

• For best performance, keep the indoor temperature between 32° F and

104° F (between 0° C and 40° C).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• Connect your UPS to a properly grounded AC power outlet. Do not

remove or modify the UPS's plug.

• Do not use two-prong adapters with the UPS's plug. Do not plug your

UPS into itself; this will damage the UPS and void your warranty.

• If you are connecting your UPS to a motor-powered AC generator,

the generator must provide clean, filtered computer-grade output.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which

a malfunction or failure of a Tripp Lite UPS System could cause failure

or significantly alter the performance of a life-support device.

• Do not connect surge suppressors to the output of your UPS. This may

damage your UPS and will void both the surge suppressor and UPS

warranties.

Battery Warnings

• Your UPS does not require routine maintenance. Do not open your UPS

for any reason. There are no user-serviceable parts inside.

• Battery replacement must be performed by qualified service personnel.

Because the batteries present a risk of electrical shock and burn from

high short-circuit current, observe proper precautions. Unplug and turn

off the UPS before performing battery replacement. Use tools with

insulated handles and replace the existing batteries with the same

number and type of new batteries (Sealed Lead-Acid). Do not open the

batteries. Do not short or bridge the battery terminals with any object.

• The UPS batteries are recyclable. Refer to local codes for disposal

requirements or call 1-800-SAV-LEAD (1-800-728-5323) for complete

recycling information. Do not dispose of the batteries in a fire.

• Connect only Tripp Lite battery packs with the correct voltage (see voltage

requirements label on the rear of your UPS) and the correct connector color

to match your UPS’s External Battery Connector.

• Do not plug UPS in or operate without batteries.

Safety

9911081 230V Smartpro 2200T OM.p65 11/24/99, 12:00 PM2

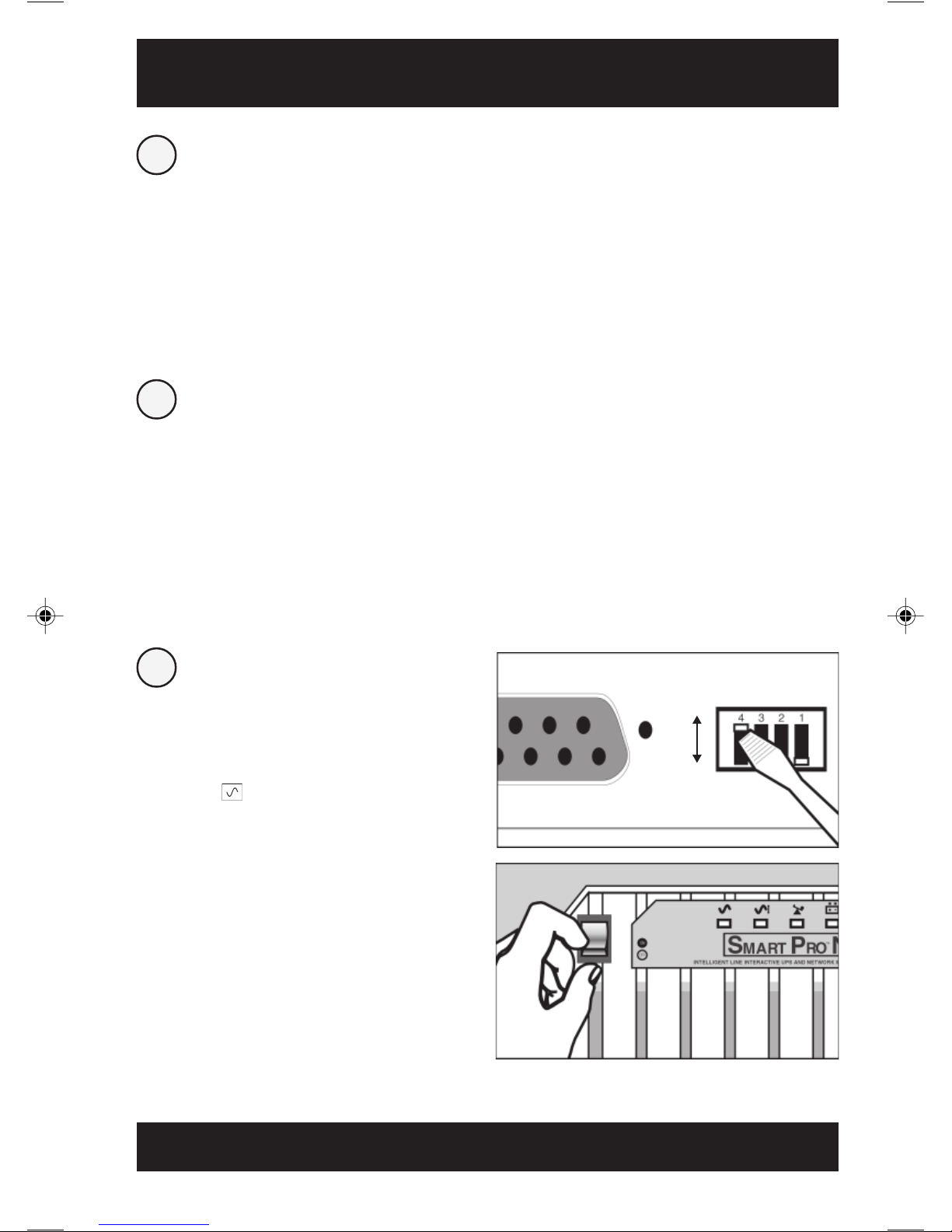

Installation

Plug your UPS into

an electrical outlet.

The SmartPro 2200XLT should be connected to a

15-amp dedicated circuit.

Plug your equipment

into your UPS.

Turn your UPS ON.

Set the System Enable Switch (DIP

Switch #4, UPS back panel) to the

“ENABLE” (UP) position.

(See Figure 1)

This switch activates the battery charger and

microprocessor.

The “ ” light will flash until you engage the

ON/Standby Switch to activate the “ON” mode.

Engage the momentary ON/Standby

Switch (UPS front panel) and release it

to activate the “ON” mode and supply

power to the UPS receptacles.

(See Figure 2)

DB9 Port Connection (Optional) On Next Page . . .

Figure 2 - ON/Standby Switch

Figure 1 DIP Switch #4

(System Enable Switch)

ENABLE

DISABLE

Your UPS is designed to support

only computer equipment.

Connecting household appliances,

laser printers or surge suppressors

is not recommended.

9911081 230V Smartpro 2200T OM.p65 11/24/99, 12:00 PM3

Switches

System Enable Switch (DIP Switch #4)

This switch is located in the set of 4 switches next to the UPS’s DB9

ports. It activates the battery charger and intelligent microproces-

sor. Always leave it in the “ENABLE” (UP) position when your UPS

is plugged in. Set the switch to “DISABLE” (DOWN) only if you store

or ship your UPS (to reduce battery drain).

Note: the “XXX” light will flash until you engage the ON/Standby Switch to activate the “ON”

mode (power ON at the UPS receptacles).

DB9 Port Connection

–Optional–*

Using Tripp Lite cable, connect your

primary server’s DB9 port to the

single DB9 port labeled SMART/LAN

4.1 (which provides complete

intelligent RS-232 communications)

using the included cable labelled

73-743.**

If you have additional

computers:

Connect them to the DB9 ports

labeled BASIC/LAN 2.2 (which provide

basic, contact-closure shutdown

capabilities) using the included

cables labelled 73-844.

Set their corresponding LAN Interface

DIP Switches to the ACTIVATE

(DOWN) position. See diagram for

which switch controls which port.***

* Serial port connections are optional. Your UPS will function properly without these connections.

** The SMART/LAN 4.1 port is always enabled and is not controlled by the LAN Interface DIP Switches.

*** If you do not connect a computer to either of the BASIC/LAN 2.2 ports, set their corresponding LAN Interface DIP

Switches to the DEACTIVATE (UP) position. Note: DIP Switch #3 has no function.

2a. Back Panel

Basic Operation

Load software and run the installation program

appropriate for your operating system.

2b. Back Panel

DIP Switches #2 & #1

(Lan Interface Switches)

DEACTIVATE

ACTIVATE

9911081 230V Smartpro 2200T OM.p65 11/24/99, 12:00 PM4

ON/Standby Switch

This momentary switch controls power to the UPS receptacles.

Engage it momentarily and release it to toggle between the “ON”

mode (power ON at the UPS receptacles) and “Standby” mode

(power OFF at the UPS receptacles).

Mute/Test Switch

Use this momentary switch to do two things:

Silence the blackout alarm

Engage this switch and release it. Note: when the battery is nearly

depleted, the alarm resumes (and cannot be silenced) to alert you

to immediately shut down connected equipment.

Test your UPS’s battery charge

Leave your connected equipment ON. With your UPS plugged in

and completely turned ON, engage this switch; hold it there for 5

seconds and release it. The UPS will momentarily switch to battery

to test its charge. The “XXX” light will turn ON and the alarm may

sound if your UPS fails a self-test and/or the UPS battery is less

than fully charged. Let the UPS charge for 12 hours and perform

a second self-test. If the light continues to stay on, contact Tripp

Lite for service. CAUTION: Do not unplug your UPS to test its

batteries. This will remove safe electrical grounding and may

introduce a damaging surge into your network connections.

Indicator Lights

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet

and turned ON.

This green light will shine constantly to indicate AC power is

available at the receptacles. It will flash to indicate AC power is not

available. (See “System Enable Switch” and “ON/Standby Switch”

descriptions above.)

This multi-colored light displays 7 separate UPS battery charge

conditions. It will turn from red (low) to yellow (medium) to green

(full) to show you the level of battery charge. If the light is constant,

then your UPS is operating from line power and the battery is

charging. If the light is flashing, then your UPS is operating from

battery power and the battery is discharging. When the light

flashes red, close any files you are working on and shut down your

computer.

Whenever your UPS is automatically correcting high or low AC line

voltage, this green light will turn ON and the UPS will gently click.

The more the UPS has to correct voltage, the more the green light

will turn ON and the more the UPS will click. These are both

normal, automatic operations of your UPS, and no action is

required on your part.

This red light will turn ON if your UPS fails a self-test and/or the

UPS battery is less than fully charged. Let the UPS charge for 12

hours and perform a second self-test. If the light continues to stay

on, contact Tripp Lite for service.

9911081 230V Smartpro 2200T OM.p65 11/24/99, 12:00 PM5

This multi-colored light displays 4 separate UPS load conditions.

It will turn from green (low) to yellow (medium) to red (high) as you

connect equipment to show you the load level your UPS is support-

ing. When the light is red your UPS is supporting a load above 85%

of its capacity. If the red light begins flashing, your UPS is severely

overloaded. Remove overload immediately until light stops flashing.

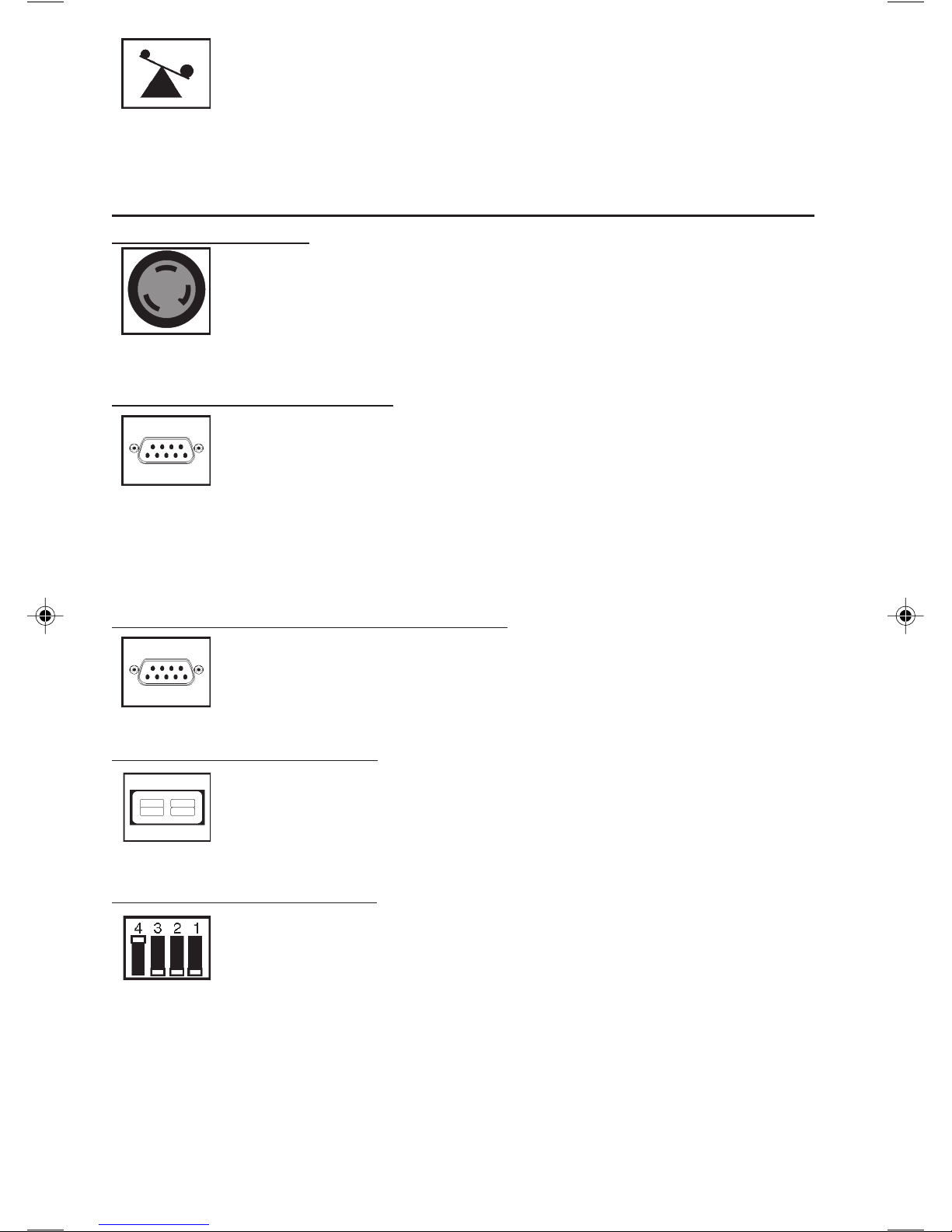

Other UPS Features

L6-20 AC Receptacle

This locking receptacle provides your connected equipment with

AC line power during normal operation and battery power during

blackouts and brownouts. It also protects your equipment against

damaging surges and line noise. You can remotely reboot con-

nected equipment by turningthe UPS OFF and ON using Tripp Lite

UPS software. See software instructions for details.

SMART/LAN 4.1 (RS-232) Port

The RS-232 port connects your UPS to any workstation or server.

Use with Tripp Lite software and cabling to monitor and manage

network power and automatically save open files and shut down

equipment during a blackout. This port uses RS-232 communica-

tions to transmit UPS and power conditions. Select models feature

plug-and-play capability. Contact Tripp Lite Customer Support for

more information and a list of available SNMP, network manage-

ment and connectivity products.

BASIC/LAN 2.2 (Contact Closure) Ports (2)

Also used to connect your UPS to any workstation or server. Use

with Tripp Lite software and cabling to automatically save open

files and shut down equipment during a blackout. These ports use

contact-closure signals to indicate line-fail and low-battery status.

External Battery Connector

Use this to connect additional Tripp Lite battery packs for addi-

tional runtime. Refer to the label next to the connector for

appropriate Tripp Lite battery pack to connect. Refer to instruc-

tions available with the battery pack for complete connection

information and safety warnings.

LAN Interface DIP Switches

DIP Switches #1 and #2 activate or deactivate remote shutdown

through the “BASIC” Contact-Closure Ports. See “DB9 Port Con-

nection” on page 4 for which switch controls which port. Note: DIP

Switch #3 has no function. DIP Switch #4 serves as

the UPS’s “System Enable Switch.”

9911081 230V Smartpro 2200T OM.p65 11/24/99, 12:00 PM6

Specifications

Storage & Service

Storage

Turn your UPS OFF: first engage the ON/Standby Switch and release it to place

your UPS in the “Standby” mode; then set the System Enable Switch (Jumper #4,

UPS rear panel) to "DISABLE" (down); finally, disconnect the UPS power cord

from the wall outlet. If you plan on storing your UPS for an extended period of

time, recharge the UPS batteries once every three months. Follow steps #1 and

#3 in the Quick Installation section and allow the UPS to charge from 4 to 6 hours.

If you leave your UPS batteries discharged for an extended period of time, they

will suffer permanent loss of capacity.

Service

If returning your UPS to Tripp Lite, please carefully pack the UPS using the

ORIGINAL PACKING MATERIAL that came with the unit. Enclose a letter

describing the symptoms of the problem. If the UPS is within the 2 year warranty

period, enclose a copy of your sales receipt.

Smart 2200XLT

Output Capacity (VA/Watts): 2200/1750

Battery Runtime (Half Load/Full Load) Minutes: 27+/11+*

Battery Recharge Time: 2-4 hrs.*

Approvals: UL, cUL

Nominal Input Voltage/Frequency: 208V/60 Hz

On-Line Input Voltage Range: 173-250 volts

Voltage-Regulated Output Voltage Range: 230V ± 9%

On-Battery Output Voltage Range: 230V ± 5%

Output Waveform —Line Mode: filtered sinewave

Output Waveform —Battery Mode: PWM sine wave

AC Surge Suppression : exceeds IEEE 587

Cat. A & B standards

AC Noise Attenuation: >40 dB

AC Protection Modes: H to N, H to G, N to G

*Runtime can be extended with the connection of the appropriate Tripp Lite external battery packs. With the addition of

external battery packs, battery recharge time will increase.

9911081 230V Smartpro 2200T OM.p65 11/24/99, 12:00 PM7

93-1503 (9911081)

1111 W. 35th Street

Chicago, IL 60609 USA

Customer Support: (773) 869-1234

www.tripplite.com

9911081 230V Smartpro 2200T OM.p65 11/24/99, 12:00 PM8

Table des matières

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SmartPro SMART750RMXL2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART1400RM2U Manuel utilisateur

Tripp Lite

Tripp Lite INTERNET OFFICE 300 Guide de l'utilisateur

Tripp Lite

Tripp Lite SU10000RT3UPM Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU6000RT4UHV Guide de configuration

Tripp Lite

Tripp Lite Omni VS Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMX5000XLRT3U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline 5KVA-6KVA Manuel utilisateur

Tripp Lite

Tripp Lite AVRX550UA Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SmartPro Rackmount Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SLT SMX1050SLT Manuel utilisateur

Tripp Lite

Tripp Lite SMART5000XFMRXL Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU10000RT3U2TF Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU16KRTHW Guide d'installation

Tripp Lite

Tripp Lite SmartPro SMART750RMXL2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU10000RT3U Manuel utilisateur

Tripp Lite

Tripp Lite UPS System AVRX550U Manuel utilisateur

Tripp Lite

Tripp Lite SMART700HG Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro VS SMART2200VSXL Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU16KRT Manuel utilisateur

Tripp Lite

Tripp Lite BCINTERNET500 Manuel utilisateur

Tripp Lite

Tripp Lite OMNI650LCD Manuel utilisateur

Tripp Lite

Tripp Lite SMART1000LCDU Manuel utilisateur

Tripp Lite

Tripp Lite SMART550USBWD Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
