Tripp Lite OMNIVS1500XLCD Manuel utilisateur

UPS System

Model:

OMNIVS1500XLCD

(Series Number: AG-87D7)

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

Español 14 • Français 27

18-12-065-933902.indb 1 1/7/2019 10:08:50 AM

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the

installation, operation, maintenance and storage of the UPS and batteries. Failure

to heed these warnings may affect the warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants, dust

or direct sunlight.

• For best performance, keep the indoor temperature between 32º F and 104º F

(0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• Only set the UPS upright on a sturdy ﬂat surface. Do not block fans or ventilation holes, as

this will seriously inhibit the unit's internal cooling and cause product damage not covered

under warranty.

UPS Connection Warnings

• Connect your UPS directly to a properly-grounded AC power outlet. Do not plug the UPS into

itself; this will damage the UPS.

• Do not modify the UPS plug, and do not use an adapter that would eliminate the UPS

ground connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must provide

clean, ﬁltered, computer-grade output.

• The mains socket outlet that supplies the UPS should be easily accessible and located near

the UPS.

Equipment Connection Warnings

Install in accordance with National Electrical Code standards ANSI/NFPA

70 and Canadian Electrical Code, Part I, C22.1.

Short-circuit backup protection and overcurrent protection is provided by

the building installation.

To reduce the risk of ﬁre, connect only to a circuit provided with branch

circuit overcurrent protection in accordance with the National Electrical

Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1. The

plug on the power supply cord is intended to serve as the disconnect

device. Be sure that the socket-outlet is installed near the equipment and

is made easily accessible.

Important Safety Instructions

18-12-065-933902.indb 2 1/7/2019 10:08:51 AM

Important Safety Instructions

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to signiﬁcantly

affect its safety or effectiveness is not recommended.

• Do not connect surge protectors or extension cords to the output of your UPS. This might

damage the UPS and may affect the surge protector and UPS warranties.

• Connect the UPS to an outlet that is adequately protected against excess currents, short

circuits and earth faults as part of the building installation.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. There are no user-serviceable parts inside the UPS. Do not

open the UPS except to perform battery replacement. Do not open batteries. Do not

short or bridge the battery terminals with any object. Do not dispose of batteries in a ﬁre.

The batteries may explode. Released material is harmful to the skin and eyes. It may be

toxic. Unplug and turn off the UPS before performing battery replacement. Use tools with

insulated handles. Battery replacement should be performed only by authorized service

personnel using the same number and type of batteries (sealed lead-acid). Do not dispose

of the batteries in a ﬁre. Tripp Lite offers a complete line of UPS System Replacement

Battery Cartridges (R.B.C.).Visit Tripp Lite on the Web at www.tripplite.com/products/battery-

ﬁnder to locate the speciﬁc replacement battery for your UPS.

CAUTION: A battery can present a risk of electrical shock and high short-

circuit current. Contact with any part of a grounded battery can result in

electrical shock. The following precautions should be observed when working

on batteries:

• Remove watches, rings or other metal objects.

• Use tools with insulated handles.

• Wear rubber gloves and boots.

• Do not lay tools or metal parts on top of batteries.

• Disconnect charging source and load prior to installing or maintaining the battery.

• Remove battery grounds during installation and maintenance to reduce likelihood

of shock.

• Remove the connection from ground if any part of the battery is determined to be

grounded.

UPS and Battery Recycling

Tripp Lite products use sealed lead-acid batteries, which are highly recyclable.

Call Tripp Lite at 773.869.1234 or visit www.tripplite.com/support/recycling-program

for more information on recycling the batteries or any other Tripp Lite product.

Please refer to local codes for disposal requirements.

18-12-065-933902.indb 3 1/7/2019 10:08:51 AM

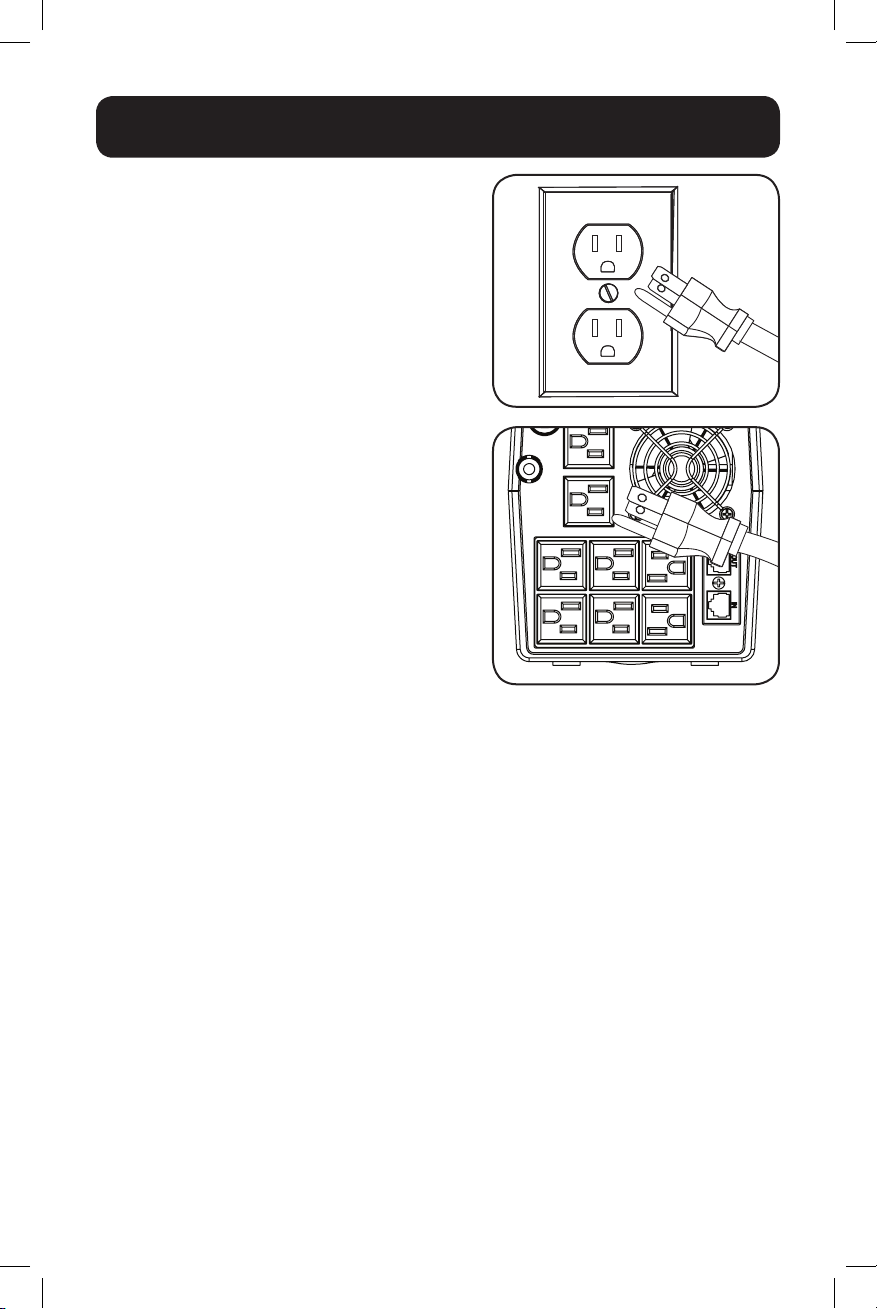

STEP 1: Plug the UPS into

a properly grounded outlet.

After plugging the UPS into a wall outlet, press

and hold the power button until the alarm starts to

sound, then release to turn on the UPS.

Note: The UPS will not turn on automatically in the

presence of live utility power.

STEP 2: Plug your equipment

into the UPS.

There are two sets of outlets on the back of your

UPS. Outlets marked SURGE PROTECTED do not

provide battery backup power during power outages.

Connect common desktop items like printers,

scanners and other accessories not requiring

battery support to these outlets. Outlets marked

BATTERY/SURGE PROTECTED offer UPS battery

backup support during power failures. Connect your

vital computer equipment to these outlets.

Your UPS is designed to support electronic

equipment only. You will overload the UPS

if the total volt-amp (VA) ratings for all the

equipment connected to the BATTERY/SURGE

PROTECTED outlets exceed the UPS output

capacity. To ﬁnd your equipment’s VA ratings,

look on their nameplates. If the equipment is

listed in amps (A), multiply the number of amps

by 120 to determine VA. For example: 1A ×

120 = 120VA.

If the color LCD panel does not illuminate when the

UPS is turned ON, try the following:

1. Make sure that the UPS is plugged into a live AC

outlet.

2. Press the power button to turn on the UPS. A

beep should sound when the UPS starts.

3. If the UPS still does not start, contact Tripp Lite

Tech Support for assistance.

Quick Installation

18-12-065-933902.indb 4 1/7/2019 10:08:51 AM

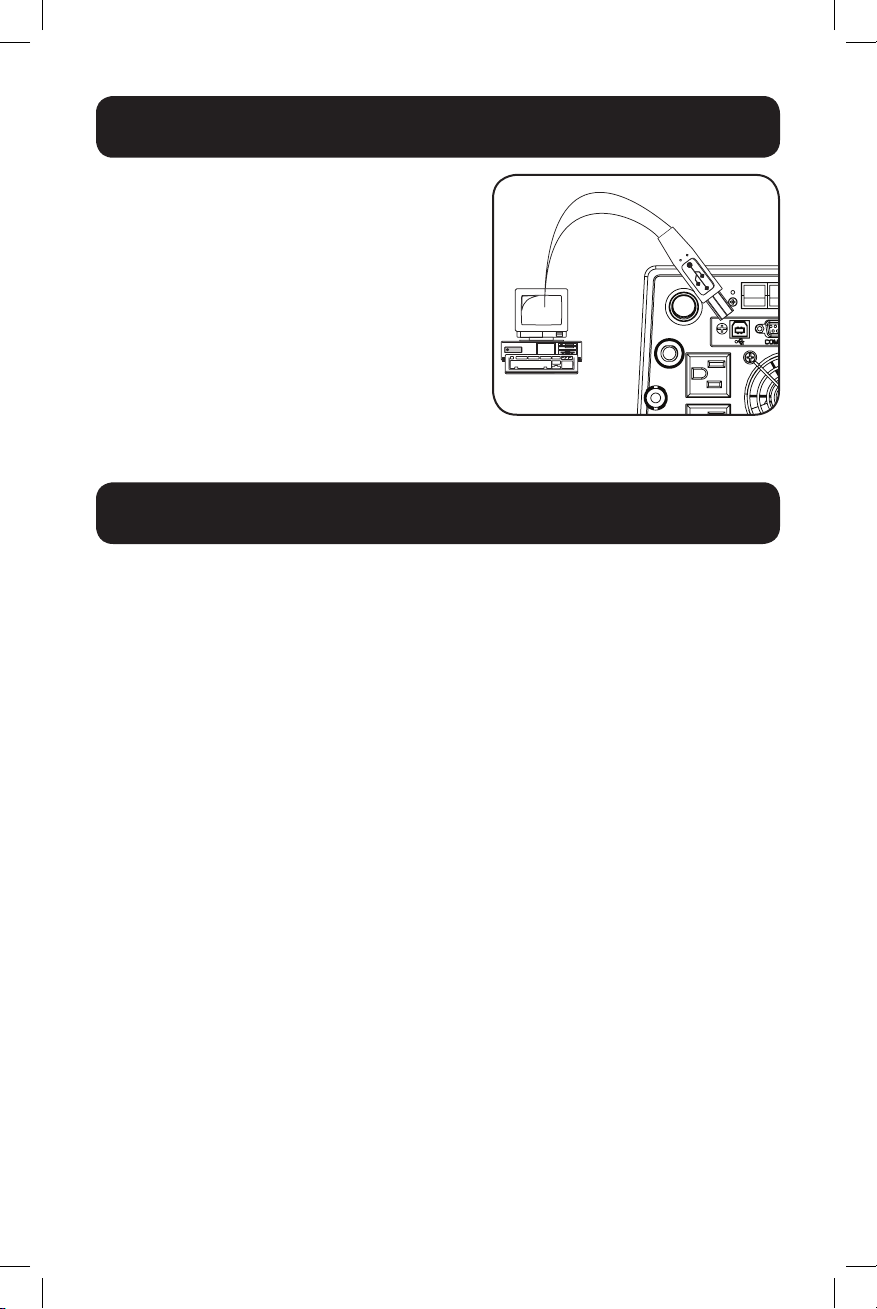

Quick Installation

Optional Installation

The UPS includes a USB communication port, a

serial port and tel/DSL/Ethernet surge protection

jacks (not compatible with PoE applications). These

connections are optional, as the UPS will work

properly without them.

Basic Operation

UPS ON/OFF

• Plug the UPS into a live, grounded outlet: The entire LCD screen will illuminate for

5 seconds, then the display will report output voltage of “0V”. The BATTERY / SURGE

PROTECTED outlets will be OFF and the SURGE ONLY outlets will be ON. The battery charger

will engage as necessary.

• Plug equipment into the UPS: You will overload the UPS if the total volt-amp (VA) ratings

for all the equipment connected to the BATTERY/SURGE PROTECTED outlets exceed the

UPS output capacity. To ﬁnd your equipment’s VA ratings, look on their nameplates. If the

equipment is listed in amps (A), multiply the number of amps by 120 to determine VA. For

example: 1A × 120 = 120VA.

• Turn the UPS on: Press and hold the power button until the alarm begins to sound, then

release. The UPS alarm will beep once brieﬂy. The BATTERY/SURGE PROTECTED outlets

will begin passing AC line power. The UPS will automatically recharge internal batteries

as needed. Once turned on, your UPS is ready to protect connected equipment from

blackouts, brownouts, overvoltages and transient surges.

• Turn the UPS off: Press the power button.

Note: UPS system will function properly upon initial startup; however, maximum runtime for the

unit’s battery will only be accessible after it has been charged for 24 hours.

18-12-065-933902.indb 5 1/7/2019 10:08:51 AM

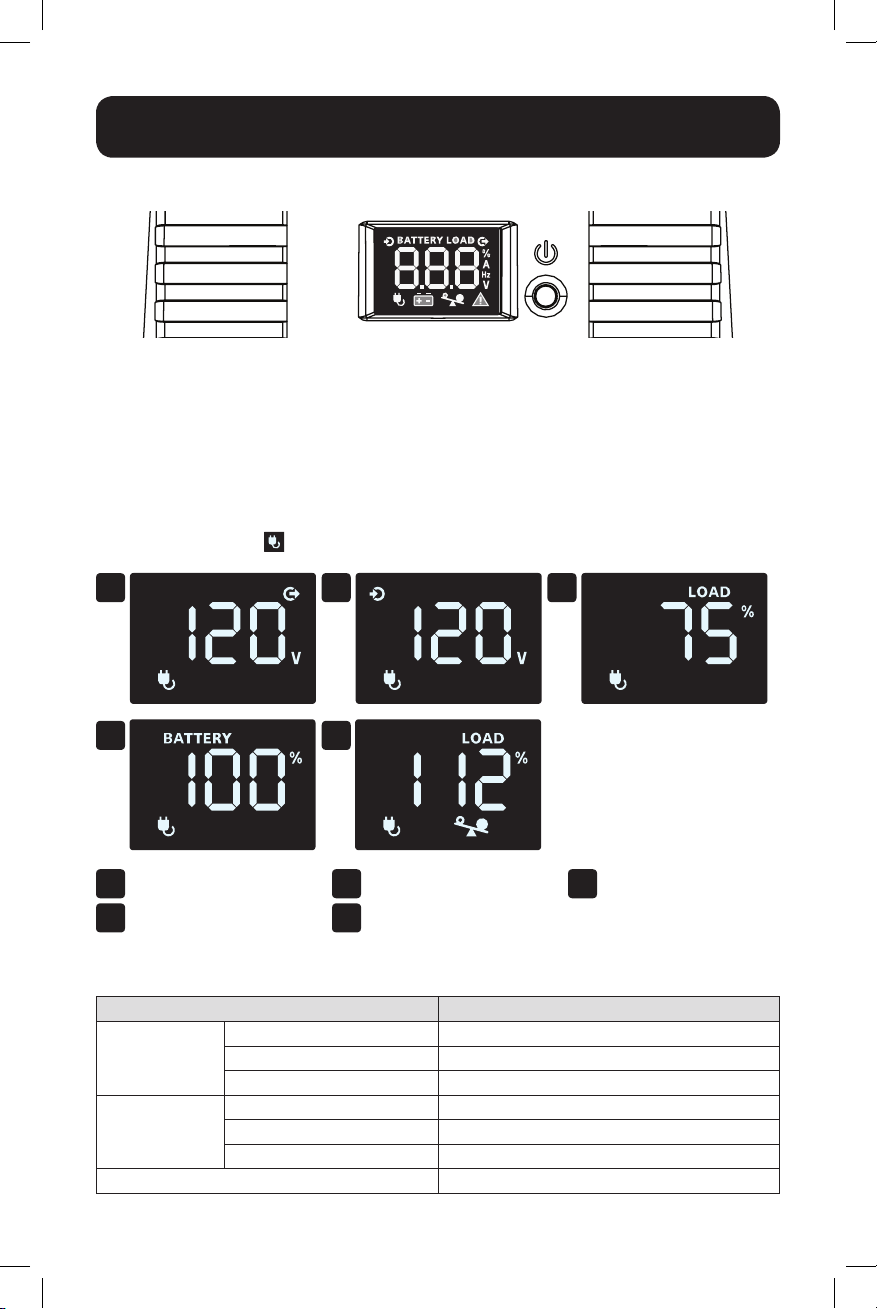

Basic Operation

Display UPS/Power Conditions

On-Line AC Power Mode LCD Data

The LCD touchscreen offers 5 screens of UPS and site power information when the UPS

is operating in on-line power mode. Screens 1-4 (Output Voltage, Input Voltage, Load %,

Battery Charge Level) are available for viewing in on-line power mode. Press the front panel

LCD to advance to the next screen. Screen #5 (Overload) is displayed automatically only

when the UPS is loaded to levels greater than 100%.

The LCD screen reports that AVR (Auto Voltage Regulation) buck/boost circuits are active any

time the on-line power symbol is ﬂashing.

1Output Voltage

2Input Voltage

3Load %

4Battery Charge Level

5Overload

Operating Mode Alarm Description

Battery Mode Normal No Alarm

Battery Low Sounds Every Second

Overload Sounds Every 0.5 Second

On-Line Mode Normal No Alarm

Overload Sounds Every 0.5 Second

Battery Replace Sounds Every Minute

Fault Mode Sounds Continuously

Note: The LCD touchscreen automatically turns off in on-line power mode 20 seconds after it was

last touched. To re-activate the LCD for an additional 20 seconds, touch the screen.

18-12-065-933902.indb 6 1/7/2019 10:08:51 AM

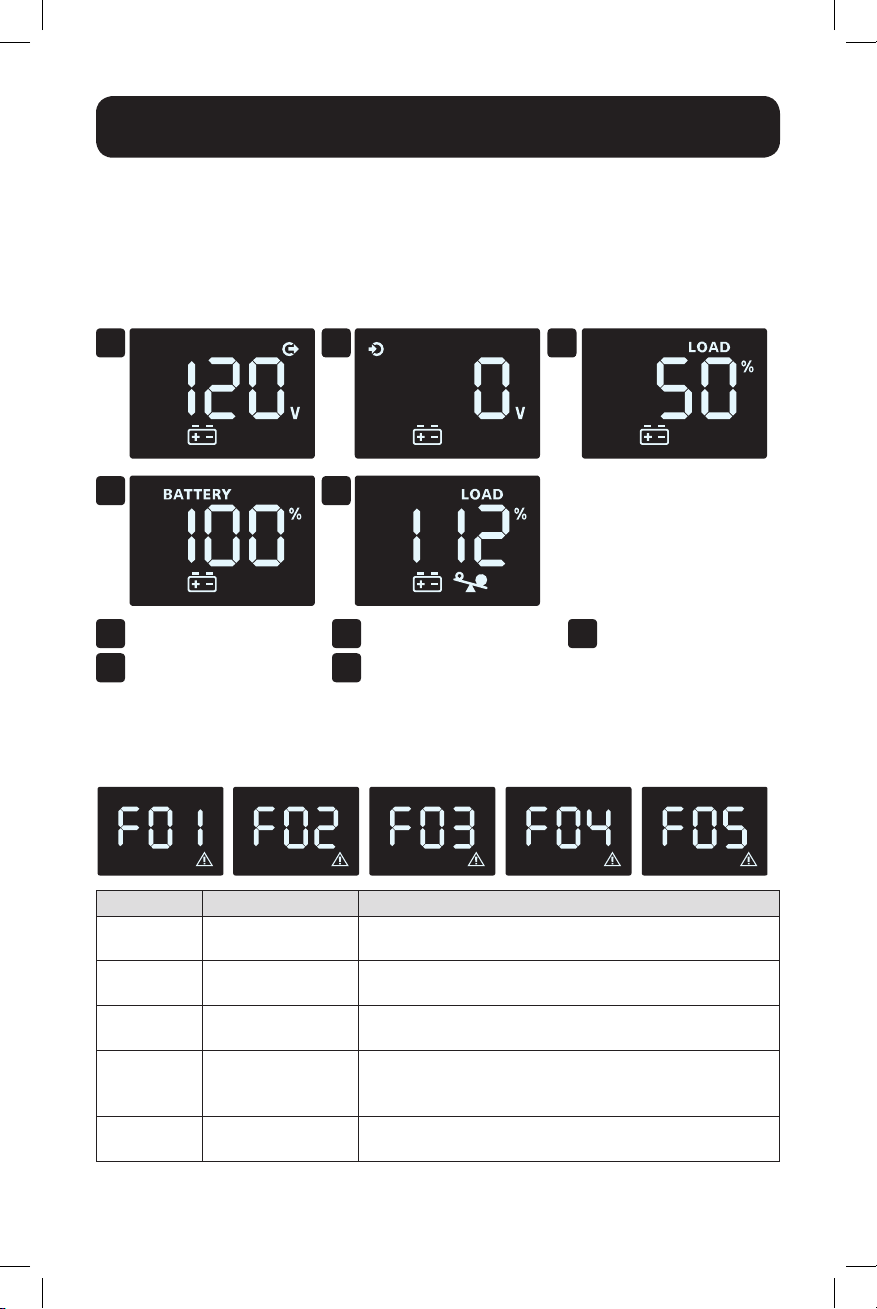

Basic Operation

Battery Power Mode LCD Data

The LCD touchscreen offers 5 screens of UPS and site power information when the UPS

is operating in battery power mode. Screens 1-4 (Output Voltage, Input Voltage, Load %,

Battery Charge Level) are available for viewing in battery power mode. Press the front panel

LCD to advance to the next screen. Screen #5 (Overload) is displayed automatically only

when the BATTERY/SURGE PROTECTED outlets are loaded to levels greater than 100%.

Critical Fault Screens

Error Code Critical Fault Solution

F01 OUTPUT SHORT Disconnect load(s) from UPS outlets. Power off UPS and

contact Tripp Lite Technical Support for assistance.

F02 OVERLOAD Remove excess load, check load meter on LCD for load

status.

F03 OVERCHARGE Turn unit off, unplug UPS and contact Tripp Lite

Technical Support for assistance.

F04 BATTERY LOW

VOLTAGE

Charge UPS for 24 hours. If problem persists, replace

battery and contact Tripp Lite Technical Support if

problem persists.

F05 BATTERY MODE

HIGH OUTPUT

Turn off power to the UPS and contact Tripp Lite

Technical Support for assistance.

1Output Voltage

2Input Voltage

3Load %

4Battery Charge Level

5Overload

Note: The LCD touchscreen will remain ON continuously during battery mode operation.

18-12-065-933902.indb 7 1/7/2019 10:08:52 AM

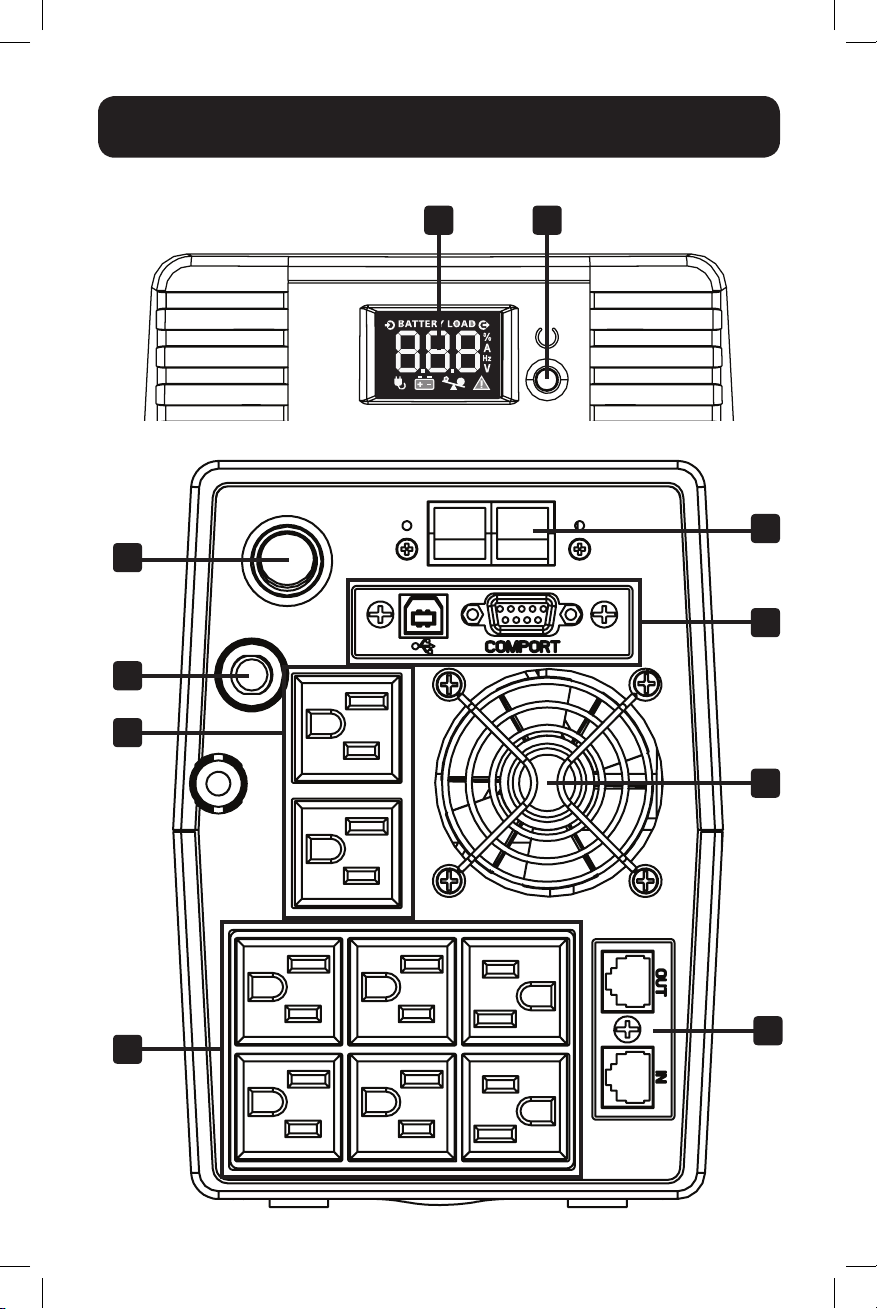

Features

UPS Features

18-12-065-933902.indb 8 1/7/2019 10:08:52 AM

Features

1ON/OFF Button: When the UPS is OFF, press and hold the ON/OFF button until a beep

is heard to turn the UPS ON. When the UPS is ON, press and hold the ON/OFF button to

turn the UPS OFF.

2LCD Touchscreen Panel: Provides current status of the UPS. For a detailed description,

refer to “Display UPS/Power Conditions” in the Basic Operation section.

3Battery Backup/Surge Protected Outlets: These outlets offer battery backup support

and premium surge suppression for critical devices requiring battery backup support.

4Surge Protected Outlets: These outlets offer premium surge suppression for critical

devices.

5USB and RS-232 Communication Ports: These ports can connect your UPS to

any computer for automatic saves and unattended shutdown in the event of a power

failure. Use with Tripp Lite’s PowerAlert®Software (available as a FREE download at

www.tripplite.com) and the USB cable included with your UPS. These connections are

optional, your UPS will work properly without this connection.

Note: This UPS System provides basic communication compatibility with most integrated Windows®,

Macintosh®and Linux®power management applications.

6Tel/DSL/Ethernet Line Protection Jacks: These jacks protect equipment against surges

over a single phone line or network connection. Connecting your equipment to these

jacks is optional, your UPS will work properly without this connection.

Note: Not compatible with PoE (Power over Ethernet) applications.

7Resettable Input Circuit Breaker: Protects your electrical circuit from overcurrent draw

from the UPS load. If this breaker trips, remove some of the load, then reset by pressing

it in.

8Fan: Provides cooling during AVR mode or when the UPS is operating in battery mode.

9External Battery Connector: Use to connect a Tripp Lite external battery pack for

additional runtime. Only use the Tripp Lite BP24V15RT2U external battery pack (rated

24V DC, 14Ah with overcurrent protection). Refer to the instructions included with the

battery pack for complete connection information and safety warnings.

Note: Visit www.tripplite.com/support to locate the speciﬁc battery for your UPS.

10 External Battery Switch: Turn this switch to the ON position when using an external

battery.

18-12-065-933902.indb 9 1/7/2019 10:08:52 AM

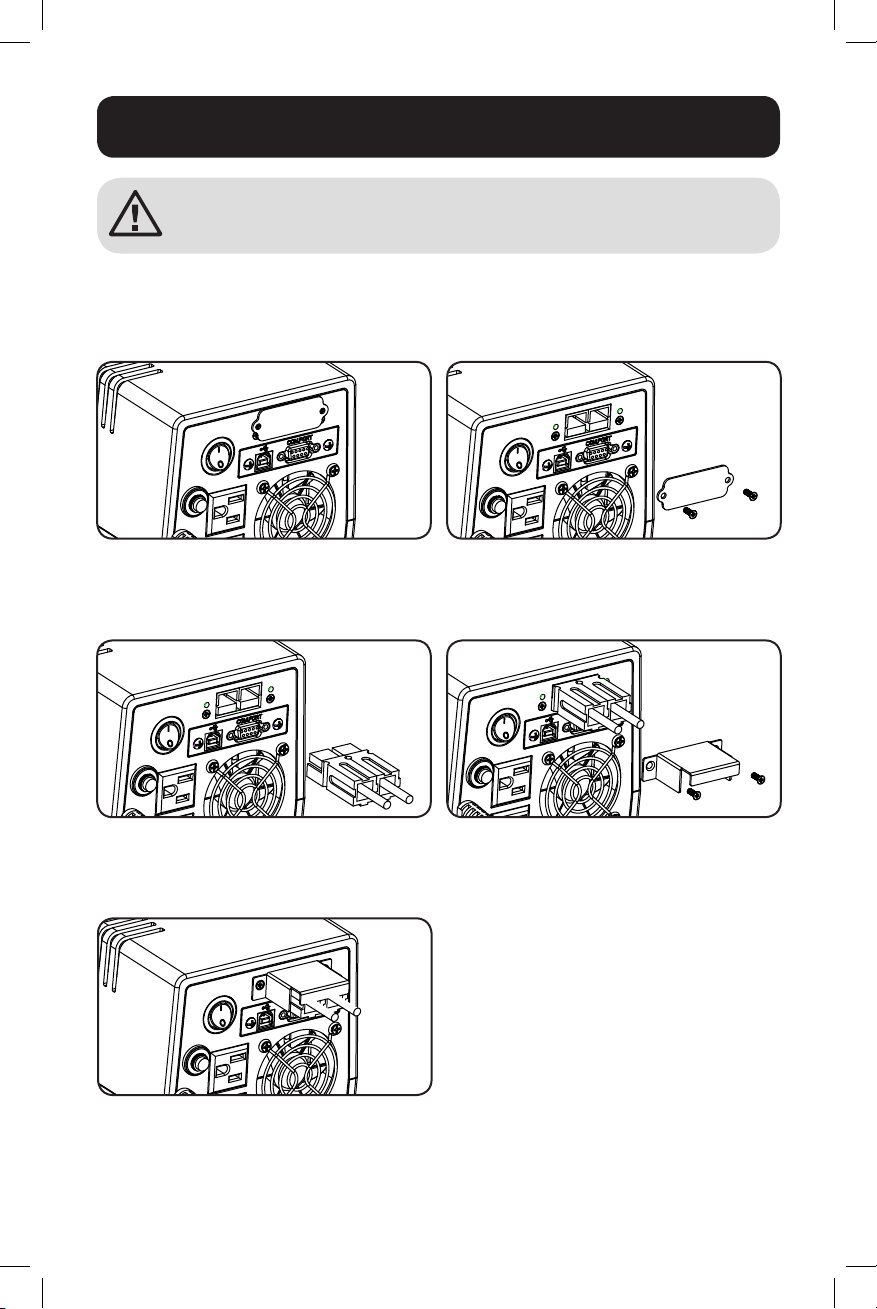

External Battery Installation

WARNING! If the external battery connector is not in use, the plastic battery

cover must remain on the UPS at all times, as shown in step 1.

1. Locate the external battery connector on

the rear panel of the UPS.

3. Connect the battery’s external battery

connector to the UPS.

2. A plastic cover is covering the external

battery connector. Using a Phillips

screwdriver, remove the plastic cover and

save the two screws.

4. Using the provided battery bracket and

two screws removed in step 2, secure the

external battery connector to the UPS.

5. The battery connector is now securely

connected. Turn the battery switch

indicator on the UPS to the ON position.

18-12-065-933902.indb 10 1/7/2019 10:08:57 AM

Table des matières

Langues :

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SmartPro SMART700RT1U Manuel utilisateur

Tripp Lite

Tripp Lite SMART750SLT Manuel utilisateur

Tripp Lite

Tripp Lite Digital UPS Systems Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU16KRT Manuel utilisateur

Tripp Lite

Tripp Lite Internet Office INTERNET350SER Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline Single-Phase 10kVA Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Series Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU750XL Manuel utilisateur

Tripp Lite

Tripp Lite BC Internet Manuel utilisateur

Tripp Lite

Tripp Lite SMART1200LCD Manuel utilisateur

Tripp Lite

Tripp Lite TE600 Manuel utilisateur

Tripp Lite

Tripp Lite HTRL15UPS Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU3000RTXLCD3U Guide de configuration

Tripp Lite

Tripp Lite INTERNET OFFICE 300 Guide de l'utilisateur

Tripp Lite

Tripp Lite SmartPro INT Rackmount Intelligent Network UPS... Manuel utilisateur

Tripp Lite

Tripp Lite G1000UB Guide de configuration

Tripp Lite

Tripp Lite SmartOnline SU80K Manuel utilisateur

Tripp Lite

Tripp Lite BC Internet Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro UPS System SMART550USB Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU60K Manuel utilisateur

Tripp Lite

Tripp Lite HTR15-2U Guide de configuration

Tripp Lite

Tripp Lite SmartOnline SUPDMB5 Manuel utilisateur

Tripp Lite

Tripp Lite UL1778 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
