Tripp Lite NPOE-EXT-2X1G30 Manuel utilisateur
1
2-Port Gigabit Waterproof,
Hardened and Tamper-Proof
PoE Extender/Repeater
Model: NPOE-EXT-2X1G30
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Este manual está disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:
tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Quick Start Guide
Русскоязычная версия настоящего руководства представлена на веб-сайте
компании Tripp Lite по адресу: tripplite.com
21-06-161-933F47-EN.indd 121-06-161-933F47-EN.indd 1 8/19/2021 11:12:06 AM8/19/2021 11:12:06 AM
2
Package Includes
Product Features
• NPOE-EXT-2X1G30 2-Port Gigabit PoE Extender
• Wrench
• (x3) Waterproof Connectors
• Quick Start Guide
• Supports Power over Ethernet so no external power supply is needed
• Supports true 10/100/1000 Mbps data transmission and PoE power
supply distance up to 330 ft. (100 m)
• Includes one RJ45 95W PD input
• Two output ports have Power Sourcing Equipment (PSE) function, with
each port supporting up to 30W
• Industrial-quality housing handles harsh environmental conditions with
high stability and reliability
• IP67 waterproof rating
• IK10 impact protection rating against tampering and vandalism
• Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3at, 802.3bt and
802.3x standards
• Unit supports plug-and-play operation with no additional configuration
needed
21-06-161-933F47-EN.indd 221-06-161-933F47-EN.indd 2 8/19/2021 11:12:06 AM8/19/2021 11:12:06 AM
3

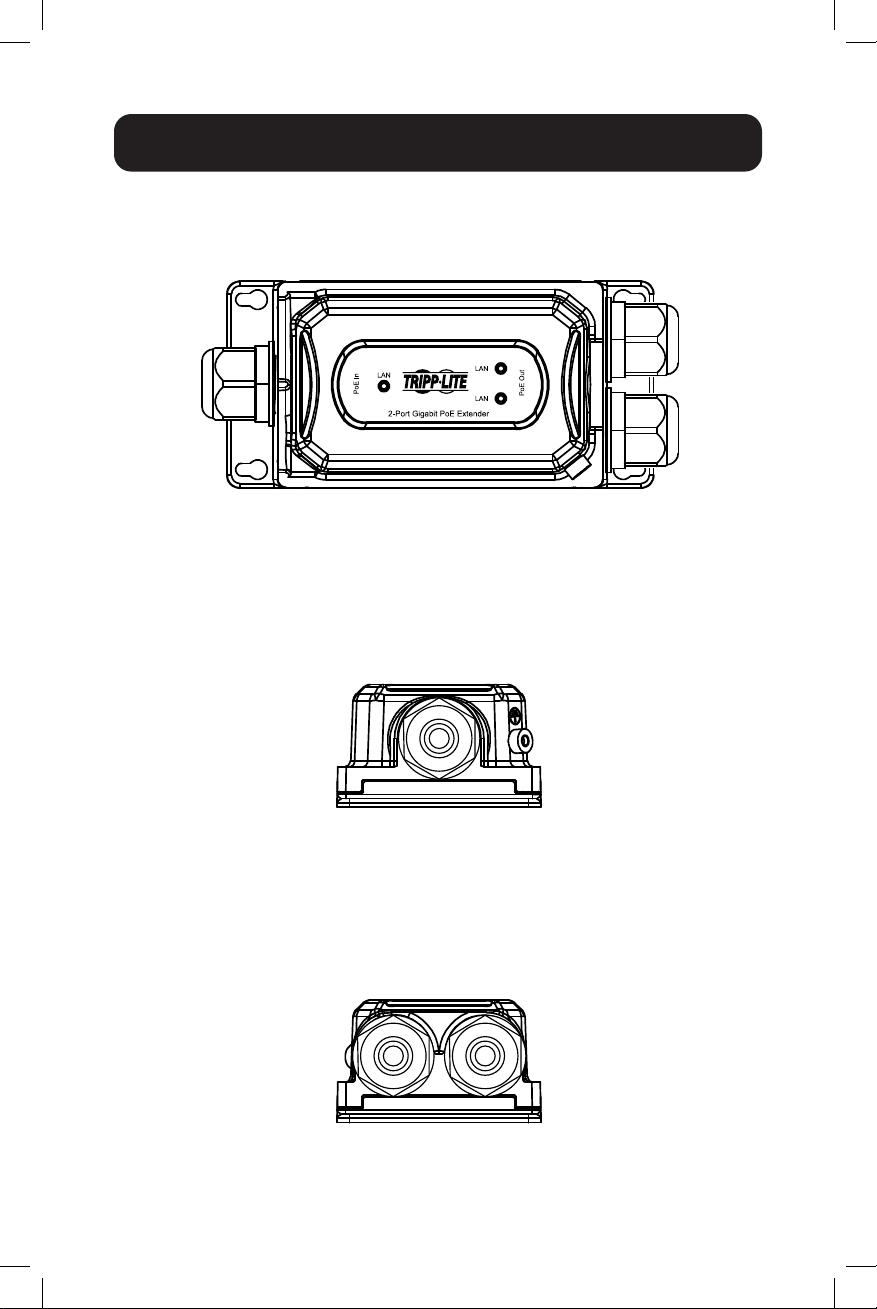

Hardware Description
Left Panel
The left panel includes the input port (PoE In) and grounding column with
standard network Cat5e cable (line diameter 5.5 mm).
Front Panel
The front panel includes the PSE output port, input port and LED indicator.
Right Panel
The right panel includes the output port (PoE Out), to be used with a
standard network Cat5e cable.
21-06-161-933F47-EN.indd 321-06-161-933F47-EN.indd 3 8/19/2021 11:12:06 AM8/19/2021 11:12:06 AM
4
Installation
Carefully read and follow all instructions to avoid device damage and security
threats that could result from incorrect installation.
• The nuts of the waterproof joint should be tightened fully to the joint threads
and fit level to the hexagon plane to prevent water from
damaging your equipment
• To avoid damage, do not place the unit on an unstable surface
• Make sure the operating voltage is the same one labeled on the unit
• To avoid the risk of electrical shocks, do not open the chassis while the unit
is operating or when electrical hazards are present

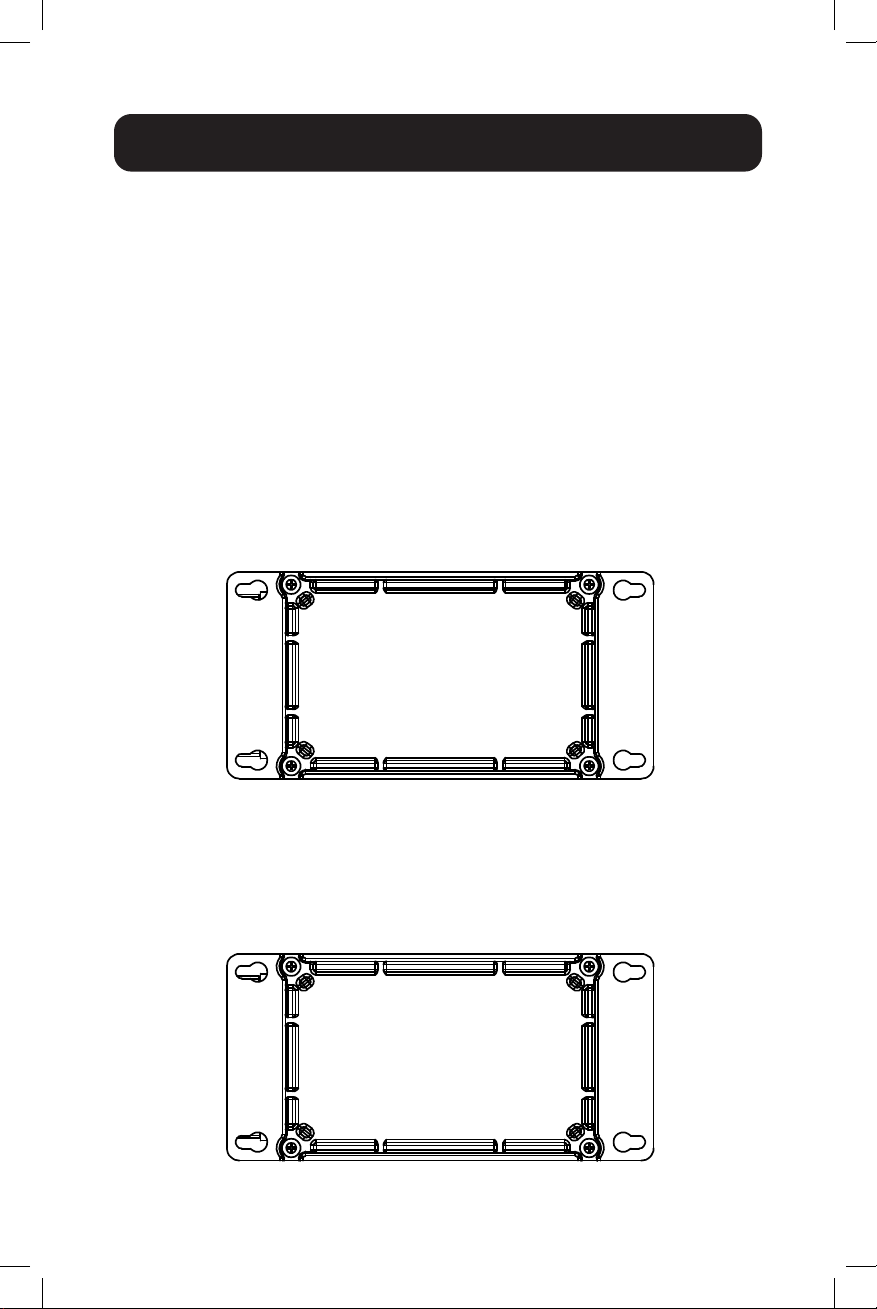

Desktop Installation
To install the unit on a desktop, place the bottom side (shown below) of the
unit on a stable, solid surface.
Wall-Mounted Installation
1.
Fix four screws
(not included)
on the wall and turn the unit upside down.
2. Align the four fixing holes of the unit as shown below and mount the unit
on the screws.
21-06-161-933F47-EN.indd 421-06-161-933F47-EN.indd 4 8/19/2021 11:12:07 AM8/19/2021 11:12:07 AM
5
Installation
Single Extender Installation
Note: Prior to connecting the RJ45 cable to input/output ports, install the
included cable glands onto the cable. Refer to Cable Wire and Crimp
Steps below.
1. Using a Cat5e/6 cable (up to 328 ft. / 100 m long), connect your powered
source device (such as a PoE switch) into the “IN” port on the unit.
2. Using another Cat5e/6 cable (up to 328 ft. / 100 m long), connect your
remote PoE powered device (PD), such as a VoIP or IP surveillance camera,
into the “OUT” port on the unit.
Notes:
• Your PoE source must meet or exceed IEEE 802.3at / 802.3af standards.
• When power is required, the power source (e.g. midspan or PoE injector)
must be installed between the Ethernet switch (non-PoE source) and the
first NPOE-EXT-2X1G30 extender.
• If you are installing an injector and a splitter, they each need to support
60 to 90W.

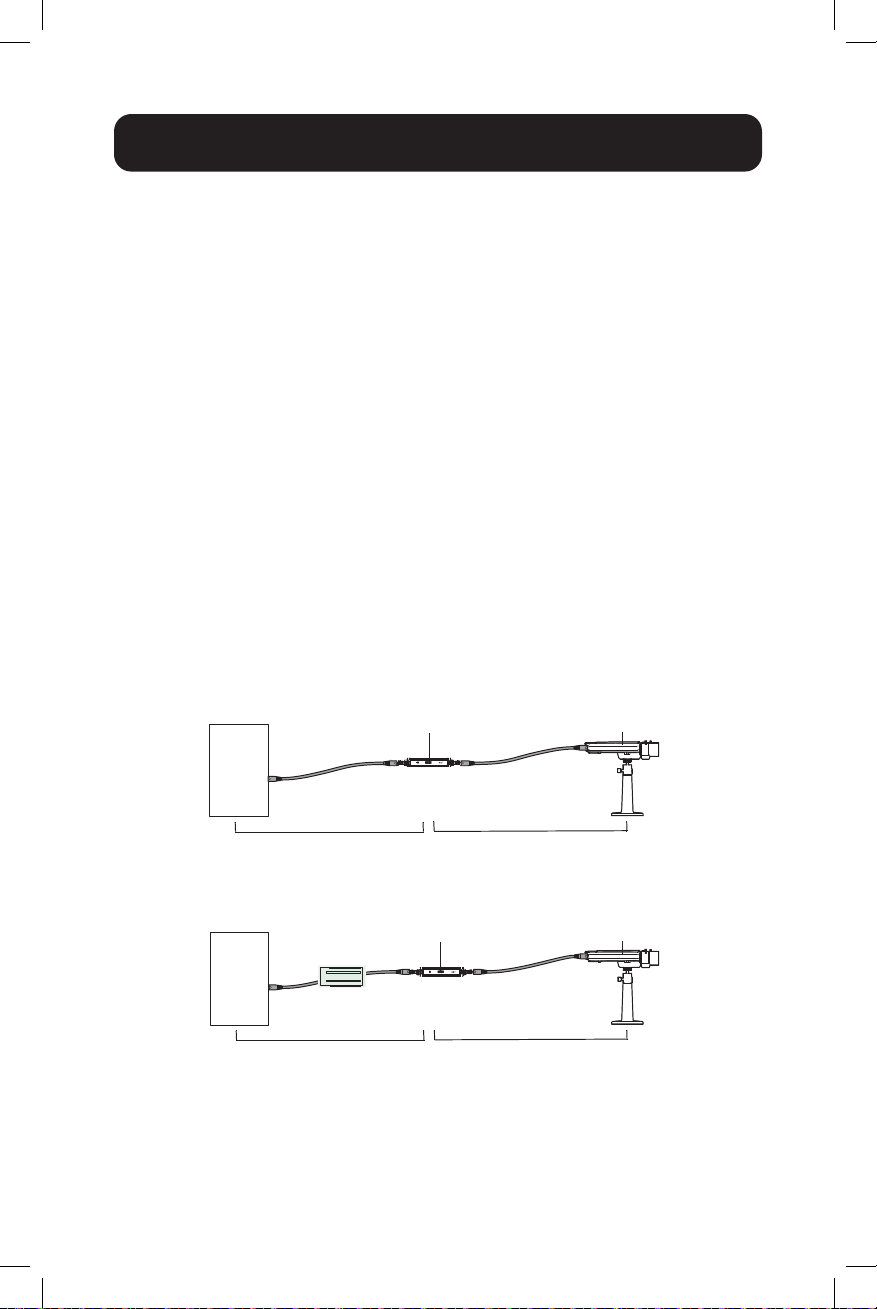

Single Extender Installation Diagram
Single Extender Installation with Midspan Diagram
CameraPoE Extender
PoE
Switch
Max 328 ft. (100 m) Max 328 ft. (100 m)
CameraPoE Extender
Switch
(Non-PoE)
Midspan
Max 328 ft. (100 m) Max 328 ft. (100 m)
21-06-161-933F47-EN.indd 521-06-161-933F47-EN.indd 5 8/19/2021 11:12:07 AM8/19/2021 11:12:07 AM
6
Installation
Multiple Extender Installation
Notes:
• You may only cascade three PoE extender units up to 1312 ft. (400 m)
in a single installation.
• Prior to connecting the RJ45 cable to input/output ports, install the
included cable glands onto the cable. Refer to Cable Wire and Crimp
Steps below.
1. Using a Cat5e/6 cable (up to 328 ft. / 100 m long), connect your
powered source device (such as a PoE switch) into the “IN” port on
the unit.
2. Using another Cat5e/6 cable (up to 328 ft. / 100 m long), connect the
“OUT” port of the first extender to the “IN” port of the second extender.
3. Repeat Step 2 up to two more times for each additional PoE extender
you add, or connect your remote PoE powered device (PD) to the “OUT”
port of the second PoE extender.
Notes:
• The third PoE extender will only supply IEEE 802.3af up to 7W.
• Your PoE source must meet or exceed IEEE 802.3at standards.

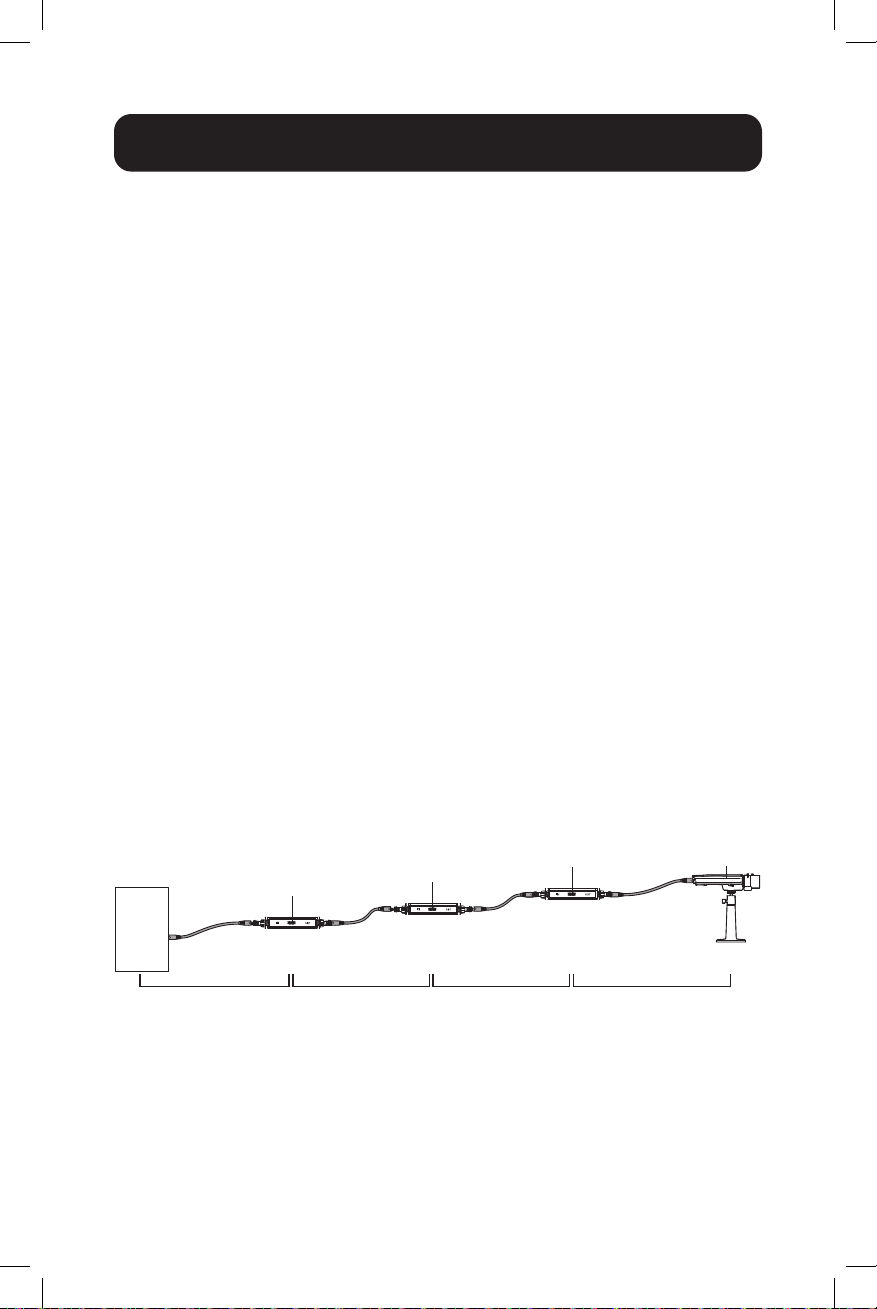

Multi-Extender Installation Diagram
Camera
PoE Extender
PoE Extender
PoE Extender
PoE
Switch
Max 328 ft. (100 m) Max 328 ft. (100 m) Max 328 ft. (100 m) Max 328 ft. (100 m)
21-06-161-933F47-EN.indd 621-06-161-933F47-EN.indd 6 8/19/2021 11:12:07 AM8/19/2021 11:12:07 AM
7
Installation

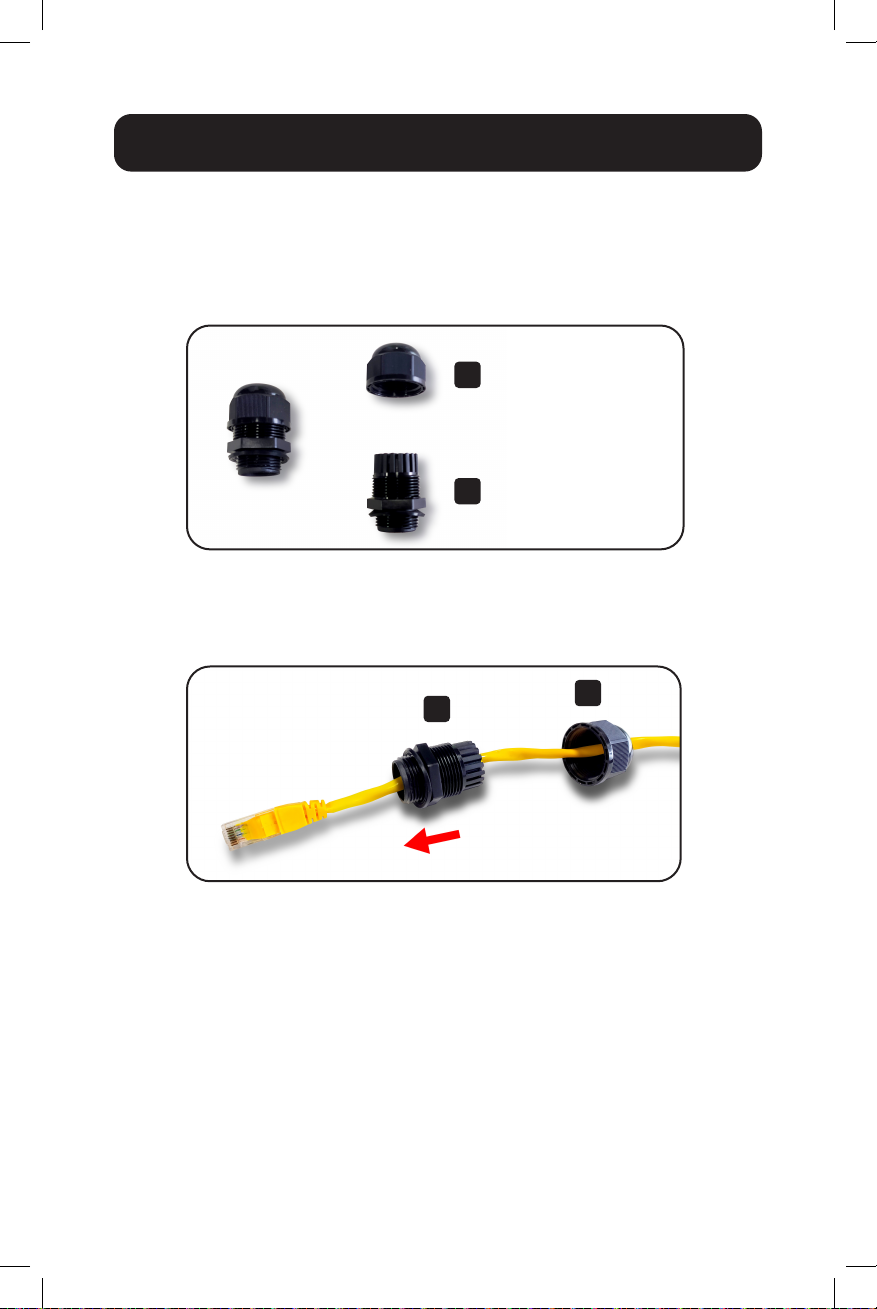

Cable Wire and Crimp Steps
Installing Cable Gland with RJ45 UTP Cable
Step 1: Disassemble the cable gland as shown below:
Step 2: Slip the Ethernet cable through the clamping nut and
gland body. Tighten the clamping nut and the body to
make the two parts into one complete cable gland.
A
A
B
B
Clamping Nut
Body (with washer)
21-06-161-933F47-EN.indd 721-06-161-933F47-EN.indd 7 8/19/2021 11:12:08 AM8/19/2021 11:12:08 AM
8
Installation

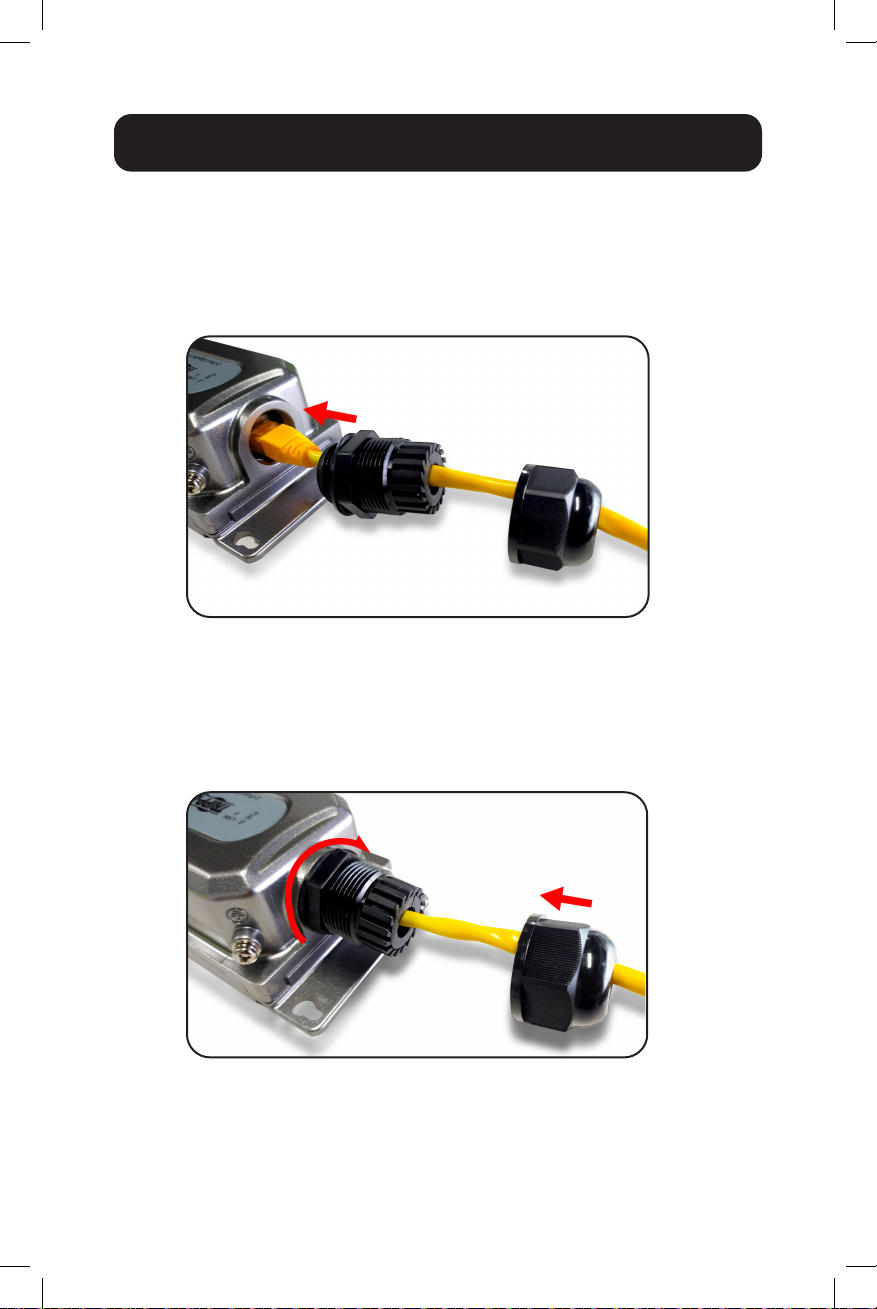

Connecting Waterproof Cable Kit
to the Outdoor PoE Extender
Step 1: Insert the RJ45 connector into the connector of the
PoE++ In Port.
Step 2: Turn clockwise to tighten the gland body with the
Outdoor PoE Extender.
Step 3: Attach the clamping nut to the cable gland to
complete the cable assembly.
21-06-161-933F47-EN.indd 821-06-161-933F47-EN.indd 8 8/19/2021 11:12:09 AM8/19/2021 11:12:09 AM
9
Installation

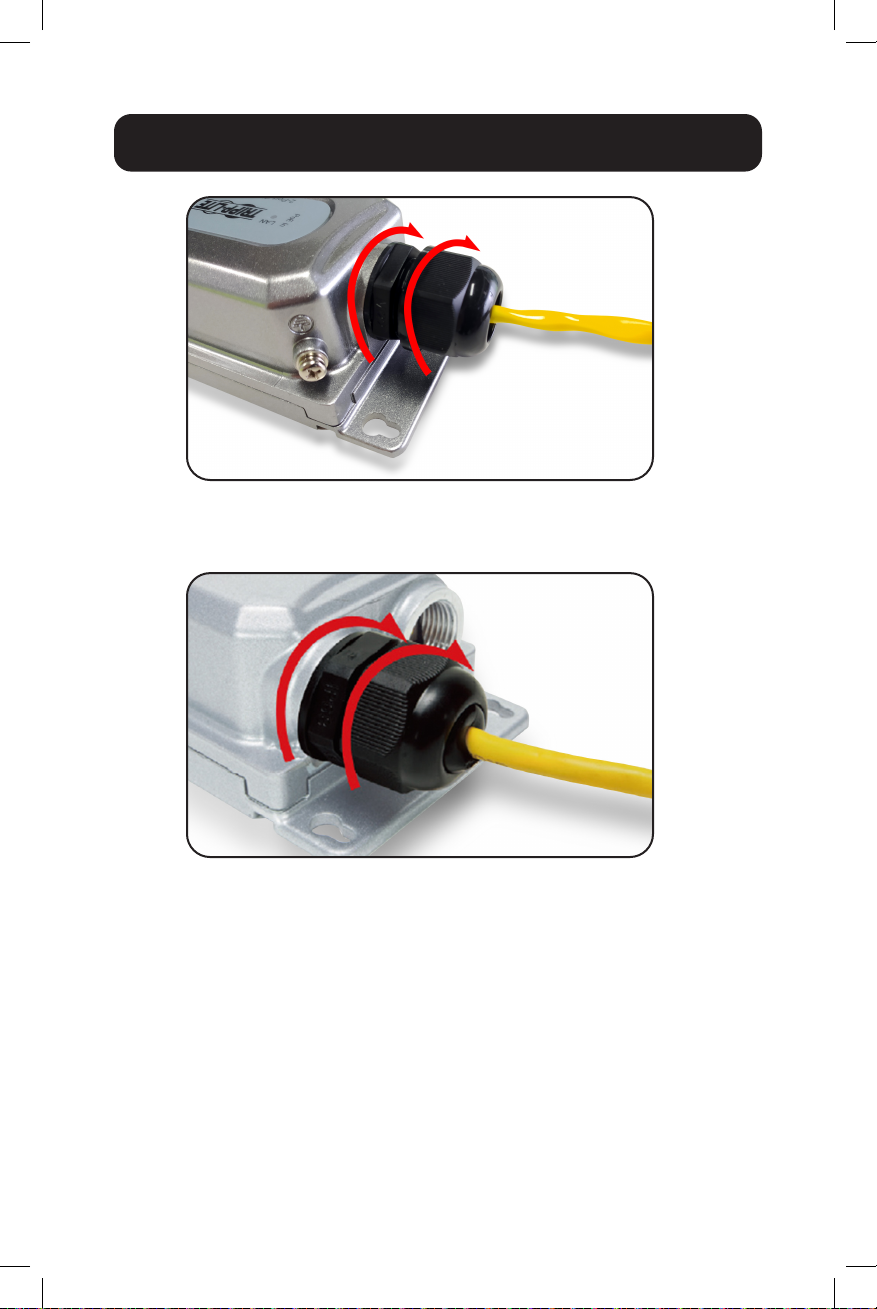

Step 4: Repeat Steps 1 to 3 for two PoE+ Out Ports
21-06-161-933F47-EN.indd 921-06-161-933F47-EN.indd 9 8/19/2021 11:12:10 AM8/19/2021 11:12:10 AM
10
Model NPOE-EXT-2X1G30
Standard IEEE802.3, IEEE802.3u, IEEE802.3ab,
IEEE802.3x, IEEE80 2.3af , IEEE802.3at,
IEEE802.3bt
Ports PoE In Port: 1 x 10/100/1000 Mbps RJ45
PoE Out Port: 2 x 10/100/1000 Mbps RJ45
Network Media (Cable) 10BASE - T: UTP category 3, 4, 5 cable (≤100m)
100BASE -TX: UTP category 5, 5e cable (≤100m)
1000BASE -TX: UTP category 5e cable (≤100m)
LED Color Green
LED Functions Off: No device is connected to the
corresponding port
Illuminated: Indicates the link through that port is
successfully established at 10/100/1000Mbps.
Blinking: Transmitting data and power
Dimensions 5.9 x 2.9 x 1.7 in. (150 x 73 x 44 mm)
Weight 0.93 lbs. (0.42 kg)
PoE Ports 2
Power Supply Power over Ethernet (PoE)
PD Port Input 95W Max
PoE Power Output 48-55V DC Max 30W per port
Operating Temperature Range -4° to 140°F (-20° to 60°C)
Storage Temperature Range -40° to 176°F (-40° to 80°C)
Operating Humidity Range 10 to 90% RH, non-condensing
Storage Humidity Range 5 to 90% RH, non-condensing
Surge Protection Differential Mode: ± 4KV
Common Mode: ± 6KV
MTBF > 50,000 hours
Electrostatic Standard Contact: 6KV
Air: 8KV
Weather Rating IP67
Impact Protection Rating IK10
Specifications
