HDMI Over Cat6 Pigtail

Extender Kits and Receiver

with Repeater, 4K/60 Hz

Extender Kit: B127U-111-PHPH

2-Port Splitter Kit: B127U-002-PHPH2

Receiver with Repeater: B127U-110-PH

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Owner's Manual

Este manual está disponible en español en la página de Tripp Lite: tripplite.com

Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com

Русскоязычная версия настоящего руководства представлена на

веб-сайте компании Tripp Lite по адресу: tripplite.com

Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:

tripplite.com

WARRANTY REGISTRATION

automatically entered to win an ISOBAR®

surge protector in our monthly drawing!

tripplite.com/warranty

B127U-111-PHPH

• HDMI over Cat6 Pigtail Transmitter and Receiver with

Repeater Kit

• Extends a 4K x 2K (3840 x 2160) @ 60 Hz A/V signal up to

230 ft. (70 m) from the source over 24 AWG Cat6 cabling

• Transmitter and receiver units can be powered by the built-

in 1 ft. USB-A cables for connecting to the USB port on a

display or to a USB power adapter, or by the Micro-USB

ports on each unit

• 1 ft. HDMI connectors on transmitter and receiver units

connect to the source and display

• View the transmitted video content on a local display via the

4K/60 Hz HDMI port on the transmitter unit

• Compatible with DisplayPort (B127U-110-PD) and HDMI

(B127U-110-PH) receivers to create exible daisychain

installations with multiple video outputs

• Daisychainable up to 4 layers, with each additional

B127U-110-PH receiver unit (sold separately) providing an

additional 230 ft., up to a total of 920 ft. (280 m)

• Supports passthrough audio formats up to 7.1-channel

surround sound

• Real-time video compression and decompression technology

• Compatible with HDCP 2.2 and 1.4 and High Dynamic

Range (HDR)

Product Features

B127U-002-PHPH2

• 2-Port HDMI over Cat6 Pigtail Splitter and Receivers Kit

• Extends a 4K x 2K (3840 x 2160) @ 60 Hz A/V signal to two

displays up to 230 ft. (70 m) from the source over 24 AWG

Cat6 cabling

• Transmitter and receiver units are powered by built-in 1 ft.

USB-A cables for connecting to the USB port on a display or

to a USB power adapter

• Multi-Resolution technology allows the receivers to connect

to any 1080p, 4K/30 Hz or 4K/60 Hz display without a󰀨ecting

the resolution of the other displays connected to the splitter

• Optionally, power transmitter and receiver units via Micro-

USB ports on each unit

• 1 ft. HDMI connectors on transmitter and receiver units

connect to the source and display

• Supports passthrough audio formats up to 7.1-channel

surround sound

• Real-time video compression and decompression technology

• Compatible with HDCP 2.2 and 1.4 and High Dynamic

Range (HDR)

• Compatible with DisplayPort (B127U-110-PD) and HDMI

(B127U-110-PH) receivers to create exible daisychain

installations with multiple video outputs. Each port on the

splitter can extend up to four connected receivers, for a total

of eight receivers and 920 ft. (280 m) per daisychain (sold

separately).

Product Features

B127U-110-PH

• HDMI over Cat6 Pigtail Receiver with Repeater

• Extends a 4K x 2K (3840 x 2160) @ 60 Hz A/V signal up to

230 ft. (70 m) from the source when connected to a

B127U-Series transmitter or splitter unit over 24 AWG Cat6

cabling

• Powered by built-in 1 ft. USB-A cable for connecting to the

USB port on a display or to a USB power adapter

• Optionally, power the unit via the Micro-USB port

• 1 ft. HDMI pigtail connector is used to connect to the display

• Supports passthrough audio formats up to 7.1-channel

surround sound

• Real-time video compression and decompression technology

• Compatible with HDCP 2.2 and 1.4 and High Dynamic

Range (HDR)

• Compatible with any B127U-Series transmitter or splitter to

create exible DisplayPort and HDMI video installations

• Daisychainable up to 4 layers, with each additional

B127U-110-PH receiver unit (sold separately) providing an

additional 230 ft., up to a total of 920 ft. (280 m)

Installation

Optional Accessories

Standard Extender Kit Installation

Notes:

• Test to ensure the entire installation works properly before pulling

cables through ceilings/walls.

• To achieve maximum distance and performance, use 24 AWG

solid wire Cat6 cable. Using stranded wire Cat6 cable or cable

with a gauge (AWG) size higher than 24 AWG will result in shorter

extension distance. Higher-gauge cabling, such as 26 AWG, has a

more limited transmission capability than lower-gauge cabling. All

Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid

wire cabling.

• The installation diagram shows a B127U-111-PHPH extender kit.

• The diagram shows additional B127U-110-PH receiver units (sold

separately, see tripplite.com) in a daisy-chain installation.

• The B127U-Series of transmitter/receiver units can be mixed and

matched as desired with either HDMI or DisplayPort video outputs

within one installation. The B127U-Series HDMI transmitter products

can be used with the B127U-110-PD DisplayPort receiver (and vice-

versa) with the B127U-Series DisplayPort transmitter and

B127U-110-PH HDMI receiver. Up to four receivers can be

daisychained at once.

• N202-Series Cat6 24 AWG Solid Wire Patch Cables

• U280-W01-QC3-1 USB-A Wall Adapter, 18 Watts

• B127U-110-PD DisplayPort over Cat6 Receiver with

Repeater

Installation

1. Make sure all equipment in the installation – such as TVs,

Blu-ray players and the transmitter – is powered o󰀨.

2. Connect the pigtail HDMI connector on the transmitter unit

to the HDMI input on the source.

Optional: Using an HDMI 2.0 cable (such as Tripp Lite’s

P569-XXX-CERT or P568-XXX-2A Series cables), connect a

display to the LOCAL port on the transmitter unit.

3. Using 24 AWG solid wire Cat6 cable, connect the RJ45 port

on the local transmitter unit to the RJ45 input port on the

remote receiver unit.

4. Connect the pigtail HDMI connector on the remote receiver

unit to the HDMI port on the display.

5. Connect the pigtail USB-A connector on the local

transmitter unit to a USB 3.0 port or a USB power adapter

(5V/1A) and into a wall power outlet. The LED next to the

RJ45 port will illuminate solid green to indicate the unit is

receiving power.

4K or 1080p

USB Power

Adapter

4K/60Hz Only

HDMI Local Port

4K/60Hz Source

up to 230ft up to 230ft up to 230ft

up to 230ft

24AWG Cat6 Cable 24AWG Cat6 Cable 24AWG Cat6 Cable

24AWG Cat6 Cable

HDMI 2.0 Cable

B127U-111-PHPH

HDMI Transceiver

(B127U-110-PH)

HDMI Transceiver

(B127U-110-PH)

HDMI Transceiver

(B127U-110-PH)

HDMI Transceiver

(B127U-110-PH)

USB Power

Adapter

USB Power

Adapter

USB Power

Adapter

USB Power

Adapter

Installation

6. Connect the pigtail USB-A connector on the remote receiver

unit to a USB power adapter (5V/1A) or a USB 3.0 port

on the display. The LEDs next to the RJ45 connectors will

illuminate orange to indicate the ports are receiving power.

Optional: The transmitter and receiver units can be charged

via the Micro-USB ports on each unit by connecting a Micro-

USB to USB-A cable between each unit and a USB power

adapter.

7. Turn on the power to your connected TVs/monitors.

8. Turn on the power to the HDMI source. The LEDs on both

the transmitter and receiver units should begin to ash to

indicate video is being transmitted and the video should

now display on the connected monitor(s).

Note: If a daisy-chain installation is desired, repeat steps 4-7 with

up to 3 additional B127U-110-PH or B127U-110-PD units (sold

separately).

Installation

Standard Splitter Kit Installation

Notes:

• Test to ensure the entire installation works properly before pulling

cables through ceilings/walls.

• To achieve maximum distance and performance, use 24 AWG

solid wire Cat6 cable. Using stranded wire Cat6 cable or cable

with a gauge (AWG) size higher than 24 AWG will result in shorter

extension distance. Higher-gauge cabling, such as 26 AWG, has a

more limited transmission capability than lower-gauge cabling. All

Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid

wire cabling.

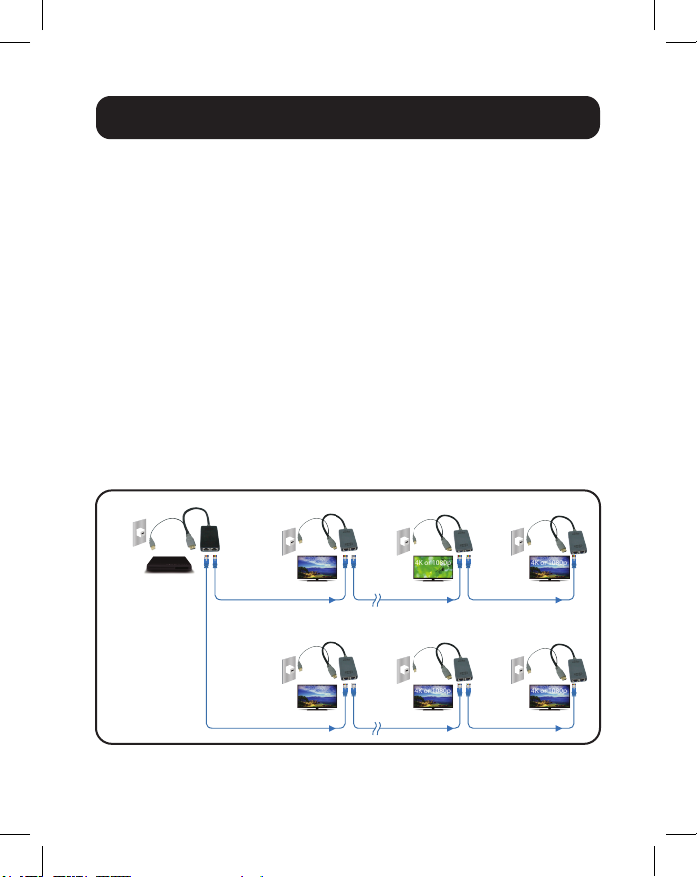

• The installation diagram shows a B127U-002-PHPH2 splitter kit.

• The diagram shows additional B127U-110-PH and B127U-110-PD

receiver units (sold separately, see tripplite.com) in a daisy-chain

installation.

4K or 1080p

USB Power

Adapter

4K/60Hz Source

USB Power

Adapter

USB Power

Adapter

USB Power

Adapter

USB Power

Adapter

USB Power

Adapter

USB Power

Adapter

up to 230ft

up to 230ft up to 230ft up to 230ft

up to 230ft up to 230ft

24AWG Cat6 Cable

24AWG Cat6 Cable 24AWG Cat6 Cable 24AWG Cat6 Cable

24AWG Cat6 Cable 24AWG Cat6 Cable

HDMI Transceiver

(B127U-110-PH)

HDMI Transceiver

(B127U-110-PH)

HDMI Transceiver

(B127U-110-PH)

DisplayPort Transceiver

(B127U-110-PD)

DisplayPort Transceiver

(B127U-110-PD)

HDMI Transceiver

(B127U-110-PH)

B127U-002-PHPH2

Installation

1. Make sure all equipment in the installation – such as TVs,

Blu-ray players and the transmitter – is powered o󰀨.

2. Connect the pigtail HDMI connector on the transmitter unit

to the HDMI input on the source.

3. Using Cat6 cable, connect the RJ45 ports on the local

transmitter unit to the RJ45 input ports of each remote

receiver unit.

4. Connect the pigtail HDMI connector on the remote receiver

units to the HDMI input ports of each display.

5. Connect the pigtail USB-A connector on the local

transmitter unit to a USB power adapter and into a wall

power outlet. The LED next to the RJ45 port should

illuminate to indicate the unit is receiving power.

6. Connect the pigtail USB-A connector on the remote receiver

units to USB power adapters or a USB port on the displays.

The LEDs next to the RJ45 ports should illuminate to

indicate the units are receiving power.

Optional: The transmitter and receiver units can be charged

via the Micro-USB ports on each unit by connecting a Micro-

USB to USB-A cable between each unit and a USB power

adapter.

7. Turn on the power to your connected TVs/monitors.

Installation

8. Turn on the power to the HDMI source. The LEDs on the

transmitter and receiver units should begin to ash to

indicate video is being transmitted and the video should

now display on the connected monitor(s).

Note: If a daisy-chain installation is desired, repeat steps 4-7 with

up to 3 additional B127U-110-PH or B127U-110-PD units (sold

separately).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tripp Lite Extenseur

Tripp Lite

Tripp Lite B013-000 Manuel utilisateur

Tripp Lite

Tripp Lite B127U-002-PDPH2 Manuel utilisateur

Tripp Lite

Tripp Lite B132-100-WP Manuel utilisateur

Tripp Lite

Tripp Lite B203-101-PNP Manuel utilisateur

Tripp Lite

Tripp Lite B150-1A1-DVI Manuel utilisateur

Tripp Lite

Tripp Lite B125-101-60-WP Manuel utilisateur

Tripp Lite

Tripp Lite B130-101A-MR Manuel utilisateur

Tripp Lite

Tripp Lite B130-101A Manuel utilisateur

Tripp Lite

Tripp Lite 8TLB122000 Manuel utilisateur

Tripp Lite

Tripp Lite B121-000 Manuel utilisateur

Tripp Lite

Tripp Lite B150-1A1-HDMI Manuel utilisateur

Tripp Lite

Tripp Lite B203-101-IND Manuel utilisateur

Tripp Lite

Tripp Lite B051-000-AC Manuel utilisateur

Tripp Lite

Tripp Lite B127-008-D Manuel utilisateur

Tripp Lite

Tripp Lite B126-1A1-POC Manuel utilisateur

Tripp Lite

Tripp Lite HDMI B122-000 Manuel utilisateur

Tripp Lite

Tripp Lite HDMI B122-000-60 Manuel utilisateur

Tripp Lite

Tripp Lite NPOE-EXT-2X1G30 Manuel utilisateur

Tripp Lite

Tripp Lite B130-101-2: B130-101A-2 Manuel utilisateur

Tripp Lite

Tripp Lite B126-1A1-WHD1 Manuel utilisateur

Tripp Lite

Tripp Lite NPOE-EXT-1G30WP Manuel utilisateur

Tripp Lite

Tripp Lite B127A-1A1-BHBH Manuel utilisateur

Tripp Lite

Tripp Lite B126-1A1-IR Manuel utilisateur

Tripp Lite

Tripp Lite B132-100A Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
