1
Owner’s Manual
VGA + Audio to HDMI
Adapter/Scaler
Model: P116-000-HDSC1
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate
peace of mind. You could also win an ISOBAR6ULTRA
surge protector—a $50 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
Copyright © 2015 Tripp Lite. All rights reserved.
• Combines VGA video and 3.5 mm mini-stereo audio
signals for use with an HDMI display
• Supports VGA input video resolutions up to 1920 x 1440
• Built-in scaler allows the VGA input signal to be
displayed in 720p or 1080p on an HD monitor
• Supports 24-bit True Color (8-bits per channel)
• Supports HDMI bandwidth of 165MHz/1.65 Gbps per
channel
15-05-051-933454.indd 1 5/15/2015 10:45:54 AM
2
Package Includes
System Requirements
Optional Accessories
• P116-000-HDSC1
• External Power Supply
(Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
• Owner’s Manual
• Computer with a VGA video port and 3.5 mm
mini-stereo audio port
• Display with an HDMI port
• P312-Series 3.5 mm Mini-Stereo Audio Cables
• P502-Series VGA Monitor Cables with RGB Coax
• P568-Series High Speed HDMI Cables
15-05-051-933454.indd 2 5/15/2015 10:45:54 AM
3
Installation
Note: Make sure all devices you are connecting are powered
off prior to installation.
1. Connect the VGA port on your computer to the unit’s
VGA input port using a VGA video cable.
2. Connect the 3.5 mm mini-stereo port on your
computer to the unit’s 3.5 mm mini-stereo input port
using a 3.5 mm mini-stereo cable.
3. Connect the HDMI output port on the unit to the HDMI
port on your display using an HDMI cable.
4. Connect the power supply to the unit and plug it into
a Tripp Lite Surge Protector, Power Distribution Unit
(PDU), or Uninterruptible Power Supply (UPS).
5. Power on the connected devices.
6. By default, the unit displays 720p video on the
monitor. To toggle to 1080p, press the 720p/1080p
button on the unit using a small, pointed object such
as a paperclip.
15-05-051-933454.indd 3 5/15/2015 10:45:54 AM
4
Specifications
Specification Value
Input Ports HD15 Female, 3.5 mm Female
Output Port HDMI Female
Unit Dimension
(H x W x D)
0.8 x 2.2 x 2.4 in.
Unit Weight 0.1 lb.
Operating Temperature 32° to 158°F (0° to 70°C)
Storage Temperature 14° to 176°F (-10° to 80°C)
Operating Humidity 10 to 85% RH, Non-Condensing
Storage Humidity 5 to 95% RH, Non-Condensing
External Power Supply Input: 100-240V, 50/60Hz,
0.5A; Output: 5V, 2A
Power Consumption 2W Max
Supported VGA Video
Resolutions – Input
640 x 480 @ 60/72/75/85Hz
800 x 600 @ 60/72/75/85Hz
1024 x 768 @ 60/70/75/85Hz
1280 x 720 @ 60Hz
1280 x 768 @ 60/70/75/85Hz
1280 x 800 @ 60/70/75Hz
1280 x 960 @ 60Hz
1280 x 1024 @ 60Hz
1440 x 900 @ 60/75/85Hz
1920 x 1080 @ 60Hz
1920 x 1200 @ 60Hz
1920 x 1440 @ 60Hz
Note: Not all resolutions will be
supported on all displays
Supported HDMI Video
Resolutions – Output
720p/1080p
15-05-051-933454.indd 4 5/15/2015 10:45:54 AM
5
Warranty and Product Registration
1-YEAR LIMITED WARRANTY
TRIPP LITE warrants its products to be free from defects in materials
and workmanship for a period of one (1) year from the date of initial
purchase. TRIPP LITE’s obligation under this warranty is limited
to repairing or replacing (at its sole option) any such defective
products. To obtain service under this warranty, you must obtain a
Returned Material Authorization (RMA) number from TRIPP LITE or
an authorized TRIPP LITE service center. Products must be returned
to TRIPP LITE or an authorized TRIPP LITE service center with
transportation charges prepaid and must be accompanied by a brief
description of the problem encountered and proof of date and place
of purchase. This warranty does not apply to equipment, which has
been damaged by accident, negligence or misapplication or has
been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not permit limitation or exclusion of implied
warranties; therefore, the aforesaid limitation(s) or exclusion(s) may
not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE
BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS
PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as
lost profits or revenue, loss of equipment, loss of use of equipment,
loss of software, loss of data, costs of substitutes, claims by third
parties, or otherwise.
PRODUCT REGISTRATION
Visit www.tripplite.com/warranty today to register your new Tripp Lite
product. You’ll be automatically entered into a drawing for a chance
to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions
apply. See website for details.
15-05-051-933454.indd 5 5/15/2015 10:45:54 AM
6
Warranty and Product Registration
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to this equipment not expressly
approved by Tripp Lite could void the user’s authority to operate this
equipment.
15-05-051-933454.indd 6 5/15/2015 10:45:54 AM
7
Warranty and Product Registration
WEEE Compliance Information for Tripp Lite Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment
(WEEE) Directive and implementing regulations, when
customers buy new electrical and electronic equipment
from Tripp Lite they are entitled to:
• Send old equipment for recycling on a one-for-one, like-
for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this
ultimately becomes waste
Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice.
15-05-051-933454.indd 7 5/15/2015 10:45:54 AM

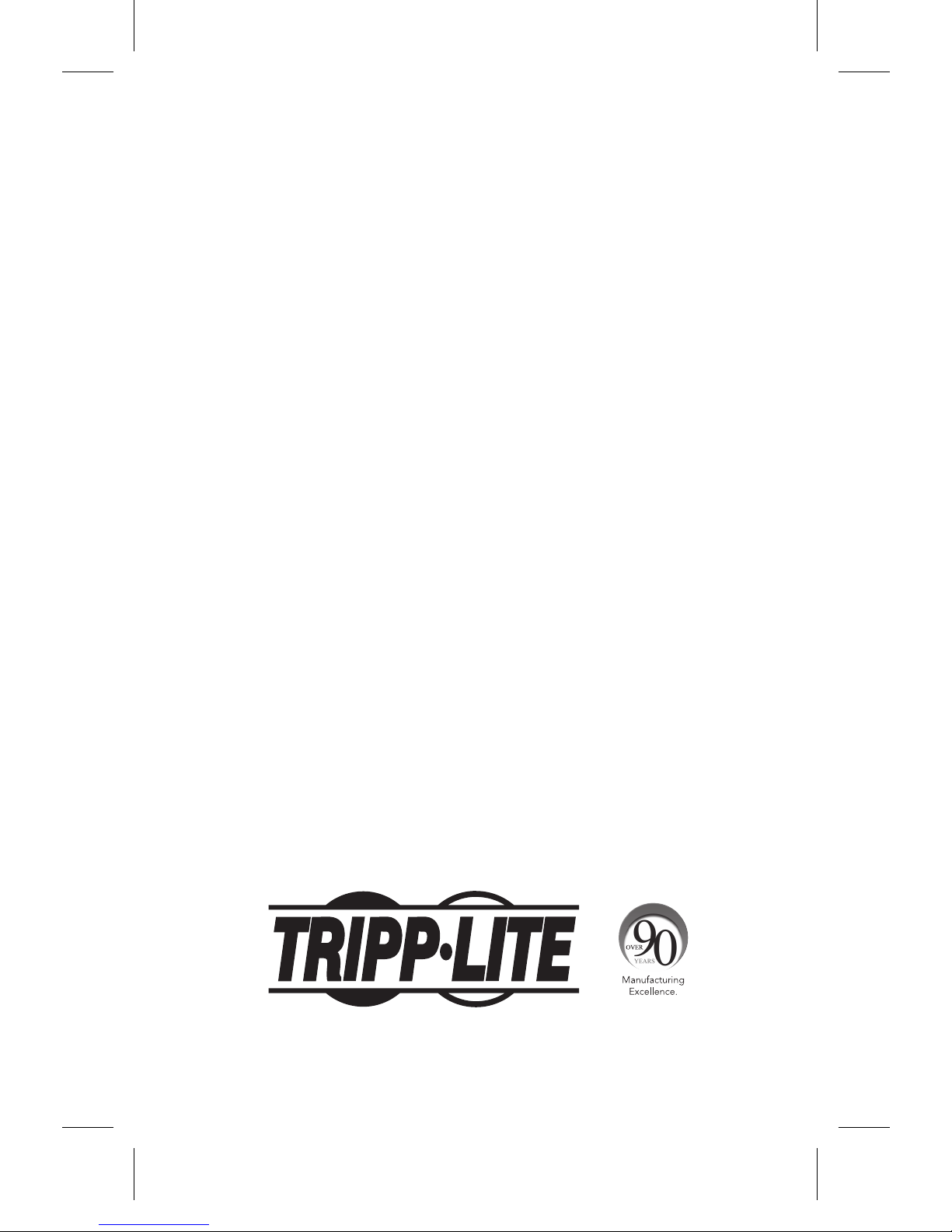

8
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
15-05-051 93-3454_RevA
15-05-051-933454.indd 8 5/15/2015 10:45:54 AM
