Tripp Lite 8TLB032VU1 Manuel utilisateur

Quick Start Guide

USB 2.0 Portable Laptop

Crash Cart KVM Adapter

Model: B032-VU1

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

El manual completo esta disponible en español en la

página de Tripp Lite: www.tripplite.com/support

The complete Owner’s Manual is available on

Tripp Lite’s website: www.tripplite.com/support

Le manuel complet est disponible en français sur le

site Web de Tripp Lite : www.tripplite.com/support

Полная русскоязычная версия настоящего руководства

представлена на веб-сайте компании Tripp Lite по

адресу: www.tripplite.com/support

17-10-489-933694-EN.indd 1 12/4/2017 10:35:45 AM

Product Features

• USB Console Adapter provides direct laptop-to-

computer desktop access

• Compact design with integrated cables makes it

perfect for systems administrators on the move; no

need for a bulky crash cart

• Supports VGA video resolutions up to 1920 x 1200

@ 60 Hz

• Bi-directional ﬁle transfers between local and

remote computer

• Virtual media enables ﬁle applications, OS

patching, software installation and diagnostic

testing

• Video recording and image capture of remote

desktop

• Instant BIOS-level control

• Automatic Mouse Sync synchronizes local and

remote mouse pointers for optimal performance

• Manual Video Settings allow you to adjust settings

to optimize picture quality and performance

• Keyboard pass-through support

• On-screen keyboard with multi-language support

• Supports macros for user-deﬁned hotkeys

• Desktop scaling allows you to adjust the size/

resolution of the remote desktop window by size or

ratio; no need to use scroll bars

• Supports hot-plugging

• Plug-and-play; no software to install

17-10-489-933694-EN.indd 2 12/4/2017 10:35:45 AM

Product Features

System Requirements

Package Contents

Optional Accessories

• Bus-powered; no external power required

• Firmware upgradeable

• Laptop with an available USB port

• Computer with an available VGA or DVI-I (requires a

VGA to DVI adapter) monitor port and a USB port

• Supports Windows®XP and later

• B032-VU1

• USB 2.0 Mini-B Cable – 6 ft.

• Quick Start Guide

• UR030-Series Reversible USB-A to Mini-B Cables

• P120-000 VGA to DVI-A Adapter (M/F)

• P561-Series DVI-D Single-Link Cables

17-10-489-933694-EN.indd 3 12/4/2017 10:35:45 AM

Installation

1. Connect the included USB Mini-B cable between

the USB Mini-B port on the unit and an available

USB-A port on the laptop.

2. Connect the built-in USB cable to an available

USB-A port on the computer you wish to access

with the laptop.

3. Connect the built-in VGA cable to an available VGA

port on the computer you wish to access with the

laptop.

4. When a successful connection between the laptop

and the connected computer is established, the

Blue LED will illuminate.

5. Upon connection, generic drivers for the product

automatically install and it will be recognized as a

removable disk drive. A prompt will appear asking if

you wish to open it.

Note: If the prompt does not appear, go to your My

Computer screen to access it.

6. To establish a connection with the connected

computer, open the drive folder. Two ﬁles will

appear, one of which is a Windows client. Open the

Windows client ﬁle.

Note: To ensure full functionality, run the Windows Client as

an administrator.

7. The client will open a remote session with the

connected computer and the remote view window

will appear.

17-10-489-933694-EN.indd 4 12/4/2017 10:35:45 AM

Installation

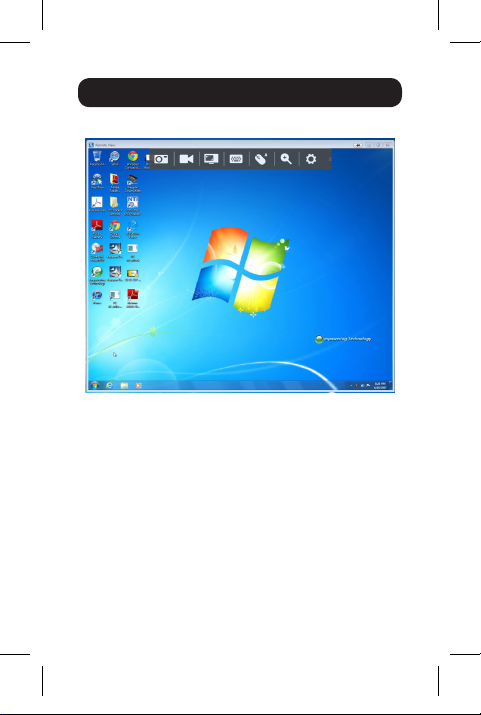

Remote View Window

The Windows client provides a Remote View window

with a Control Panel for accessing the connected

computer. When the Remote View window opens,

the Control Panel is hidden. Access it by moving your

mouse pointer over the top center of the screen.

The Control Panel includes multiple functions and

settings that allow you to manage and control your

connection. It can be moved to the top left or top

right side of the screen by clicking and dragging on

the right side of the panel.

17-10-489-933694-EN.indd 5 12/4/2017 10:35:46 AM

Control Panel

Icon Description

Capture – Click to take a snapshot of the

remote display. The snapshot image is saved

in a directory selected in the Conﬁgure Panel

screen of the Control Panel’s Settings menu.

See Section 6.2.7 in the owner’s manual for

details.

Record – Click to take a video of the remote

display. The video ﬁle is saved in the same

directory as the snapshot images taken with

the Capture function. See Section 6.2.7 in

the owner’s manual for details. For details on

viewing video ﬁles, see Section 7 in the owner’s

manual.

Video Sync – Click to perform a Video Sync

on the remote screen. This detects vertical and

horizontal offset values of the remote screen

and synchronizes them with the local screen.

On-Screen Keyboard – Click to display the

On-Screen Keyboard. See Section 6.2.5 in the

owner’s manual for details on its use.

Note: Owner’s manual is found on www.tripplite.com/support

17-10-489-933694-EN.indd 6 12/4/2017 10:35:46 AM

Control Panel

Icon Description

Mouse Sync Settings – Click to toggle between

Automatic and Manual mouse sync. When

Automatic syncing is selected, an A will appear

on the mouse icon. When manual, an M will

appear. Automatic Mouse Sync automatically

locks in and syncs the local and remote mouse

pointers for you, eliminating the need for any

manual resyncing. For Manual Mouse Sync, see

Section 6.1.2 in the owner’s manual for details.

Zoom – Click to zoom in or out on the remote

screen. Options are 25%, 50%, 75%, 100%,

1:1 and Full Screen. See Section 6.2.3 in the

owner’s manual for details.

Control Panel Settings – Click to open a menu

that includes some of the same functions as

the Control Panel (e.g. Video Sync and Zoom),

as well as additional settings and functions for

controlling the remote session and maintenance

of the unit. See Section 6.2 in the owner’s

manual for details.

Note: Owner’s manual is found on www.tripplite.com/support

17-10-489-933694-EN.indd 7 12/4/2017 10:35:46 AM

Speciﬁcations

Number of Computer

Connections

Local Port Connectors USB Mini-B (Female)

Computer Port Connectors HD15 (Male), USB-A (Male)

Online LED Blue

Max Video Resolution 1920 x 1200 @ 60 Hz

Operating Temperature

Range

32° to 104°F (0° to 40°C)

Storage Temperature

Range

-4° to 140°F (-20° to 60°C)

Relative Humidity 0 to 80% RH,

Non-Condensing

Housing Material Plastic

Unit Weight 0.3 lbs (0.14 kg)

Unit Dimensions 1.875 x 2.125 x 2.875 in.

(4.8 x 5.4 x 7.3 cm)

17-10-489-933694-EN.indd 8 12/4/2017 10:35:46 AM

Warranty and Product Registration

3-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in

materials and workmanship for a period of three (3) years

from the date of initial purchase. TRIPP LITE’s obligation

under this warranty is limited to repairing or replacing (at its

sole option) any such defective products. To obtain service

under this warranty, you must obtain a Returned Material

Authorization (RMA) number from TRIPP LITE or an authorized

TRIPP LITE service center. Products must be returned to

TRIPP LITE or an authorized TRIPP LITE service center with

transportation charges prepaid and must be accompanied by

a brief description of the problem encountered and proof of

date and place of purchase. This warranty does not apply to

equipment, which has been damaged by accident, negligence

or misapplication or has been altered or modiﬁed in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE.

Some states do not permit limitation or exclusion of implied

warranties; therefore, the aforesaid limitation(s) or exclusion(s)

may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE

BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF

THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGE. Speciﬁcally, TRIPP LITE is not liable for any

costs, such as lost proﬁts or revenue, loss of equipment, loss

of use of equipment, loss of software, loss of data, costs of

substitutes, claims by third parties, or otherwise.

17-10-489-933694-EN.indd 9 12/4/2017 10:35:46 AM

Warranty and Product Registration

Product Registration

Visit www.tripplite.com/warranty today to register your new

Tripp Lite product. You’ll be automatically entered into a

drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some

restrictions apply. See website for details.

FCC Notice, Class A

This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

Note: This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own

expense. The user must use shielded cables and connectors

with this equipment. Any changes or modiﬁcations to this

equipment not expressly approved by Tripp Lite could void the

user’s authority to operate this equipment.

17-10-489-933694-EN.indd 10 12/4/2017 10:35:46 AM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tripp Lite Adaptateur

Tripp Lite

Tripp Lite p945-06i Manuel utilisateur

Tripp Lite

Tripp Lite U238-000-1 Manuel utilisateur

Tripp Lite

Tripp Lite U244-001-R Manuel utilisateur

Tripp Lite

Tripp Lite USA-19HS Manuel utilisateur

Tripp Lite

Tripp Lite USA-28XG Manuel utilisateur

Tripp Lite

Tripp Lite High-Speed USB Serial Adapter USA-19HS Manuel utilisateur

Tripp Lite

Tripp Lite P136-06N-HDR-W Manuel utilisateur

Tripp Lite

Tripp Lite S236-000 Manuel utilisateur

Tripp Lite

Tripp Lite B015-000 Manuel utilisateur

Tripp Lite

Tripp Lite U209-005-COM Manuel utilisateur

Tripp Lite

Tripp Lite U261-001-BT4 Manuel utilisateur

Tripp Lite

Tripp Lite P120-06N-ACT Manuel utilisateur

Tripp Lite

Tripp Lite U444-06N-H4K6WC Manuel utilisateur

Tripp Lite

Tripp Lite U444-2DP-MST4K6 Manuel utilisateur

Tripp Lite

Tripp Lite MTB3-002-DP Manuel utilisateur

Tripp Lite

Tripp Lite U338-000 Manuel utilisateur

Tripp Lite

Tripp Lite U209-000-R Manuel utilisateur

Tripp Lite

Tripp Lite U344-001-DP Manuel utilisateur

Tripp Lite

Tripp Lite P960-001-MSATA Manuel utilisateur

Tripp Lite

Tripp Lite U444-06N-DP-C Manuel utilisateur

Tripp Lite

Tripp Lite N254-024-6A Manuel utilisateur

Tripp Lite

Tripp Lite U444-06N-VGA-AM Manuel utilisateur

Tripp Lite

Tripp Lite U444-06N-VGA-RA Manuel utilisateur

Tripp Lite

Tripp Lite B090-A9F-X Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
