TI-PG1284i

Quick Installation Guide

Table of Content

1 English

1. Before You Start

2. Quick Reference

3. Hardware Installation

4. Hardware Configuration

5. Additional Information

1. Before You Start

2. Quick Reference

Package Contents

ŸTI-PG1284i

ŸQuick Installation Guide

ŸCD-ROM (User's Guide)

ŸConsole cable

Minimum Requirements

ŸPower supply (ex. model TI-S24048)

ŸNetworked computer

ŸRJ-45 Network Cable

GND

Optional Equipment

Ÿ35 mm DIN-Rail

ŸSFP modules (e.g. TEG-MGBSR, TEG-MGBS80, TEG-MGBS10)

3. Hardware Installation

Note:

The maximum amount of power available is 30 Watts per port and 240

Watts total. If a power overload has occurred, the switch will prioritize

the distribution of power by port (from lowest to highest). That is, port

1 will receive the highest priority and port 8 will receive the lowest

priority. The ports with lower priority will have its PoE function disabled

until more than 7.5 watts of power becomes available.

2. Position the unit in front of the DIN-Rail and hook the mount bracket

over the top of the rail.

The TI-PG1284i can be placed on a desktop, wall, or mounted to a

DIN-Rail.

DIN-rail Mounting Instructions

1. Attach the DIN-Rail mount to TI-PG1284i.

Applying Power

1. Connect the power supply (sold separately) to the included terminal

block (as shown below) and secure with the screws.

Note: Polarities must match.

2. Attach the terminal block to the unit.

3. Rotate the TI-PG1284i downward towards the rail to lock it into

place. You will know it is secure when you hear the click.

4. To remove the unit, pull down to clear the bottom of the DIN-Rail

and rotate away from the rail.

Mounting the unit Releasing the unit

Safety Note

ŸTurn off the power before connecting any module or wire. The correct

power supply voltage (48 – 57 V DC) is listed on the product label.

Check the voltage of your power source to make sure that you are

using the correct part. Do NOT use voltage greater than 48 – 57 V

DC, as specified on the product label.

ŸCalculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the maximum

current allowable for each wire size. If the current surpasses the

maximum ratings, the wiring could overheat, causing serious

damage to your equipment.

Optional: The switch chassis can also be connected to a known

grounding point for additional safety and protection (grounding wire is

not included)

GND

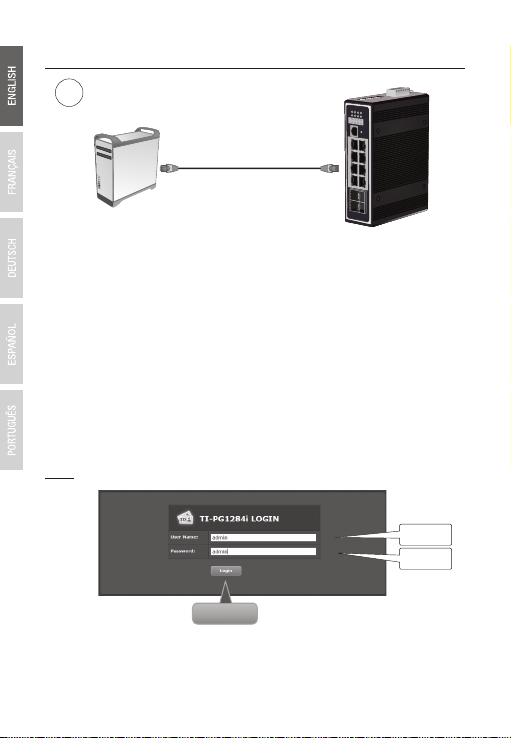

4. Hardware Configuration

Note: User Name and Password are case sensitive.

2. Assign a Static IP address to your computer's network adapter in

the subnet of 192.168.10.x

(e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.

3. Open your web browser, type the IP address of the switch in the

address bar, and then press Enter.

The default IP address is 192.168.10.200

4. Enter the User name and Password, and then click Login. By

default:

User Name: admin

Password: admin

admin

5. Click Basic Settings and then click General Settings.

Basic Settings

General Settings

6. Configure the switch to match the requirements of your network.

Then click Apply.

Apply

7. Click Save.

Save

8. Connect a network source and devices to the switch. Check the

LEDs to confirm the connections are established. Your installation is

completed.

5. Additional Information

1. Redundant power inputs

48-57VDC

Terminal Block

ALM

RPS

PWR

Redundant Power Input: “Terminal Block (PWR)” as primary power

and “Terminal Block (RPS)” for secondary power source, to be a

redundant power Input.

2. DIP Switch

1 2

PWR

RPS

ON: Primary power alarm enabled

OFF: Primary power alarm disabled

PWR

ON: Redundant power alarm enabled

OFF: Redundant power alarm disabled

RPS

ON: Port link status alarm enabled

OFF: Port link status alarm disabled

P1-12

3. LED Indicators

ON: Terminal block PWR is connected

OFF: Terminal block PWR failure

PWR

ON: Terminal block RPS is connected

OFF: Terminal block RPS failure

RPS

ON: PWR/RPS failure

OFF: No alarm setup

ALM (Red)

ON: Device system ready

OFF: Device system not ready

POST

ON: Network speed at 1000 Mbps

Blinking: Data is transmitting/receiving

10/100/1000

Mbps

ON: Port connection is established

Blinking: Data is transmitting/receiving

LINK/ACT

Orange: Network speed at 10/100 Mbps

OFF: Port disconnected

ON: SFP port link-up at 1000 Mbps

OFF: Port disconnected

SFP Slots 9 - 12

ON: PoE/PoE+ device is connected

OFF: No PoE power output or no PoE device connected

PoE Ports 1 - 8

Note: To download the latest version of the user's guide, please go to

http://www.trendnet.com/support and select the TI-PG1284i within the

Products Download dropdown list.

For detailed information regarding the TI-PG1284i's configuration and

advanced settings, please refer to the User's Guide on the provided

CD-ROM.
