TRENDnet TE100 S800i Manuel utilisateur

TE100-S800i

TE100-S810Fi

Quick Installation Guide

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. How to Connect .................................................................................

3. Using the Switch ................................................................................

.................................................................................

Table of Contents

Version 10.13.05

System Requirements

1. Workstations with network cards

2. TCP/IP protocol installed in all workstations

3. A web browser such as Internet Explorer or Netscape Navigator

4. RJ-45 Network Patch Cable to connect your workstations to the

TE100-S800i/TE100-S810Fi

AC power cord

RS-232 cable

Quick Installation Guide

User’s Guide CD-ROM

Package Content

(TE100-S800i)

8-Port 10/100Mbps Layer 2 Managed Switch

(TEG-S810Fi)

8-Port 100Base-FX Layer 2 Managed Switch with 100Base-FX Port

Workstations with 32-bit PCI

Fast Ethernet Card

(TE100-PCIWA)

Accounting

Department

Internet

Servers with 32-bit PCI

Fast Ethernet Card

(TE100-PCIWA)

Servers with 32-bit PCI

Fast Ethernet Card

(TE100-PCIWA)

Sales

Department

8-port 10/100Mbps

Fast Ethernet Mini Switch

(TE100-S88Eplus)

5-port 10/100Mbps

Fast Ethernet Mini Switch

(TE100-S5Pplus)

8-port 10/100Mbps

Fast Ethernet Mini Switch

(TE100-S8P)

MIS

Department

100Mbps

1. Before You Start

English

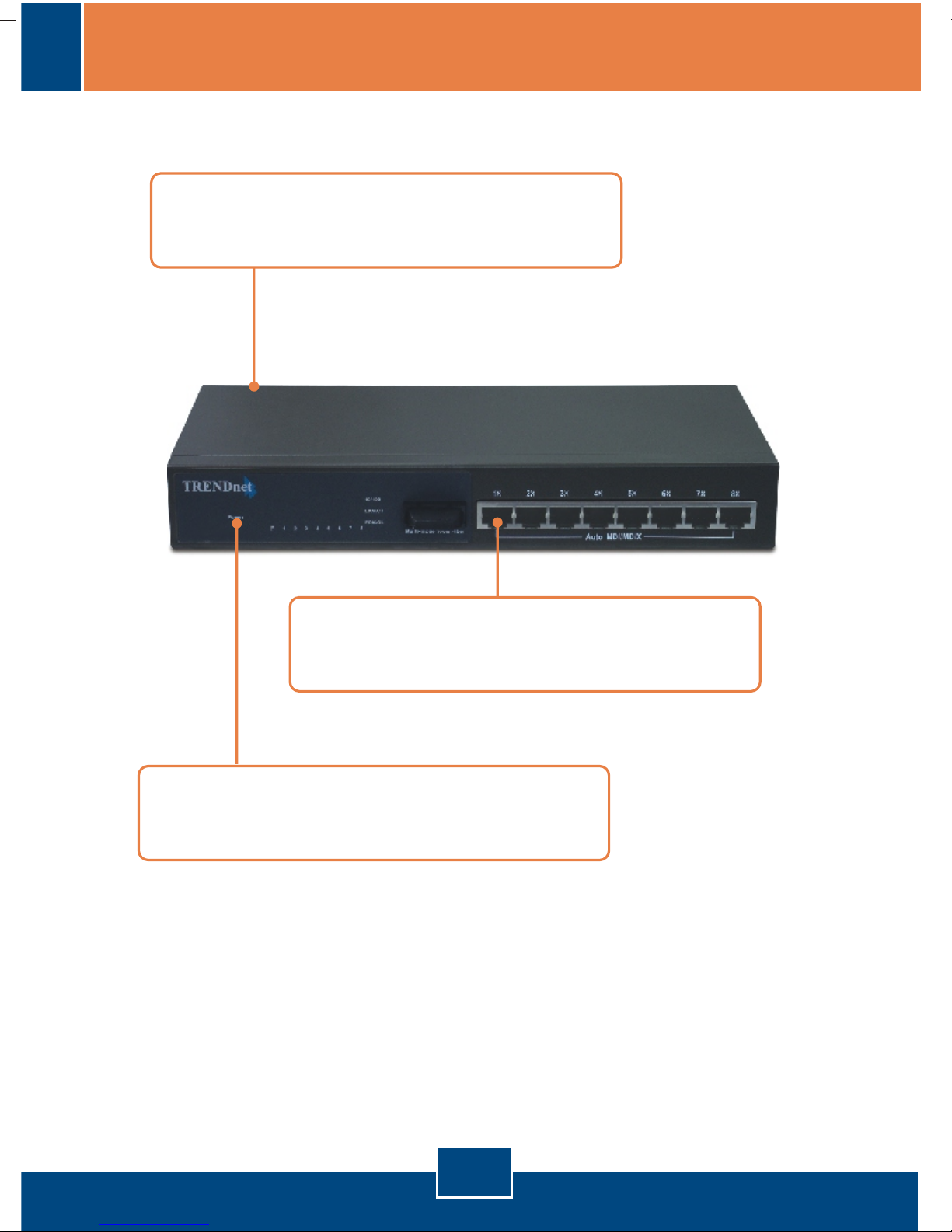

2. Connect the network cable to the front of the

switch and your PC.

1. Connect the AC Power cord to the back of

the TE100-S800i/TE100-S810Fi.

3. Verify that the PWR led displays a solid

green light.

2. How to Connect

English

1. Go to Start ? Settings ?

Control Panel.

2. Double-Click the Network

Connection Icon.

3. Right-Click Local Area

Connection, and select

Properties.

3. Using the Switch

English

Note: For more detail on advanced features, please consult the User's Guide.

Your installation is now complete.

7. Select the appropriate option to

configure the SNMP switch.

6. User Name: root

Password: root

5. Open your web browser, type

http://192.168.16.1, and press

Enter.

4. Click the General tab, select

Internet Protocol(TCP/IP), and

click Properties. Change the IP

address to 192.168.16.222 and

click OK to apply the settings.

English

Q1.

A1.

Q2.

A2.

Q3.

A3.

How come I cannot see any light from any of my LED's?

Your TE100-S800i/TE100-S810Fi is not getting any power. Make

sure that your surge protector or your outlet is getting power and make

sure that the AC Power cord is properly connected to your

TE100-S800i/TE100-S810Fi.

I changed my IP settings to 192.168.16.222 to access the switch, but I

still cannot get into the Web configuration page. What should I do?

Make sure there is no other network device using the same IP

address. Afterwards, consult the User's Guide to access the switch

through the Console Port. Once you reach the command line interface,

perform a factory reset and try again.

I performed a factory reset on the TE100-S800i/TE100-S810Fi, but I

still cannot access the web configuration page. What should I do?

If you are configuring more than one TE100-S800i/TE100-S810Fi,

then it is possible that you are experiencing IP conflict between these two

switches. Please configure each switch one at a time, and make sure you

assign a unique IP address to each switch.

If you have any questions regarding the TE100-S800i/TE100-S810Fi, please

contact TRENDnet Technical Support Department.

Troubleshooting

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com

TRENDnet Technical Support

US Canada

24/7 Tech Support

Toll Free Telephone: 1(866) 845-3673

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .

20675 Manhattan Place

Torrance, CA 90501

USA
