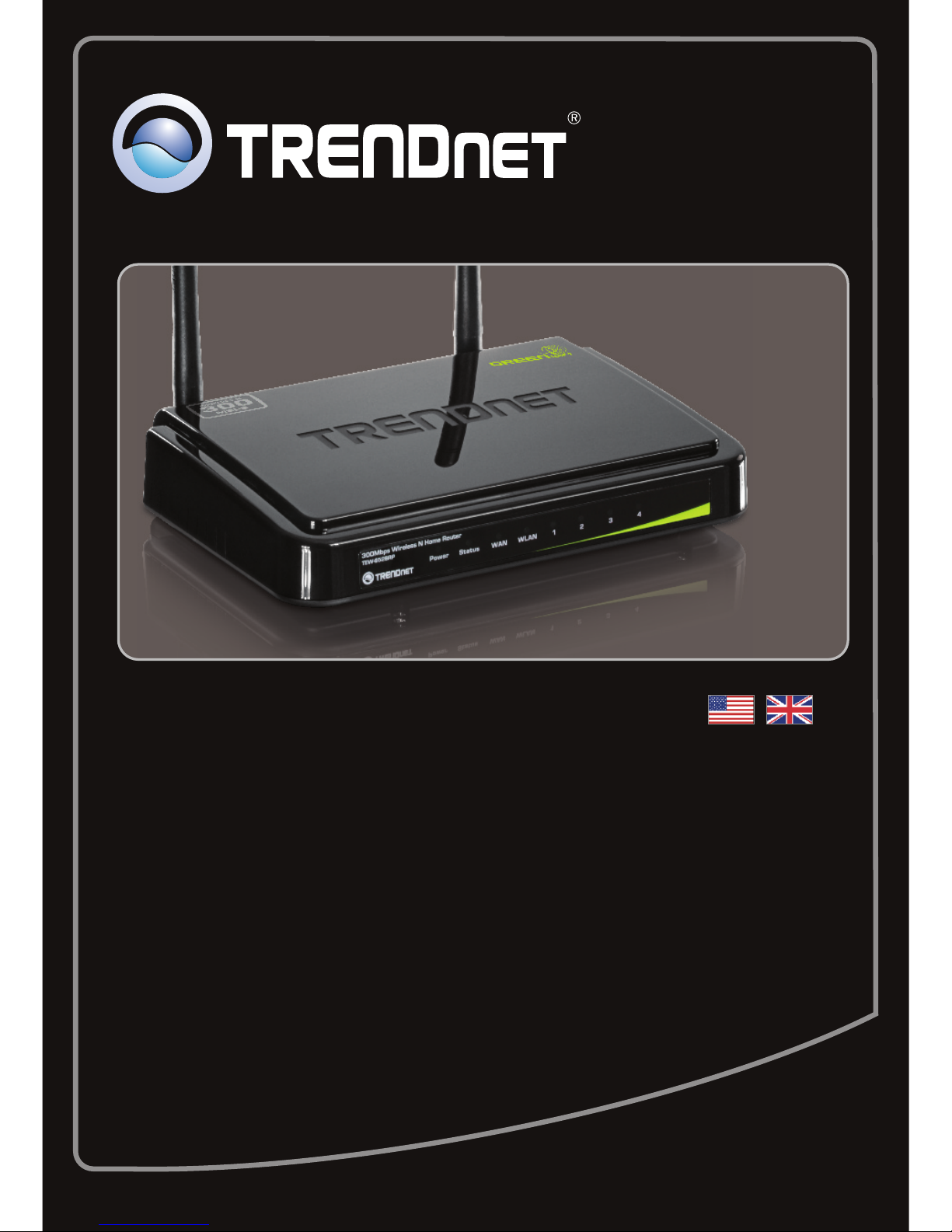

TRENDnet TEW-652BRP Manuel utilisateur
Quick Installation Guide
TEW-652BRP
3.21
Table of Contents
Version 04.13.2011
English 1
Troubleshooting 9
Wireless Tips 11
1. Before You Start 1
2. Hardware Installation 3
3. Configure the Wireless Router 5
ENGLISHFRANÇAISDEUTSCHESPAÑOL
РУССКИЙ
1. Before You Start
Package Contents
System Requirements
1
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
TEW-652BRP
CD-ROM (User's Guide)
Multi-Language Quick Installation Guide
Network Cable (1.5m/4.9ft)
Power Adapter
Ÿ
Ÿ
Ÿ
Ÿ
A computer with a wired or wireless network adapter properly installed
(Note: It is recommended that you configure the Wireless Router from a wired
computer)
Web Browser: Internet Explorer (6.0 or higher)
Broadband Internet
Installed Cable or DSL Modem
ENGLISHFRANÇAISDEUTSCHESPAÑOL
РУССКИЙ
2
Collect Internet Service Provider (ISP) Information
Please verify your Internet broadband connection type with your ISP and ensure you have all the information for
one of the following connection types:
1. Obtain IP Address Automatically (DHCP)
Host Name (Optional)
Clone Mac Address (Optional)
2. Fixed IP address
WAN IP Address: _____. _____._____._____ (e.g. 215.24.24.129)
WAN Subnet Mask: _____. _____._____._____
WAN Gateway IP Address: _____. _____._____._____
DNS Server Address 1: _____. _____._____._____
DNS Server Address 2: _____. _____._____._____
3. PPPoE to obtain IP automatically
User Name: _________
Password: ________________
Verify Password: ________________
4. PPPoE with a fixed IP address
User Name: _________
Password: ________________
Verify Password: ________________
IP Address: ____. _____._____._____ (e.g. 215.24.24.129)
5. PPTP or Russian PPTP
Type (Dynamic IP or Static IP )
My IP Address: _____. _____._____._____ (e.g. 215.24.24.129)
Subnet Mask:_____. _____._____._____
Gateway:_____. _____._____._____
Server IP: _____. _____._____._____
PPTP Account: ________________
PPTP Password: ________________
Retype Password: ________________
6. L2TP or Russia L2TP
Type (Dynamic IP or Static IP)
My IP Address: _____. _____._____._____ (e.g. 215.24.24.129)
Subnet Mask:_____. _____._____._____
Gateway:_____. _____._____._____
Server IP: _____. _____._____._____
L2TP Account: ________________
L2TP Password: ________________
Retype Password: ________________
7. Russia PPPoE
Type (Dynamic IP or Static IP)
User Name: _________
Password: ________________
Verify Password: ________________
IP Address: ____. _____._____._____ (e.g. 215.24.24.129)
ENGLISHFRANÇAISDEUTSCHESPAÑOL
РУССКИЙ
2. Hardware Installation
3
Note: Gather all information related to your Internet Connection before you start. If necessary,
contact your Internet Service Provider (ISP).
Cable/DSL Modem
Internet
1. Verify that you have an Internet connection
when connecting your computer directly to the
Cable or DSL modem. Open your browser (e.g.
Internet Explorer) and type in a URL (e.g.
http://www.trendnet.com) in the address bar.
2. Power off your cable or DSL modem.
3. Disconnect the network cable from your Cable
or DSL modem and your computer.
6. Connect the Power Adapter to the wireless
router and then to a power outlet. Push the
power button to the “On” position.
4. Connect one end of a Network cable to one of
the TEW-652BRP's LAN ports. Connect the
other end of the cable to the computer's
Ethernet port.
5. Connect one end of a network cable to the
TEW-652BRP’s WAN port. Connect the other
end of the cable to your modem’s network port.
ENGLISHFRANÇAISDEUTSCHESPAÑOL
РУССКИЙ
4
7. Power on your cable or DSL modem. Wait until
the LEDs indicate that modem is fully booted
up. Consult with the modem user's guide for
more information.
8. Verify that the following panel lights are on:
Power (Green), Status (Green), LAN (Green),
WAN and WLAN (Green).
ENGLISHFRANÇAISDEUTSCHESPAÑOL
РУССКИЙ
5
3. Configure the Wireless Router
Note: It is recommended that you configure the Wireless Router from a wired computer.
2. Enter the User Name and password and then
click Login. By default:
User Name: admin
Password: admin
Note: User name and Password are case
sensitive.
3. The Wizard will automatically appear. Click
Wizard if the Wizard does not automatically
appear.
1. Open your web browser, type
http://192.168.10.1 in the Address bar, and
then press Enter.
ENGLISHFRANÇAISDEUTSCHESPAÑOL
РУССКИЙ
6
5. Enter a Password, verify the Password and
then click Next. By default, the Password is
admin.
6. Select your Time Zone and then click Next.
7. Click Next. Note: In most cases, the default
LAN & DHCP server settings are fine.
8. Configure the settings based on information
provided by your ISP. Follow the wizard
instructions to complete the configuration.
Note: Each Internet Connection type may have
different options.
4. Click Next.
ENGLISHFRANÇAISDEUTSCHESPAÑOL
РУССКИЙ
7
Note:
1: To protect your network from any unauthorized access it is recommended to enable
wireless encryption. Please refer to the User’s Guide on the CD-ROM for information
on setting up encryption on the wireless router.
2: Once encryption is enabled on the router, each wireless computer and device must
be configured with the same encryption key.
13. Click Restart.
10. Enter a unique SSID (Network Name). Do not
use anything that would be identifying like
“Smith Family Network”. Choose something
that you would easily identify when searching
for available wireless networks.
9. Select Enable for Wireless LAN. Select Disable
if you do not want any wireless computers or
device to connect to this device.
11. In most cases, the default channel is fine.
12. Click Next.
14. Wait 10 seconds while the router reboots.
ENGLISHFRANÇAISDEUTSCHESPAÑOL
РУССКИЙ
8
15. Open up your browser and enter in a URL
(e.g. www.trendnet.com) to verify that you
have Internet connection.
Your configuration is now complete
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
For detailed information regarding the TEW-652BRP’s configuration and advanced settings,
please refer to User's Guide included on the CD-ROM, or TRENDnet's website at
http://www.trendnet.com.
