TPI Amp Plus 296 Manuel utilisateur

296

Digital Clamp-on

Meter Amp Plus

Instruction Manual

www. .com information@itm.com1.800.561.8187

All manuals and user guides at all-guides.com

all-guides.com

A. INTRODUCTION

1. Congratulations!!

Thank you for purchasing TPI products. The

Amp Plus is easy to use and is built to last.

It is backed by a 3 year limited warranty.

Please remember to complete and return

your product warranty registration card.

2. Product Description

The 296 is a clamp-on plus DMM with True RMS and

Harmonics capabilities. The 296 offers measurements in

all basic electrical functions, plus:

•True RMS Provides accurate and dependable

readings of non-linear loads.

•HDR Mode Determines if a signal is clean or

distorted.

•Bar Graph When measuring frequency, bar

graph indicates current level.

•TRIM Mode Smooths out unstable readings.

•Peak Mode For start-up and inrush currents.

•Sleep Mode Preserves battery life.

•Data Hold Holds the reading on the display for

easy viewing.

The 296 comes complete with the following accessories:

Carrying Pouch Instruction Manual

Test Lead Set Battery

TABLE OF CONTENTS

A. INTRODUCTION

1. Congratulations ..........................3

2. Product Description....................3

3. Declaration of Conformity ..........4

B. SAFETY CONSIDERATIONS ..............5

C. TECHNICAL DATA

1. Features and Benefits..................7

2. Product Applications ..................8

3. Specifications..............................9

D. MEASUREMENT TECHNIQUES

1. Controls and Functions ............12

2. Step by Step Procedures: ........15

E. ACCESSORIES ................................28

F. MAINTENANCE ................................29

G. TROUBLE SHOOTING GUIDE ..........30

www. .com information@itm.com1.800.561.8187

All manuals and user guides at all-guides.com

A. INTRODUCTION

1. Congratulations!!

Thank you for purchasing TPI products. The

Amp Plus is easy to use and is built to last.

It is backed by a 3 year limited warranty.

Please remember to complete and return

your product warranty registration card.

2. Product Description

The 296 is a clamp-on plus DMM with True RMS and

Harmonics capabilities. The 296 offers measurements in

all basic electrical functions, plus:

•True RMS Provides accurate and dependable

readings of non-linear loads.

•HDR Mode Determines if a signal is clean or

distorted.

•Bar Graph When measuring frequency, bar

graph indicates current level.

•TRIM Mode Smooths out unstable readings.

•Peak Mode For start-up and inrush currents.

•Sleep Mode Preserves battery life.

•Data Hold Holds the reading on the display for

easy viewing.

The 296 comes complete with the following accessories:

Carrying Pouch Instruction Manual

Test Lead Set Battery

TABLE OF CONTENTS

A. INTRODUCTION

1. Congratulations ..........................3

2. Product Description....................3

3. Declaration of Conformity ..........4

B. SAFETY CONSIDERATIONS ..............5

C. TECHNICAL DATA

1. Features and Benefits..................7

2. Product Applications ..................8

3. Specifications..............................9

D. MEASUREMENT TECHNIQUES

1. Controls and Functions ............12

2. Step by Step Procedures: ........15

E. ACCESSORIES ................................28

F. MAINTENANCE ................................29

G. TROUBLE SHOOTING GUIDE ..........30

www. .com information@itm.com1.800.561.8187

All manuals and user guides at all-guides.com

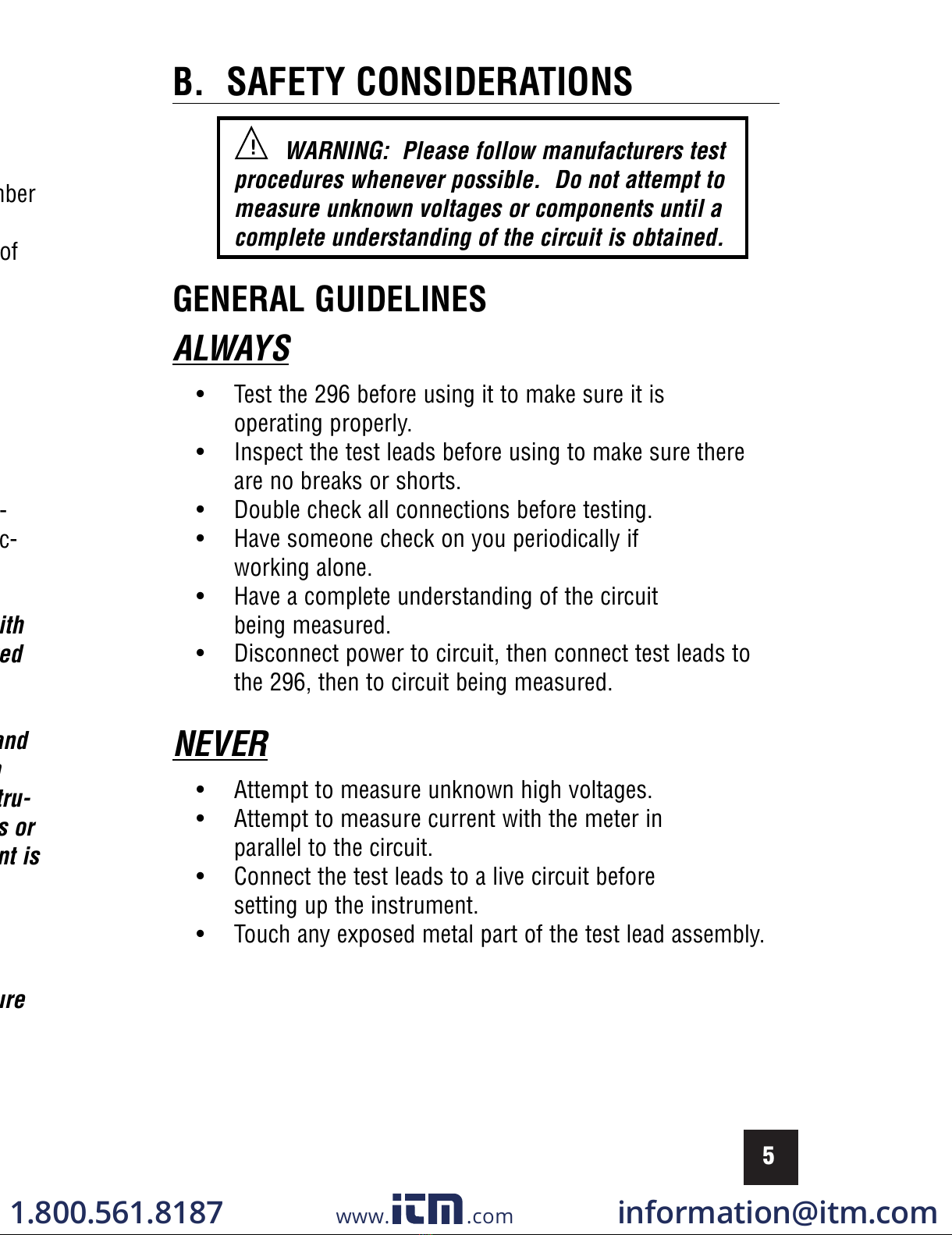

B. SAFETY CONSIDERATIONS

WARNING: Please follow manufacturers test

procedures whenever possible. Do not attempt to

measure unknown voltages or components until a

complete understanding of the circuit is obtained.

GENERAL GUIDELINES

ALWAYS

• Test the 296 before using it to make sure it is

operating properly.

• Inspect the test leads before using to make sure there

are no breaks or shorts.

• Double check all connections before testing.

• Have someone check on you periodically if

working alone.

• Have a complete understanding of the circuit

being measured.

• Disconnect power to circuit, then connect test leads to

the 296, then to circuit being measured.

NEVER

• Attempt to measure unknown high voltages.

• Attempt to measure current with the meter in

parallel to the circuit.

• Connect the test leads to a live circuit before

setting up the instrument.

• Touch any exposed metal part of the test lead assembly.

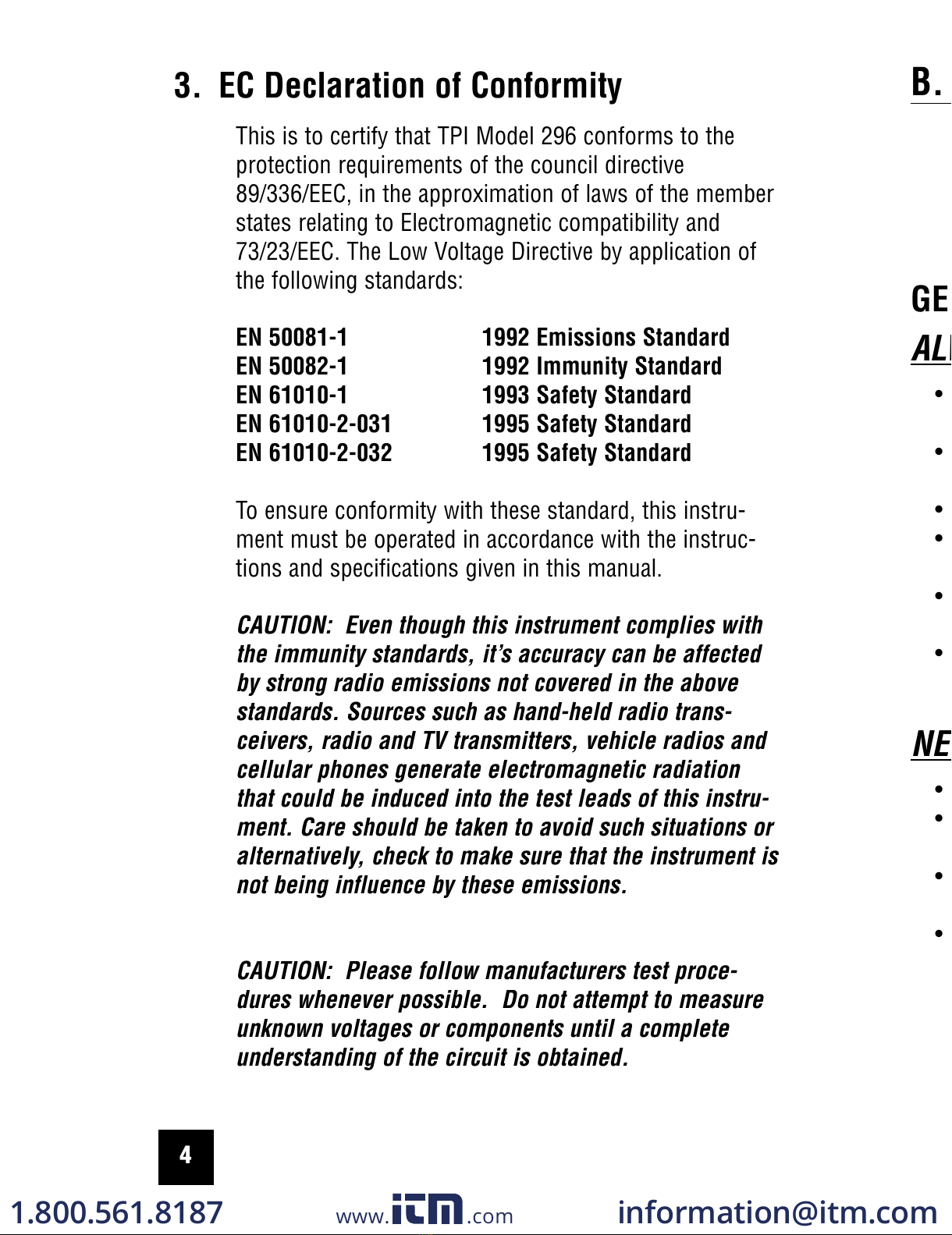

3. EC Declaration of Conformity

This is to certify that TPI Model 296 conforms to the

protection requirements of the council directive

89/336/EEC, in the approximation of laws of the member

states relating to Electromagnetic compatibility and

73/23/EEC. The Low Voltage Directive by application of

the following standards:

EN 50081-1 1992 Emissions Standard

EN 50082-1 1992 Immunity Standard

EN 61010-1 1993 Safety Standard

EN 61010-2-031 1995 Safety Standard

EN 61010-2-032 1995 Safety Standard

To ensure conformity with these standard, this instru-

ment must be operated in accordance with the instruc-

tions and specifications given in this manual.

CAUTION: Even though this instrument complies with

the immunity standards, it’s accuracy can be affected

by strong radio emissions not covered in the above

standards. Sources such as hand-held radio trans-

ceivers, radio and TV transmitters, vehicle radios and

cellular phones generate electromagnetic radiation

that could be induced into the test leads of this instru-

ment. Care should be taken to avoid such situations or

alternatively, check to make sure that the instrument is

not being influence by these emissions.

CAUTION: Please follow manufacturers test proce-

dures whenever possible. Do not attempt to measure

unknown voltages or components until a complete

understanding of the circuit is obtained.

www. .com information@itm.com1.800.561.8187

All manuals and user guides at all-guides.com

B. SAFETY CONSIDERATIONS

WARNING: Please follow manufacturers test

procedures whenever possible. Do not attempt to

measure unknown voltages or components until a

complete understanding of the circuit is obtained.

GENERAL GUIDELINES

ALWAYS

• Test the 296 before using it to make sure it is

operating properly.

• Inspect the test leads before using to make sure there

are no breaks or shorts.

• Double check all connections before testing.

• Have someone check on you periodically if

working alone.

• Have a complete understanding of the circuit

being measured.

• Disconnect power to circuit, then connect test leads to

the 296, then to circuit being measured.

NEVER

• Attempt to measure unknown high voltages.

• Attempt to measure current with the meter in

parallel to the circuit.

• Connect the test leads to a live circuit before

setting up the instrument.

• Touch any exposed metal part of the test lead assembly.

3. EC Declaration of Conformity

This is to certify that TPI Model 296 conforms to the

protection requirements of the council directive

89/336/EEC, in the approximation of laws of the member

states relating to Electromagnetic compatibility and

73/23/EEC. The Low Voltage Directive by application of

the following standards:

EN 50081-1 1992 Emissions Standard

EN 50082-1 1992 Immunity Standard

EN 61010-1 1993 Safety Standard

EN 61010-2-031 1995 Safety Standard

EN 61010-2-032 1995 Safety Standard

To ensure conformity with these standard, this instru-

ment must be operated in accordance with the instruc-

tions and specifications given in this manual.

CAUTION: Even though this instrument complies with

the immunity standards, it’s accuracy can be affected

by strong radio emissions not covered in the above

standards. Sources such as hand-held radio trans-

ceivers, radio and TV transmitters, vehicle radios and

cellular phones generate electromagnetic radiation

that could be induced into the test leads of this instru-

ment. Care should be taken to avoid such situations or

alternatively, check to make sure that the instrument is

not being influence by these emissions.

CAUTION: Please follow manufacturers test proce-

dures whenever possible. Do not attempt to measure

unknown voltages or components until a complete

understanding of the circuit is obtained.

www. .com information@itm.com1.800.561.8187

All manuals and user guides at all-guides.com

INTERNATIONAL SYMBOLS

CAUTION: RISK OF ELECTRIC SHOCK

AC (ALTERNATION CURRENT)

DC (DIRECT CURRENT)

REFER TO INSTRUCTION MANUAL

GROUND

DOUBLE INSULATION

EITHER DC OR AC

C. TECHNICAL DATA

1. Features and Benefits

Agency UL Listed to U.S. and Canadian Safety

Standards. Meets CE and IEC 1010.

True RMS Needed to accurately measure non-sinu-

soidal AC voltage and current waveforms

found on many controls and circuits.

HDR Mode Determines if a signal is clean or distorted.

Displays the harmonic distortion ratio on

ACV and ACA at line voltage and 60 Hz.

4000 Count Improves the resolution on all functions

and ranges.

Data Hold Maintains the reading on the display for

hard to reads areas.

Peak Mode Measure the inrush current of motors,

relays and solenoids.

Trim Mode Averages the readings for more stable out-

put on LCD.

Record Mode Records Min/Max and Average value of the

function being measured.

Sleep Mode Automatically powers down after 10

minutes of inactivity.

Frequency Measures the frequency of the current

being measured.

Dual Display When measuring frequency, the bar graph

indicates the current level.

Bar Graph Shows rapidly changing input signals

that the normal display will not.

www. .com information@itm.com1.800.561.8187

All manuals and user guides at all-guides.com

all-guides.com

INTERNATIONAL SYMBOLS

CAUTION: RISK OF ELECTRIC SHOCK

AC (ALTERNATION CURRENT)

DC (DIRECT CURRENT)

REFER TO INSTRUCTION MANUAL

GROUND

DOUBLE INSULATION

EITHER DC OR AC

C. TECHNICAL DATA

1. Features and Benefits

Agency UL Listed to U.S. and Canadian Safety

Standards. Meets CE and IEC 1010.

True RMS Needed to accurately measure non-sinu-

soidal AC voltage and current waveforms

found on many controls and circuits.

HDR Mode Determines if a signal is clean or distorted.

Displays the harmonic distortion ratio on

ACV and ACA at line voltage and 60 Hz.

4000 Count Improves the resolution on all functions

and ranges.

Data Hold Maintains the reading on the display for

hard to reads areas.

Peak Mode Measure the inrush current of motors,

relays and solenoids.

Trim Mode Averages the readings for more stable out-

put on LCD.

Record Mode Records Min/Max and Average value of the

function being measured.

Sleep Mode Automatically powers down after 10

minutes of inactivity.

Frequency Measures the frequency of the current

being measured.

Dual Display When measuring frequency, the bar graph

indicates the current level.

Bar Graph Shows rapidly changing input signals

that the normal display will not.

www. .com information@itm.com1.800.561.8187

All manuals and user guides at all-guides.com

3. Specifications

IEC 1010 Over Voltage:

CAT II - 1000V

CAT III - 600V

Pollution Degree 2

a. DCV

Range Resolution Accuracy Impedance

40V 0.01V ±0.75% of reading, 10Mohm

400V 0.1V ±3 digits

600V 1V

b1. ACV (45Hz to 60Hz)

Range Resolution Accuracy Impedance

40V 0.01V ±1.0% of reading, 10Mohm

400V 0.1V ±3 digits

600V 1V

b2. ACV (20Hz to 45Hz, 60Hz to 1KHz)

Range Resolution Accuracy Impedance

40V 0.01V ±2.5% of reading, 10Mohm

400V 0.1V ±3 digits

600V 1V

UL 3111-1

2. Product Applications

Perform the following tests and/or measurements with

the 296 and the appropriate function:

HVAC/R

ACA • Heat anticipator current in thermostats.

ACV • Line voltage.

ACV or DCV • Control circuit voltage.

OHMS • Heating element resistance (continuity).

OHMS • Compressor winding resistance.

OHMS • Contactor and relay coil resistance.

ACA • Motor and compressor start up current.

OHMS • Continuity of wiring.

Hz/FREQ • Frequency on control and line voltages.

REC • Record min/max voltage of controls

and line voltages.

ALL • Bar graph to indicate rapid fluctuations.

ELECTRICAL

ACV • Measure line voltage.

ACA • Measure line current.

OHMS • Continuity of circuit breakers.

DCV • Voltage of direct drive DC motors.

DCA • Current of direct drive DC motors.

ACA • Start up current of motors, relays,

contactors and transformers.

ALL • Harmonics detection on line voltages.

ELECTRONIC

ACV • Measure power supply voltage.

ACA • Measure power supply current.

OHMS • Continuity of circuit breakers and fuses.

www. .com information@itm.com1.800.561.8187

All manuals and user guides at all-guides.com

3. Specifications

IEC 1010 Over Voltage:

CAT II - 1000V

CAT III - 600V

Pollution Degree 2

a. DCV

Range Resolution Accuracy Impedance

40V 0.01V ±0.75% of reading, 10Mohm

400V 0.1V ±3 digits

600V 1V

b1. ACV (45Hz to 60Hz)

Range Resolution Accuracy Impedance

40V 0.01V ±1.0% of reading, 10Mohm

400V 0.1V ±3 digits

600V 1V

b2. ACV (20Hz to 45Hz, 60Hz to 1KHz)

Range Resolution Accuracy Impedance

40V 0.01V ±2.5% of reading, 10Mohm

400V 0.1V ±3 digits

600V 1V

UL 3111-1

2. Product Applications

Perform the following tests and/or measurements with

the 296 and the appropriate function:

HVAC/R

ACA • Heat anticipator current in thermostats.

ACV • Line voltage.

ACV or DCV • Control circuit voltage.

OHMS • Heating element resistance (continuity).

OHMS • Compressor winding resistance.

OHMS • Contactor and relay coil resistance.

ACA • Motor and compressor start up current.

OHMS • Continuity of wiring.

Hz/FREQ • Frequency on control and line voltages.

REC • Record min/max voltage of controls

and line voltages.

ALL • Bar graph to indicate rapid fluctuations.

ELECTRICAL

ACV • Measure line voltage.

ACA • Measure line current.

OHMS • Continuity of circuit breakers.

DCV • Voltage of direct drive DC motors.

DCA • Current of direct drive DC motors.

ACA • Start up current of motors, relays,

contactors and transformers.

ALL • Harmonics detection on line voltages.

ELECTRONIC

ACV • Measure power supply voltage.

ACA • Measure power supply current.

OHMS • Continuity of circuit breakers and fuses.

www. .com information@itm.com1.800.561.8187

All manuals and user guides at all-guides.com

g. Diode Test

Test Voltage Max Test Current Over Load Protection

3V Approx. 2.5mA 600 V DC or Peak AC

h. Frequency

Range Res. Accuracy Overload

Protection

1KHz 0.1Hz ±0.2% of reading, 600V DC or

10KHz 0.001KHz ±3 digits AC Peak

h. General Specifications

Max. Volt. between 600V

any Input and Ground

Display Type 4,000 Count, 4 times per

second update

Operating Temp. -10° to 45°C (14° to 113°F)

Storage Temp. -20° to 55°C (-4° to 131°F)

Relative Humidity 0% to 80% (0° - 35°C/32° - 95°F)

0% to 70% (35° - 50°C/95° - 122°F)

Power Supply 9 Volt Battery

Battery Life 80 hrs. Alkaline

Size (H x L x W) 40mm x 190mm x 65mm

(1.5in x 7.25in x 2.5in)

Weight 315g (11.1oz)

c. ACA

Range Res. Accuracy Freq. Response

40A 0.01A ±2% of reading, ±20 digits 45Hz to 60Hz

±4% of reading, ±20 digits 30Hz to 45Hz

±4% of reading, ±20 digits 60Hz to 1KHz

400A 0.1A ±2% of reading, ±10 digits 45Hz to 60Hz

700A 1A ±5% of reading, ±10 digits 30Hz to 45Hz

±5% of reading, ±10 digits 60Hz to 1KHz

d. DCA

Range Resolution Accuracy

400A 0.1A ±2% of reading, ±10 digits

700A 1A ±2% of reading, ±15 digits

e. OHM (Resistance, )

Range Res. Accuracy Overload

Protection

400 0.1 ±1% of reading, ±10 digits 600V DC or

4k 0.001k ±1% of reading, ±3 digits AC Peak

40k 0.01k

f. Continuity Buzzer

Test Voltage Threshold Over Load Protection

3V < 100 ohm(100 digits) 600 V DC or Peak AC

*Warning: Test Leads. Use only correct type and

overvoltage category rating.

www. .com information@itm.com1.800.561.8187

All manuals and user guides at all-guides.com

Table des matières

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
