Thank you for purchasing the Odyssey™
Thank you for purchasing your Totally Wicked Odyssey™. The product has been
both designed and manufactured in the United Kingdom, to exacting standards and
tolerances, to deliver what we believe to be one of the finest examples of a multi-
purpose electronic cigarette device. The kit provides a revolutionary rechargeable
battery holder and power operation control, combined with a unique Dual Coil Tank
(DCT) cartomizer system. Together, the device delivers performance, aesthetics and
quality and an electronic cigarette that can be cherished. To illustrate our confidence
in the design and production quality, we offer the Odyssey™ with an unrivalled 5-year
guarantee.
We hope you believe we have achieved our design aim:
‘Something you want to keep forever for the price of something
you would normally throw away’ (see page 26 for more information
on the development of the Odyssey™).
Please read this manual in full as it contains
essential information to get your Odyssey™
experience underway, useful tips
and instructions on how to care for your
Odyssey™ and important
safety information.
4 5
Contents
Parts description 5
Kit contents 6
About the guide 7
Battery charging 7
Assembly and operation
of your Odyssey™ 10
Understanding the DCT 11
Fitting the cartomizer into the DCT
and preparing to fill the tank 12
Filling the tank with e-liquid 14
Priming the cartomizer
for the first time 16
Odyssey™ locking button 17
Operation 18
Compatibility 19
Cartomizer life & battery life 20
Care and Maintenance 21
Replacing ‘O’ rings seals 22
Odyssey™ battery care and safety 22
Important safety information 23
Troubleshooting 26
The Odyssey™ story 28
Parts description
Your Odyssey™ kit comes with all you will need (except for some e-liquid, which we
will let you choose!) to get your Odyssey™ vaping experience underway. Please
take a moment to check your kit contents against the list provided below. Once you
have confirmed your full kit contents, you can then follow the detailed instructions to
prepare your Odyssey™ for use.

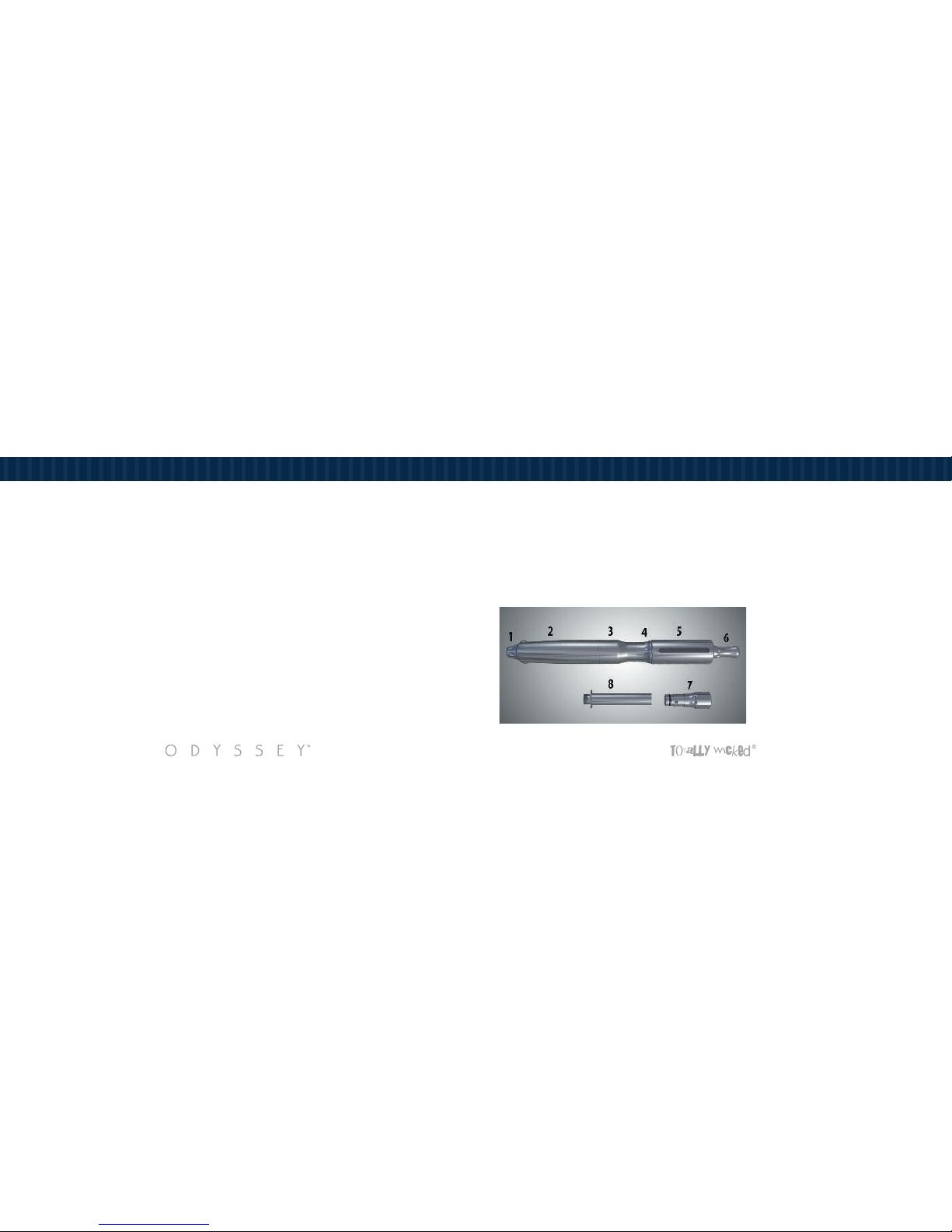

1. Power button (lockable).
2. Lower Odyssey body.
3. Upper Odyssey body.
4. Decorative plinth.
5. Odyssey tank.
6. Mouthpiece/driptip.
7. Filling device.
8. Dual coil cartomizer (1.5ohm).
6 7
The Kit contents
1 x Odyssey body.
1 x Decorative plinth.
1 x Stainless steel tank (3.48ml capacity).
1 x Mouthpiece/drip-tip.
1 x Filling device.
2 x 1.5ohm dedicated cartomizers.
1 x Charger unit (with appropriate adaptor for your power supply).
2 x 3.7V 900mAh 14500 Lithium ion protected circuit batteries.
1 x Mains charger, supplied with a power adapter where required (UK and EU).
About the Guide
The following is a step by step guide to assembling and using your product for the
first time. We recognise that many Odyssey™ owners will be experienced electronic
cigarette users. However, we believe that following the steps detailed in this section
of the manual will ensure that all users achieve the optimum results from their
Odyssey™ from first use.
Battery Charging
The batteries provided are 900mAh, 3.7v, 14500 Lithium Ion cells. For extra safety
and protection the batteries are built with serial over-current protection to protect both
the device and user from the effects of high current events. They are provided with a
limited charge and will require charging fully before first use. The kit is supplied with
both a standard USA wall charger and, as necessary, dependent upon the owner’s
location, either a UK our European 3 pin adaptor. We recommend a switched power
outlet is used. Please follow the procedure below for first charging and subsequent
recharging requirements:
8 9
• Plug the charger into the power socket
(if in the UK or EU use the supplied power adapter).
• Switch on the power socket. The charging LED should be green -
Switch off the power socket.
• Batteries must be inserted into the charger in the correct orientation.
FAILURE TO FIT BATTERIES INTO THE CHARGER WITH CORRECT POLARITY WILL
RESULT IN TERMINAL BATTERY FAILURE AND POTENTIALLY DANGER TO THE USER.
• Insert one or two batteries into the charger - Switch on the power socket.
Unless the batteries are fully charged the LED will indicate red and charging will
automatically commence.
• The charging light will change to green when the batteries are fully charged.
• A fully discharged battery may take several hours to charge fully.
• If the battery is removed before it is fully charged it will still power the device
but the operating time will be reduced.
Please Note: To prevent potential damage to the charger, switch the charger off at the
power supply before removing or inserting the battery.
If the light on the charger does not turn
red this may indicate:
• A battery that is already fully charged.
• A faulty charger.
• A faulty battery.
It is advisable to keep the charger away
from sources of heat or flammable
materials when in use.
Charging Fully Charged
1 0 1 1
Assembly and operation of your Odyssey™
• Unscrew the top (3) and bottom (2) halves of the Odyssey body. Insert a fully
charged battery into the lower body with the positive (+) terminal towards the
atomizer connector.
• With the battery correctly inserted, screw the lower and upper battery bodies
together until hand tight.
• Take the plinth (4) and screw the plinth, narrow section toward the battery body,
until the plinth is fully seated and hand tight.
Understanding the DCT
The cartomizers supplied with the kit are unique to the Odyssey™. You will notice
that the cartomizer has two holes, each hole is 1mm in diameter and are placed 180
degrees apart. The position of the holes on the tube body has been determined to
ensure the maximum usable capacity of the DCT. Together the design of both the
cartomizer and the DCT has been optimised to provide what we believe to be the best
DCT function available on the market today. The cartomizer is held firmly in the DCT
housing by means of two O-rings: one at the bottom and one at the top of the DCT.
The fit of cartomizer within the DCT is designed intentionally to be tighter than for
other DCTs that you may have used. These seals are vitally important to the operation
of the DCT/cartomizer unit and every care must be taken to prevent damage during,
insertion, extraction and usage. Please follow the instructions provided to ensure that
your DCT achieves its designed performance.
1 2 1 3
Fitting the cartomizer into the DCT and preparing to fill the tank
Carefully insert the cartomizer (8) in to the tank (5). The cartomizer should be
inserted squarely into the DCT, using a gentle twisting action to push the cartomizer
smoothly through the O-rings. Take care not to insert the cartomizer off-square as
this can lead to O-ring damage.
Fit the assembled DCT and cartomizer onto the body of the Odyssey™ ensuring the
flange of the cartomizer “clicks” into the profiled rebate on the DCT. Once in position
this will prevent the tank itself rotating around the cartomizer.
Insert the tank filling device (7) into the open end of the cartomizer using a slight
twisting motion until it is fully seated in the cartomizer.
Holding the filler firm, slide the tank up the cartomizer towards the filler until the upper
surface of the DCT is in contact with the lower surface of the filler. The tank is now
ready to be filled with e-liquid.
1 4 1 5
Filling the tank with e-liquid
Holding the tank at an angle of about 45°
as shown, and with one sight-glass facing
upwards, slowly pour the e-liquid into the
filler. If the filler air-locks through filling too
quickly, give the tank a gentle shake until
air bubbles appear, and continue filling at a
slightly slower rate. When the fluid is close
to the top of the sight glass the tank is
effectively full. A small air gap is required
for effective DCT performance. Ensure that
you do not overfill the funnel and that there
is sufficient spare capacity in the DCT to
accommodate all fluid poured into the filler.
When the tank is full, check the filler device has completely drained before sliding the
DCT body down the cartomiser to its bottom position.
Remove the filling device by twisting it as you pull it up.
1 6 1 7
Priming the cartomizer for the first time
Before first use, every cartomizer must be ‘primed’ with e-liquid. Failure to do so will
cause permanent damage to the cartomizer and affect both the performance of the
cartomizer and the flavour produced by the device.
Hold the tank at a slight angle. Slowly add approximately 30 to 40 drops of e-liquid
into the cartomizer, allowing each drop to soak in into cartomizer fibre, finally fit the
mouthpiece and the DCT is ready for first use.
Odyssey™ locking button
A unique feature of the Odyssey™ is the power operating button and its safety locking
feature. The power button includes a simple locking mechanism that prevents the
button from being unintentionally depressed. The button is locked by rotating the
button approximately 20 degrees clockwise, until a firm lock is felt and ‘click’ is heard.
The button will stay safely locked until the button is rotated in the opposite direction to
unlock and allow for power application. Avoid depressing the button whilst attempting
to lock the Odyssey™, as it will only lock in the ‘out’ rather than the ‘in’ position.
1 8 1 9
Operation
With the Odyssey™ now fully assembled and the operation of the locking
and power switch understood, you are ready to go. Holding the device in
either hand, we recommend holding the device in the manner shown below.
The button is spring loaded so that only light pressure is required to depress and
operate the device. Once the pressure is released, the spring tension will recover
the switch to its dormant position and power will be removed from the atomizer
connector.
Whilst depressing the power button, slowly inhale through
the mouthpiece using a long and constant draw. Once
you have finished inhaling, simply remove pressure from
the button to remove power from the cartomizer.
Compatibility
The Odyssey™ battery holder has been designed to accommodate the widest
range of atomizers. As is illustrated below, the device can be used with all your
other Totally Wicked atomizing Devices. Simply choose your favourite and the
Odyssey™ will accommodate.
Also compatible with:
• All Titan and Tornado atomizers • Tornado Dual Coil Cartomizers
• And many other 510 Threaded atomizers
