Congratulations on purchasing your new
Totally Wicked Revolution S Electronic Cigarette.
The Totally Wicked Revolution S succeeds the vastly popular Revolution VT60. The Revolution
S retains the style and exceptional functionality of its predecessor, whilst providing a higher
power output of 80 Watts and utilising an enhanced temperature control system, allowing you
to nely tune your device to suit your vaping style. Additionally, upgradeable rmware means
that you will always be up to date. The user is provided with six modes of vaping operation;
Variable Power (W); Variable Temperature with Nickel Coils (Ni); Variable Temperature with
Titanium Coils (Ti); Variable Temperature with Stainless Steel Coils (SS316); Temperature
Coefcient of Resistance (TCR) and Bypass. The adjustable modes allow for incremental
settings in terms of watts or temperature. The Revolution S presents the all new custom logo
and game modes, along with adjustable date and time display. This device combines all of
its functionality and 5000mAh battery in a sleek and ergonomic, yet simple to use package,
suitable for all electronic cigarette users.

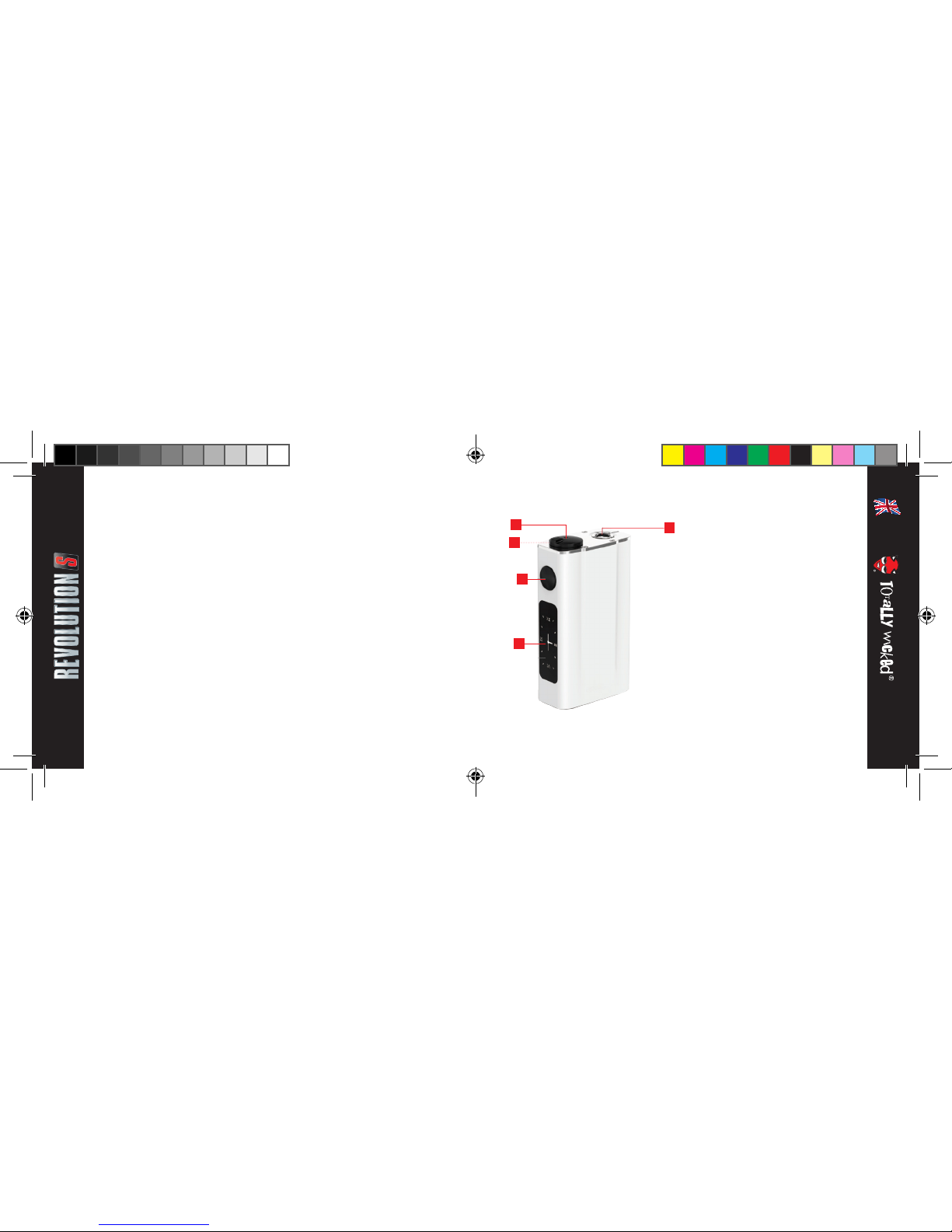

A. Output Adjuster
B. 510 Spring Loaded Atomizer
Connector
C. Micro USB Charging Port
D. Power Button
E. OLED Screen
E
D
C
B
A
TW_Revolution S Manual.indd 2-3 27/06/2016 14:45
4 5
Using your Revolution S
Power On and Off:
The Revolution S uses a 5-click on/off function. To switch the
device on, press the power button 5 times in quick succession.
The OLED screen will illuminate, signifying that the device is
powered on. If the Revolution S is powered on the user can
press the button 5 times to switch the device off.
Vaping:
Simply press the power button as you inhale.

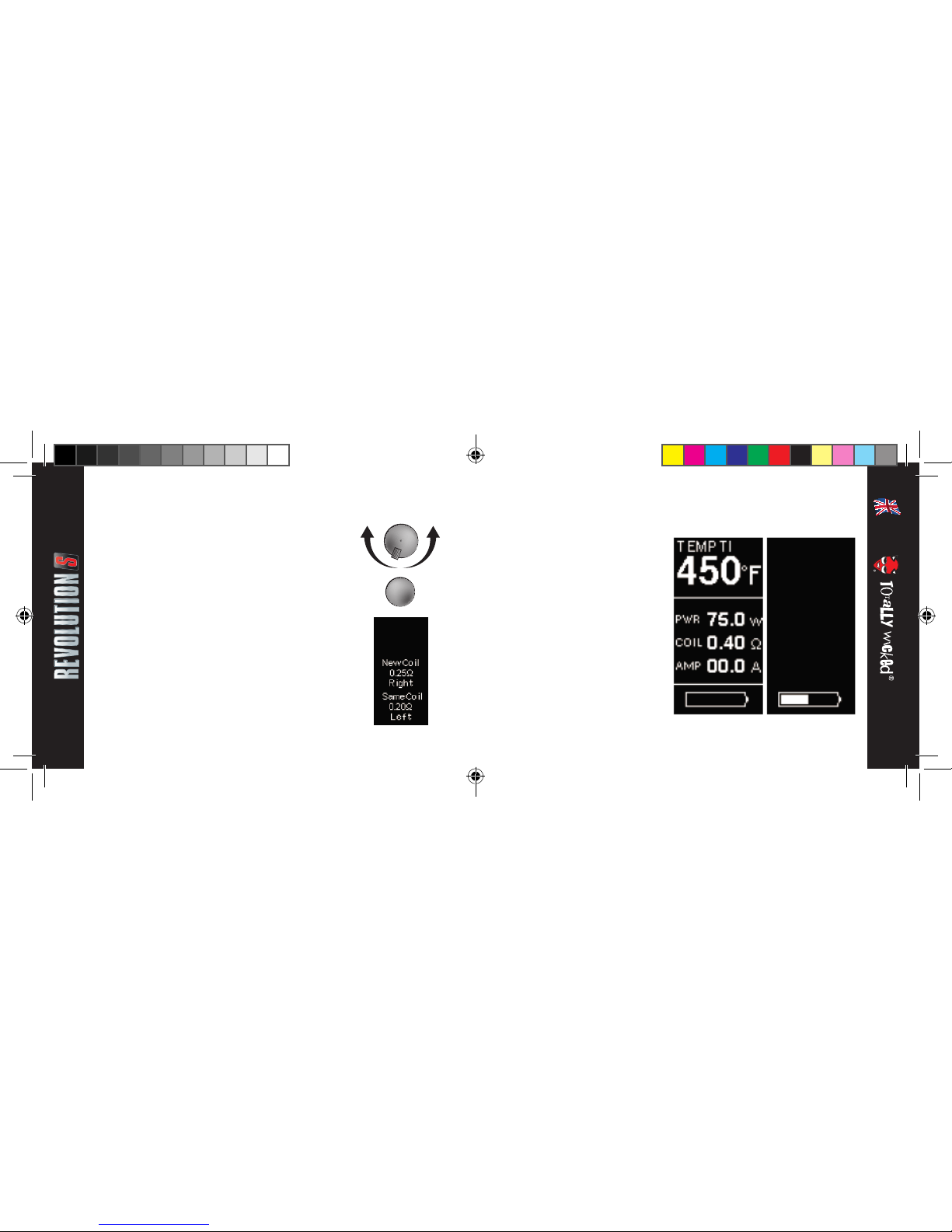

New Atomizer Installation:
When a new atomizer is connected, or the existing atomizer
is disconnected and reconnected, a message prompt may
be displayed – ‘New Coil Right, Same Coil Left’. Turn the
adjustment switch to the right to conrm that a new atomizer
has been connected, or to the left to conrm that the existing
atomizer has been reconnected. Selection of a new coil
should only be made when the atomizer and coil are at room
temperature.
Charging the Battery:
Charge the Revolution S via the USB
cable when connected to a powered
USB port or suitable wall adapter. The
indicator on the display will indicate the
battery status and will disappear when
fully charged.
Battery Charge:
The battery charge for the internal
battery is displayed on the fth row of
the OLED display.
TW_Revolution S Manual.indd 4-5 27/06/2016 14:45
6 7
Using your Revolution S
Shift between VT/TCR/VW/Clock Modes:
When powered on, press the power button 3 times consecutively, the rst row will ash,
turn the adjustment switch to the right to cycle through the VT/TCR/VW/Clock modes.
VW Mode:
When in VW mode, turn the adjustment switch to the right or left to increase or decrease
the level of wattage respectively. The available wattage range is 1W – 80W in increments
of 1W.
VT Mode (Ni/Ti/SS316):
To shift between Ni/Ti/SS316, when in VT mode press the power button 3 times
consecutively, the rst row will ash, turn the adjustment switch to the left and the Ni/Ti/
SS316 symbol will ash, turn the adjustment switch to the right to shift between the Ni/Ti/
SS316 modes. When in VT mode, turn the adjustment switch to the right or left to increase
or decrease the temperature respectively. The available temperature range is 100-315°C
or 200-600°F and can be adjusted in increments of 5°C and 10°F. To adjust the wattage
level whilst in VT mode, press the power button 3 times consecutively to activate the
menu, turn the adjustment switch to the left twice and the wattage (PWR) value will ash,
turn the adjustment switch to the right to adjust the wattage level.
To lock/unlock the atomizer resistance, press the power button 3 times in quick
succession to activate the menu, turn the adjustment switch to the left three times and the
atomizer value will ash, turn the adjustment switch to the right to lock/unlock the atomizer
resistance. Note: Only lock the atomizer when the coil is at room temperature.
Note: If a coil with a resistance exceeding 1.5ohms is applied in VT mode, the device
will automatically switch to VW mode. Also, if a standard kanthal coil is used under
VT mode, the device will automatically switch to VW mode.
TW_Revolution S Manual.indd 6-7 27/06/2016 14:45
8 9
Using your Revolution S

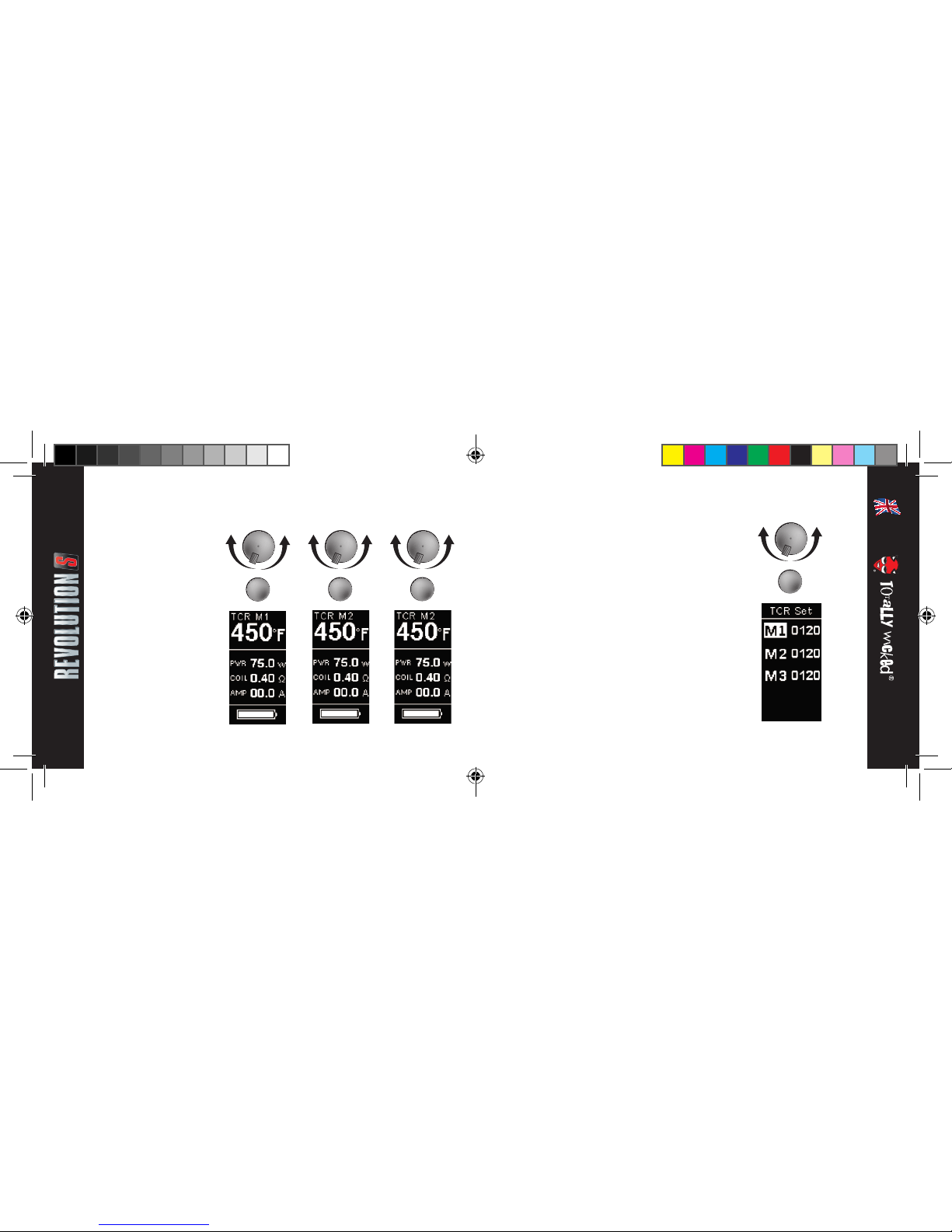

TCR Mode:
When in TCR mode
and the title is ashing
indicating that the menu is
active, turn the adjustment
switch to the left and the
sub-menu (M1, M2 and
M3) will ash. Whilst the
sub-menu is ashing turn
the adjustment switch to
the right to shift between
M1, M2 and M3, then
press the power button to
conrm.
(Also see: Conguring
TCR Mode)
Conguring TCR Mode:
To set the temperature coefcient of resistance to
match a particular coil, when the device is powered
off simultaneously hold the power button and turn
the adjustment switch to the right to enter the TCR
conguration menu.
Turn the adjustment switch to the right or left to select
which to congure from M1, M2 and M3 – this feature
allows the TCR values for 3 materials to be stored
to the device. Press the power button to select the
TCR value and then turn the adjustment switch to the
right or left to increase or decrease the value to your
preference, long press the power button or leave the
device for 10 seconds to conrm the selection.
TW_Revolution S Manual.indd 8-9 27/06/2016 14:45
10 11
Using your Revolution S
TCR Value Range
Note: The TCR value displayed is 105 (100,000) times greater than the actual TCR
value and is for Revolution S usage only.
Material TCR Value Range
Nickel 600 - 700
NiFe 300 - 400
Titanium 300 - 400
SS (303. 304, 316, 317) 80 - 200
Bypass Mode:
When in bypass mode there is a direct voltage output dependent on battery voltage and
atomizer resistance.
Upgrading Firmware:
To upgrade the rmware installed on the device simply load the relevant product page
on the Totally Wicked website, click on the link under ‘Firmware Upgrade’ and follow the
instructions provided.

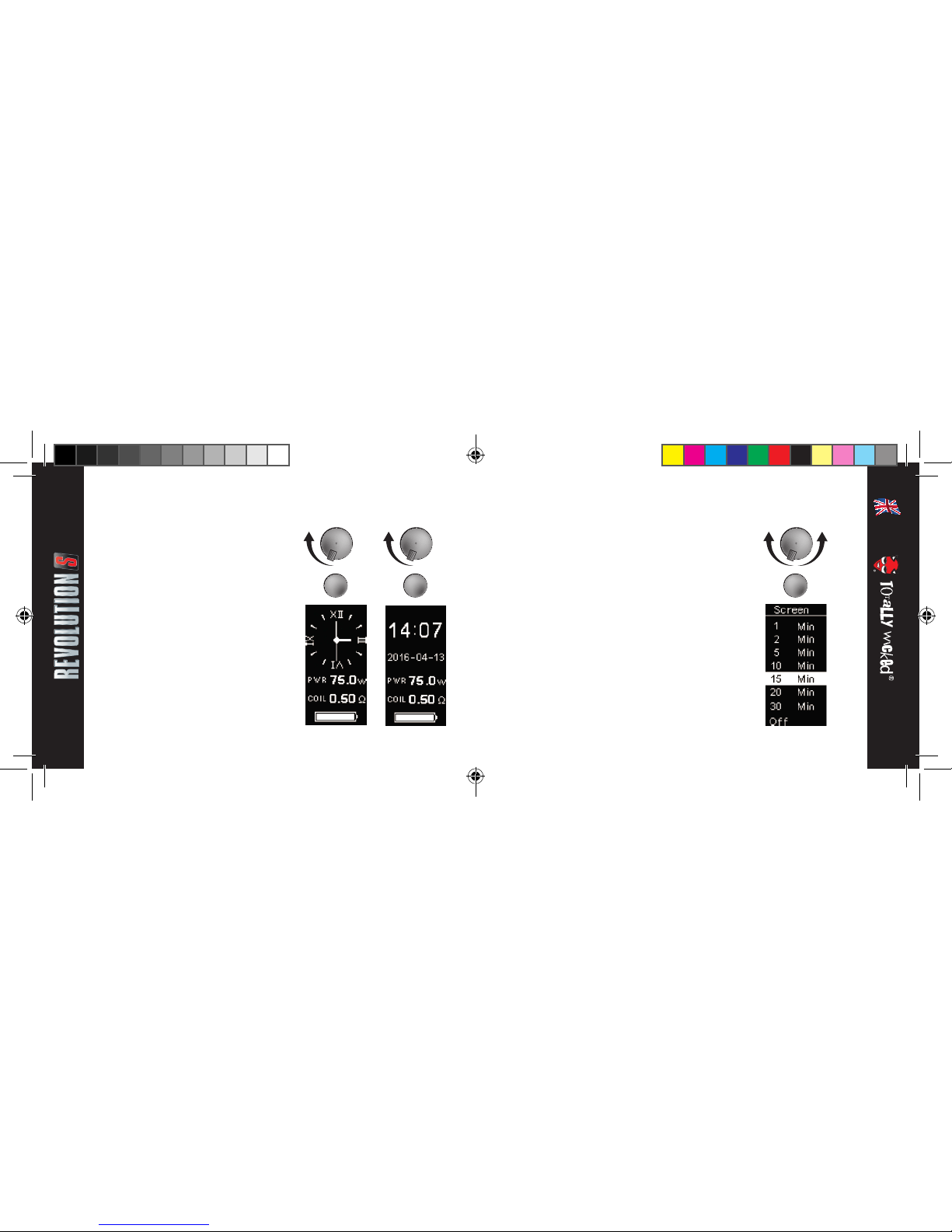

Shift Between Clock Modes:
Two clock display modes are available, dial and numerical. When the clock display
is active, press the power button 3 times consecutively to activate the menu, turn the
adjustment switch to the left once and the second row will ash, turn the adjustment switch
to the right to cycle through the dial and numerical display options and press the power
button to conrm the selection.
TW_Revolution S Manual.indd 10-11 27/06/2016 14:45
12 13
Using your Revolution S
Current/Puff Count/Puff Duration Display:
The real-time current (AMP)/puff count/puff duration is
displayed on the screen on the fourth row. To shift between
each mode, press the power button 3 times consecutively
to activate the menu, turn the adjustment switch to the left
until the current/puff count/puff duration ashes, turn the
adjustment switch to the left to cycle through the modes.
Active Screen Duration/ Screensaver Adjustment:
When the device is powered on, simultaneously hold the
adjustment switch to the right and hold the power button to
enter the active screen duration adjustment menu, turn the
adjustment switch to the left to cycle through the options
and press the power button to conrm the desired time or
to turn off the screensaver.
Time/Date Adjustment:
To adjust the time/date values, ensure that
the device is in the numerical clock mode
and press the power button 3 times to enter
the menu, turn the adjustment switch to
the left once and the date values will ash,
press the left adjustment button to cycle
through Hour/Minute/Year/Month/Day and
use the right adjustment button to adjust the
selected parameter.
Note: Only the year parameter can be
reversed by turning the adjustment
switch to the left whilst adjusting.
TW_Revolution S Manual.indd 12-13 27/06/2016 14:45
14 15
Using your Revolution S

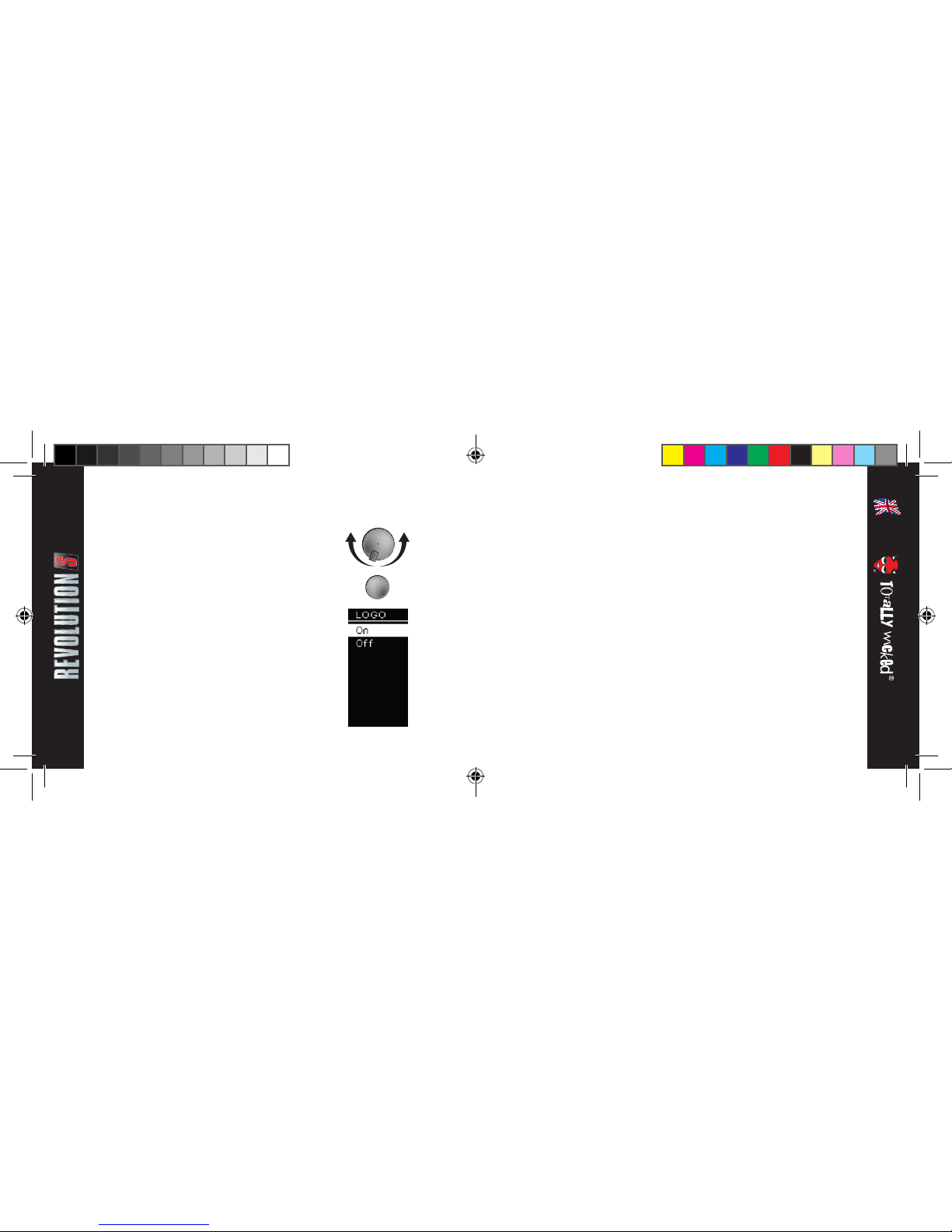

Custom Logo Mode:
To add a custom logo to the device, open the
‘Firmware Update’ software as described in
‘Updating Firmware’. Click on the ‘LOGO’ icon
and select the 64 x 40 BMP image le you would
like to upload. To activate/deactivate logo mode,
simultaneously hold the power button and hold
the adjustment switch to the right to activate
the active screen adjustment menu, turn the
adjustment switch to the right once and logo
mode will be displayed, turn the adjustment switch
to the left to select On/Off and press the power
button to conrm the selection.
Game Mode:
To access Game Mode the device must be upgraded to the 4.03 rmware version – See
‘Upgrading Firmware’ Instruction. To activate game mode, simultaneously hold the power
button and hold the adjustment switch to the right to activate the active screen adjustment
menu, turn the adjustment switch to the right twice and game mode will be displayed, turn
the adjustment button to the left to cycle through the game options (Easy/Normal/Hard/
Exit) and press the re button to conrm the selection. To play the game, use the power
button to keep the bird ying at the correct height to pass through the obstacles. To exit
game mode, simultaneously hold the power button and hold the adjustment switch to
the right.
Note: It is not possible to vape under game mode.
TW_Revolution S Manual.indd 14-15 27/06/2016 14:45
16 17
Using your Revolution S
Stealth Mode:
When powered on,
simultaneously hold
the power button and
hold the adjustment
switch to the left to
activate stealth mode.
Repeat the process
to deactivate stealth
mode.
Charge Error:
If no charging current
is detected when the
device is connected
to the charging lead,
‘Charge Error’ will be
displayed.
Temperature Protection:
When in VT mode, if the actual temperature of the coil is
above the set temperature then ‘Protection’ will be displayed
on the screen. This is normal operation of the device and the
user many continue to vape.
Temperature Alert:
If the temperature of the device exceeds 70°C, the output will
cease and ‘Device Too Hot’ will be displayed on the screen.
If this occurs, allow to device to cool to room temperature
before resuming vaping.
TW_Revolution S Manual.indd 16-17 27/06/2016 14:45
18 19
Using your Revolution S

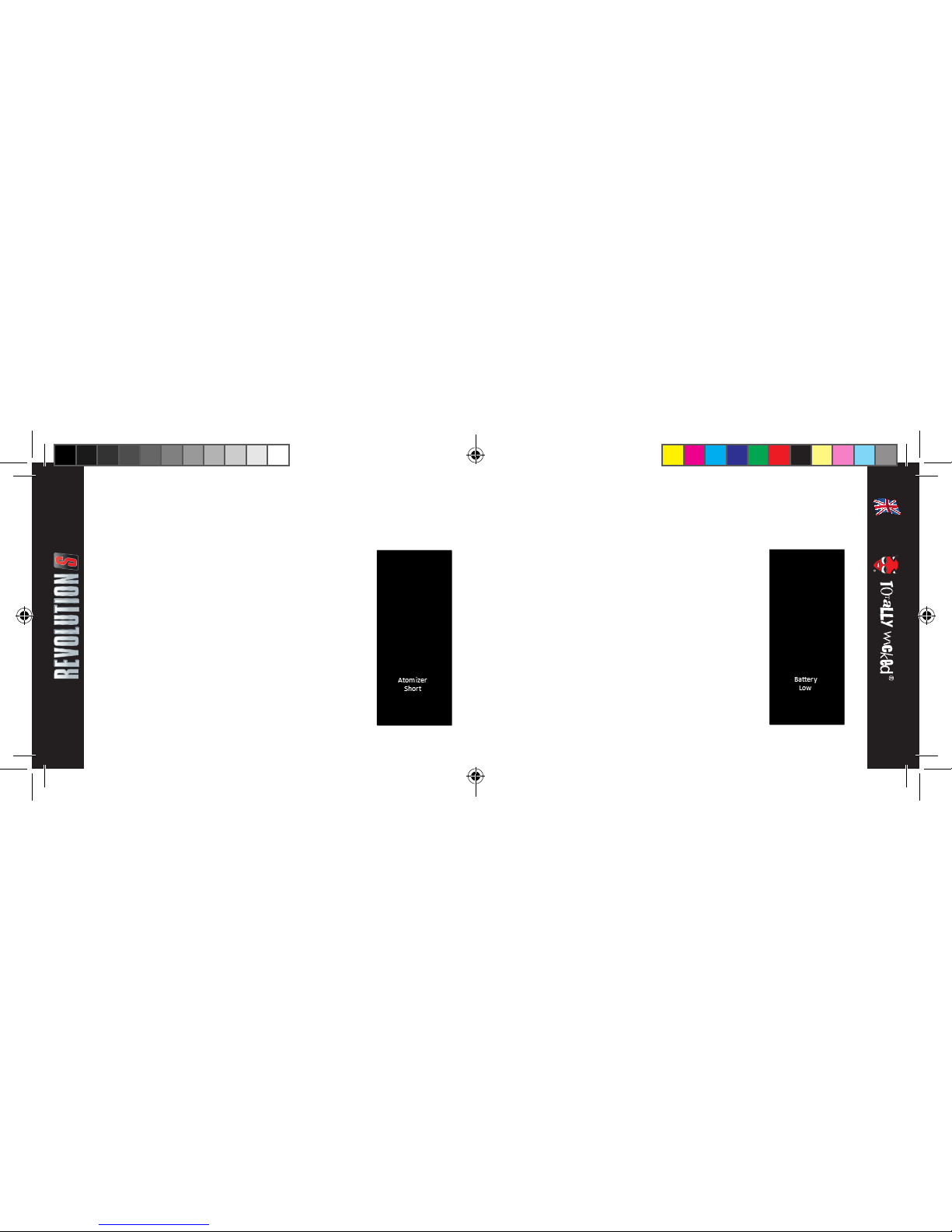

Short Circuit Protection:
If a short circuit occurs when the power button is pressed,
‘atomizer short’ will be displayed on the screen. If this occurs,
remove and reinstall the tank and atomizer, if this does not
resolve the issue then a new atomizer may be required. If
replacing the atomizer does not resolve the issue, please
contact customer services.
Using your Revolution S
Low Voltage Protection:
When the battery voltage is below 3.1V, ‘Battery Low’ will be
displayed on the screen. If following this message, the button
is continually pressed, the message ‘Battery Low Lock’ will
be displayed and the device will not re. To unlock and
activate the device the battery must be recharged.
TW_Revolution S Manual.indd 18-19 27/06/2016 14:45
Table des matières
Langues :
Autres manuels Totally Wicked cigarette électronique
Totally Wicked
Totally Wicked Odyssey Pipe Manuel utilisateur
Totally Wicked
Totally Wicked ARC GTI Manuel utilisateur
Totally Wicked
Totally Wicked arc Nano Manuel utilisateur
Totally Wicked
Totally Wicked eGo-C+ Manuel utilisateur
Totally Wicked
Totally Wicked e-lectron-L Manuel utilisateur
Totally Wicked
Totally Wicked Totally Wicked Manuel utilisateur
Totally Wicked
Totally Wicked Tornado V5 BDC Manuel utilisateur
Totally Wicked
Totally Wicked E-PIPE III Manuel utilisateur
Totally Wicked
Totally Wicked Tornado-T Manuel utilisateur
Totally Wicked
Totally Wicked GRIP VT75 Manuel utilisateur
Totally Wicked
Totally Wicked PSYCHE Manuel utilisateur
Totally Wicked
Totally Wicked Corsa Micro Manuel utilisateur
Totally Wicked
Totally Wicked Curve Manuel utilisateur
Totally Wicked
Totally Wicked OPTIMUS Manuel utilisateur
Totally Wicked
Totally Wicked Tornado eGo-C+ Manuel utilisateur
Totally Wicked
Totally Wicked Tornado II Slim Manuel utilisateur
Totally Wicked
Totally Wicked TORNADO EX Manuel utilisateur
Totally Wicked
Totally Wicked Polka Manuel utilisateur
Totally Wicked
Totally Wicked ARC MINI Manuel utilisateur
Totally Wicked
Totally Wicked Resolve 2 Manuel utilisateur
Manuels cigarette électronique populaires d'autres marques
STEAMAX
STEAMAX TFV8 X-BABY Manuel utilisateur
iQOS
iQOS 3 MULTI Manuel utilisateur
Vaporesso
Vaporesso LUXE XR MAX Manuel utilisateur
ZAZO
ZAZO PRO Mini 2 Manuel utilisateur
Aquafog
Aquafog Turbo XE Manuel
Electronic Cigarettes Australia Pty Ltd
Electronic Cigarettes Australia Pty Ltd AUSSIE BLUE ENDURANCE Manuel utilisateur
