Topfield TF 7710 HSCI Manuel utilisateur
TOPFIELD
TF 7710 HSCI
TF 7720 HSCI
User Guide
High Definition
Digital Satellite Receiver
Common Interface
Contents iii
Contents
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
1.3 What is common interface? .................... 5
2 Setup 7
2.1 Unpacking .............................. 7
2.2 Safety precautions ......................... 7
2.3 Rear panel connections ....................... 9
2.4 Connecting up your digital receiver ............... 10
2.4.1 Connecting the antenna .................. 11
2.4.2 Connecting to your television .............. 11
2.4.3 Connecting to your video cassette recorder ....... 14
2.5 Switching on for the first time ................... 14
2.5.1 Inserting batteries in the remote control ......... 14
2.5.2 Powering on and checking picture ............ 15
iv Contents
3 Preference Settings 16
3.1 Language settings .......................... 16
3.2 Video and audio settings ...................... 18
3.2.1 Colour model ........................ 18
3.2.2 Video cassette recorder .................. 18
3.2.3 Television aspect ratio ................... 19
3.2.4 High definition television ................. 20
3.2.5 Audio mode ........................ 21
3.3 Local time setting .......................... 21
3.4 Parental control ........................... 24
3.5 Adjusting the on-screen display .................. 25
4 Service Search 26
4.1 Searching broadcasting services .................. 26
4.1.1 Configuring LNB settings ................. 26
4.1.2 Configuring DiSEqC 1.2 settings ............. 29
4.1.3 Configuring USALS settings ............... 30
4.1.4 Searching services ..................... 31
4.2 Editing the transponder list .................... 34
4.3 Resetting to factory settings .................... 35
4.4 Resetting to installer settings ................... 35
5 Daily Usage 37
5.1 Volume control ........................... 37
5.2 Watching television ......................... 37
5.2.1 The services list ....................... 37
5.2.2 The favourite services list ................. 40
5.2.3 Viewing programme information ............ 41
5.2.4 Selecting audio tracks ................... 42
5.2.5 Selecting subtitle tracks .................. 42
Contents v
5.2.6 Viewing teletext ...................... 42
5.3 Viewing electronic programme guide .............. 43
5.4 Watching multifeed programme ................. 44
5.5 Making timer events ........................ 44
6 Listing Services 46
6.1 Editing the services list ....................... 46
6.2 Editing the favourite list ...................... 48
6.3 How to use on-screen keyboard .................. 50
6.4 Transferring receiver data ..................... 50
7 Firmware Update 52
7.1 Checking the firmware information ............... 52
7.2 From a USB memory device .................... 53
7.3 From your computer via RS-232 port ............... 54
7.4 From another digital receiver via RS-232 port .......... 55
7.5 Over the air ............................. 56
Index 57
1
Chapter 1
Introduction
The TF 7710 HSCI/TF 7720 HSCI digital receiver is fully com-
pliant with the international Digital Video Broadcasting (DVB)
standard, and can receive digital broadcasts. For its operation
you need an antenna, which must be installed appropriately.
NOTE
In general we equate a channel with a frequency. Unlike ana-
logue broadcasts, however, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 7710 HSCI/TF 7720 HSCI digital receiver has the follow-
ing features:
•
Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-
ALS.
2 Introduction
• Can store up to 5000 television and radio services.
• You can edit the services list.
• You can create favourite lists of your favourite services.
•
You can view information about the current television or
radio programme.
•
Has an electronic programme guide that provides an
overview of scheduled programmes.
•
You can update the firmware of the digital receiver to the
latest version, provided by the manufacturer.
1.2 Controlling the digital receiver
The digital receiver can be operated with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
1.2 Controlling the digital receiver 3

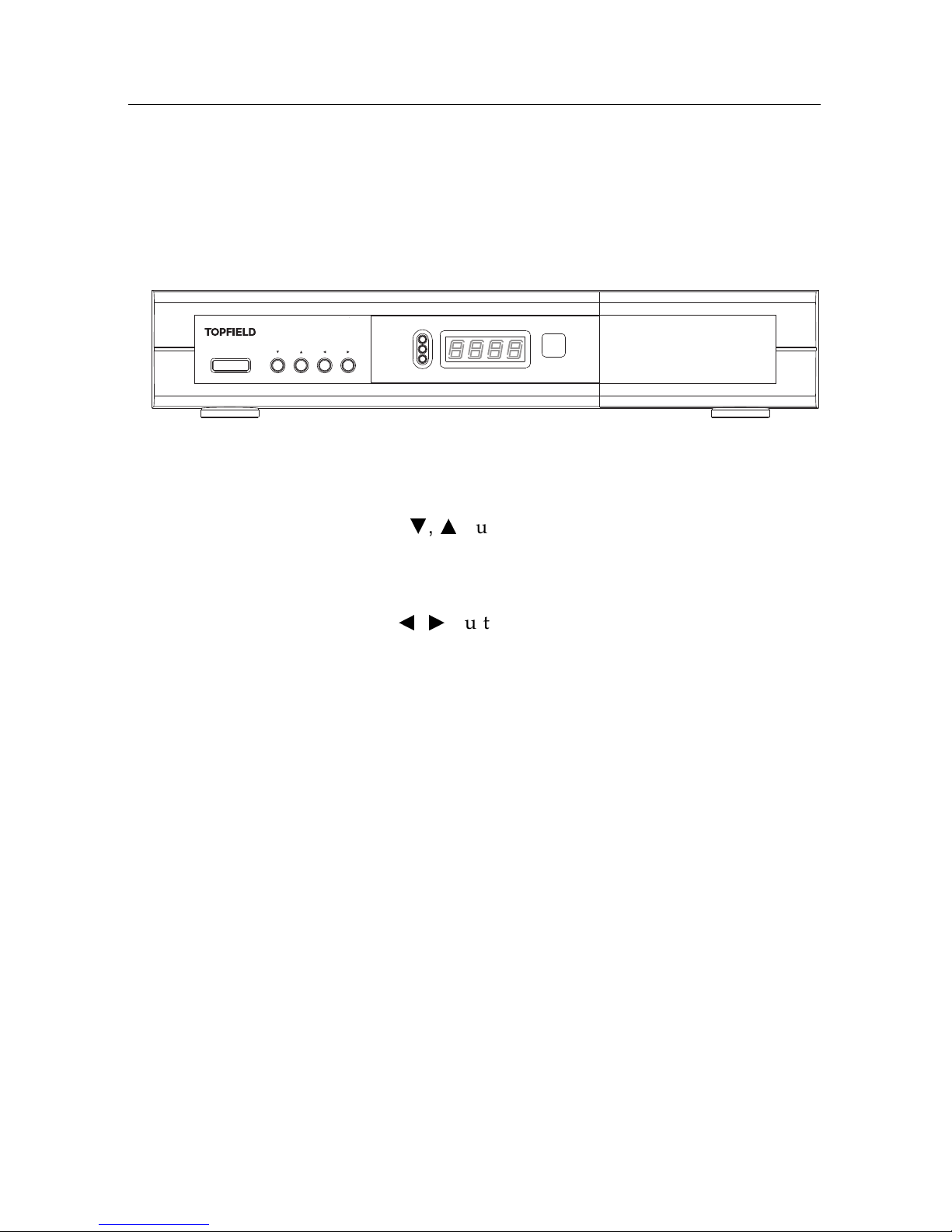

1.2.1 The front panel
The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY
CHANNEL
VOLUME
TV/STB
REMOTE
STANDBY
STANDBY
button switches the digital receiver between
standby mode and operation mode.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
VOLUME
b
,
d
buttons decrease or increase the volume.
They are also used to change values for menu options.
TV/STB
lamp lights up while your video recorder operates
instead of the digital receiver. See
§
3.2.2 for more
details.
REMOTE
lamp lights up whenever you press a button on
the remote control.
STANDBY
lamp lights up while the digital receiver is in
standby mode.
Front display
displays the current time in standby mode,
and displays the current service in operation mode.
Pull the right edge of the front panel to open the flap. You have
to insert your subscription card into the front slot to watch pay
services.
4 Introduction

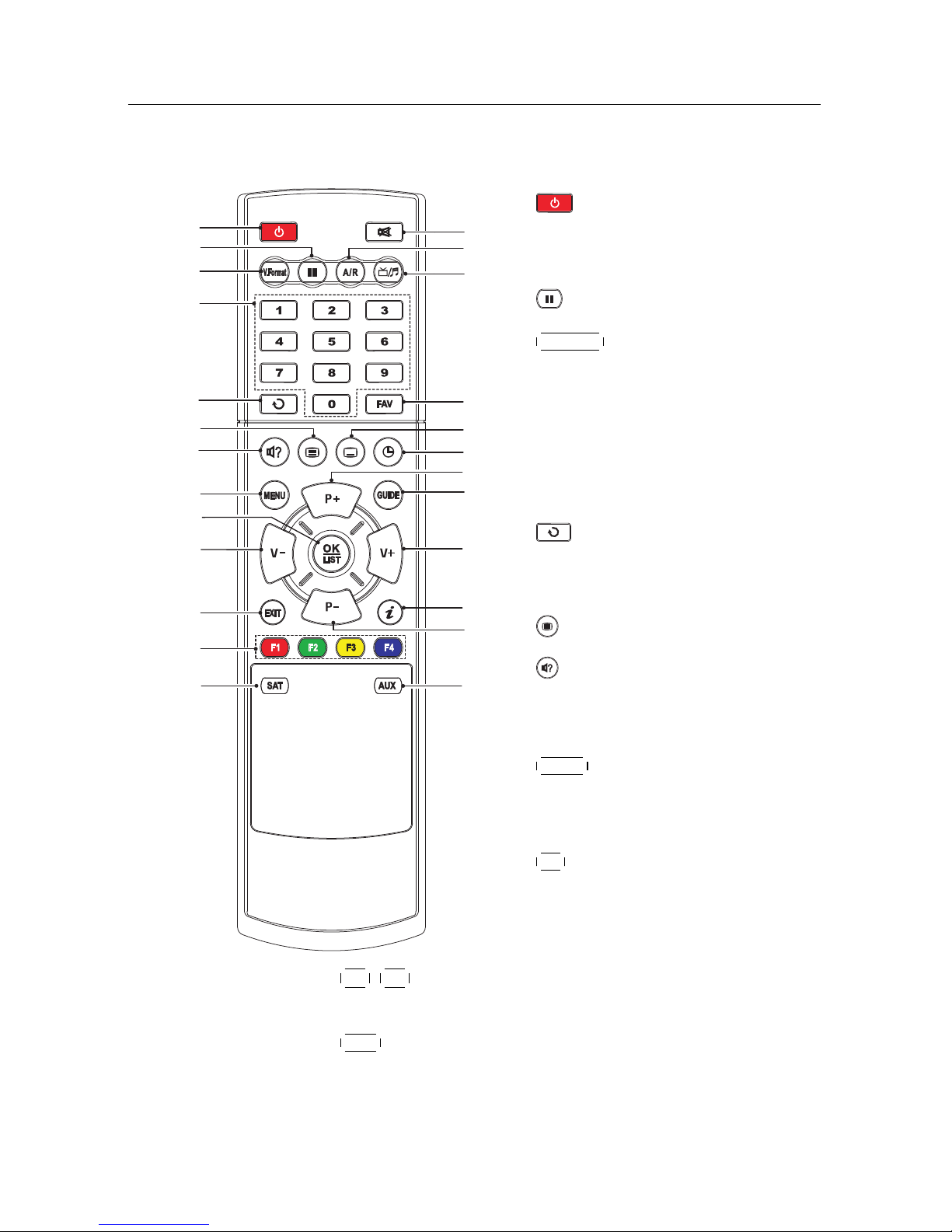

1.2.2 The remote control
1
2
3
4
5
6
7
8
9
10
11
12
13
22
23
21
10
20
20
19
18
17
16
15
14
1
button switches the digital re-
ceiver between standby mode and
operation mode.
2
pauses live television.
3
V.Format
changes video resolution.
See § 3.2.4 for more details.
4
Numeric buttons are used to en-
ter a service number for service
change or to specify values for
menu options.
5
switches between the current
service and the previously viewed
one.
6
displays teletext.
7
is used to select an audio track
and a sound mode, or a video
track of multifeed programme.
8
MENU
displays the main menu. It
is also used to return to the previ-
ous menu from a submenu.
9
OK
displays the services list. See
§
5.2.1 for more details. It is also
used to select a menu item.
10
V−
,
V+
buttons decrease or increase the volume. They
are also used to change values for menu options.
11
EXIT is used to exit the current screen.
12
These buttons have different functions per menu. They
will be guided by on-screen help.
