Topfield TF-S3000CHD Manuel utilisateur

TF-S3000CHD

Quick Guide

High Deﬁnition

Digital Satellite Receiver

USB PVR-Ready

Common Interface

Conax Embedded

Default PIN: 0000

Full Guide is available at http://www.i-topfield.com

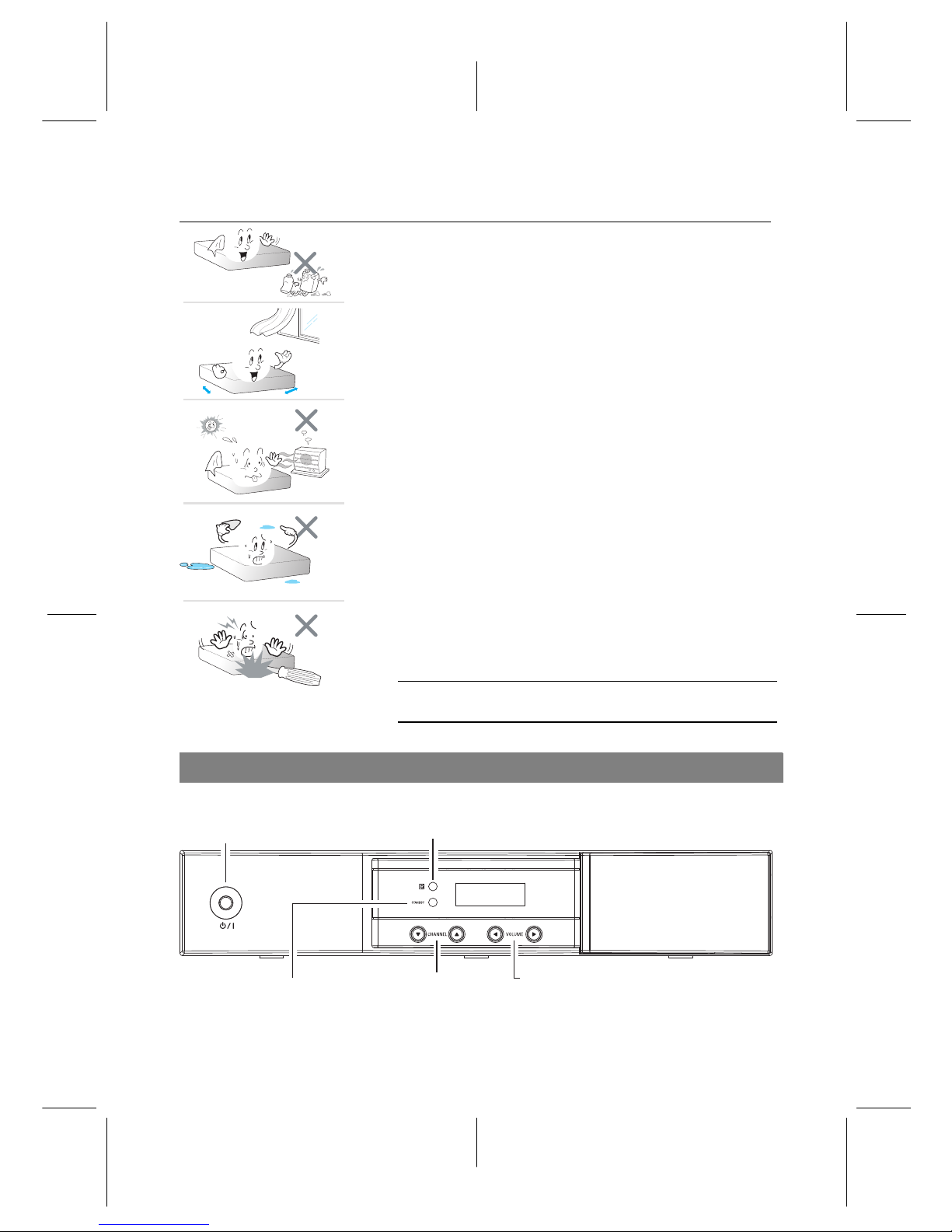

Precautions

• Clean with a dry cloth only.

• Do not block any of the ventilation openings.

• When placed in a cabinet, make sure there is a minimum space of 10 centimetres

around it.

• Do not install near any heat sources or in direct sunlight as this will impair

cooling.

• Do not operate this product near water.

• Do not try to change the plug or defeat its safety purpose.

• This product is designed for indoor use only.

• Place the digital receiver on a ﬁrm and level surface.

• Do not lay any objects such as magazines on this unit.

• Do not overload power outlets. Doing so may result in a risk of ﬁre or electrical

shock.

• Never open this unit’s casing under any circumstances, or the warranty will be

void.

• Unplug this unit during lightning storms or when unused for long periods of

time.

• Refer all servicing to qualiﬁed service personnel. Reverse engineering or disas-

sembly is prohibited.

• Batteries, including those which contain no heavy metals, may not be disposed

with other household wastes. Please dispose of used batteries in an environ-

mentally sound manner. Find out the legal regulations which apply in your

area.

• The mains plug shall remain readily operable so that it can be removed easily

to disconnect the power.

• Operate the digital receiver at temperatures between 0 to 45 ◦C.

• The mains voltage must range between 90 and 250 volts. Check it before plug-

ging the digital receiver to the wall socket. For the power speciﬁcation, refer to

the table below.

Input voltage 90 to 250 V AC, 50/60 Hz

Power consumption 35 W at maximum in active

Under 1 W in passive standby

Front Panel

Blinks every time you press a

button on the remote control.

Lights up in standby mode.

Switches between standby mode

and active mode.

Switch to the previous

or next service.

Decrease or increase the volume.

Rear Panel

VCR

HDMI

USB

LAN

LNB OUTLNB IN

S/PDIF

R - AUDIO - L

13/18V

500mA max.

VIDEO

.1LNB IN Satellite broadcasting signal input socket

(Current: Max.500mA with overload protection)

.2LNB OUT Satellite broadcasting signal output socket through the LNB IN socket for an-

other digital receiver

.3TV Audio and video output socket for the television set

.4VIDEO Composite video output socket for the television set (yellow)

.5AUDIO L/R Stereo audio output socket for the television set or the audio-video receiver

(white/red)

.6S/PDIF Digital audio output socket for the audio-video receiver

.7HDMI Audio and video output socket for the high deﬁnition television set

.8LAN Local area network port

.9USB USB port for ﬁrmware update and data transfer. (USB 2.0 Host, 5V DC, 500mA

Max.)

Connecting the TV

Connect any components before plugging the power cord into the wall outlet. If you encounter

any problems setting up your product, please contact your local retailer.

1. Connect the antenna cable to the LNB IN socket.

LNB OUTLNB IN

Connecting the TV

2. Choose a setup that matches the connection ports on your TV.

– We recommend using the HDMI connection for the highest quality HD picture.

– For a basic connection to your television use the Scart or composite connection.

a) HDMI connection (HDMI)

HDMI IN

REAR OF TV REAR OF DIGITAL RECEIVER

HDMI CABLE

HDMI

b) SCART connection (TV)

TV SCART

REAR OF TV REAR OF DIGITAL

RECEIVER

SCART CABLE

c) Composite connection (VIDEO)

VIDEO

AUDIO

R L

REAR OF TV REAR OF DIGITAL

RECEIVER

COMPOSITE CABLE

yellow yellow

red red

white white

S/PDIF

R - AUDIO - L

VIDEO

Remote Control

NOTE

The actual images and the number of buttons could be diﬀerent depending on the type

of remote control provided by the manufacturer.

Remote Control

• button switches the digital receiver between standby mode and active mode.

• is used to set a sleep timer in 10 minute increments.

•







V−,







V+buttons decrease or increase the volume. They are also used to change values for

menu options.

• mutes the sound. Press again to switch it back on.

•







P−,







P+buttons switch to the previous or next service. They are also used to navigate in

menus and interactive screens.

• switches over between the current service and the previously viewed one.

•







OK displays the services list. It is also used to select a menu item.

•







FAV displays the favourite lists.

• displays the service information box. It is also used to display more information about

a programme.

• is used to select an audio track and a sound mode, or a video track of multifeed pro-

gramme.

• is used to select a subtitle track.

• displays teletext.

•







V.Format changes video resolution.

•







A/R changes aspect ratio.

• switches over between television services and radio services.

•







GUIDE displays the electronic programme guide.

•







AUX is not used in this model.

•







SAT displays the satellites list with their services list.

•







MENU displays the main menu. It is also used to return to the previous menu from a sub-

menu.

•







EXIT is used to exit a menu or to hide on-screen information.

• is used to display the list of recorded programmes that are stored in the external hard

drive.

• has diﬀerent functions per menu.

• is used to make a bookmark on playback or time-shift.

• is used to jump to next bookmark position.

• has diﬀerent functions per menu.

• is used to start recording.

• is used to stop playback, to stop recording, or to jump back to live television from

time-shifted television.

Remote Control

• resumes normal playback speed, or displays the progress bar for navigation on play-

back or time-shift. To play a recorded programme, see button .

• pauses live television or playback of a recorded programme.

• is used to start reverse playback. Subsequent presses increase the rewind speed.

• is used to start fast forward playback. Subsequent presses increase the playback speed.

• is used to start slow motion playback. Subsequent presses change the playback speed.

• is used to jump back to the beginning of the recording on playback.

• is used to jump to the end of the recording on playback.

• has diﬀerent functions per menu.

Functions of the colour buttons will be guided on the screen.

First Time Installation

1 After having connected the appropriate cables from the digital receiver to your TV, make sure

the power cord of the digital receiver is plugged into a wall socket and turn the unit ON.

2 Check that your TV set is turned on.

3 Check that your TV set is on the correct video channel so that you can see the Menu from the

Digital Receiver. (ie. AV, HDMI, etc.)

4 Insert the batteries into the remote control.

5 Press the button on the remote control or the circular button on the front face of the unit

to turn the digital receiver on.

Service Search

1. Conﬁgure LNB, DiSEqC 1.1, and DiSEqC 1.0.

LNB Setting

Satellite Name

LNB Frequency

LNB Power

22Khz

DiSEqC 1.1

DiSEqC 1.0

Searching

Satellite Name

LNB Frequency

LNB Power

22Khz

DiSEqC 1.1

DiSEqC 1.0

Searching

OK Satellite List

99% Level

99% Quality

AsiaSat 4(C)

5150 MHz

Off

2 of 4

AsiaSat 4(C)

5150 MHz

Off

2 of 4

Select M EN U Previous Menu EXIT Exit iHelp

Extended Signal

You can specify the satellite name and LNB fre-

quency toward which your antenna is set to face.

Select Installation >LNB Setting.

• The DiSEqC 1.0 option allows swtiching be-

tween up to four satellite sources.

• The DiSEqC 1.1 option allows switching be-

tween up to 16 satellite sources.

Service Search

2. If you have a motorized antenna, conﬁgure DiSEqC 1.2 or USALS.

2-1. DiSEqC 1.2 settings

M otorized DiSEqC1.2

Searching

Satellite Name

Transponder

LNB Setting

Motorized DiSEqC1.2

DiSEqC Command Mode

Movement

Motor Control

Searching

Satellite Name

Transponder

LNB Setting

Motorized DiSEqC1.2

DiSEqC Command Mode

Movement

Motor Control

OK Satellite List

99% Level

99% Quality

AsiaSat 4(C)

3820 / V / 27500 / S / A…

Enable

User

(Stop)

Goto

AsiaSat 4(C)

3820 / V / 27500 / S / A…

Enable

User

(Stop)

Goto

M ENU Previous Menu EXIT Exit iHelp

Extended Signal

Your motorized antenna will turn toward your

desired satellites horizontally by DiSEqC 1.2.

Select Installation >Motorized DiSEqC 1.2

• At ﬁrst you have to set the Motorized DiSEqC

1.2 option to Enable.

2-2. USALS settings

USALS Setting

Transponder

Motorized DiSEqC 1.3

Satellite Name

Satellite Angle

My Longitude

My Latitude

Reference Position

Move

Goto the position

Transponder

Motorized DiSEqC 1.3

Satellite Name

Satellite Angle

My Longitude

My Latitude

Reference Position

Move

Goto the position

99% Level

99% Quality

3820 / V / 27500 / Auto

Enable

AsiaSat 4(C)

122.0 East

0.0 East

0.0 North

to 0

Stop

3820 / V / 27500 / Auto

Enable

AsiaSat 4(C)

122.0 East

0.0 East

0.0 North

to 0

Stop

OK Satellite List

Select M EN U Previous Menu EXIT Exit iHelp

Extended Signal

USALS (Universal Satellite Automatic Location

System), also known as DiSEqC 1.3, will calcu-

late positions of visible satellites just by pointing

it to a known satellites.

Select Installation >USALS Setting.

• At ﬁrst you have to set the Motorized DiSEqC

1.3 option to Enable.

3. Perform a service search

Searching

Satellite Name

Search Mode

Network Search

FTA/Scrambled

Start Search…

LNB Setting

Satellite Name

Search Mode

Network Search

FTA/Scrambled

Start Search…

LNB Setting

99% Level

99% Quality

AsiaSat 4(C)

Auto

FTA + CAS

5150Mhz

AsiaSat 4(C)

Auto

FTA + CAS

5150Mhz

Start Searching M EN U Previous Menu EXIT Exit ii Help

Extended Signal

1 Select the Installation >Searching menu.

2 Move down to the Start Search item, and

press the 







OK button.

3 When the scan is complete, press the 







OK to

save the services list.

Network Setup

You need to set up a network connection to enjoy web-enabled features on this unit.

1 Connect your Ethernet cable from your router

to the digital receiver.

IP Setting

Secondary DNS

Primary DNS

Connection Type

IP Address

Subnet Mask

Gateway

Activate

Secondary DNS

Primary DNS

Connection Type

IP Address

Subnet Mask

Gateway

Activate

211.232.190.1

192.168.0.10

Static

192.168.6.84

255.255.255.0

192.168.6.1

211.232.190.1

192.168.0.10

Static

192.168.6.84

255.255.255.0

192.168.6.1

Select

M EN U

Previous Menu

EXIT

Exit

Help

Edit Profile

Connection Type

2 Press 







MENU >Installation >Network

Setting >IP Setting.

3 It is recommended to use a dynamic IP

address by the router therefore select

DHCP as the connection type. How-

ever if a static connection is set then

please refer to your router for an IP ad-

dress, Subnet Mask, Gateway, Primary

DNS, Secondary DNS.

4 Scroll down to activate proﬁle and

press 







OK on the remote.

Enjoying Services

Watching live services

TV Services

Delete

UnlockedLock

Rename

DefaultSorting

Satellite All Satellite

Show Provider Off

Add to FAV

Delete

UnlockedLock

Rename

DefaultSorting

Satellite All Satellite

Show Provider Off

Add to FAV

10 NILE NEWS

11 ETC

12 ZEE TV

9 Zee Salam

8 Movie time

7 Sports News

10 NILE NEWS

11 ETC

12 ZEE TV

9 Zee Salam

8 Movie time

7 Sports News Options

AsiaSat 4(C) 3820 V S 27500AsiaSat 4(C) 3820 V S 27500

Favorite List

Alphabetic Search

Now that the service search is complete, press

the 







OK button to view the services list.

On the services list, press the 







P+or 







P−button

to navigate your desired service.

You can also switch to your desired service by

entering its service number with the numeric

buttons. To select a service to watch, press the









OK button.

Enjoying Services

Favourite services list

Favorite List

Delete

Add New Favorite Group

Add this service

Delete

Add New Favorite Group

Add this service

4 Sports

3 Music

2 Movie

1 News

4 Sports

3 Music

2 Movie

1 News

Options

All Services Option

To display the favourite lists, press the but-

ton from the service list screen, or press the 







FAV

button while watching a live show.

If you want to add the current service to the

favorite list, put the highlight bar on a de-

sired favourite group and press the button.

When the option box pops up, select Add this

service menu.

To select a favourite list, put the highlight bar on

a desired favourite group and press 







OK button,

then services belonging to the selected favourite

group will be listed.

Viewing EPG

Program Guide

Program Guide Feb

15 06:01

February 15 16:00 17:00 18:00

1. STAR Gold

2. STAR Plus

3. History/Adventure

4. Adventure

5. Action

6. Classic

7. Zee Premiere

February 15 16:00 17:00 18:00

1. STAR Gold

2. STAR Plus

3. History/Adventure

4. Adventure

5. Action

6. Classic

7. Zee Premiere 1HZV6HDVRQ:RUOG&XSPrevious Day Next Day

Reservation/Cancel

Reservation

Toggle EPG Mode Intelligent Record

OK Preselect/Record/Cancel

1 Press the 







GUIDE button to display the elec-

tronic programme guide (EPG).

2 To see detailed information of a desired pro-

gramme, put the highlight bar on the pro-

gramme with the 







V+or 







V−button and press

the button.

3 To switch to another service, press the 







P+or









P−button.

Timer setting via EPG

If the EPG is properly provided, you can make timer events on it in the following steps:

1 Press the 







GUIDE button to display the EPG.

2 Select a programme you want to make a timer event with navigation buttons.

3 Press the 







OK button once, then the letter Pis displayed.

4 If you want to make a timer event with recording, press the 







OK button once more or alterna-

tively press the button, then the letter Ris displayed.

5 Pressing the 







OK button once more will cancel the timer.

(You can also set timer events in Reservation menu.)

Recording and Playback

If you want to record a TV programme, you have

to connect an external hard drive to the USB port

of the digital receiver.

NOTE

The external hard drive should be formatted

in the NTFS ﬁle system. It is also recom-

mended to use an external power socket to

have the external hard drive supplied by its

own power.

Instant recording

To instantly record a programme you are watch-

Service number

Recording

progress bar

Service name Recording symbol

Recording

elapsed time

Programme duration

Autres manuels pour TF-S3000CHD

Table des matières

Autres manuels Topfield Récepteur

Topfield

Topfield TRF-2100 Manuel utilisateur

Topfield

Topfield TF3000FEi Manuel utilisateur

Topfield

Topfield TF 7710 HTCI Manuel utilisateur

Topfield

Topfield SBI-2070 Manuel utilisateur

Topfield

Topfield TF 5000 CI Manuel utilisateur

Topfield

Topfield TF 7700 HSCI Manuel utilisateur

Topfield

Topfield TF 5000 CIP Manuel utilisateur

Topfield

Topfield TF 4100 PVRc Manuel utilisateur

Topfield

Topfield TF 7700 HCCI Manuel utilisateur

Topfield

Topfield srp-2300 Manuel utilisateur

Topfield

Topfield CONAX TF 4100 PVRt Manuel utilisateur

Topfield

Topfield SRP-2110 Manuel utilisateur

Topfield

Topfield TF 7700 HCCI Manuel utilisateur

Topfield

Topfield TF 600 PVRt Manuel utilisateur

Topfield

Topfield TF 7710 HD PVR Manuel utilisateur

Topfield

Topfield TRF-7160 Manuel de service

Topfield

Topfield TF6000T Manuel utilisateur

Topfield

Topfield TF5800PVR Manuel utilisateur

Topfield

Topfield Digital Satellite Receiver TF 6000 PVR Manuel utilisateur

Topfield

Topfield TF 5510 PVR Manuel utilisateur

Topfield

Topfield TF 600 PVRc Manuel utilisateur

Topfield

Topfield SRP-2100 Manuel utilisateur

Topfield

Topfield TF 5050 CI Manuel utilisateur

Topfield

Topfield SBP-2001CI+ Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
