Topfield TF 6060 CI Manuel utilisateur

TOPFIELD

TF 6060 CI

User Guide

Digital Satellite Receiver

Common Interface

Contents iii

Contents

1 Introduction 1

1.1 Features ............................... 1

1.2 Controlling the digital receiver .................. 2

1.2.1 The front panel ....................... 3

1.2.2 The remote control ..................... 4

1.3 What is common interface? .................... 6

2 Setup 7

2.1 Unpacking .............................. 7

2.2 Safety precautions ......................... 7

2.3 Rear panel connections ....................... 9

2.4 Connecting up your digital receiver ............... 10

2.4.1 Connecting the antenna .................. 11

2.4.2 Connecting to your television .............. 12

2.4.3 Connecting to your video cassette recorder ....... 14

2.5 Switching on for the ﬁrst time ................... 14

2.5.1 Inserting batteries in the remote control ......... 14

2.5.2 Powering on and checking picture ............ 15

iv Contents

3 Preference Settings 16

3.1 Language settings .......................... 16

3.2 Video and audio settings ...................... 17

3.2.1 Television standard .................... 17

3.2.2 Colour model ........................ 18

3.2.3 Video cassette recorder .................. 18

3.2.4 Television aspect ratio ................... 19

3.2.5 Sound mode ........................ 19

3.2.6 Radio frequency output .................. 20

3.3 Local time setting .......................... 20

3.4 Parental control ........................... 21

3.5 Adjusting the on-screen display .................. 23

3.6 Choosing a service transition type ................ 24

4 Service Search 25

4.1 Searching broadcasting services .................. 25

4.1.1 Conﬁguring LNB settings ................. 25

4.1.2 Conﬁguring DiSEqC 1.2 settings ............. 28

4.1.3 Conﬁguring USALS settings ............... 29

4.1.4 Searching services ..................... 31

4.2 Copying services .......................... 34

4.3 Editing the transponder list .................... 34

4.4 Resetting to factory settings .................... 35

5 Daily Usage 36

5.1 Volume control ........................... 36

5.2 Watching television ......................... 36

5.2.1 The services list ....................... 36

5.2.2 Watching on multi-picture screens ............ 39

5.2.3 The favourite services list ................. 40

Contents v

5.2.4 Viewing programme information ............ 41

5.2.5 Selecting audio tracks ................... 42

5.2.6 Selecting subtitle tracks .................. 42

5.2.7 Viewing teletext ...................... 43

5.3 Viewing electronic programme guide .............. 43

5.4 Watching multifeed programme ................. 44

5.5 Using picture in picture ...................... 45

5.6 Watching with the magniﬁer ................... 45

5.7 Making timer events ........................ 46

6 Listing Services 48

6.1 Editing the services list ....................... 48

6.2 Editing the favourite list ...................... 50

6.3 How to use on-screen keyboard .................. 52

6.4 Transferring receiver data ..................... 52

7 Firmware Update 54

7.1 Checking the ﬁrmware information ............... 54

7.2 From your computer via RS-232 port ............... 56

7.3 From another digital receiver via RS-232 port .......... 57

Index 58

Chapter 1

Introduction

The TF 6060 CI digital receiver is fully compliant with the in-

ternational Digital Video Broadcasting (DVB) standard, and

can receive digital broadcasts. For its operation you need an

antenna, which must be installed appropriately.

NOTE

In general we equate a channel with a frequency. Unlike ana-

logue broadcasts, however, digital broadcasts are not all as-

signed to their own frequencies; instead, multiple television

broadcasts are transmitted through a single frequency. The fre-

quency in digital broadcasting is usually called transponder. To

reduce confusion in this manual, the word

service

is preferably

used than

channel

as a term to indicate one television or radio

broadcast.

1.1 Features

The TF 6060 CI digital receiver has the following features:

•

Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-

ALS.

2 Introduction

• Can store up to 5000 television and radio services.

• You can edit the services list.

• You can create favourite lists of your favourite services.

•

You can view information about the current television or

radio programme.

•

Has an electronic programme guide that provides an

overview of scheduled programmes.

•

You can update the ﬁrmware of the digital receiver to the

latest version, provided by the manufacturer.

1.2 Controlling the digital receiver

The digital receiver can be operated with the remote control

and the buttons on the front panel.

NOTE

When the digital receiver is off but plugged into a wall outlet,

we say that it is in standby mode; on the other hand, when it is

on, it is in operation mode. Even when you are not using the

digital receiver, you should keep it plugged into a wall outlet

to be in standby mode so that it can run timer events at any

time.

1.2 Controlling the digital receiver 3

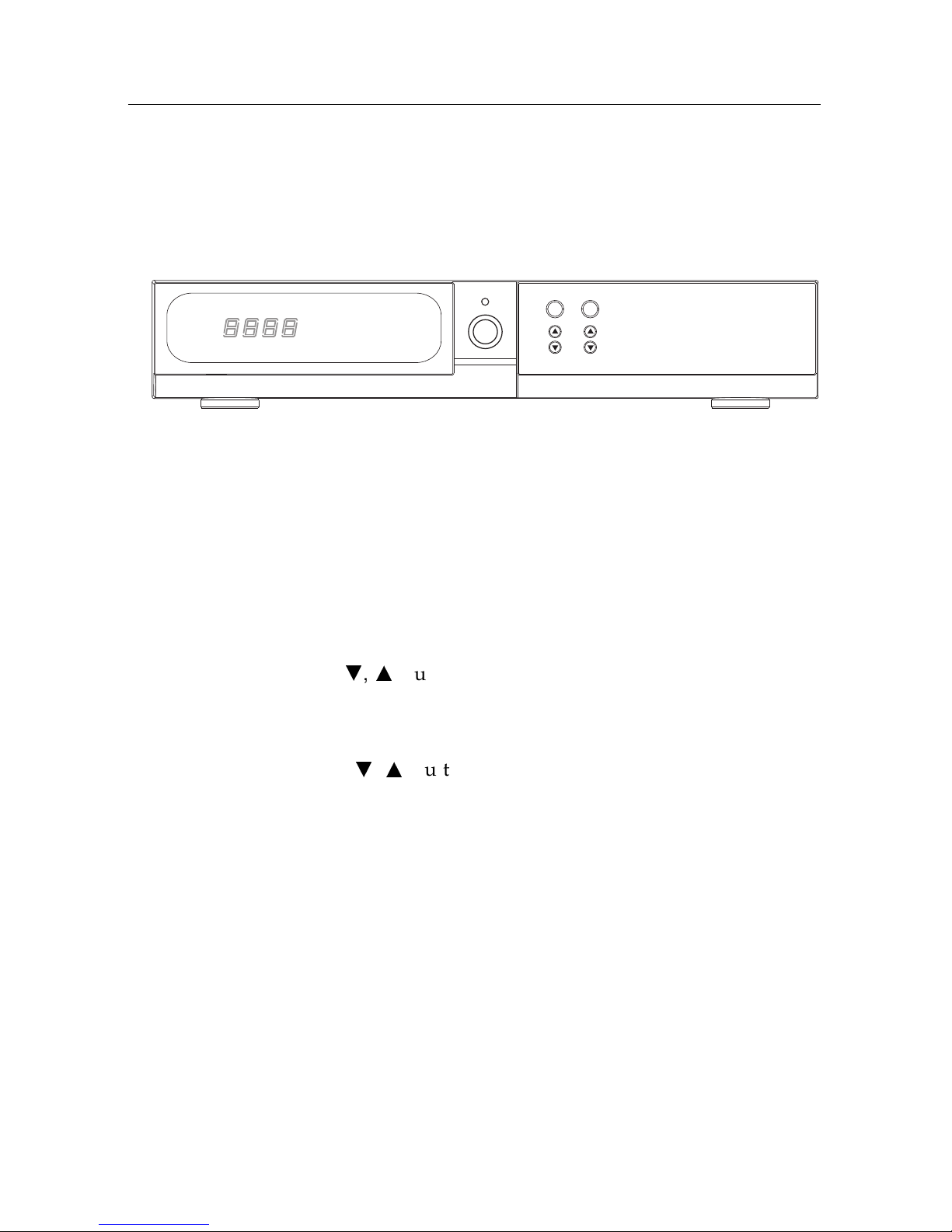

1.2.1 The front panel

The front panel of the digital receiver has buttons to control the

digital receiver, and speciﬁc lamps and a display to indicate its

status. The following indicates what they mean.

OK MENU

CH VOL

Pull the right edge of the front panel to open the ﬂap.

Front display

displays the current time in standby mode,

and displays the current service in operation mode.

button displays the services list. See

5.2.1 for more

details. It is also used to select a menu item.

button displays the main menu. It is also used to

return to the previous menu from a submenu.

buttons switch to previous or next service. They

are also used to navigate in menus and interactive

screens.

VOL

buttons decrease or increase the volume. They

are also used to change values for menu options.

To turn on the digital receiver, press the round button on the

center of the front panel.

4 Introduction

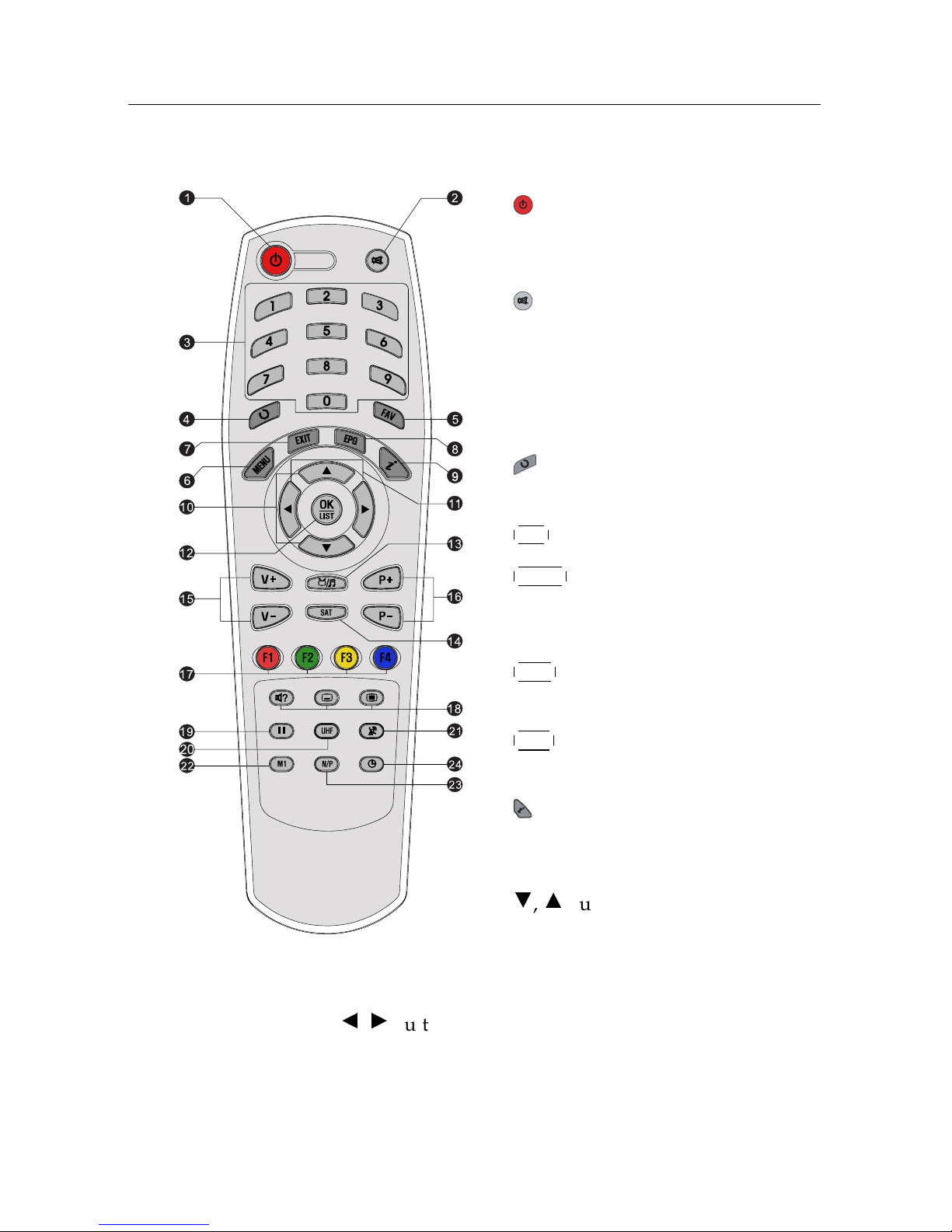

1.2.2 The remote control



button switches the digital re-

ceiver between standby mode and

operation mode.



mutes the sound. Press again to

switch it back on.



Numeric buttons are used to enter a

service number for service change or

to specify values for menu options.



switches between the current ser-

vice and the previously viewed one.









FAV displays the favourite lists.









displays the main menu. It is

also used to return to the previous

menu from a submenu.









EXIT

is used to exit the current

screen.









EPG

displays the electronic pro-

gramme guide.



displays the service information

box. It is also used to display more

information about a programme.



buttons switch to previous or

next service. They are also used to

navigate in menus and interactive

screens.



buttons decrease or increase the volume. They are

also used to change values for menu options.
