Topfield SRP-2100 Manuel utilisateur

TOPFIELD

SRP-2100

User Guide

High Deﬁnition

Digital Satellite Receiver

Personal Video Recorder

Common Interface

ii CONTENTS

Contents

Contents ii

1 Introduction 1

1.1 Features .............................. 1

1.2 Controlling the digital receiver .................. 2

1.2.1 Front panel ........................ 3

1.2.2 Remote control ...................... 5

1.2.3 Wireless keyboard .................... 7

1.3 Common Interface ......................... 9

2 Setup 11

2.1 Unpacking ............................. 11

2.2 Safety precautions ......................... 11

2.3 Rear panel connections ...................... 13

2.4 Connecting up your digital receiver ............... 15

2.4.1 Connecting to the antenna ................ 16

2.4.2 Connecting to your television set ............ 17

2.4.3 Connecting to your video recorder ........... 20

2.5 Switching on for the ﬁrst time .................. 20

3 Service Search 22

3.1 Searching for broadcasting services ............... 22

3.1.1 Conﬁguring LNB settings ................ 23

3.1.2 Conﬁguring DiSEqC 1.2 settings ............ 25

3.1.3 Conﬁguring USALS settings ............... 26

CONTENTS iii

3.1.4 Searching for services .................. 28

3.2 Copying services ......................... 31

3.3 Editing the transponder list ................... 32

3.4 Resetting to factory settings ................... 33

3.5 Resetting to user settings ..................... 33

3.6 Clearing the services list ..................... 35

4 Preference Settings 36

4.1 Language settings ......................... 36

4.1.1 Menu language ...................... 36

4.1.2 Subtitle language ..................... 37

4.1.3 Hard of Hearing ..................... 37

4.1.4 Audio language ...................... 37

4.2 Video and audio settings ..................... 38

4.2.1 High deﬁnition television ................ 38

4.2.2 Television aspect ratio .................. 39

4.2.3 Colour format ....................... 40

4.2.4 Another video device ................... 40

4.2.5 Audio mode ........................ 41

4.3 Local time setting ......................... 41

4.4 Parental control .......................... 44

4.5 To use MediaHighway programme guide ........... 45

4.6 Options for recording ....................... 46

4.7 Options for playback ....................... 47

4.8 Options for on-screen display .................. 48

4.9 Options for the front display ................... 49

4.10 Adjusting the size of picture-in-picture ............. 49

4.11 Options for Photo Album ..................... 50

4.12 Options for standby mode .................... 50

5 Every Day Use 51

5.1 Volume control .......................... 51

5.2 Watching television ........................ 51

5.2.1 The services list ...................... 51

5.2.2 The favourite service lists ................ 53

5.2.3 Viewing programme information ............ 54

iv CONTENTS

5.2.4 Selecting audio tracks .................. 56

5.2.5 Selecting subtitle tracks ................. 56

5.2.6 Viewing teletext ...................... 56

5.3 Viewing electronic programme guide .............. 56

5.4 Watching multifeed programme ................. 57

5.5 Using time-shift .......................... 58

5.6 Viewing in the picture-in-picture screen mode ......... 59

6 Organising Services 61

6.1 Editing the services list ...................... 61

6.2 Editing the favourite lists ..................... 63

6.3 How to use on-screen keyboard ................. 65

7 Recording and Playback 66

7.1 Recording a programme ..................... 67

7.1.1 Instant recording ..................... 68

7.1.2 Timer recording ...................... 69

7.1.3 Scheduling recordings using the programme guide . . 72

7.1.4 Recording a time-shifted programme .......... 72

7.1.5 Recording a pay service programme .......... 73

7.2 File archive ............................. 73

7.2.1 To delete a recording ................... 74

7.2.2 To sort recordings ..................... 74

7.2.3 To lock a recording .................... 74

7.2.4 To rename a recording .................. 75

7.2.5 To make a new folder ................... 75

7.2.6 To move a recording to another folder ......... 75

7.3 Playing back a recording ..................... 75

7.3.1 To navigate using the progress bar ........... 76

7.3.2 To play in slow motion .................. 77

7.3.3 To play in fast motion ................... 77

7.3.4 To make a bookmark ................... 77

7.3.5 To play back a recording repeatedly .......... 78

7.3.6 To play back recordings in sequence .......... 78

7.3.7 To play back a scrambled recording ........... 79

7.4 Editing a recording ........................ 80

CONTENTS v

7.5 Copying a recording ....................... 81

7.6 Formatting the hard disk ..................... 81

8 Entertainment 83

8.1 Copying ﬁles ............................ 83

8.2 Playing back MP3 ﬁles ...................... 85

8.3 Viewing image ﬁles ........................ 86

8.4 Playing back a video ﬁle ..................... 86

8.5 Playing back YouTube contents ................. 87

8.6 Sharing image ﬁles by Yahoo Flickr ............... 88

8.7 SHOUTcast Internet radio .................... 90

8.8 Google weather forecast ..................... 91

8.9 Sharing media content with other devices ........... 91

8.10 Network game ........................... 93

8.10.1 Single mode ........................ 93

8.10.2 Network mode ...................... 97

9 Accessing via Network 99

9.1 Conﬁguring the router ......................100

9.1.1 To access within the local area network . . . . . . . . . 100

9.1.2 To access over the Internet ................101

9.2 Conﬁguring the network setting on the digital receiver . . . . 102

9.3 Accessing the web server .....................103

9.4 Accessing the FTP server .....................105

10 Topﬁeld Application Program 108

11 Firmware Update 111

11.1 From a memory stick .......................111

11.2 From the ﬁrmware server via the Internet ...........112

11.3 Over the air ............................113

A Universal Remote Control 114

A.1 Code list for television sets ....................117

A.2 Code list for DVD players .....................131

A.3 Code list for audio-video receivers ...............133

vi CONTENTS

Index 135

Chapter 1

Introduction

The SRP-2100 digital receiver is fully compliant with the inter-

national Digital Video Broadcasting (DVB) standard, and thus

is able to receive digital broadcasts of that standard. For its

operation you need an antenna, which must be installed ap-

propriately.

NOTE

In general we equate a channel with a frequency. However,

unlike analogue broadcasts, digital broadcasts are not all

assigned to their own frequencies; instead, multiple televi-

sion broadcasts are transmitted through a single frequency.

The frequency in digital broadcasting is usually called trans-

ponder or multiplex. To reduce confusion in this manual,

the word service is preferably used than channel as a term

to indicate one television or radio broadcast.

1.1 Features

This digital receiver has the following features:

• Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-

ALS protocols.

2 Introduction

• Can store up to 10,000 television and radio services.

• You can edit the services list.

• Can create lists of your favourite services.

• Can view information about the current television or ra-

dio programme.

• Has an electronic programme guide that provides an

overview of scheduled programmes.

• You can record one service while you are currently

watching another.

• You can record many programmes using a built-in hard

drive with large storage capacity.

• Time-shift is a special technical feature available on this

digital receiver. You can pause a programme you are

watching and resume it again at a later time. Then you

can quickly go to any part of the current programme by

fast forward or rewind search.

• If you have an external hard drive connected to the dig-

ital receiver via the USB or eSATA port, you can record

television programmes into it.

• You can play back video ﬁles of various formats includ-

ing DivX.

• You can play a built-in network game with other users

via the Internet.

• You can use various Web services including YouTube.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control or

the buttons on the front panel.

NOTE

When the digital receiver is oﬀ but plugged into a wall

socket, we say that it is in standby mode; on the other hand,

when it is on, it is in active mode. Even when you are not

1.2 Controlling the digital receiver 3

using the digital receiver, you should keep it plugged into

a wall socket to be in standby mode so that it can run timer

events at any time.

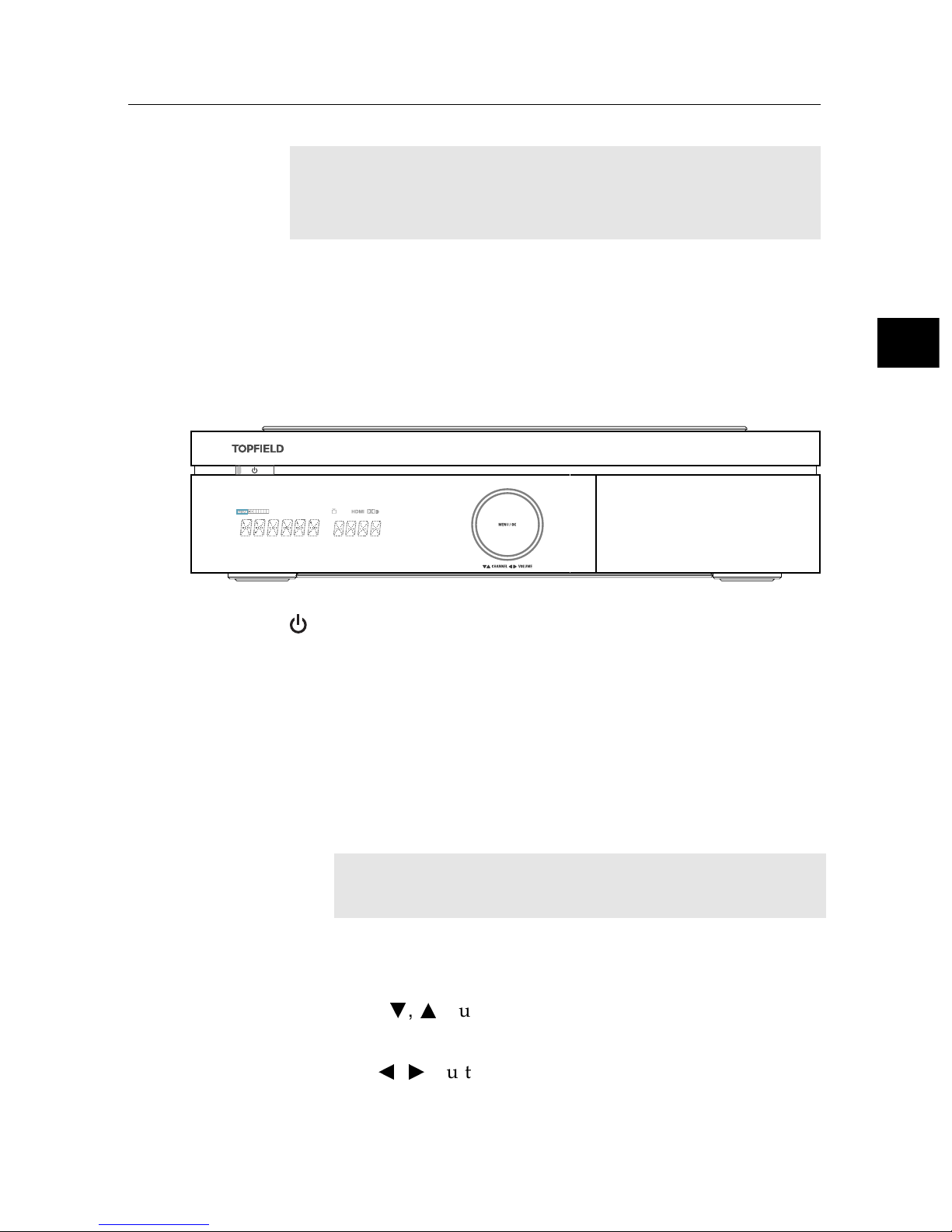

1.2.1 Front panel

The front panel of the digital receiver has buttons to control

the digital receiver, speciﬁc lights and a display to indicate its

status. The following indicates what they mean.

button switches the digital receiver between standby mode

and active mode. This button has a tiny light on its left

edge, which lights up in red in standby mode if the Standby

Mode option is set to Passive. See §4.12 for more details.

Front display shows the current time in standby mode, and

displays the current service in active mode.

MENU button displays the main menu. It is also used to return

to the previous menu from a submenu.

Hold the MENU/OK button down two seconds to make

it function as the menu button.

OK button displays the services list. See §5.2.1 for more de-

tails. It is also used to select a menu item.

CHANNEL

buttons switch to the previous or next ser-

vice.

VOLUME

buttons decrease or increase the volume.

4 Introduction

There is a USB port on the front panel for

ﬁrmware update and data transfer.

Autres manuels pour SRP-2100

Table des matières

Autres manuels Topfield Récepteur

Topfield

Topfield TF 6000 F Manuel utilisateur

Topfield

Topfield srp-2300 Manuel utilisateur

Topfield

Topfield TF3200IR Manuel utilisateur

Topfield

Topfield TF 5100 PVRt HDMI Manuel utilisateur

Topfield

Topfield TF 400 PVRt Manuel utilisateur

Topfield

Topfield TF 7710 HSCI Manuel utilisateur

Topfield

Topfield TF 5000 Manuel utilisateur

Topfield

Topfield TF 520 PVRc Manuel utilisateur

Topfield

Topfield CBI-2070 Manuel utilisateur

Topfield

Topfield TF 7100 HD PVRt Manuel utilisateur

Topfield

Topfield TF 5000 CI Manuel utilisateur

Topfield

Topfield TF 5050 CI Manuel utilisateur

Topfield

Topfield SRP-2401CIplus Manuel utilisateur

Topfield

Topfield TF 4100 PVRc Manuel utilisateur

Topfield

Topfield TF5000CI Manuel utilisateur

Topfield

Topfield TF-T6211HDPVR Fiche d'information produit

Topfield

Topfield TF4000Fe Manuel utilisateur

Topfield

Topfield TF 5000 CI Manuel utilisateur

Topfield

Topfield TBF-100HD Manuel utilisateur

Topfield

Topfield FREE TO AIR TF3100FEi Manuel utilisateur

Topfield

Topfield TBF - 7110 Manuel utilisateur

Topfield

Topfield TF 4000 Fi Manuel utilisateur

Topfield

Topfield CBV-7100 Manuel utilisateur

Topfield

Topfield TRF-5300 Manuel de service

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
