Texas Instruments TPS54335AEVM-010 Manuel utilisateur

SLVUB76–July 2017

TPS54335AEVM-010 3-A Regulator Evaluation Module

User's Guide

SLVUB76–July 2017

TPS54335AEVM-010 3-A Regulator Evaluation Module

This user's guide contains background information for the TPS54335A as well as support documentation

for the TPS54335AEVM-010 evaluation module (BSR010-001). Also included are the performance

specifications, the schematic, and the bill of materials for the TPS54335AEVM-010.

Contents

1 Introduction ................................................................................................................... 2

2 Test Setup and Results..................................................................................................... 4

3 Board Layout................................................................................................................ 12

4 Schematic and Bill of Materials........................................................................................... 14

List of Figures

1 TPS54335AEVM-010 Efficiency........................................................................................... 5

2 TPS54335AEVM-010 Low Current Efficiency ........................................................................... 5

3 TPS54335AEVM-010 Load Regulation................................................................................... 6

4 TPS54335AEVM-010 Line Regulation.................................................................................... 6

5 TPS54335AEVM-010 Transient Response .............................................................................. 7

6 TPS54335AEVM-010 Loop Response ................................................................................... 7

7 TPS54335AEVM-010 Output Ripple, IOUT = 3 A ........................................................................ 8

8 TPS54335AEVM-010 Output Ripple, IOUT = 100 mA.................................................................... 8

9 TPS54335AEVM-010 Output Ripple, IOUT = 0 A ......................................................................... 9

10 TPS54335AEVM-010 Input Ripple ....................................................................................... 9

11 TPS54335AEVM-010 Start-Up Relative to VIN ......................................................................... 10

12 TPS54335AEVM-010 Start-up Relative to Enable .................................................................... 10

13 TPS54335AEVM-010 Shut-down Relative to VIN ...................................................................... 11

14 TPS54335AEVM-010 Shut-down Relative to EN...................................................................... 11

15 TPS54335AEVM-010 Top-Side Assembly.............................................................................. 12

16 TPS54335AEVM-010 Top-Side Layout ................................................................................. 13

17 TPS54335AEVM-010 Bottom-Side Layout ............................................................................. 13

18 TPS54335AEVM-010 Schematic......................................................................................... 14

List of Tables

1 Input Voltage and Output Current Summary............................................................................. 2

2 TPS54335AEVM-010 Performance Specification Summary........................................................... 2

3 Output Voltages Available.................................................................................................. 3

4 EVM Connectors and Test Points......................................................................................... 4

5 TPS54335AEVM-010 Bill of Materials................................................................................... 15

Trademarks

All trademarks are the property of their respective owners.

Introduction

www.ti.com

2SLVUB76–July 2017

Submit Documentation Feedback

TPS54335AEVM-010 3-A Regulator Evaluation Module

1 Introduction

This user's guide contains background information for the TPS54335A as well as support documentation

for the TPS54335AEVM-010 evaluation module (BSR010-001). Also included are the performance

specifications, the schematic, and the bill of materials for the TPS54335AEVM-010.

1.1 Background

The TPS54335A dc/dc converter is designed to provide up to a 3-A output from an input voltage source of

4.5 V to 28 V. Rated input voltage and output current range for the evaluation module are given in

Table 1. This evaluation module is designed to demonstrate the small printed-circuit-board areas that may

be achieved when designing with the TPS54335A regulator. The switching frequency is externally set at a

nominal 340 kHz. The high-side and low-side MOSFETs are incorporated inside the TPS54335A package

along with the gate-drive circuitry. The low drain-to-source on resistance of the MOSFETs allow the

TPS54335A to achieve high efficiencies and helps keep the junction temperature low at high output

currents. The compensation components are external to the integrated circuit (IC), and an external divider

allows for an adjustable output voltage. Additionally, the TPS54335A provides an adjustable undervoltage

lockout input. The absolute maximum input voltage is 30 V for the TPS54335AEVM-010.

Table 1. Input Voltage and Output Current Summary

EVM INPUT VOLTAGE RANGE OUTPUT CURRENT RANGE

TPS54335AEVM-010 VIN = 8 V to 28 V 0 A to 3 A

1.2 Performance Specification Summary

A summary of the TPS54335AEVM-010 performance specifications is provided in Table 2. Specifications

are given for an input voltage of VIN = 24 V and an output voltage of 5.0 V, unless otherwise specified. The

TPS54335AEVM-010 is designed and tested for VIN = 8 V to 28 V. The ambient temperature is 25°C for all

measurements, unless otherwise noted.

Table 2. TPS54335AEVM-010 Performance Specification Summary

SPECIFICATION TEST CONDITIONS MIN TYP MAX UNIT

VIN operating voltage range 8 24 28 V

VIN start voltage 7.12 V

VIN stop voltage 6.12 V

Output voltage set point 5 V

Output current range VIN = 8 V to 28 V 0 3 A

Line regulation IO= 1.5 A, VIN = 8 V to 28 V ±0.05%

Load regulation VIN = 24 V, IO= 0 A to 3 A ±0.15%

Load transient response IO= 0.75 A to 2.25 A Voltage change –190 mV

Recovery time 150 μs

IO= 2.25 A to 0.75 A Voltage change 190 mV

Recovery time 150 μs

Loop bandwidth VIN = 24 V, IO= 1.5 A 31.6 kHz

Phase margin VIN = 24 V , IO= 1.5 A 61 °

Input ripple voltage IO= 3 A 400 mVPP

Output ripple voltage IO= 3 A <30 mVPP

Output rise time 2 ms

Operating frequency 340 kHz

Maximum efficiency TPS54335AEVM-010, VIN = 8 V, IO= 0.7 A 96.5%

( )

- + +

ENFALLING

STOP ENFALLING p h

R1 V

R2 =

V V R1 I I

æ ö -

ç ÷

è ø

æ ö

- +

ç ÷

è ø

ENFALLING

START STOP

ENRISING

ENFALLING

p h

ENRISING

V V

R1 = V

I 1 I

OUT

R7 0.8 V

R8 =

V -0.8V

www.ti.com

Introduction

SLVUB76–July 2017

TPS54335AEVM-010 3-A Regulator Evaluation Module

1.3 Modifications

These evaluation modules are designed to provide access to the features of the TPS54335A. Some

modifications can be made to this module.

1.3.1 Output Voltage Set Point

The voltage divider, R7 and R8, is used to set the output voltage. To change the output voltage of the

EVM, it is necessary to change the value of resistor R8. Changing the value of R8 can change the output

voltage above 0.8 V. The value of R8 for a specific output voltage can be calculated using Equation 1.

Use 100 kΩfor R7.

(1)

Table 3 lists the R9 and R10 values for some common output voltages. Note that VIN must be in a range

so that the minimum on-time is greater than 145 ns, and the maximum duty cycle is less than 100%. The

values given in Table 3 are standard values, not the exact value calculated using Equation 1.

Table 3. Output Voltages Available

Output Voltage (V) R7 Value (kΩ) R8 Value (kΩ)

1.2 100 200

1.8 100 80.6

2.5 100 47.5

3.3 100 32.4

5.0 100 19.1

1.3.2 Adjustable UVLO

The under voltage lock out (UVLO) can be adjusted externally using R1 and R2. The EVM is set for a start

voltage of 7.12 V and a stop voltage of 6.12 V using R1 = 220 kΩand R2 = 43.2 kΩ. Use Equation 2 and

Equation 3 to calculate required resistor values for different start and stop voltages.

(2)

(3)

Ip= 1.15 µA, Ih= 3.3 µA, VENFALLING = 1.17 V and VENRISING = 1.21 V

Test Setup and Results

www.ti.com

4SLVUB76–July 2017

Submit Documentation Feedback

TPS54335AEVM-010 3-A Regulator Evaluation Module

2 Test Setup and Results

This section describes how to properly connect, set up, and use the TPS54335AEVM-010 evaluation

module. The section also includes test results typical for the evaluation module and covers efficiency,

output voltage regulation, load transients, loop response, output ripple, input ripple, and start-up.

2.1 Input/Output Connections

The TPS54335AEVM-010 is provided with input/output connectors and test points as shown in Table 4. A

power supply capable of supplying 2 A must be connected to J1 through a pair of 20-AWG wires. The load

must be connected to J4 through a pair of 20-AWG wires. The maximum load current capability must be

at least 4 A to use the full capability of this EVM. Wire lengths must be minimized to reduce losses in the

wires. Test-point TP1 provides a place to monitor the VIN input voltages with TP2 providing a convenient

ground reference. TP6 is used to monitor the output voltage with TP7 as the ground reference.

Table 4. EVM Connectors and Test Points

Reference Designator Function

J1 VIN (see Table 1 for VIN range).

J2 VOUT, 5 V at 3 A maximum.

JP1 2-pin header for enable. Connect EN to ground to disable, open to enable.

TP1 VIN test point at VIN connector.

TP2 GND test point at VIN.

TP3 Slow start monitor test point for TPS54336A. Do not use for TPS54335A.

TP4 PH test point

TP5 Test point between voltage divider network and output. Used for loop response measurements.

TP6 Output voltage test point at OUT connector.

TP7 GND test point at OUT connector.

100

0.001 0.01 0.1 1 10

Efficiency - %

Output Current - A

C002

VIN = 12 V

VIN = 24 V

100

0.0 0.5 1.0 1.5 2.0 2.5 3.0

Efficiency - %

Output Current - A

C001

VIN = 24 V

VIN = 12 V

www.ti.com

Test Setup and Results

SLVUB76–July 2017

TPS54335AEVM-010 3-A Regulator Evaluation Module

2.2 Efficiency

The efficiency of this EVM peaks at a load current of about 0.5 A – 1 A, and then decreases as the load

current increases towards full load. Figure 1 shows the efficiency for the TPS54335AEVM-010 at an

ambient temperature of 25°C.

Figure 1. TPS54335AEVM-010 Efficiency

Figure 2 shows the efficiency for the TPS54335AEVM-010 on a semi-log scale to better show light load

efficiency. The ambient temperature is 25°C.

Figure 2. TPS54335AEVM-010 Low Current Efficiency

The efficiency may be lower at higher ambient temperatures, due to temperature variation in the drain-to-

source resistance of the internal MOSFET.

-0.5

-0.4

-0.3

-0.2

-0.1

0.1

0.2

0.3

0.4

0.5

5 10 15 20 25 30

Line Rgulation - %

Input Voltage - V

C004

IOUT = 1.5 A

±0.20

±0.15

±0.10

±0.05

0.00

0.05

0.10

0.15

0.20

0.0 0.5 1.0 1.5 2.0 2.5 3.0

Load Regulation - %

Output Current - A

C003

VIN = 24 V

VIN = 12 V

Test Setup and Results

www.ti.com

6SLVUB76–July 2017

Submit Documentation Feedback

TPS54335AEVM-010 3-A Regulator Evaluation Module

2.3 Output Voltage Load Regulation

Figure 3 shows the load regulation for the TPS54335AEVM-010.

Figure 3. TPS54335AEVM-010 Load Regulation

Measurements are given for an ambient temperature of 25°C.

2.4 Output Voltage Line Regulation

Figure 4 shows the line regulation for the TPS54335AEVM-010.

Figure 4. TPS54335AEVM-010 Line Regulation

-180

-120

-60

120

180

-60

-40

-20

10 100 1000 10000 100000 1000000

Phase - Degrees

Gain - dB

Frequency - Hz

C005

Gain

Phase

V = 200 mV / div (ac coupled)

OUT

Time = 200 µsec / div

I = 1 A / div

OUT

Load step = 0.75 A - 2.25 A, slew rate = 500 mA / µsec

www.ti.com

Test Setup and Results

SLVUB76–July 2017

TPS54335AEVM-010 3-A Regulator Evaluation Module

2.5 Load Transients

Figure 5 shows the TPS54335AEVM-010 response to load transients. The current step is from 25% to

75% of maximum rated load at 24-V input. Total peak-to-peak voltage variation is as shown, including

ripple and noise on the output.

Figure 5. TPS54335AEVM-010 Transient Response

2.6 Loop Characteristics

Figure 6 shows the TPS54335AEVM-010 loop-response characteristics. Gain and phase plots are shown

for VIN voltage of 24 V. Load current for the measurement is 1.5 A.

Figure 6. TPS54335AEVM-010 Loop Response

V = 20 mV / div (ac coupled)

OUT

Time = 2 µsec / div

SW = 10 V / div

V = 20 mV / div (ac coupled)

OUT

Time = 2 µsec / div

SW = 10 V / div

Test Setup and Results

www.ti.com

8SLVUB76–July 2017

Submit Documentation Feedback

TPS54335AEVM-010 3-A Regulator Evaluation Module

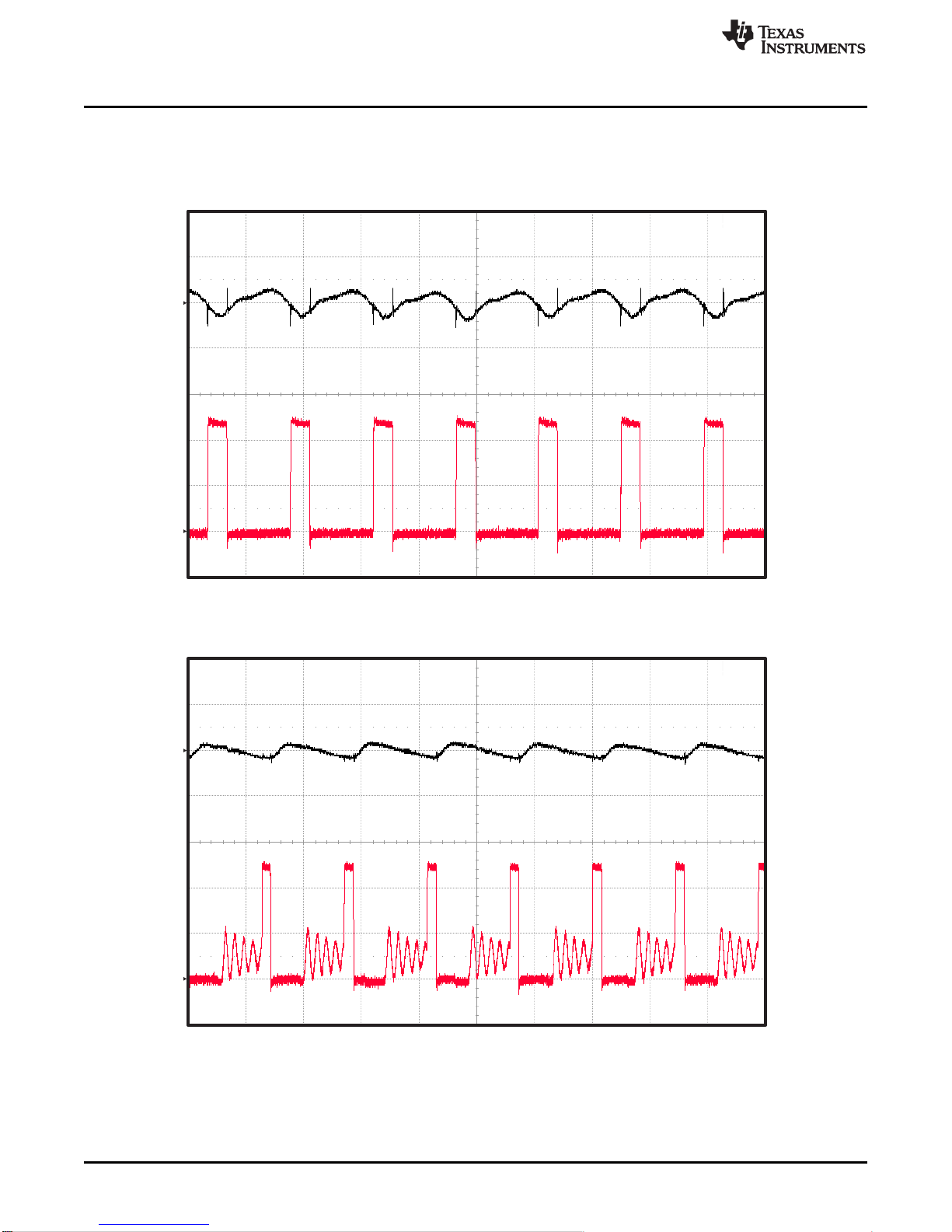

2.7 Output Voltage Ripple

Figure 7,Figure 8, and Figure 9 show the TPS54335AEVM-010 output voltage ripple for full load, light

load, and skip mode operation. VIN = 24 V. The output The ripple voltage is measured directly across the

output capacitors.

Figure 7. TPS54335AEVM-010 Output Ripple, IOUT =3A

Figure 8. TPS54335AEVM-010 Output Ripple, IOUT = 100 mA

V = 200 mV / div (ac coupled)

Time = 2 µsec / div

SW = 10 V / div

V = 20 mV / div (ac coupled)

OUT

Time = 100 µsec / div

SW = 10 V / div

www.ti.com

Test Setup and Results

SLVUB76–July 2017

TPS54335AEVM-010 3-A Regulator Evaluation Module

Figure 9. TPS54335AEVM-010 Output Ripple, IOUT =0A

2.8 Input Voltage Ripple

Figure 10 shows the TPS54335AEVM-010 input voltage ripple. The output current is the rated full load of

3 A and VIN = 24 V. The ripple voltage is measured directly across the input capacitors.

Figure 10. TPS54335AEVM-010 Input Ripple

V = 2 V / div

OUT

Time = 2 msec / div

EN = 2 V / div

V = 10 V / div

V = 2 V / div

OUT

Time = 2 msec / div

EN = 2 V / div

V = 10 V / div

Test Setup and Results

www.ti.com

10 SLVUB76–July 2017

Submit Documentation Feedback

TPS54335AEVM-010 3-A Regulator Evaluation Module

2.9 Powering Up

Figure 11 and Figure 12 show the start-up waveforms for the TPS54335AEVM-010. In Figure 11, the

output voltage ramps up as soon as the input voltage reaches the UVLO threshold as set by the R1and

R2 resistor divider network. In Figure 12, the input voltage is initially applied and the output is inhibited by

using a jumper at JP1 to tie EN to GND. When the jumper is removed, EN is released. When the EN

voltage reaches the enable-threshold voltage, the start-up sequence begins and the output voltage ramps

up to the externally set value of 5 V. The input voltage for these plots is 24 V and the load is 5 Ω.

Figure 11. TPS54335AEVM-010 Start-Up Relative to VIN

Figure 12. TPS54335AEVM-010 Start-up Relative to Enable

Table des matières

Autres manuels Texas Instruments Unité de contrôle

Texas Instruments

Texas Instruments OPT3005DTSEVM Manuel utilisateur

Texas Instruments

Texas Instruments TUSB216EVM Manuel utilisateur

Texas Instruments

Texas Instruments UCC2 5 EVM-286 Series Manuel utilisateur

Texas Instruments

Texas Instruments TMDS64DC01EVM Manuel utilisateur

Texas Instruments

Texas Instruments WL1835MODCOM8B Manuel utilisateur

Texas Instruments

Texas Instruments ADS1x7xEVM-PDK Manuel utilisateur

Texas Instruments

Texas Instruments AM572x series Manuel utilisateur

Texas Instruments

Texas Instruments MLTLDO2EVM-037 Manuel utilisateur

Texas Instruments

Texas Instruments TRF3705EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPS254900AQ1EVM-003 Manuel utilisateur

Texas Instruments

Texas Instruments BQ25886 Manuel utilisateur

Texas Instruments

Texas Instruments TSW40RF8 Series Manuel utilisateur

Texas Instruments

Texas Instruments TPSM84424EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPS7A8300EVM-209 Manuel utilisateur

Texas Instruments

Texas Instruments TLA2024EVM-PDK Manuel utilisateur

Texas Instruments

Texas Instruments BoosterPack BOOSTXL-ADS7142-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments ADS5296 Manuel utilisateur

Texas Instruments

Texas Instruments USB-C-PD-TKT-EVM Manuel utilisateur

Texas Instruments

Texas Instruments PGA2505EVMV2 Manuel utilisateur

Texas Instruments

Texas Instruments SN65LVDS387EVM Manuel utilisateur

Texas Instruments

Texas Instruments HSS-MOTHERBOARDEVM Manuel utilisateur

Texas Instruments

Texas Instruments LMG352 EVM-04 Series Manuel utilisateur

Texas Instruments

Texas Instruments LM5156EVM-BST Manuel utilisateur

Texas Instruments

Texas Instruments bq27 10EVM Series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
