EVMK2E Evaluation Module

Quick Start Guide

EVMK2E Evaluation Module

No Functionality

On board XDS200 USB

JTAG(MIPI-60) connector for SoC

COM1 : SoC UART Console

COM2 : BMC UART Console

BMC Reset : Resets the microcontroller

and will reset the entire board

Dip switch for boot configuration :

1111 : No Boot mode/JTAG DSP Little Endian

0010 : NOR SPI ARM Master Boot

USB3 PORT 1(Device and HOST Modes)

USB3 PORT 0(HOST only)

USB control of both SOC COM1 & BMC COM2

1 press: safe shutdown of SOC;

2 presses within 0.5sec: warm reset;

3 presses within 0.5sec: full reset;

4 presses within 0.5sec: cancel reset

C H

http://www.silabs.com/Support%20Documents/Software/Linux_3.x.x_VCP_Driver_Source.zip

Two boot procedures are described below, one for Uboot and one

for CCS.

1) Uboot Steps:

Ensure EVM configuration

switches are set as shown for

NOR SPI Boot.

Connect the USB mini-B

cable to J1

Insert pendrive and load USB

For Windows User:

For Linux User:

COM drive by executing the

program\drivers\

CP210xVCPInstaller_x86

program\drivers\

Please download driver from any of below link as per Linux kernel version on PC.

Compile the driver and install it.

For 64-bit systems execute the

http://www.silabs.com/Support%20Documents/Software/Linux_2.6.x_VCP_Driver_Source.zip

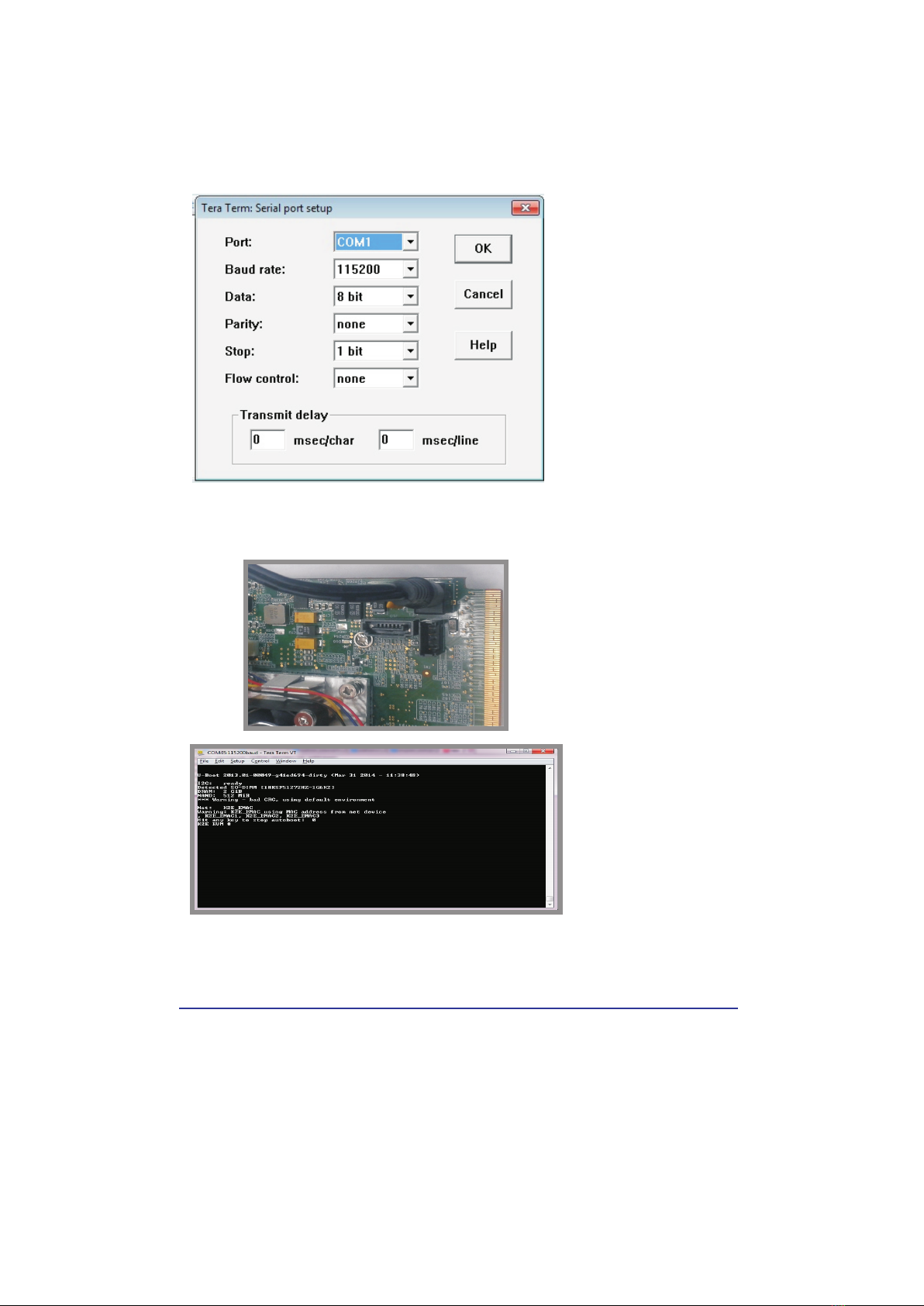

Open Tera Term,

select COM port, configure

settings, as shown in image.

This serial port settings of

Tera Term is shown as an

example. It is not mandatory

to use only Tera Term as

a serial terminal

Insert DC-in cable to apply

12V power.

Hit any key to stop

On SoC serial port console

a display will be seen,

as shown in image.

auto-boot when prompted.

EVM is now ready for

Uboot applications.

MCSDK Downlink Page:

http://software-dl.ti.com/sdoemb/sdoemb_public_sw/mcsdk/latest/index_FDS.html

2) CCS Steps:

Update or install CCS

(V5.5.0.00077 or later) from

MCSDK download page.

Ensure EVM configuration

switch are set as shown for

No Boot/JTAG DSP Little

Endian Boot mode.

Connect the USB mini-B

cable to XDS200.

Insert DCInsert DC--in cable to applyin cable to apply

12V power.12V power.

LaunchLaunch CCSCCS.. After CCS isAfter CCS is

opened,opened, EVM is now reaEVM is now readydy

for use.for use.

Getting Started:

Please see the ‘Getting Started’ chapter in the

MCSDK User Guide for hardware and

software setup:

http://processors.wiki.ti.com/index.php/MCSDK_

User_Guide_for_KeyStone_II.

Important Notes when handling the EVM:

Plug in all the cables before powering

ON the EVM to ensure proper

grounding.

Do not unnecessarily flex the boards,

while inserting cables. Excessive

flexing can break the PCB traces.

Use proper ESD procedures when

handling the EVM.

Warning: Some components on the

EVM may be too hot to touch with your

bare hand when power is on.

Online Documentation

TI device product page

http://www.ti.com/product/66ak2e05

Multicore SDK

http://www.ti.com/tool/bioslinuxmcsdk

http://processors.wiki.ti.com/index.php/M

CSDK_User_Guide_for_KeyStone_II

CCS v5

http://processors.wiki.ti.com/index.php/Categ

ory:Code_Composer _Studio_v5

C663X EVM Information:

https://www.einfochips.com/tI-66ak2e-evm

This link contains:

Hardware & Software details

User Guide

Technical Reference Manual

EVMK2E EVM Support:

Please write to tievmsupport@einfochips.com

for technical queries related to this EVM.

eInfochips Address :

eInfochips Limited.

303,Parishram Building,5/B Rashmi Society

Mithakhali Six Road,Navarangpura.

Ahmedabad- 380009.

Gujarat, INDIA.

Tel : +91-79-2656 3705.

Fax :+91-79-2656 0722.

http://www.einfochips.com/
