Synology DiskStation DS418 Manuel

Synology DiskStation DS418

Hardware Installation Guide

Table of Contents

Chapter 1: Before You Start

Package Contents 3

Synology DiskStation at a Glance 4

Safety Instructions 5

Chapter 2: Hardware Setup

Tools and Parts for Drive Installation 6

Install Drives 6

Start Up Your DiskStation 8

Chapter 3: Install DSM on DiskStation

Install DSM with Web Assistant 9

Learn More 9

Appendix A: Specications

Appendix B: LED Indicator Table

Synology_HIG_DS418_20170718

Chapter

Thank you for purchasing this Synology product! Before setting up your new DiskStation, please check the

package contents to verify that you have received the items below. Also, make sure to read the safety instructions

carefully to avoid harming yourself or damaging your DiskStation.

Package Contents

Main unit x 1 AC power cord x 1

AC power adapter x 1

Screws for 2.5” hard drives x 18 Hard drive tray key x 2 RJ-45 LAN cable x 2

Before You Start

4Chapter 1: Before You Start

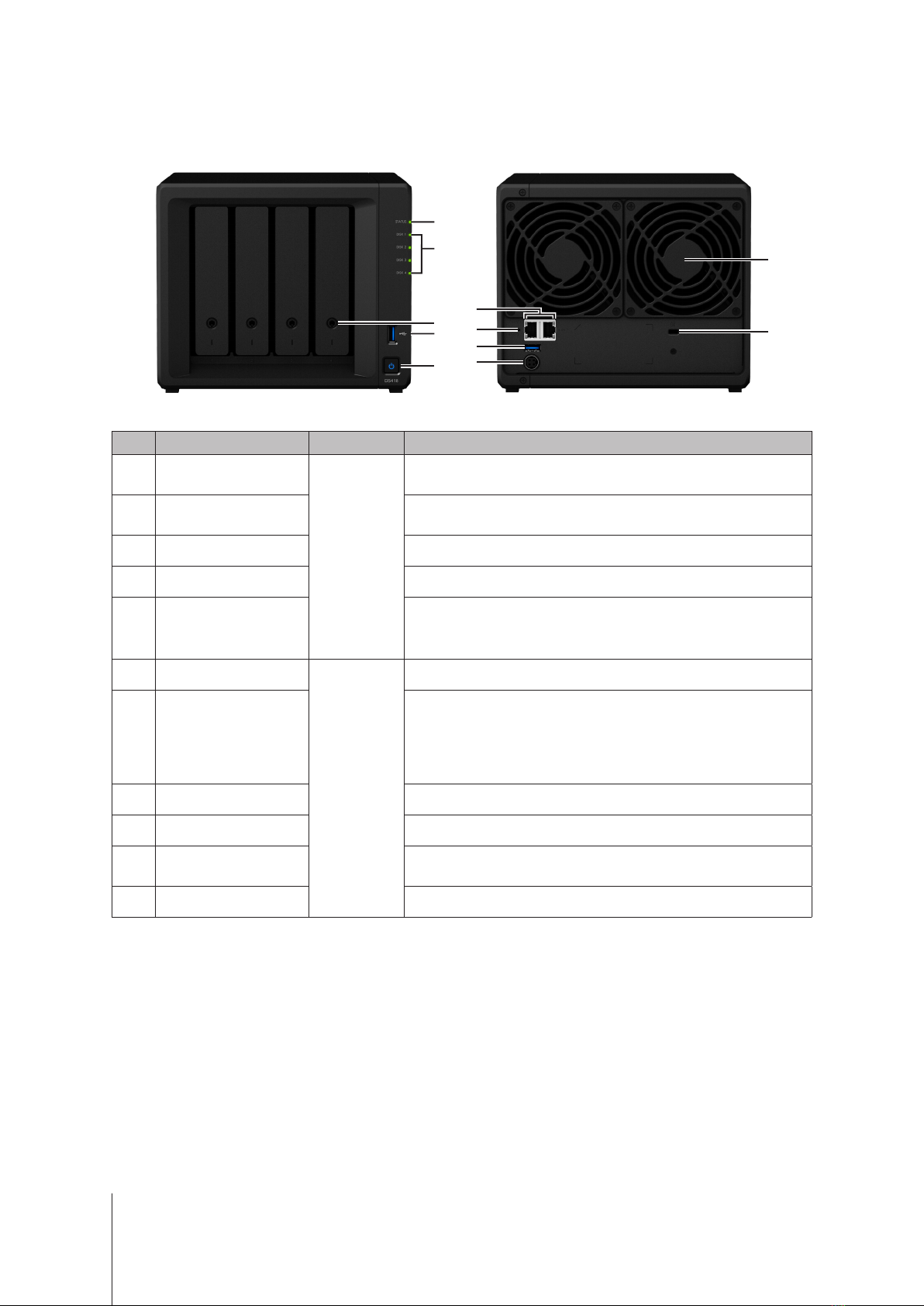

Synology DiskStation at a Glance

No. Article Name Location Description

1 Status Indicator

Front Panel

Displays the status of the system. For more information, see "Appendix B:

LED Indicator Table".

2 Disk Indicator Displays the status of the installed drive. For more information, see

"Appendix B: LED Indicator Table".

3 Drive Tray Lock Lock or unlock drive trays.

4 USB 3.0 Port Connect external drives or other USB devices to the DiskStation here.

5 Power Button

1. Press to power on the DiskStation.

2. To power off the DiskStation, press and hold until you hear a beep

sound and the Power LED starts blinking.

6 LAN Port

Back Panel

Connect network cables here.

7 RESET Button

1. Press and hold until you hear a beep sound to restore the default IP

address, DNS server, and passwords for the admin account.

2. Press and hold until you hear a beep sound, then press and hold

again until you hear three beep sounds to return the DiskStation to

“Not installed” status so that DiskStation Manager (DSM) can be

reinstalled.

8 USB 3.0 Port Connect external drives or other USB devices to the DiskStation here.

9 Power Port Connect the AC power adapter here.

10 Fan Disposes of excess heat and cools the system. If the fan malfunctions,

the DiskStation will emit a beeping sound.

11 Kensington Security Slot Attach a Kensington security lock here.

5Chapter 1: Before You Start

Safety Instructions

Keep away from direct sunlight and away from chemicals. Make sure the environment does not

experience abrupt changes in temperature or humidity.

Place the product right side up at all times.

Do not place near any liquids.

Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or

aerosol cleaners.

To prevent the unit from falling over, do not place on carts or any unstable surfaces.

The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is

correct and stable.

To remove all electrical current from the device, ensure that all power cords are disconnected from

the power source.

Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately.

Chapter

Tools and Parts for Drive Installation

• A screwdriver (only for 2.5" drives)

• At least one 3.5” or 2.5” SATA drive (please visit www.synology.com for compatible drive models.)

Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please

back up any important data before installation.

Install Drives

1 Pull out the drive bay which you are installing the drive into.

2 Load drives in the drive trays.

• For 3.5” drives: Remove the fastening panels from the sides of the drive tray. Place the drive in the drive

tray. Then insert the fastening panels to secure the drive in place.

Hardware Setup

7Chapter 2: Hardware Setup

• For 2.5” drives: Remove the fastening panels from the sides of the drive tray and store them in a safe

place. Place the drive in the blue area (shown below) of the drive tray. Turn the tray upside down and tighten

the screws to secure the drive in place.

3 Insert the drive tray into the empty drive bay and push it back until you hear a click when the tray is locked into

place.

4 Repeat the steps above to assemble the other drives you have prepared.

5 Drives are numbered as shown below:

1234

Note: If you want to create a RAID volume, we recommend that all installed drives are of the same size to make the

best use of drive capacity.

8Chapter 2: Hardware Setup

Start Up Your DiskStation

1 Use the LAN cable to connect the DiskStation to your switch, router, or hub.

2 Connect the AC adapter to the power port of the DiskStation. Connect one end of the AC power cord to the AC

power adapter, and the other to the power outlet.

3 Press the power button.

Congratulations! Your DiskStation is now online and detectable from a network computer.

Chapter

After hardware setup is nished, please install DiskStation Manager (DSM) – Synology’s browser-based

operating system – on your DiskStation.

Install DSM with Web Assistant

Your DiskStation comes with a built-in tool called Web Assistant that helps you download the latest version of

DSM from the Internet and install it on your DiskStation. To use Web Assistant, please follow the steps below.

1 Power on the DiskStation.

2 Open a web browser on a computer connected to the same network as the DiskStation.

3 Enter either of the following into the address bar of your browser:

a nd.synology.com

b diskstation:5000

4 Web Assistant will be launched in your web browser. It will search for and nd the DiskStation within the local

network. The status of the DiskStation should be Not installed.

DS418

5 Click Connect to start the setup process and follow the onscreen instructions.

Note:

1. The DiskStation must be connected to the Internet to install DSM with Web Assistant.

2. Suggested browsers: Chrome, Firefox.

3. Both the DiskStation and the computer must be in the same local network.

Learn More

Congratulations! Your DiskStation is now ready for action. For more information or online resources about your

DiskStation, please visit www.synology.com.

Install DSM on DiskStation

Appendix

Item DS418

Compatible Drive Type 3.5" / 2.5" SATA x 4

Maximum Internal Raw Capacity 40 TB (4 x 10 TB HDD)

External Ports USB 3.0 x 2

LAN Ports 1GbE (RJ-45) x 2

Size (H x W x D) (mm) 166 x 199 x 223

Weight (kg) 2.28

Supported Clients • Windows 7 and 10

• Mac OS X 10.11 onward

File Systems • Internal: ext4

• External: ext4, ext3, FAT, NTFS, HFS+, exFAT1

Supported RAID Types

• Basic • JBOD • RAID 0 • RAID 1

• RAID 5 • RAID 6 • RAID 10

• Synology Hybrid RAID (2-Disk Fault Tolerance)

Agency Certications • FCC Class B • CE Class B • BSMI Class B

HDD Hibernation Yes

Scheduled Power On/Off Yes

Wake on LAN Yes

Language Localization

Environment Requirements

• Line voltage: 100V to 240V AC

• Frequency: 50/60Hz

• Operating Temperature: 40 to 104˚F (5 to 40˚C)

• Storage Temperature: -5 to 140˚F (-20 to 60˚C)

• Relative Humidity: 5% to 95% RH

Note: Model specications are subject to change without notice. Please refer to www.synology.com for the latest information.

Specications

1The support for exFAT can be enabled after you have purchased and downloaded exFAT Access in Package Center.
