Synology DS411j Manuel utilisateur

DiskStation

DS411j

Quick Installation Guide

Document ID: Synology_QIG_DS411j_20111017

All manuals and user guides at all-guides.com

all-guides.com

SAFETY INSTRUCTIONS

Please read these safety instructions carefully before use, and keep

this manual in a safe place for your future reference.

Keep away from

direct sunlight and

away from

chemicals. Make

sure the

environment does

not experience

abrupt changes in

temperature or

humidity.

Keep Synology

product upright. Do

not lay it down

horizontally.

Do not place the

Synology product

close to any liquid.

Do not place the

Synology product

on a cart, table, or

desk, which is not

stable to prevent the

product from falling

over.

The power cord

must plug in to the

right supply voltage.

Make sure that the

supplied AC voltage

is correct and

stable.

Before cleaning,

unplug the power

cord first. Wipe

Synology product

with damp paper

towels. Do not use

chemical or aerosol

cleaners to clean it.

All manuals and user guides at all-guides.com

PACKAGE CONTENTS

Before you begin, please check the package contents to verify that

you have received the items below.

Note:

It is recommended that you install hard disks with the same

size to make the best use of hard disk capacity.

Main Unit X 1 (4

hard disk trays

included)

Installation CD

AC power adapter

2M RJ-45 LAN

cable

AC power cord

Assembling Kit

Screws for

securing 3.5” hard

drives x 18

Screws for

securing 2.5” hard

drives x 18

Screws for

securing hard disk

trays x 8

Cable lock X 1

All manuals and user guides at all-guides.com

DISKSTATION AT A GLANCE

No.

Name

Location

Description

Power Button

Front Panel

The power button is used to turn Synology DiskStation on or off.

To turn off Synology DiskStation, press the power button and hold it until

you hear a beep sound and the Power LED starts blinking.

LED Indicators

Front Panel

The LED indicator is used to display the status of the internal disk and

the system. For more information, see "LED INDICATION TABLE" at the

end of this document.

USB Ports

Back Panel

The Synology DiskStation offers USB ports for adding additional external

hard drives, USB printers, or other USB devices.

Fans

Back Panel

The fans are built to exhaust waste heat out of Synology DiskStation. It

will start automatically when the server starts. If the fan is malfunctioning,

the system will play beep sounds.

RESET Button

Back Panel

1.To restore IP, DNS, passwords for the admin account to default value.

2.To reinstall the Synology DiskStation.

LAN Port

Back Panel

The LAN port is where you connect RJ-45 cable to Synology DiskStation.

Power Port

Back Panel

The power port is where you connect the AC adapter to

Synology DiskStation.

All manuals and user guides at all-guides.com

INSTALLING HARD DISKS

DiskStation requires at least one 3.5” or 2.5” SATA hard disk for

installation. Refer to the following steps for details:

1. Remove the four screws fixed on the back cover.

2. Put the back cover down carefully.

Warning! If you use a hard disk with data on it to install, system will

format the hard disk and erase all data in some cases. Please back

up the data if you need it in the future.

All manuals and user guides at all-guides.com

3. Lift the upper case and then pull it out.

4. You will see four hard disk trays. Pull one hard disk tray out.

a. If you are using 3.5” hard disks, place the hard disk into the

hard disk tray. Secure the hard disk on the two sides with the

4 screws (for securing 3.5” hard drives) provided.

All manuals and user guides at all-guides.com

all-guides.com

b. If you are using 2.5” hard disks, align the hard disk with the 4

smaller holes on the hard disk tray, and secure the hard disk

from the bottom with the screws (for securing 2.5” hard

drives) provided.

5. Put the hard disk tray back in the DiskStation and repeat step 4

for each hard disk. Make sure the hard disk trays are pushed

all the way to the back.

6. If you are using 3.5” hard disks, secure the hard disk trays with

the screws (for securing hard disk trays) provided.

All manuals and user guides at all-guides.com

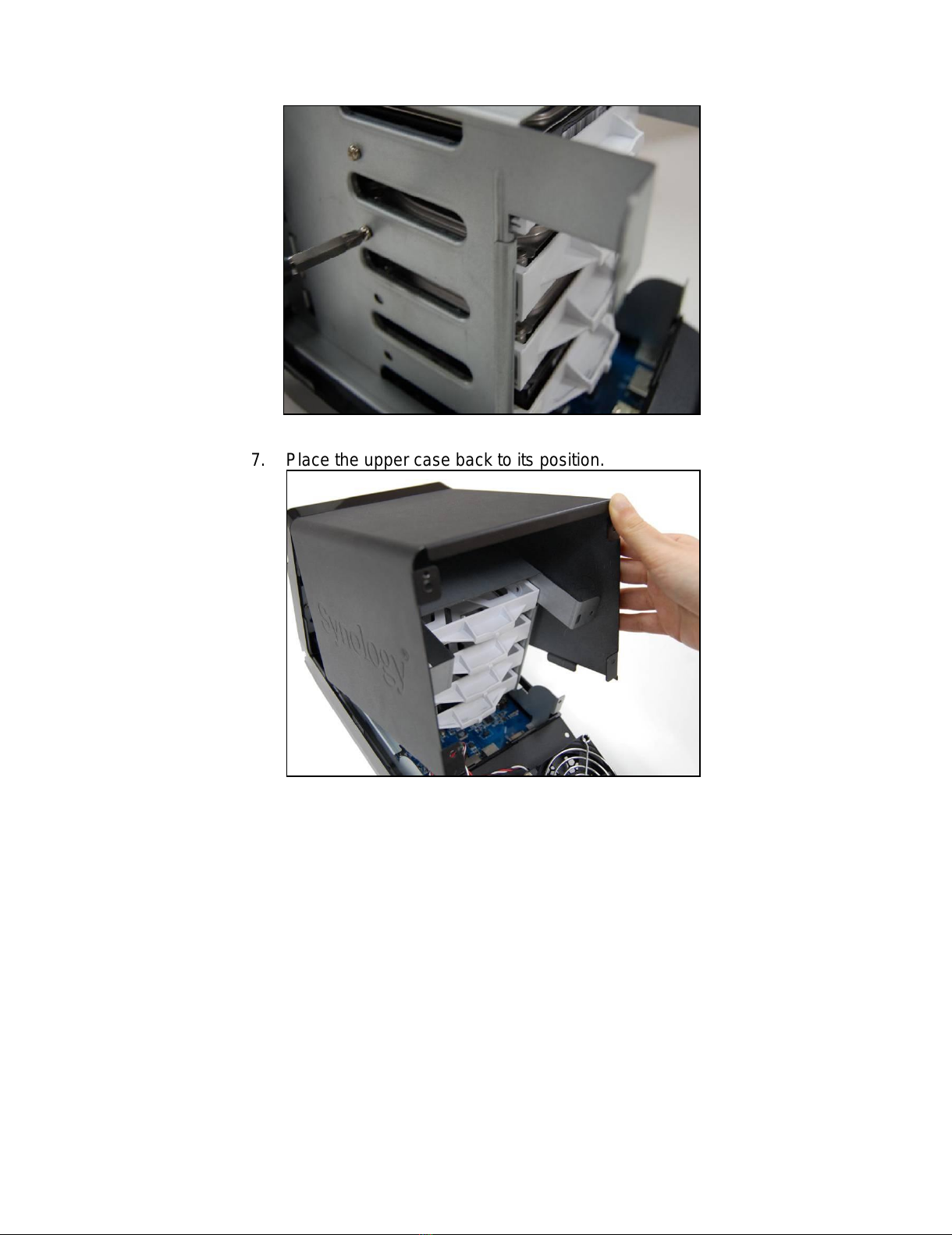

7. Place the upper case back to its position.

All manuals and user guides at all-guides.com

8. Attach the cable lock to the corresponding hole above The

power port on the back cover. Make sure the cable lock is

hooked on the inner side of the back cover.

9. Close the back cover and fix it with the four screws.

All manuals and user guides at all-guides.com

TURN ON SERVER

1. Connect the AC adapter to The power port, and fix the cable to

the cable lock. Then plug the power cord into a power socket.

2. Connect the RJ-45 cable to the server and connect the other

end to your switch/hub/router.

3. Remove the plastic wraps on the front panel. Press the power

button on the front panel to turn on the server.

All manuals and user guides at all-guides.com
