Synology CS407 Manuel utilisateur

Quick Installation Guide

Cube/Disk Station

CS407, CS407e, DS408

Please read these safety instructions carefully before use, and keep this manual in a safe place for your

future reference.

Keep away from direct sunlight

and away from chemicals.

Make sure the environment

does not experience abrupt

changes in temperature or

humidity.

Do keep Synology product

upright. Do not lay it down

horizontally.

Do not place the Synology

product close to any liquid.

Do not place the Synology

product on a cart, table, or

desk, which is not stable to

avoid the product from falling

over.

The power cord must plug in

to the right supply voltage.

Make sure that the supplied AC

voltage is correct and stable.

Before cleaning, unplug the

power cord rst. Wipe Synology

product with damp paper

towels. Do not use chemical or

aerosol cleaners to clean it.

SAFETY INSTRUCTIONS

PACKAGE CONTENTS

Before you begin, please check the package contents to verify that you have received the items below.

Main Unit X 1 Installation CD AC power adapter

2M RJ-45 LAN cable AC power cord

Assembling Kit

Screws for xing hard drive and

case X 16

SATA cable X 4 HDD cable X 4

Cable tie X 2 Cable lock X 1

Note:

It is recommended that you install hard disks with the same size to make the best use of hard disk

capacity.

Cube/Disk Station requires 3.5” SATA hard drives for installation. Refer to the following steps for details:

Warning! If you use a hard disk with data on it to install, system will format the hard

disk and erase all data in some cases. Please back up the data if you need it in the

future.

Remove the four screws xed on the back cover.

Put the back cover down carefully.

Lift the upper case and then pull it out.

INSTALL HARD DISK

The 4 black connectors on the mother board are for SATA cables, and the 4 white connectors are

for hard disk power cables. You can see the disk identity numbers printed beside the connectors.

Connect the 4 hard disk power cables.

Connect the 4 SATA cables. The longest one should be connected to the HDD 1 connecter.

Place the hard disks into the hard disk tray with connectors faced outside. The top hard disk is HDD

1, and then HDD 2, HDD 3, and HDD 4.

INSTALL HARD DISK

HDD power cable SATA cable

Fix the hard disks with the 5mm screws provided. Use 2 screws on each side of the hard disk.

Connect the SATA cables and the hard disk power cables to the hard disks. Please note that the

longest SATA cable is for HDD 1.

Use the cable ties to arrange the hard disk power cables and SATA cables.

Place the upper case back to the position.

INSTALL HARD DISK

Fix the cable lock to its hole on the back cover. Make sure on the inner side of the back cover, the

cable lock is hooked.

Close the back cover and x it with the four screws.

INSTALL HARD DISK

TURN ON SERVER

Connect the AC adapter to the power port, and x the cable to the cable lock. Then plug the power

cord into a power socket.

Connect the RJ-45 cable to the server and connect the other end to your switch/hub/router or

notebook/desktop PC.

Remove the plastic wraps on the front panel. Press the Power button on the front panel to turn on

the server.

INSTALL SYSTEM SOFTWARE

Windows User

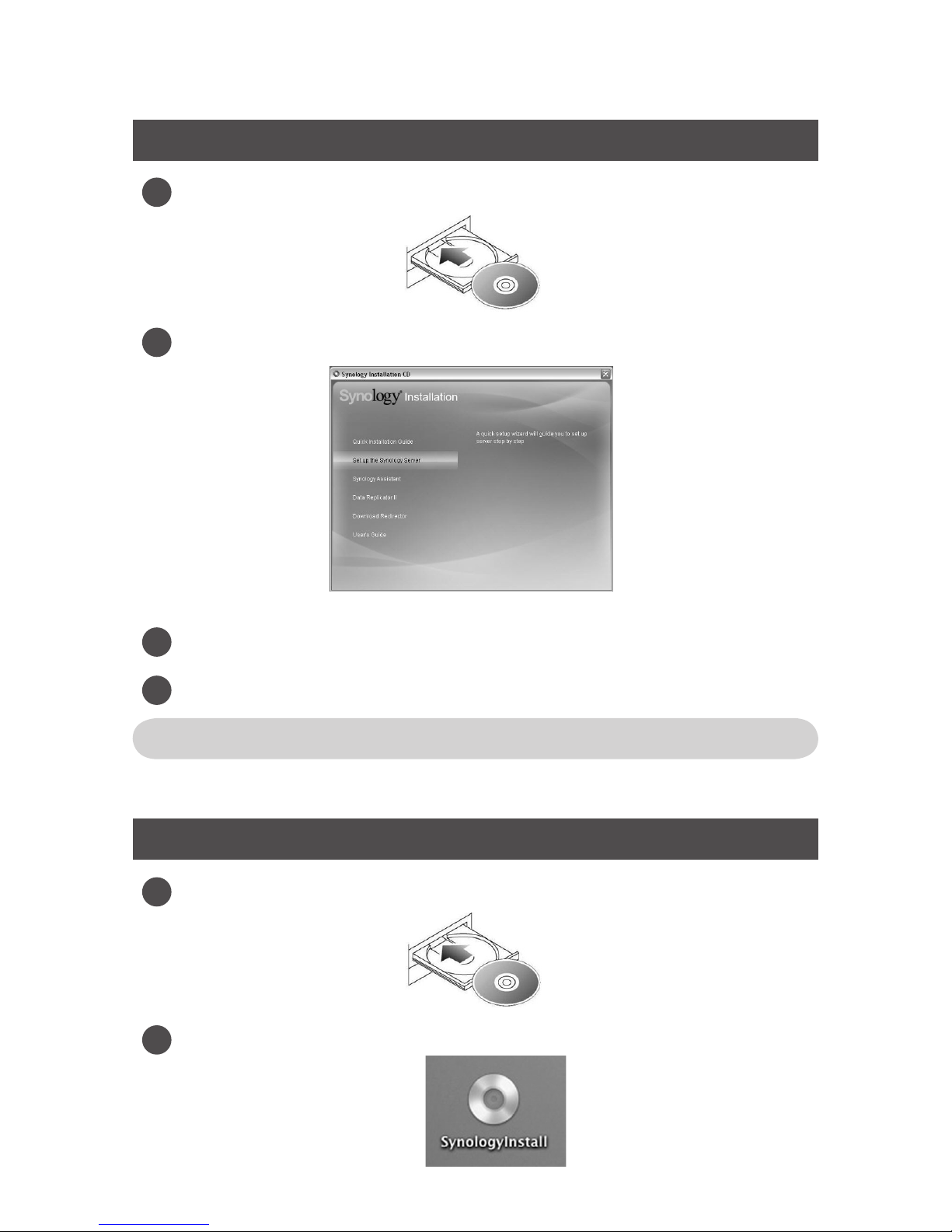

Insert the installation CD to your computer.

Choose Set up the Synology Server on the autorun menu.

Click Browse to select the “.pat” installation le in the installation CD.

Follow the on-screen instructions to complete the setup process.

Note: If you choose One-Click Setup, the admin password will be blank.

Mac User

Insert the installation CD to your computer.

Double click on the CD-Rom Drive thumbnail.

INSTALL SYSTEM SOFTWARE

Double click MacOSX.

Double click Synology Assistant-SYNOLOGY.dmg.

Double click on the automatically generated thumbnail Synology Assistant-SYNOLOGY.dmg on the

desktop.

Double click Synology Assistant to run the Setup Wizard.
