Synology DiskStation DS1819+ Manuel

Synology DiskStation DS1819+

Hardware Installation Guide

Table of Contents

Chapter 1: Before You Start

Package Contents 3

Synology DiskStation at a Glance 4

Safety Instructions 5

Chapter 2: Hardware Setup

Tools and Parts for Drive Installation 6

Install Drives 6

Start Up Your DiskStation 9

Add a RAM Module on DiskStation 10

Add a Network Interface Card 13

Replace System Fan 15

Chapter 3: Install DSM on DiskStation

Install DSM with Web Assistant 17

Learn More 17

Appendix A: Specications

Appendix B: LED Indicator Table

Synology_HIG_DS1819+_20180702

Thank you for purchasing this Synology product! Before setting up your new DiskStation, please check the

package contents to verify that you have received the items below. Also, make sure to read the safety instructions

carefully to avoid harming yourself or damaging your DiskStation.

Note: All images below are for illustrative purposes only, and may differ from the actual product.

Package Contents

Main unit x 1 AC power cord x 1

RJ-45 LAN cable x 2

Screws for 2.5” hard drives x 36

Hard drive tray key x 2

Before You Start 1

Chapter

4Chapter 1: Before You Start

Synology DiskStation at a Glance

1 Status Indicator

Front

Displays the status of the system. For more information, see "Appendix B:

LED Indicator Table".

2 Alert Indicator Displays warnings regarding fan or temperature. For more information, see

"Appendix B: LED Indicator Table".

3 Power Button

1. Press to power on the DiskStation.

2. To power off the DiskStation, press and hold until you hear a beep sound

and the Power LED starts blinking.

4 LAN Indicator Displays the status of the network connection. For more information, see

"Appendix B: LED Indicator Table".

5 Drive Status Indicator Displays the status of the installed drive. For more information, see "Appendix

B: LED Indicator Table".

6 Drive Tray Install drives (hard disk drives or solid state drives) here.

7 Drive Tray Lock Lock or unlock drive trays.

8 USB 3.0 Port Connect external hard drives, USB printers, or other USB devices to the

DiskStation here.

9 Power Port

Back

Connect the AC power cord here.

10 Fan Disposes of excess heat and cools the system. If the fan malfunctions, the

DiskStation will emit a beeping sound.

11 PCI Express

Expansion Slot Supports one PCIe x8 slot (x4 link) add-on card.

12 Kensington

Security Slot Attach a Kensington security lock here.

13 eSATA Port 1 Connect external SATA drive or Synology Expansion Unit1to the DiskStation

here.

14 LAN Port Connect network cables here.

15 RESET Button

1. Press and hold until you hear a beep sound to restore the default IP

address, DNS server, and password for the admin account.

2. Press and hold until you hear a beep sound, then press and hold again

until you hear three beep sounds to return the DiskStation to “Not

Installed” status so that DiskStation Manager (DSM) can be reinstalled.

16 USB 3.0 Port Connect external hard drives or other USB devices to the DiskStation here.

17 eSATA Port 2 Connect external SATA drive or Synology Expansion Unit1to the DiskStation

here.

1For more information about Synology Expansion Unit supported by your DiskStation, please visit www.synology.com.

5Chapter 1: Before You Start

Safety Instructions

Keep away from direct sunlight and away from chemicals. Make sure the environment does not

experience abrupt changes in temperature or humidity.

Place the product right side up at all times.

Do not place near any liquids.

Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or

aerosol cleaners.

To prevent the unit from falling over, do not place on carts or any unstable surfaces.

The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is

correct and stable.

To remove all electrical current from the device, ensure that all power cords are disconnected from

the power source.

Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately.

Tools and Parts for Drive Installation

• A screwdriver (only for 2.5" drives)

• At least one 3.5” or 2.5” SATA drive (please visit www.synology.com for compatible drive models.)

Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please

back up any important data before installation.

Install Drives

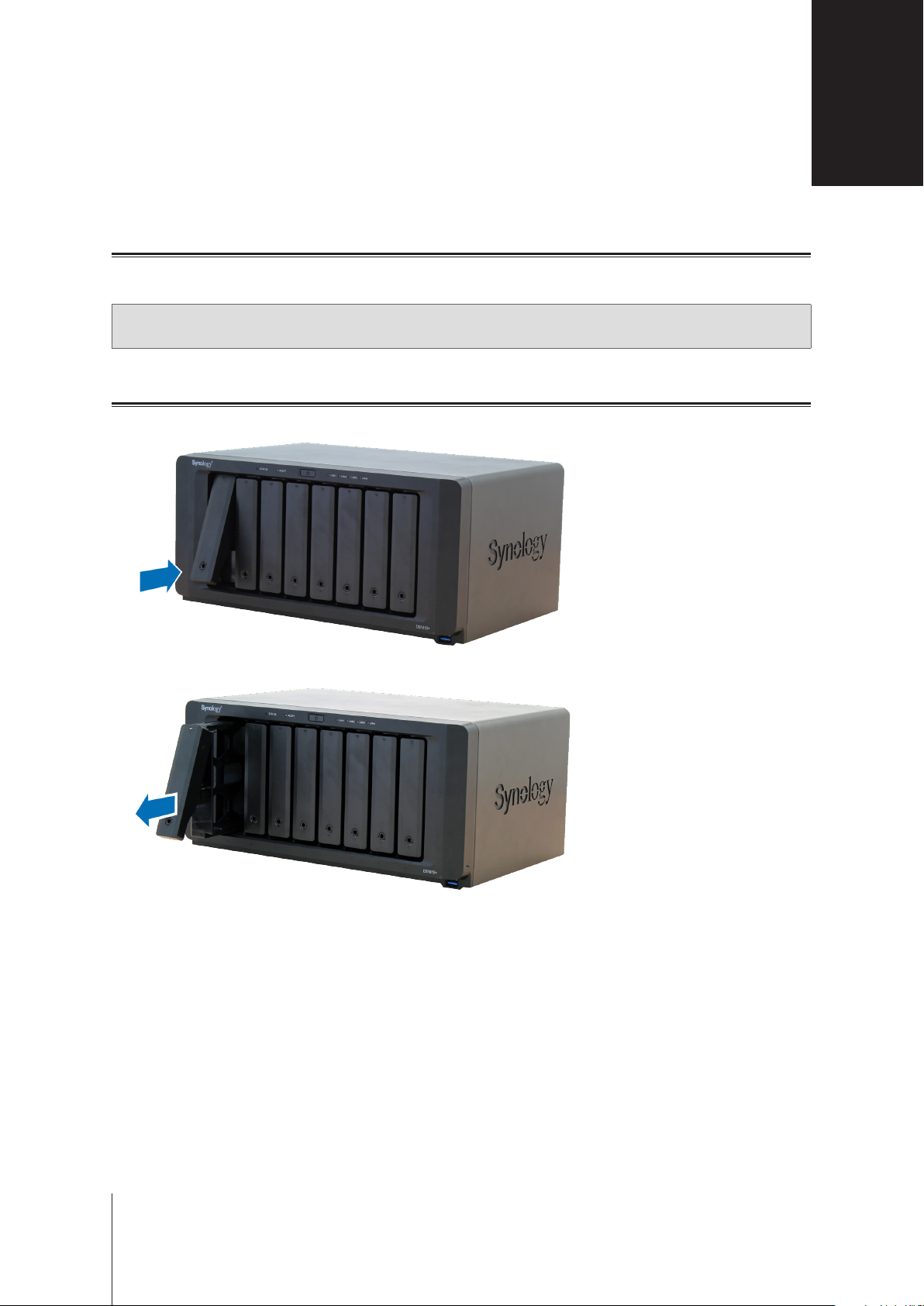

1 Press the lower part of the hard drive tray to pop out the handle.

2 Pull the hard drive tray handle in the direction as indicated below to remove the hard drive tray.

Hardware Setup

Chapter

7Chapter 2: Hardware Setup

3 Load drives in the drive trays.

• For 3.5” drives: Remove the fastening panels from the sides of the drive tray. Place the drive in the drive

tray. Then insert the fastening panels to secure the drive in place.

• For 2.5” drives: Remove the fastening panels from the sides of the drive tray and store them in a safe

place. Place the drive in the blue area (shown below) of the drive tray. Turn the tray upside down and tighten

the screws to secure the drive in place.

8Chapter 2: Hardware Setup

4 Push the upper part of the loaded hard drive tray and insert it into the empty hard drive bay.

Note: Make sure the tray is pushed in all the way. Otherwise, the drive might not be able to function properly.

5 Press the handle in ush with the front panel to hold the hard drive tray in place.

6 Insert the hard drive tray key into the hard drive tray lock, turn the key clockwise (to the "I" position) to lock the

handle of the hard drive tray, and then remove the key.

7 Repeat the steps above to assemble the other drives you have prepared.

8 Drives are numbered as shown below.

Note: If you want to create a RAID volume, we recommended that all installed drives are of the same size to make

the best use of drive capacity.

9Chapter 2: Hardware Setup

Start Up Your DiskStation

1 Use the LAN cable to connect the DiskStation to your switch, router or hub.

2 Connect the AC adapter to the power port of the DiskStation. Connect one end of the AC power cord to the AC

power adapter, and the other to the power outlet.

3 Press the power button.

Congratulations! Your DiskStation is now online and detectable from a network computer.

10 Chapter 2: Hardware Setup

Add a RAM Module on DiskStation

The optional Synology DDR4 RAM module is designed for DiskStation memory expansion. Follow the steps

below to install, check, or remove a RAM module on your DiskStation.

To install the RAM module:

1 Shut down your DiskStation. Disconnect all cables connected to your DiskStation to prevent any possible

damages.

2 The RAM modules are located at the bottom of DS1819+.

3 Remove the 2 screws that secure the bottom panel. Lift off the panel and place it to the side. You will see there

is one pre-installed 4G RAM module.

Important: When you remove the panel, you expose sensitive internal components. Avoid touching anything other

than the memory assembly when you remove or add memory.
