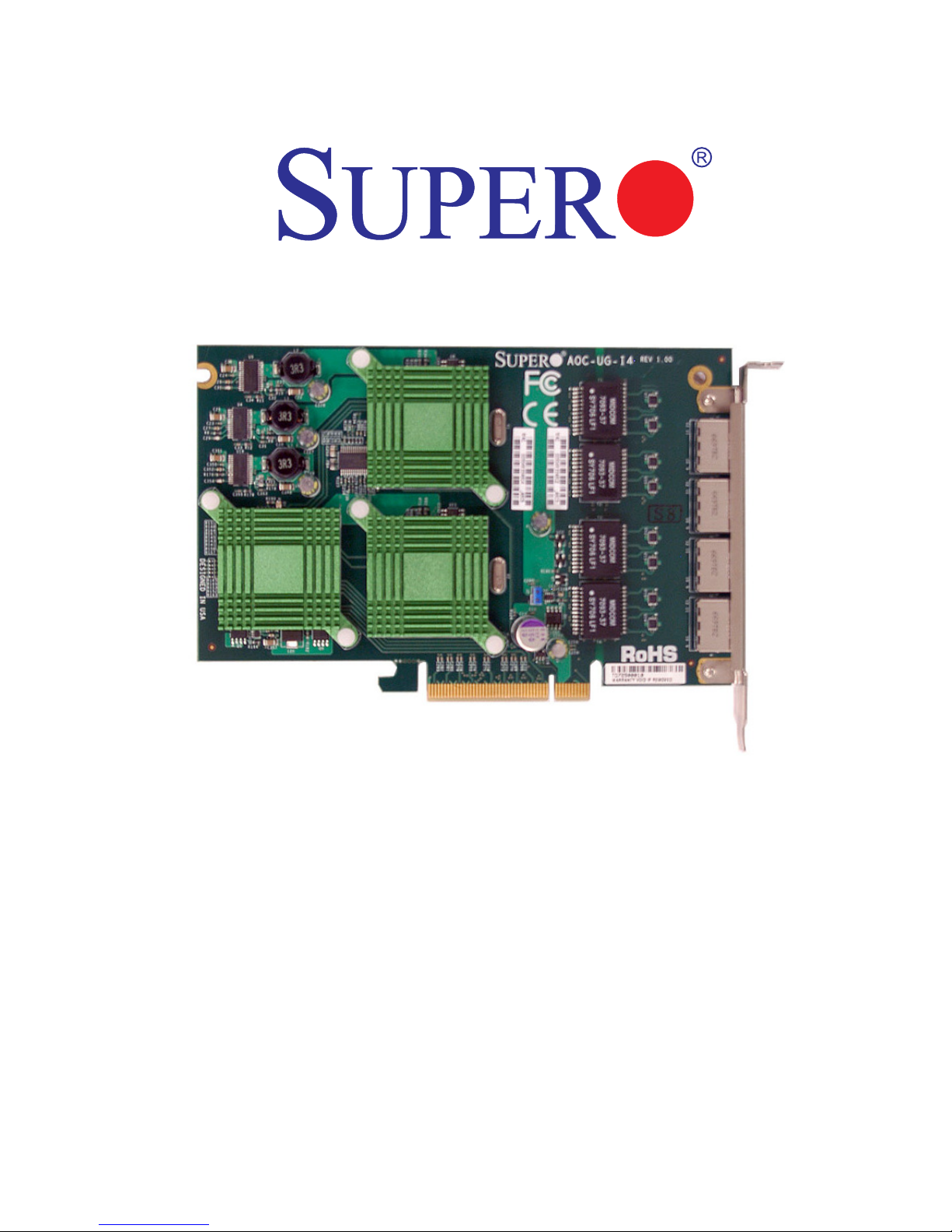

Supero AOC-UG-i4 Manuel utilisateur

Rev. 1.0

AOC-UG-i4

USER'S GUIDE

Add-on Card User's Guide

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of

this manual, please see our web site at www.supermicro.com.

SUPERMICRO COMPUTER reserves the right to make changes to the product described in this

manual at any time and without notice. This product, including software, if any, and documenta-

tion may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any

medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,

INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE

OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE

LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE

PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING

OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all

claims will not exceed the price paid for the hardware product.

Manual Revision 1.0

Release Date: March 1, 2007

Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not

copy or otherwise reproduce/distribute any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Chapters 3 and 4 of this manual were taken directly from the Intel® PRO/1000 Server Adapter

Guide included with the Adapter Driver CD. These sections were used with permission.

Printed in the United States of America

iii

Safety Information and Technical Speciﬁcations

Table of Contents

Introduction

Overview .............................................................................................................v

Product Features.................................................................................................v

Supported Operating Systems, Motherboards, and Servers..............................v

Manual Images....................................................................................................v

Contacting SuperMicro.......................................................................................vi

Chapter 1 Safety Guidelines

1-1 ESD Safety Guidelines ................................................................................... 1-1

1-2 General Safety Guidelines .............................................................................. 1-1

1-3 An Important Note to Users ............................................................................ 1-1

Chapter 2 Add-on Card Components

2-1 Front Connectors, Jumpers, and LEDs.......................................................... 2-1

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..................... 2-1

2-2 Front Connector and Jumper Deﬁnitions ........................................................ 2-2

Explanation of Jumpers.............................................................................. 2-3

Chapter 3 Installing the Drivers

3-1 Install the Drivers in Microsoft Windows.............................................................. 3-1

3-2 Intel® PROSet for Windows* Device Manager ................................................... 3-2

Installing Intel PROSet for Windows Device Manager ................................... 3-2

Tips for PROSet Users............................................................................... 3-2

Removing Intel PROSet for Windows Device Manager ................................. 3-2

Receive Side Scaling ...................................................................................... 3-3

RSS Conﬁguration...................................................................................... 3-3

Teaming ...................................................................................................... 3-3

3-3 Installing the Base Driver and Intel® PROSet via the Command Line. . . . . . . . . . . . . . . 3-4

Installation Methods ........................................................................................ 3-4

Base Driver Installation ................................................................................... 3-4

Command Line Options ............................................................................. 3-4

Intel PROSet for Windows Device Manager Installation ................................ 3-5

Using the DxSetup.exe utility ..................................................................... 3-6

Command line examples............................................................................ 3-7

msiexec.exe command line options ........................................................... 3-7

Command Line Switches ................................................................................ 3-8

Silent install/upgrade command line syntax............................................... 3-9

Add-on Card User's Guide

Silent uninstall command line syntax......................................................... 3-9

Command line options supported by PROSETDX.msi.............................. 3-9

Command line install examples ............................................................... 3-10

Command line uninstall example..............................................................3-11

Command line reinstall / repair ................................................................ 3-12

Chapter 4 Linux Base Driver for PRO/1000 Family of Adapters

4-1 Overview .............................................................................................................. 4-1

4-2 Identifying Your Adapter....................................................................................... 4-2

4-3 Building and Installation....................................................................................... 4-2

4-4 Command Line Parameters ................................................................................. 4-4

Notes on InterruptThrottleRate..................................................................4-11

Speed and Duplex Conﬁguration ............................................................. 4-13

4-5 Additional Conﬁgurations ................................................................................... 4-14

Conﬁguring the Driver on Different Distributions .......................................... 4-14

Viewing Link Messages............................................................................ 4-15

Jumbo Frames ......................................................................................... 4-15

Ethtool ...................................................................................................... 4-16

Enabling Wake on LAN* (WoL)................................................................ 4-17

NAPI ......................................................................................................... 4-17

Safety Information and Technical Speciﬁcations

Introduction

Overview

This manual is written for system integrators, PC technicians and knowledgeable

PC users who intend to integrate SuperMicro's AOC-UG-I4 Add on Card to their

system.

Product Features

The AOC-UG-I4 offers the following features:

• Dual Intel 82571 LAN chips

• PCI-e x8 interface through PLX PCI-e 8518

• Full height PCI-e x8 UIO card that is optimized for our UIO motherboards and

servers

• Four Ports that maximize connectivity in small spaces through RJ45 connec-

tors

• Duel Intel 82571 (Ophir) LAN chips that ensure priority performance on each

port without bus sharing

• Intel's I/OAT accelorates I/O with higher throughput and lower CPU utilzation

• Virtualization provides the platform with port density required for virtualized

environments

• Support Pre-boot Execution Environment (PXE) on Super Micro UIO mother-

boards and servers

• Wake on LAN (WOL) support (Port A only)

•RoHS 6/6

• Intel PROSet Utility for Windows supported network teaming

Supported Operating Systems, Motherboards, and

Servers

The AOC-UG-I4 supports the following Operating Systems (OS) with the latest

BIOS:

• Windows 2000/Windows XP/Windows 2003

•Red Hat Enterprise Linux/SUSE Linux

Manual Images

All images and layouts shown are based upon the latest revision at the time of

publishing. The card you receive not look exactly the same.

Add-on Card User's Guide

Contacting SuperMicro

Headquarters

Address: SuperMicro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: marketing@supermicro.com (General Information)

support@supermicro.com (Technical Support)

Web Site: www.supermicro.com

Europe

Address: SuperMicro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: sales@supermicro.nl (General Information)

support@supermicro.nl (Technical Support)

rma@supermicro.nl (Customer Support)

Asia-Paciﬁc

Address: SuperMicro, Tai wan

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Ta i pei County

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Technical Support:

Email:support@supermicro.com.tw

Tel: 886-2-8228-1366,ext.132 or 139

1-1

Safety Information and Technical Speciﬁcations

Chapter 1

Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps

listed below when accessing your system or handling the components.

1-1 ESD SafetyGuidelines

Electric Static Discharge (ESD) can damage electronic components. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sufﬁcient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing a component from the anti-

static bag.

• Handle the add-on card by its edges only; do not touch its components, pe-

ripheral chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the card and peripherals back into their antistatic bags when not in use.

1-2 General SafetyGuidelines

• Always disconnect power cables before installing or removing any components

from the computer.

• Disconnect the power cable before installing or removing any cables from the

system.

• Make sure that the add-on card is securely and properly installed on the moth-

erboard to prevent damage to the system due to power shortage.

1-3 An Important Note to Users

• All images and layouts shown in this user's guide are based upon the latest

PCB Revision available at the time of publishing. The card you have received

may or may not look exactly the same as the graphics shown in this manual.

1-2

Add-on Card User's Guide

Notes

2-1

Safety Information and Technical Speciﬁcations

10987654321

U7 U15 U14U13

U12

U10

Chapter 2

Add-on Card Components

2-1 Front Connectors, Jumpers, and LEDs

Components

1. LAN Connector Ports

2. LAN Port LEDs

3. J2 Jumper: Wake on LAN

PLX PCI-e

switch 8518

Port A

Port B

Port C

Port D

Dual Port 82571

LAN Chip

Activity LED

Status LED

2-2

Add-on Card User's Guide

2-2 Front Connector and Jumper Deﬁnitions

1. LAN ports

LAN ports allow the Add-on card to connect to

a maximum of four network cables. These are

RJ45 connectors. Each LAN port provides up

to one gigabit per second connection speed

which require CAT6 cables for maximum

throughput.

The ports are designated port A, port B, port

C, and port D.

2. LAN Port LEDs

Each LAN port includes two LEDs: Activity

and Status (link).

GLAN

Activity LED

Color Status Deﬁnition

Amber Flashing Active

GLAN

Link LED

Color Status Deﬁnition

None Off No connectivity (or

10 Mbps

Green On 100 Mbps

Orange On 1 Gbps

Table des matières

Autres manuels Supero Matériel informatique

Supero

Supero Supero SMT IPMI Manuel utilisateur

Supero

Supero AOC-CGP-i2 Manuel utilisateur

Supero

Supero AOC-SIMLC Manuel utilisateur

Supero

Supero SAS-216A Manuel utilisateur

Supero

Supero SAS2-836EL Manuel utilisateur

Supero

Supero Supero SAS-836TQ Manuel utilisateur

Supero

Supero BPN-SAS2-216EL1 Manuel utilisateur

Supero

Supero Supero SAS 846 TQ BACKPLANE Manuel utilisateur

Supero

Supero SAS-747TQ BACKPLANE Manuel utilisateur

Supero

Supero CSE-PTJBOD-CB3 Manuel utilisateur

Supero

Supero Supero SAS-826A Manuel utilisateur

Supero

Supero SAS 808TQ Manuel utilisateur

Supero

Supero SAS-827B Manuel utilisateur

Supero

Supero BPN-SAS3-213A Manuel utilisateur

Supero

Supero Supero SAS-846A Manuel utilisateur

Supero

Supero Supero BPN-SATA-933 BACKPLANE Manuel utilisateur

Supero

Supero AOC-SGP-i4 Manuel utilisateur

Supero

Supero AOC-1UIPMI-B Manuel utilisateur

Supero

Supero BPN-SAS3-217HD Backplane Manuel utilisateur

Supero

Supero AOC-USAS-S4ir Manuel utilisateur

Supero

Supero AOC-SIMLC-HTC Manuel utilisateur

Supero

Supero SAS 828TQ BACKPLANE Manuel utilisateur

Supero

Supero Supero SAS2-847EL BACKPLANE Manuel utilisateur

Supero

Supero Supero SAS-846EL Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
