Chapter 1: Introduction

Table of Contents

Chapter I: Introduction.............................................................................1-4

1.1 Overview.................................................................................................... 1-4

1.2 IPMI Version 2.0 ........................................................................................ 1-5

1.3 Product Features ...................................................................................... 1-5

1.4 Checklist ................................................................................................... 1-5

1.5 An Important Note to the User................................................................ 1-5

1.6 Contacting Supermicro............................................................................ 1-6

Chapter 2: Technical Specications and Hardware Installation.......... 2-1

2.1 The Conguration of the AOC-SIMSO/SIMSO+ & the AOC-USB2RJ45....

......................................................................................................................... 2-1

2.2 AOC-SIMSO/SIMSO+ Connector and Jumper Locations .................... 2-2

2.2.1 Front Components on the AOC-SIMSO(+).............................................. 2-2

2.2.2 The Dedicated LAN LED on the AOC-USB2RJ45.................................. 2-2

 2.2.3ConnectorDescriptionsandPinDenitions............................................ 2-3

 2.2.4LEDDescriptionsandPinDenitions ..................................................... 2-4

2.2.5 Rear Components on the AOC-SIMSO(+) .............................................. 2-5

2.3 Block Diagram .......................................................................................... 2-6

2.4 Installing the AOC-SIMSO(+) ................................................................... 2-7

2.4.1 Safety Guidelines .................................................................................... 2-7

2.4.2 SIMSO Slot Locations ............................................................................. 2-8

Chapter 3: Software Application and Usage ..........................................3-1

3.1 Home Page ................................................................................................ 3-3

3.2 Functions Listed On the Home Page ..................................................... 3-5

3.2.1 Remote Control ....................................................................................... 3-5

3.2.2 Virtual Media............................................................................................ 3-7

3.2.3 System Health ........................................................................................3-11

3.2.4 User Management ................................................................................. 3-17

3.2.5 KVM Settings......................................................................................... 3-21

3.2.6 Device Settings...................................................................................... 3-25

3.2.7 Maintenance .......................................................................................... 3-38

3.3 Remote Console Main Page .................................................................. 3-42

3.3.1 Remote Console Options ...................................................................... 3-43

Chapter 4: Frequently Asked Questions ................................................4-1

AOC-SIMSO/SIMSO+ User's Guide

1-4

Chapter 1

Introduction

This user's guide is written for system integrators, PC technicians and

knowledgeable PC users who intend to integrate Supermicro's unique IPMI 2.0

Management Utility with support of KVM-over-LAN (*) into their systems. It pro-

vides detailed information for the application and use of the AOC-SIMSO/SIMSO+

that supports remote access for system monitoring, diagnosis and management.

With the most advanced technologies built-in, the AOC-SIMSO/SIMSO+ offers a

complete,efcient,andcost-effectiveremoteservermanagement. 

(Note: KVM-over-LAN is only for the AOC-SIMSO+ only.)

1.1 Overview

TheAOC-SIMSO/SIMSO+isahighlyefcient,highlycompatibleandeasy-to-use

IPMI card that allows the user to take advantage of the BMC, a baseboard man-

agement controller installed on a server motherboard and the IPMIView, an IPMI-

compliant management application software loaded in a PC, to provide serial links

between the main processor and other system components, allowing for network

interfacing via remote access. With an independent Raritan KIRA100 processor

built-in, the AOC-SIMSO/SIMSO+ provides the user with a solution to ease the

complex and expensive systems, allowing an administrator to access, monitor,

diagnose and manage network interfacing anywhere, anytime.

1.2 IPMI Version 2.0

The AOC-SIMSO/SIMSO+ supports the functionality of IPMI Version 2.0. The key

features include the following:

• Supports IPMI 2.0

• Supports Serial over LAN

• Supports KVM over LAN (For the AOC-SIMSO+ only)

• Supports LAN Alerting-SNMP Trap

• Supports Event Log

• Offers OS (Operating System) Independency

• Provides remote Hardware Health Monitoring via IPMI. Key features include

the following:

• Temperature monitoring

• Fan speed monitoring

• Voltage monitoring

• Power status monitoring, chassis intrusion monitoring

• Remote power control to power-on, power-off or reboot a system

1-5

Chapter 1: Introduction

• Remote access to text-based, graphic-based system information,

includingBIOScongurationsandOSoperationinformation(KVM)

• Remote management of utility/software applications

• Provides Network Management Security via remote access/console redirec-

tion. Key features include:

• User authentication enhancement

• Encryptionsupportenhancement,allowingforpasswordcongura-

tion security to protect sensitive data transferring via Serial over

LAN

• Supports the following Management tools: IPMIView, CLI (Command Line

Interface)

• Supports RMCP & RMCP protocols

1.3 Product Features

(a) The AOC-SIMSO/SIMSO+ Series: (IPMI 2.0 with a Dedicated

LAN)

• Minisize(2.65"Wx1.75"H)(67.31mmWx44.45mmH)

• SupportsIPMIoverLAN

• Supports1Uandabove

• SupportsdedicatedLAN

1.4 Checklist

If your shipping package came with missing or damaged parts, please contact

Supermicro's Tech. Support. Please refer to the following checklist when

contacting us.

i. AOC-SIMSO/SIMSO+:

ii. The SKT-0240L Kit (The SKT-0240L kit is included in the AOC-SIMSO+ shipping

packageOnly.TheSKT-0240Lkitcontainsfull-sizeandlowproleI/Obackplates,

a USB2RJ45 add-on card, and a CBL-0165L cable.)

iii. CDR-SIMIPMI: One Installation CD

iv. White Box with Correct Barcode Label (showing AOC-SIMSO/SIMSO+).

1.5 An Important Note to the User

The graphics shown in this user's guide were based on the latest PCB Revision

available at the time of publishing of this guide. The SIMSO/SIMSO+ card you’ve

received may or may not look exactly the same as the graphics shown in this

user's guide.

AOC-SIMSO/SIMSO+ User's Guide

1-6

1.6 Contacting Supermicro

Headquarters

Address: SuperMicro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Informaion)

[email protected] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: SuperMicro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Asia-Pacic

Address: SuperMicro, Taiwan

4F, No. 232-1 Liancheng Road

Chung-Ho Dist., New Taipei City 235

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Email: [email protected] (Technical Support)

Tel: +886-(2) 8226-5990 (Technical Support)

2-1

Chapter 2: Technical Specications and Installation

Chapter 2

Technical Specications and Hardware

Installation

2.1 Conguring the AOC-SIMSO/SIMSO+ and the AOC-

USB2RJ45 Add-On Cards

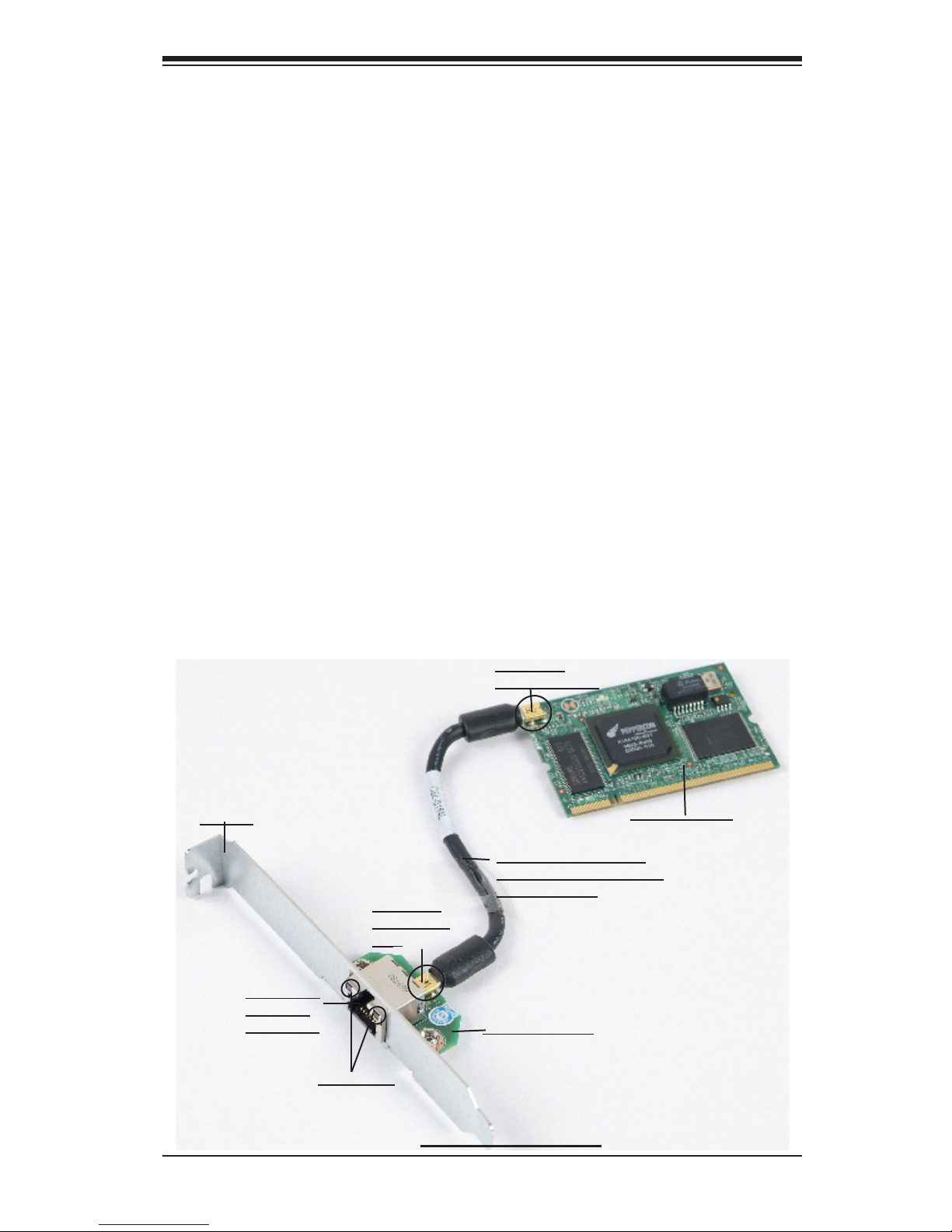

The AOC-SIMSO/SIMSO+ Add-On Card is connected to a Dedicated LAN Ethernet

port located on the AOC-USB2RJ45 Add-On Card via an SMC Proprietary cable

(CBL-0165L) for External LAN access. One end of the CBL-0165L cable is con-

nected to the mini USB connector (J1) located on the AOC-SIMSO(+) card and the

other end to that of the AOC-USB2RJ45 card. There are two LEDs located on the

LAN port to indicate network links and activities. Refer to the picture below for the

conguration.

Note 1: You can also use LAN1 on the motherboard if you do not need the dedicated

LAN support. However, dedicated LAN is recommended for better graphic support

when the KVM feature is used.

Note 2: For dedicated LAN to work properly, Cable CBL-177L is required for a moth-

erboard with a SIMSO IPMI module that is located far from the back plate of the

chassis.Refertothemotherboardspecications on our website. (The CBL-177L

cable is to be purchased separately from Supermicro.)

Note 3:TheSKT-0240Lkitcontainsfull-sizeandlowproleI/Obackplates,aUSB

2RJ45 add-on card, and a CBL-0165L cable The SKT-0240L Kit is included in the

SIMSO+ shipping package only.

AOC-SIMSO(+)

CBL-0165L Cable, or

CBL-0177L Cable* (See

Note 2 above.)

AOC-USB2RJ45

Dedicated

Ethernet

(LAN) Port

Mini USB

Connector (J1)

Mini USB

Connector

(J1)

Bracket

LAN LEDs

The SKT-0240L Kit

AOC-SIMSO/SIMSO+ User's Guide

2-2

2.2 AOC-SIMSO/SIMSO+ Connector and Jumper

Locations

Front View

2.2.1 Front Components on the AOC-SIMSO(+)

1. Raritan's Kira 100 RISC System on Chip

2. Firmware with Linux System & Boot ROM

3. Transformer

4. SDRAM (128Mb/133MHz)

5. J1: Mini USB 9-pin Connector (Note)

6. JBT1: Kira 100 Processor Reset (Note)

7. D1: Heartbeat Activity LED Indicator (Note)

2.2.2 The Dedicated LAN LED Indicators on the AOC-USB2RJ45

8. LAN LEDs (Note)

(Note: See Pg. 2-3, 2-4 for details)

2-3

Chapter 2: Technical Specications and Installation

#5 (J1) Mini Universal Serial Bus (USB)

Connector

There is a mini USB connector (J1) located on the

AOC-SIMSO/SIMSO+ and another mini USB con-

nector is located on the AOC-USB2RJ45. Use Cable

CBL-0165L or CBL-0177L (*) to connect the two mini

USB connectors on both add-on cards for external

LAN access. Refer to Page 2-1 for details. See the

tableatrightforthepindenitions.

Refer to Note 2 on Page 2-1.

2.2.3 Connector Descriptions and Pin Denitions

Mini USB

Connector

AOC-USB2RJ45

Mini USB Pin Denitions

(J1)

Pin#Denition

1 Eth-TX_H

2 Eth-TX_L

3 Phy-100

4 Eth-RX_L

5 Eth-RX_H

6 Phy-ACT

7 Det.icated LAN-

Detected

8 3V-duall

9 Ground

#6 (JBT1) RISC CPU Reset

JBT1 is used to reset the Kira 100 Processor, NIC,

UART, USB and R.T. Instead of pins, this "jumper"

consists of contact pads to prevent the accidental

reset. Use a metal object such as a small screwdriver

to touch both pads at the same time to short the

connection. After a reset or AC power-on, the AOC-

SIMSO(+) will automatically detect if a CBL-0165L

cable is connected. If a cable is not detected, the

AOC-SIMSO(+) will transfer the "Remote Control"

Function to LAN1 on the motherboard. If a cable is

detected, the AOC-SIMSO(+) will use the dedicated

LAN on the card to manage motherboard activities

via Remote Console.

(Note: The SKT-0240L is included in the SIMSO+

shipping package.)

AOC-SIMSO(+)

CBL-0165L Cable or

CBL-0177L Cable* (See

Note 2 on Page 2-1)

The SKT-0240L (Note Below)

AOC-SIMSO/SIMSO+ User's Guide

2-4

Link LED

2.2.4 LED Descriptions and Pin Denitions

#7 (D1) Heartbeat LED Indicator

Heartbeat LED (D1), located on the front

side of the AOC-SIMSO(+) card, indicates

the functionality and activity of the add-on

card. The blinking of the Heartbeat LED

indicates that the AOC-SIMSO(+) is ac-

tive. However, when the Linux OS and

the drivers are being loaded after each

AC power-on or reset, the Heartbeat

LED is off for about a minute. Then, the

Heartbeat LED will be on again to indicate

that the AOC-SIMSO(+) is active. See the

table on the right for details.

Heartbeat LED (D1)

On (Blinking) SIMSO(+): active

Off (for 1

minute)

Loading Firmware

Off (Continu-

ously)

SIMSO is not active

Activity

LED

GLAN Link Indicator

LEDColorDenition

Off No Connection or 10 Mbps

Green 100 Mbps

GLAN Activity Indicator

ColorStatusDenition

Amber Flashing Active

#8 Dedicated LAN LED Indicators

There are two LAN LED Indicators located

on the (Dedicated) LAN port on the AOC-

USB2RJ45 Add-On Card. The green LED

indicates activity, while the power LED

may be green or off to indicate the speed

of the Ethernet connection. See the tables

on the right for more information.

Table des matières

Autres manuels Supero Matériel informatique

Supero

Supero AOC-SIM1U Add-on Card Manuel utilisateur

Supero

Supero AOC-CIBQ-M1 Manuel utilisateur

Supero

Supero Supero SAS-826A Manuel utilisateur

Supero

Supero BPN-SAS3-213A Manuel utilisateur

Supero

Supero CSE-PTJBOD-CB3 Manuel utilisateur

Supero

Supero BPN-SAS2-216EL1 Manuel utilisateur

Supero

Supero SAS-827B Manuel utilisateur

Supero

Supero X10DGO-T Manuel utilisateur

Supero

Supero AOC-CGP-i2 Manuel utilisateur

Supero

Supero AOC-1UIPMI-B Manuel utilisateur

Supero

Supero BPN-EXP-847DR1EL1 Manuel utilisateur

Supero

Supero AOC-USAS-L4i Manuel utilisateur

Supero

Supero CSE-SATA-813L Manuel utilisateur

Supero

Supero SAS-747TQ BACKPLANE Manuel utilisateur

Supero

Supero SAS-216EL1/EL2 Manuel utilisateur

Supero

Supero AOC-UG-i4 Manuel utilisateur

Supero

Supero Supero BPN-SAS-823TQ Manuel utilisateur

Supero

Supero Supero SAS 815TQ Manuel utilisateur

Supero

Supero AOC-USAS-S4ir Manuel utilisateur

Supero

Supero SAS 828TQ BACKPLANE Manuel utilisateur

Supero

Supero AOC-SIMLC-HTC Manuel utilisateur

Supero

Supero SAS 933TQ Manuel utilisateur

Supero

Supero Supero SAS2-847EL BACKPLANE Manuel utilisateur

Supero

Supero Supero SAS 846 TQ BACKPLANE Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
