StarTech.com SV1654DX4I Manuel utilisateur

Matrix IP KVM Switch

4 Digital User 16/32 Port Cat 5 Matrix

IP KVM Switch

SV1654DX4I

SV3254DX4I

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Table of Contents

Installation....................................................................... 1

Package Contents .......................................................................1

Required Cables and Hardware .................................................1

Hardware Installation...................................................................1

Conﬁguration .................................................................. 3

Using the On-Screen Display .....................................................3

Using DHCP ................................................................................5

Web Conﬁguration Using Static IP ..............................................6

Connecting the Host Computer to the Unit .................................8

Disabling Mouse Acceleration on the Host Computer ................8

Connecting the SV5CONS Remote User Station (Optional).......9

Using the Web Interface ................................................. 10

The Login Screen ........................................................................11

Web Interface Introduction...........................................................12

Home.......................................................................................12

Thumbnails..............................................................................15

User Preferences.....................................................................15

Logout .....................................................................................15

File Transfer .............................................................................15

VNC.............................................................................................18

Network Conﬁg........................................................................19

User Accounts .........................................................................21

System Ident ...........................................................................22

Security ...................................................................................24

Compatibility............................................................................24

SNMP ......................................................................................25

RADIUS...................................................................................25

Modem ....................................................................................26

Time/Date................................................................................26

Firmware .................................................................................26

Info Functions ..............................................................................28

Status ......................................................................................28

Port Numbers ..........................................................................28

Help Menu ...............................................................................30

The VNC Interface .......................................................... 30

Native VNC Client........................................................................31

Bribar Feature .............................................................................32

VirtKeys Menu .............................................................................38

Video Tuning Menu......................................................................39

Disk Control Menu.......................................................................44

Accessing KVM Features .............................................. 45

OSD Operations ..........................................................................45

OSD Function Keys ....................................................................46

Using the Modem feature .............................................. 47

Background ................................................................................47

Connecting a Modem .................................................................48

Modem conﬁguration ..................................................................49

Conﬁguring the Remote Connection ..........................................50

Accessing the Web Interface ......................................................51

iii

Modem Troubleshooting Guide ...................................................53

About Security Certiﬁcate Warnings ...........................................53

Installing the new certiﬁcate ........................................................54

Built-in Terminal Emulation ............................................ 56

How to ﬁnd the Built-in Terminal Emulator...................................56

Navigating the Menus..................................................................56

How to create a New Connection (Using the Wizard) .................57

Troubleshooting ............................................................. 61

Serial Interface Pinout .................................................... 63

Technical Speciﬁcations ................................................ 64

Caution ............................................................................ 65

Technical Support........................................................... 66

Warranty Information...................................................... 66

Installation

Package Contents

This package should contain:

1 x CAT5 Multi-user KVM•

1 x Power Cord•

1 x Rack Mounting Hardware•

1 x Instruction Manual•

Required Cables and Hardware

Depending on your needs, you may need one or more of the following

cables. Please note that the corresponding StarTech.com part numbers

are listed in brackets:

All applications:

For connection to a LAN: 1 x Straight-through Ethernet patch cable

(M45PATCHxxxx)

DB9F to RJ45F Adapter (GC98FF, GC98MF)

PS/2 Server Interface Module for Enterprise Series (SV5PS2M)

USB Server Interface Module for Enterprise Series (SV5USBM)

Hardware Installation

To connect the KVM Remote Control Unit to the Host Computer and

Network:

Using a Category 5 Ethernet patch cable, connect the LAN connector1.

on the rear panel of the SVxx54DX4I to a network data jack (usually

on a hub, switch, router, or pre-wired wall jack).

Connect a standard PS/2 or USB keyboard to the Local Keyboard port2.

on the rear panel of the SVxx54DX4I.

Connect a standard PS/2 or USB mouse to the Local Mouse port on3.

the rear panel of the SVxx54DX4I.

Connect an XGA-compliant (or higher) monitor to the Video Out port4.

on the front panel of SVxx54DX4I.

Connect the power cord (provided) to an available electrical outlet.Plug5.

the opposite end of the power cord into the AC power connector on the

rear of the unit.

Power up the KVM.6.

IMPORTANT: SVxx54DX4I is cooled by fans and convection. As such,

please ensure the vents on both sides as well as the rear panel are

unobstructed.

Conguration

SVxx54DX4I offers four distinct methods for conﬁguring the unit for

your network. Which method will work best will depend on your level of

experience and your speciﬁc network conﬁguration.

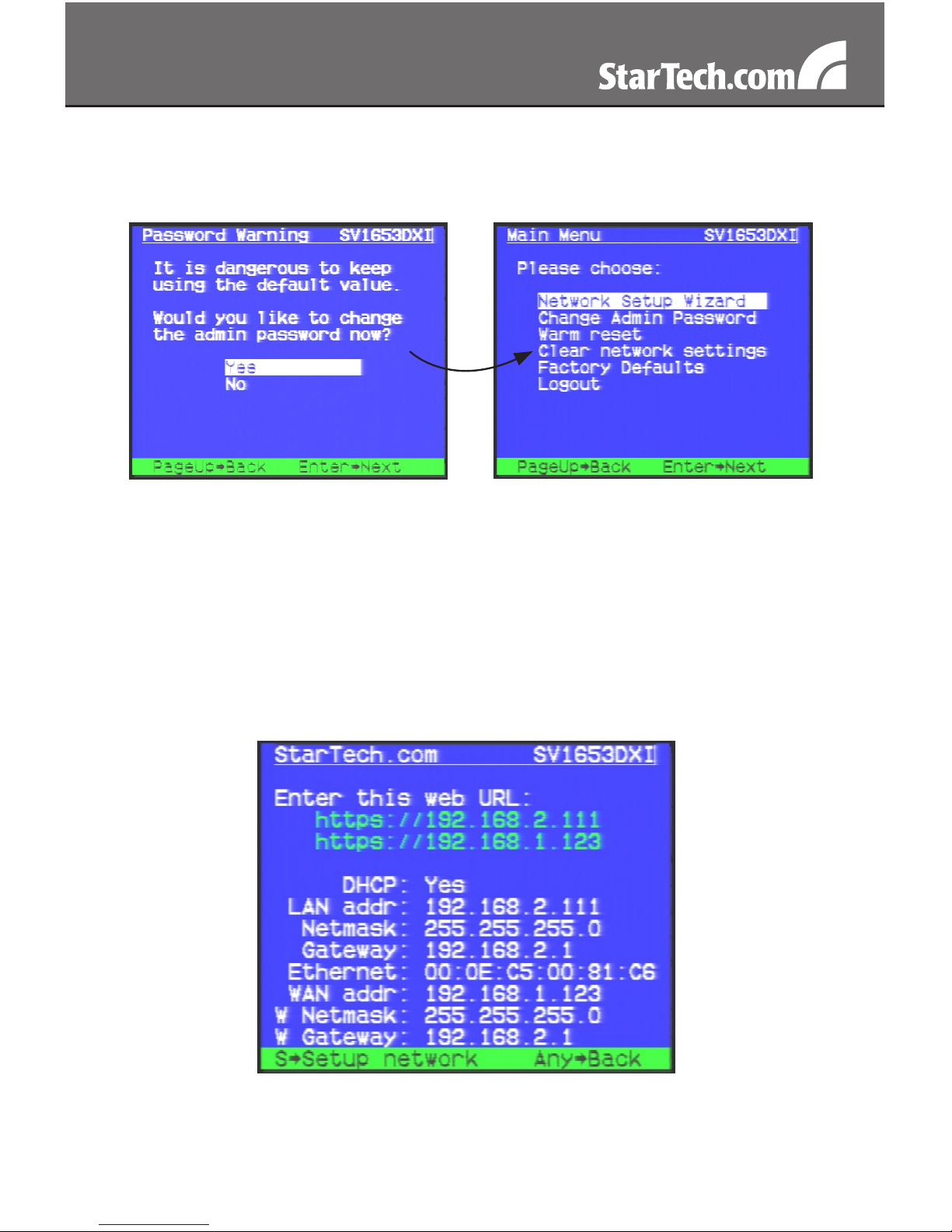

Using the On-Screen Display

Upon initial boot, you will require an administrative username and

password. By default, the username and password are both: admin. You

will be given the opportunity to change the password (recommended),

once the conﬁguration is complete.

The DHCP assigned IP Address will be visible at this time, at the bottom

of the screen. If no DHCP server is detected, a factory assigned IP

address will be displayed in its place (10.0.0.15 by default). Please make

note of the assigned IP address, as you will need to enter it into your

web browser to access the Web Interface.

Once the username and password (admin, admin) have been entered,

a status window will appear. Press “I” to proceed to the Main Menu

screen.You will be asked if you wish to change the default password.

Select Ye s or No as appropriate, then press Enter to continue. If no

DHCP connection is present, press the Setup button on the rear panel of

SVxx54DX4I to display the Main Menu screen, where you will be given

several basic setup options:

If static IP addresses are assigned, you will likely need to change the

Net Mask, IP Address and other details, prior to connecting via your Web

browser. If this is the case, connect a local keyboard (USB or PS/2) and

press the Enter key.

To conﬁgure SVxx54DX4I to your required network settings, use the

Network Setup Wizard. To select from the menus provided, use the

arrow keys on your keyboard. At any time, you can return to the previous

menu by pressing the Page Up key.

Using DHCP

This method requires that your network implement DHCP (Dynamic Host

Conﬁguration Protocol), usually on a server or network access device

such as a router, that dynamically allows devices to join the network

without pre-conﬁguration.

If the unit is powered on and connected to the network via LAN port on

the rear panel, it will automatically attempt to lease an IP address using

DHCP. Before you can begin the conﬁguration process, you will need to

access the DHCP log from your ﬁle server or another device that acts

as the DHCP server on the network. (You may need to contact your

Network Administrator for this information).

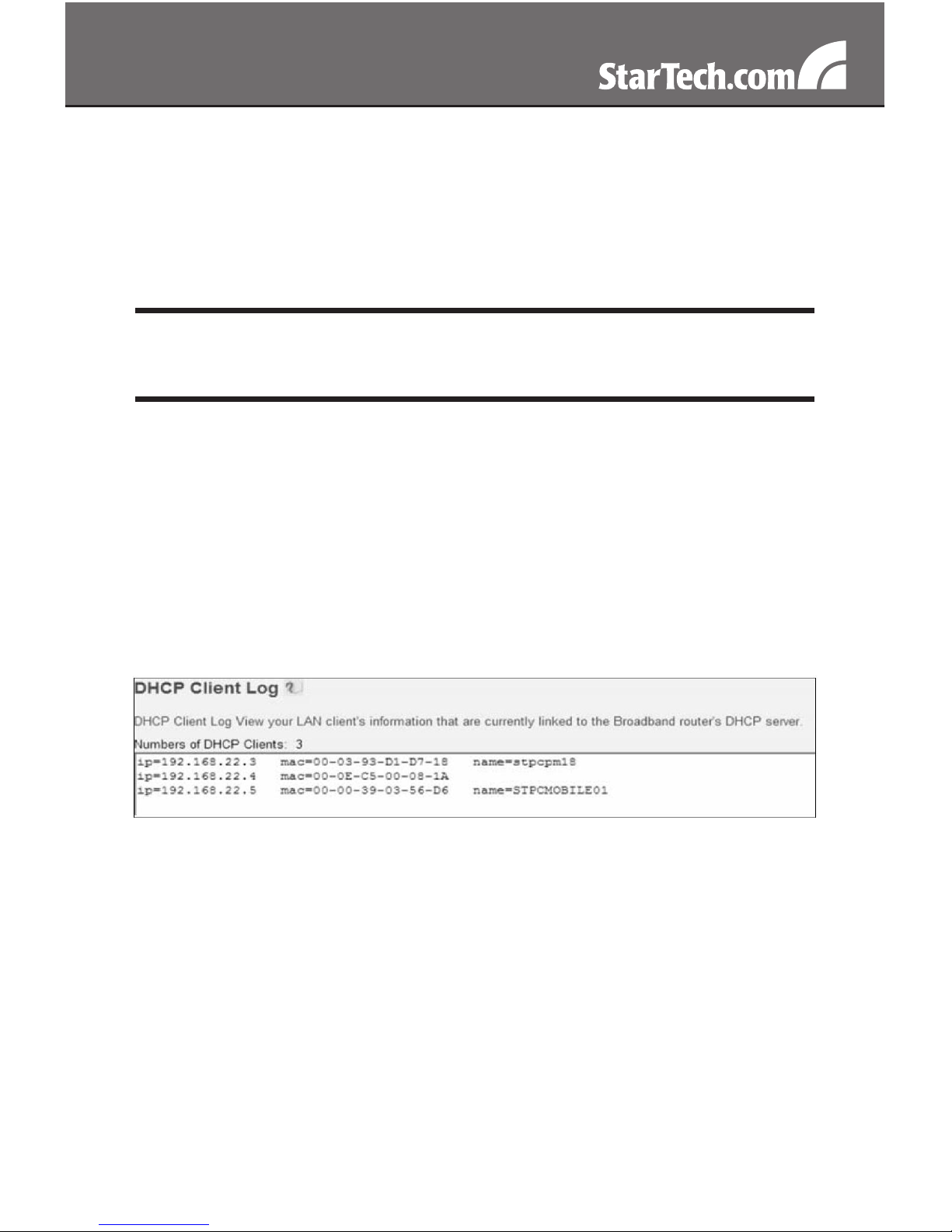

A simple DHCP log should supply (at minimum) three essential details:

IP address, MAC address, and device (or machine) name for the

computers and other devices connected to your network.

The values for the SVxx54DX4I tested above are as follows:

IP Address: 192.168.22.4

MAC Address: 00-0E-C5-00-08-1A

Device Name: (none)

The easiest way to identify your SVxx54DX4I on the network is by its

MAC address - a unique hardware identiﬁer that is speciﬁc to your unit.

The MAC address of the unit can be found using the OSD setup screen;

Please note: The OSD will report the IP address as assigned by the DHCP

server. If you have a directly connected monitor, the following steps are

not required.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels StarTech.com Changer

StarTech.com

StarTech.com DisplayPort MSTDP124DP Manuel utilisateur

StarTech.com

StarTech.com SV231HU34K6 Manuel utilisateur

StarTech.com

StarTech.com VS424HDPIP Manuel utilisateur

StarTech.com

StarTech.com IES51000POE Manuel du système

StarTech.com

StarTech.com PDU08C13GB Manuel utilisateur

StarTech.com

StarTech.com RACKCONS17HD Manuel utilisateur

StarTech.com

StarTech.com SV431DPUA2 Manuel utilisateur

StarTech.com

StarTech.com SV231USBA Manuel utilisateur

StarTech.com

StarTech.com VS410DVIR Manuel utilisateur

StarTech.com

StarTech.com RS24102V Manuel utilisateur

StarTech.com

StarTech.com 5port Manuel du système

StarTech.com

StarTech.com MSTCDP122DP Manuel utilisateur

StarTech.com

StarTech.com 5G4AIBS-USB-HUB-NA Manuel utilisateur

StarTech.com

StarTech.com C2-DH46-UA2-CBL-KVM Manuel utilisateur

StarTech.com

StarTech.com MSTCDP123HD Manuel utilisateur

StarTech.com

StarTech.com ST7202USB Manuel utilisateur

StarTech.com

StarTech.com VS420RDVIA Manuel utilisateur

StarTech.com

StarTech.com SV841HDI Manuel utilisateur

StarTech.com

StarTech.com VS221HD4KA Manuel utilisateur

StarTech.com

StarTech.com STARVIEW SV431DVIUAHR Manuel utilisateur

StarTech.com

StarTech.com IES101002SFP Manuel utilisateur

StarTech.com

StarTech.com VS221HD4KA Manuel utilisateur

StarTech.com

StarTech.com WIFI2HDVGA Manuel utilisateur

StarTech.com

StarTech.com SV431DPU3A2 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
