StarTech.com POEEXT2GAT Manuel utilisateur

Manual Revision: 09/28/2016

For the latest information, technical specications, and support for

this product, please visit www.startech.com/POEEXT2GAT.

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

POEEXT2GAT

2-Port Gigabit PoE+ Extender - 802.3at and

802.3af - 100 m (330 ft)

*actual product may vary from photos

Instruction manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction manual

Table of Contents

Product diagram ....................................................................................1

Front view .................................................................................................................................................... 1

Rear view...................................................................................................................................................... 1

Introduction............................................................................................2

Packaging contents.................................................................................................................................. 2

System requirements............................................................................................................................... 2

About the extender ...............................................................................4

About power output................................................................................................................................ 4

About the ports ......................................................................................................................................... 4

Install the extender................................................................................5

Install a single extender.......................................................................................................................... 5

Install multiple extenders ...................................................................................................................... 5

Mount the extender to a surface......................................................................................................... 5

Technical support...................................................................................6

Warranty information............................................................................6

Instruction manual

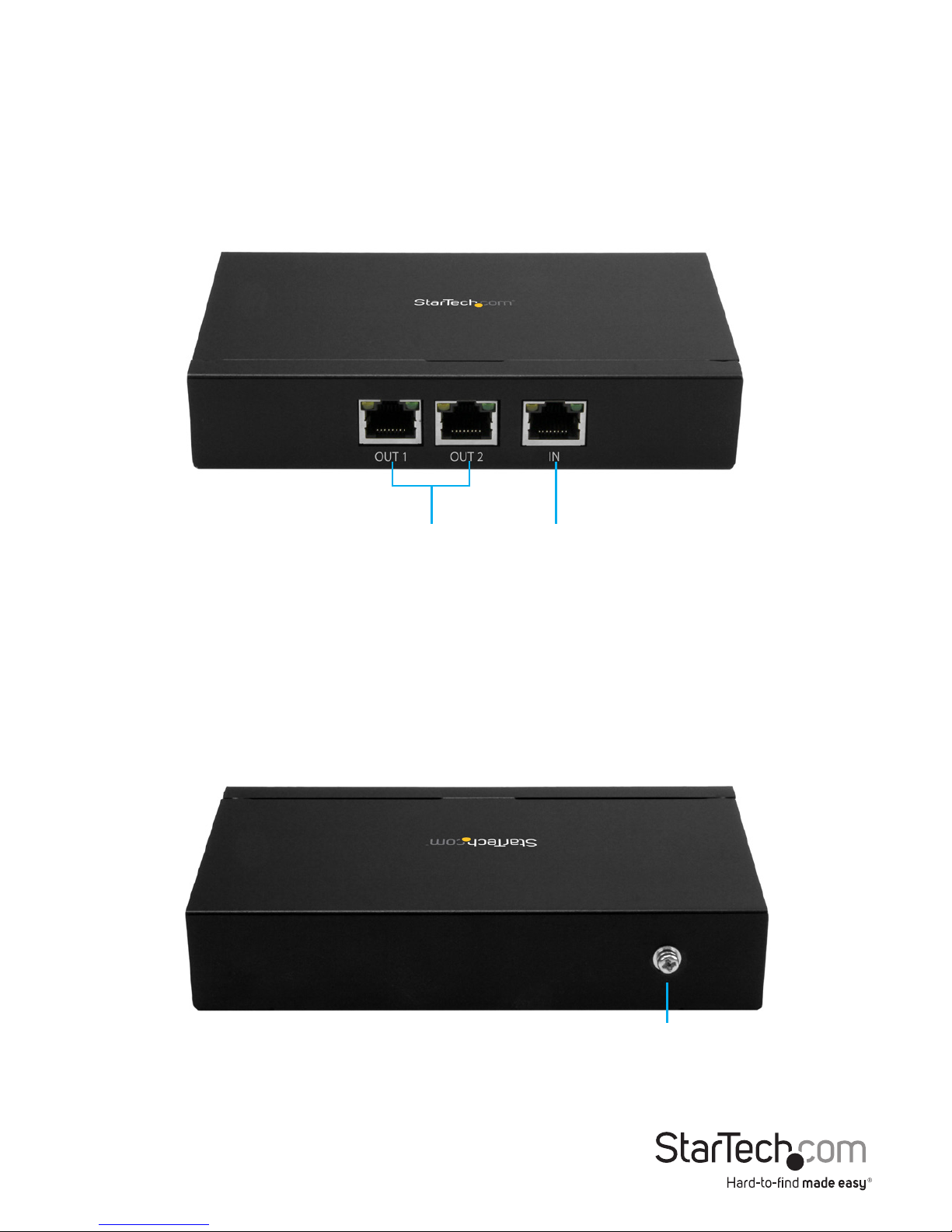

Product diagram

Front view

Rear view

PoE+

output port

(Gigabit

RJ45)

PoE+ input

port

(Gigabit

RJ45)

Grounding

point

Instruction manual

Introduction

This 2-port Gigabit PoE+ extender spans your Power over Ethernet (PoE) devices

over longer distances, letting you double the 100 m limitations of a traditional PoE

infrastructure. You can connect two Gigabit PoE devices up to a maximum of 200 m

(total distance) away, so it’s easy to install a remote IP camera or access point. Plus, the

extender can be daisy-chained, for more scalability.

Packaging contents

• 1 x Gigabit PoE+ Extender

• 4 x rubber feet

• 1 x quick-start guide

System requirements

• Three RJ45-terminated Cat5 or better Ethernet cables (solid UTP cable is highly

recommended)

• 10/100/1000Mbps compatible network and devices

• One or two PoE or PoE+ Powered Device(s) (PD) that comply with IEEE 802.3at or

802.3af standards (extends up to two PoE or PoE+ devices)

• One PoE or PoE+ Power Source Equipment (PSE) device that complies with IEEE

802.3at or 802.3af standards

Notes:

• Total extension distances might be shorter due to power-delivery voltage drop on

the connected cables. The maximum distances can vary based on the quality of the

UTP cables and the environment the extender is integrated into.

• To ensure optimal performance and extension distance, it’s highly recommended

that you use solid Cat5 or better ethernet cable, rather than using stranded cable.

System requirements are subject to change. For the latest requirements, please visit

www.startech.com/POEEXT2GAT.

Instruction manual

LED Behavior Status

IN (Input)

Solid

green A port link is established

Blinking

green There is network activity on the port

Solid

yellow The port has input 52-56V PoE power

OUT 1 (Output 1)

Solid

green A port link is established

Blinking

green There is network activity on the port

Solid

yellow The port is providing 52-56V DC in-line power

OUT 2 (Output 2)

Solid

green A port link is established

Blinking

green There is network activity on the port

Solid

yellow The port is providing 52-56V DC in-line power

Instruction Manual

About the extender

The extender supports 10Mbps, 100Mbps and 1000Mbps (Gigabit) network speeds

and will automatically detect the speed of the incoming connection.

The extender should be installed between the PSE (Power Source Equipment) and

the PD (Powered Device). It is powered by the PSE and forwards the Ethernet data

and remaining PoE power to the PDs. The PoE extender does not require an external

power supply and will inject power to the PDs without aecting data transmission

throughput.

Once connected, each cable segment is limited to 100 m, when used with standard

RJ45 terminated Cat5 or better Ethernet cable. Any other non-standard cable, or

distances greater than 100 m, might result in unstable connections.

About power output

The extender accepts 30 watts of power input, with up to 23 watts of power output

shared between the two PoE output ports. It converts IEEE 802.3at 30 watt input to

IEEE 802.3af/at 23 watt output, over a maximum of 100 meters in distance.

Each extender requires approximately 2.5 watts to power the extender itself.

• Check the total power consumption of your devices and the extender(s) before

installation. If the overall power consumption is overloaded, the local PSE might

shut down the entire power system.

Note: The amount of available wattage depends on the number of extenders used, the

number of PDs connected, and the power draw of each of your connected PDs.

About the ports

The extender features three RJ45 ports. The IN port functions as PoE input (data plus

power). The OUT ports function as PoE output (data plus power).

Port Function

IN (Input) Connects to your Power Sourcing Equipment (PSE) (for

example, a PoE injector, or PoE switch)

OUT 1 and OUT

2(Output 1 and

Output 2)

Connects to your PoE Powered Devices (PD) (for example, a

PoE camera, or PoE wireless access point)

Instruction Manual

Install the extender

The extender can be integrated into your PoE network infrastructure as a single unit, or

you can use multiple units in a daisy-chain conguration.

Install a single extender

1. Use RJ45 cable to connect your Power Sourcing Equipment (PSE) device to the

extender’s IN port.

2. Use RJ45 cables to connect your Powered Device(s) (PD) to the extender’s OUT

port(s).

Note: According to the IEEE 802.3at and IEEE 802.3af standards, the extender won’t

inject power to the connected RJ45 cable if it isn’t connected to PoE device that meets

the IEEE 802.3at or 802.3af standard.

Install multiple extenders

Each extender requires approximately 2.5 watts to power the extender itself. Check the

total power consumption of your devices and the extender(s) before installation. If the

overall power consumption is overloaded, the local PSE might shut down the entire

power system.

1. Use RJ45 cable to connect one of the rst extender’s OUT port to a second

extender’s IN port.

2. Use RJ45 cable to connect your remote PoE powered device (PD) to one of the OUT

ports on the second extender, or to the last extender in the chain.

Optional: To daisy chain additional extender units, use RJ45 cable to connect one of

the second extender’s OUT port to a third extender’s IN port. Continue this pattern as

needed to include all extender units.

Note: You can daisy chain up to four extenders to a maximum distance of 500 m.

The amount of available wattage depends on the number, and power draw of the

connected PoE PDs.

Mount the extender to a surface

The extender features two built-in surface-mounting holes on the bottom of the unit.

The mounting holes let you install the extender on a surface (for example, a wall, or a

desk).

To mount the extender, do the following:

1. Secure two screws to your desired surface. Ensure the screw spacing matches the

spacing between the mounting holes on the bottom of the extender.

2. Mount the extender to the surface, placing the extender’s mounting holes over the

screws from step 1.

Instruction manual

Technical support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship

for the periods noted, following the initial date of purchase. During this period,

the products may be returned for repair, or replacement with equivalent

products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Table des matières

Autres manuels StarTech.com Changer

StarTech.com

StarTech.com 8STICUSB23216FD Manuel utilisateur

StarTech.com

StarTech.com CAB831HDU Manuel utilisateur

StarTech.com

StarTech.com MSTMDP123DP Manuel utilisateur

StarTech.com

StarTech.com C2-DH46-UA2-CBL-KVM Manuel utilisateur

StarTech.com

StarTech.com VS410RVGAA Manuel utilisateur

StarTech.com

StarTech.com STARVIEW SV1631DUSB Manuel utilisateur

StarTech.com

StarTech.com SV431USBDDM Manuel utilisateur

StarTech.com

StarTech.com D86A2-2-PORT-8K-KVM Manuel utilisateur

StarTech.com

StarTech.com SV211USB Manuel utilisateur

StarTech.com

StarTech.com HB30C3A1CST Manuel utilisateur

StarTech.com

StarTech.com HB30A3A1CST Manuel utilisateur

StarTech.com

StarTech.com SV231DPDDUA2 Manuel utilisateur

StarTech.com

StarTech.com ST4200USBM Manuel utilisateur

StarTech.com

StarTech.com MSTDP122DP Manuel utilisateur

StarTech.com

StarTech.com SV431DPUA2 Manuel utilisateur

StarTech.com

StarTech.com MSTCDP123HD Manuel utilisateur

StarTech.com

StarTech.com SV231HU34K6 Manuel utilisateur

StarTech.com

StarTech.com SV231DVGAU2A Manuel utilisateur

StarTech.com

StarTech.com ICUSB2328 Manuel utilisateur

StarTech.com

StarTech.com ST122VGA Manuel du système

StarTech.com

StarTech.com ST7CU35122 Manuel utilisateur

StarTech.com

StarTech.com SV211KDVI Manuel utilisateur

StarTech.com

StarTech.com SV831DUSBAU Manuel utilisateur

StarTech.com

StarTech.com SV231DVIUAHR Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
