StarTech.com IES101G2SFPW Manuel utilisateur

Manual Revision: 01/17/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/IES101G2SFPW.

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

IES101G2SFPW

8-Port Gigabit Ethernet Switch with 2

SFP Connections - Managed

*actual product may vary from photos

Quick-start guide

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Quick-start guide

Table of Contents

Introduction............................................................................................1

Product diagram........................................................................................................................................ 1

Package contents...................................................................................................................................... 2

Requirements ............................................................................................................................................. 3

About the LED indicators......................................................................3

Insert an SFP transceiver into the switch ...........................................4

Wire the power inputs...........................................................................4

Reboot the network switch ..................................................................4

Reset to the default factory settings ..................................................5

Installation ..............................................................................................6

Install the network switch onto a wall............................................................................................... 6

Install the switch onto a magnetic surface...................................................................................... 7

Mount the switch onto a DIN rail ........................................................................................................ 8

Technical support...................................................................................9

Warranty information............................................................................9

Quick-start guide

Introduction

Use the IES101G2SFPW to add up to 10 GbE devices to your network. The

IES101G2SFPW features eight RJ45 ports, two SFP connections, and management

support.

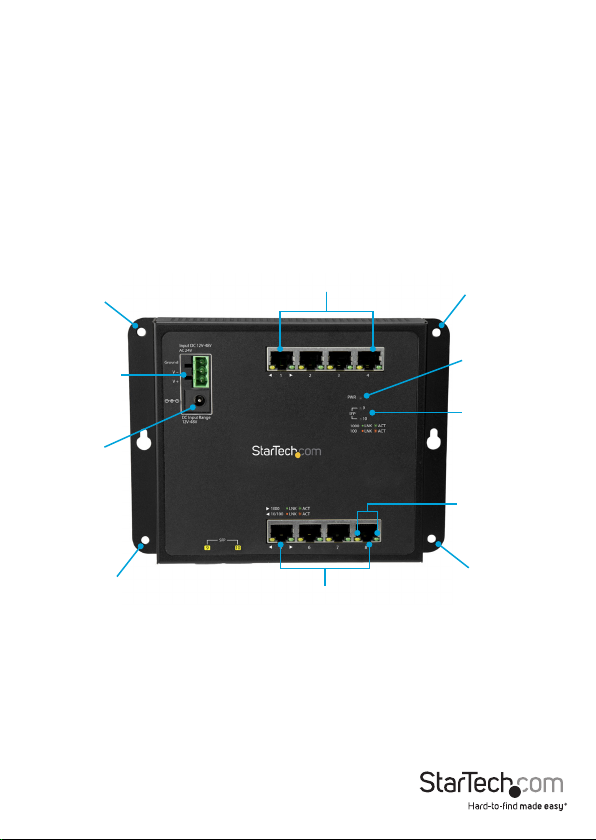

Product diagram

Front view

Mounting hole

SFP link and

activity LEDs

RJ45 link and

activity LEDs

(2 per port)

3-pin terminal

block

DC power input

RJ45 ports 1 to 4

RJ45 ports 5 to 8

Mounting hole

Power LED

Quick-start guide

Bottom view

SFP ports

(dust covers installed)

Reset button

Package contents

• 1 x network switch

• 1 x universal power adapter (NA/JP, UK, EU, ANZ)

• 1 x terminal block connector

• 4 x screw anchors

• 4 x screws

• 4 x attaching pins

• 4 x locking pins

• 4 x washers

• 4 x magnets

• 1 x DIN rail

• 3 x DIN-rail screws

• 8 x RJ45 dust caps

• 2 x SFP dust caps (ship installed)

• 1 x quick-start guide

Quick-start guide

Requirements

• Ethernet port connection

• RJ45 network cables

• SFP transceivers

This network switch is OS independent and doesn’t require any additional drivers or

software.

Requirements are subject to change. For the latest requirements, please visit

www.StarTech.com/IES101G2SFPW.

About the LED indicators

This network switch features eight RJ45 link and activity LEDs,a SFP link and activity

LEDs for the two SFP ports, and a power LED.

For more information about what the LED indicators signify, see the table below.

LED Behavior Signicance

LED indicator on the

left side of the

RJ45 ports

Illuminated yellow Link was successfully established

Blinking yellow Data is being transferred at

10/100 Mbps

LED indicator on the

right side of the

RJ45 ports

Illuminated green Link was successfully established

Blinking green Data is being transferred at

1000 Mbps

SFP link and activity

LED indicators

Illuminated yellow Link was successfully established

Blinking yellow Data is being transferred at

100 Mbps

Illuminated green Link was successfully established

Blinking green Data is being transferred at

1000 Mbps

Power LED indicator Illuminated Switch is receiving power

Quick-start guide

Insert an SFP transceiver into the switch

Inserting an SFP transceiver into the network switch is optional and isn’t required to

use the switch.

You don’t need to turn o the network switch before you can plug in and remove SFP

transceivers from the network switch.

1. Insert an SFP transceiver into one of the SFP ports on the network switch.

2. Connect an SFP cable to the SFP transceiver.

3. Check the SFP link and activity LEDs on the network switch and make sure that it’s

illuminated to indicate that the SFP transceiver was properly inserted.

To remove an SFP transceiver, check the SFP link and activity LEDs to make sure that

there isn’t any network activity in progress. Remove the SFP cable from the transceiver.

Lift up the lever on the transceiver and gently pull it out of the SFP port.

Wire the power inputs

You can use either the universal power adapter or the terminal block to power the

network switch. Alternatively, you can connect both the universal power adapter and

the terminal block to create a redundant power input.

You should use wire ranging in size of 12 to 24 AWG.

Caution! Make sure that you ground the enclosure before you install the terminal

block connector into the network switch.

1. Insert the grounding wire into the Ground port on the terminal block, and tighten

the wire clamp screws.

2. Insert the positive DC power wire into the V+ port on the terminal block connector,

and tighten the wire clamp screws.

3. Insert the negative DC power wire into the V- port on the terminal block connector,

and tighten the wire clamp screws.

4. Insert the terminal block connector into the 3-pin terminal block on the network

switch.

Reboot the network switch

The Reset button on the network switch is designed to reboot the network switch

without turning o and turning on the power.

• To reboot the network switch, press the Reset button.

Quick-start guide

Reset to the default factory settings

You can use the Reset button to reset the network switch to the following default

factory settings:

Default user name: admin

Default password: admin

Default IP address: 192.168.0.100

Subnet mask: 255.255.255.0

Default gateway: 192.168.0.254

• To reset to the default factory settings, press and hold the Reset button for more

than 5 seconds.

When you press the Reset button, the port LED indicators illuminate. When the LEDs

are no longer illuminated, the reset sequence is complete.

Quick-start guide

Installation

Install the network switch onto a wall

The mounting holes on the network switch are 8 mm in diameter, and the distance

between the two holes is 163 mm.

1. Hold the network switch against the wall in the area that you want to install it, and

use a pencil to trace the location of the four mounting holes onto the wall.

2. Use the mounting holes that you traced on the wall as a template and drill holes in

the wall.

3. Insert the four screw anchors into the holes.

Note: Make sure that the screw anchors are ush against the wall.

4. Place the network switch against the wall and insert the four screws through the

mounting holes on the switch and into the screw anchors. (gure 1)

5. Tighten the screws.

6. To power the switch, connect the universal power adapter, wire the power inputs,

or do both.

7. Connect RJ45 cables to the RJ45 ports on the network switch.

8. If necessary, insert SFP transceivers into the SFP ports on the network switch.

Screw

Screw anchor

Mounting hole

gure 1

*actual product may vary from illustration

Quick-start guide

Install the switch onto a magnetic surface

1. Push each of the attaching pins into a locking pin.

2. Insert the attaching and locking pins into one of the mounting holes on the

network switch, through a washer, and into a magnet.

Note: To prevent the magnets from becoming loose, make sure that you position the

magnet so that the at side is against the network switch.

3. Repeat step 2 for all of the mounting holes on the network switch. (gure 2)

4. Attach the network switch to a magnetic surface.

5. To power the switch, connect the universal power adapter, wire the power inputs,

or do both.

6. Connect RJ45 cables to the RJ45 ports on the enclosure.

7. If necessary, insert SFP transceivers into the SFP ports on the network switch.

Attaching pin

Locking pin

Washer

Magnet

gure 2

*actual product may vary from illustration
